ICBEAMER H3 LED Fog Light Installation and Operation Manual

Important Safety Information

This headlight product is intended strictly for OFF Road or PowerSport applications.

Prior to installation, we strongly advise consulting your local Department of Motor Vehicles (DMV) or reviewing state vehicle code regulations to ensure compliance with any applicable modification laws.

Image: Caution notice regarding off-road use and legal compliance for headlight products.

Product Overview

The ICBEAMER H3 LED Fog Lights are designed as a high-performance replacement for traditional halogen bulbs, offering enhanced illumination and durability. These 2nd generation LED bulbs feature high-performance chips engineered for a focused beam pattern.

Key Features:

• Brightness: Up to 33,000 lumens (marketing claim), with a specified light output of 7600 lumens.
• Color Temperature: Available in 6000K white and 30000K dark blue.
• Beam Pattern: Advanced beam pattern technology with a super-slim 0.03-inch profile ensures a focused beam with wide angles and extended range, minimizing dark spots and glare.
• Durability: Constructed with premium aviation aluminum and double copper base tubes for maximum heat dissipation. Features heat sink fins and a high-speed 18,000 RPM cooling fan for extended operating life.
• Compatibility: Equipped with linear decoding technology and a built-in smart IC driver, making them Canbus ready for 99% of vehicles.

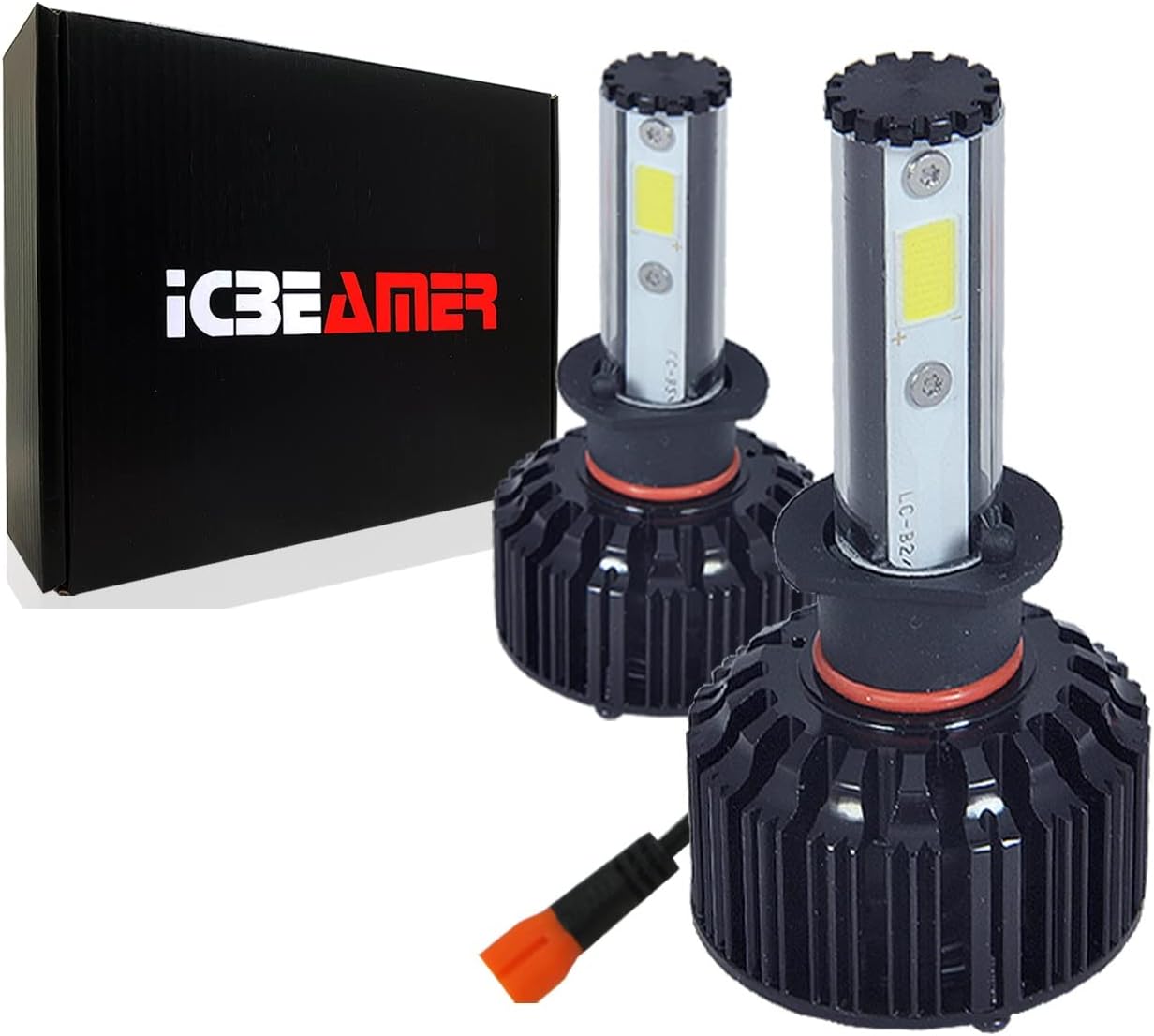

Image: The ICBEAMER H3 LED fog light bulbs and their packaging.

Image: ICBEAMER H3 LED fog light bulbs shown with included color-changing tubes and the contents of the product box.

Image: Detailed features of the COB Headlight Kit, highlighting its versatility for high beam, low beam, or fog light applications, and its long operational life.

Setup and Installation

The ICBEAMER H3 LED Fog Lights are designed for quick and straightforward installation, often completed in minutes due to their all-in-one design and 1:1 halogen size compatibility.

Installation Steps:

1. Verify Bulb Type: Before beginning, confirm that your vehicle uses H3 type bulbs. It is recommended to remove your existing bulb or consult your vehicle's manual.
2. Access Bulb Housing: Locate and access the fog light bulb housing in your vehicle. This may require removing certain components depending on your vehicle model.
3. Remove Old Bulb: Carefully remove the existing halogen bulb from its socket.
4. Install LED Bulb: Insert the ICBEAMER H3 LED bulb into the socket. Ensure it is securely seated. The compact design with a built-in driver eliminates the need for bulky bases or additional adapters.
5. Connect Wiring: Connect the LED bulb's wiring to your vehicle's power connector. Ensure a secure connection.
6. Test Functionality: Before reassembling, turn on your vehicle's fog lights to ensure the new LED bulbs are functioning correctly.
7. Change Color Tube (Optional): The bulbs come with 6000K color tubes pre-installed. To change to 30000K dark blue, carefully remove the top cap of the bulb and replace the color tube.

Image: Visual guide demonstrating the process of changing the color tube on the LED bulb.

Image: Details of the bulb's cooling fan, compact design, packaging, and a demonstration of its waterproof capability.

Operating Instructions

Once installed, the ICBEAMER H3 LED Fog Lights operate like your vehicle's standard fog lights. They provide immediate, bright illumination upon activation.

Light Output:

• The bulbs offer a choice between 6000K cool white light and 30000K dark blue light, depending on the installed color tube.
• The 6000K white light provides a crisp, clear view, significantly brighter than standard halogen bulbs.
• The 30000K dark blue light offers a distinct aesthetic and can be used for specific off-road or show purposes.

Image: Visual comparison of the vehicle's fog light output with 6000K white and 30000K dark blue color tubes.

Maintenance

ICBEAMER H3 LED Fog Lights are designed for minimal maintenance due to their durable construction and efficient cooling system.

• Cleaning: Periodically inspect the bulb's exterior and the vehicle's fog light lens. Clean any dirt or debris with a soft, damp cloth to ensure optimal light output.
• Inspection: Occasionally check the wiring connections to ensure they remain secure and free from corrosion.
• No Bulb Replacement: Unlike halogen bulbs, these LED bulbs do not require frequent replacement. Their estimated operating life is over 20,000 hours.

Troubleshooting

If you encounter issues with your ICBEAMER H3 LED Fog Lights, refer to the following common troubleshooting tips:

• Bulbs Not Lighting Up:
  • Check all connections to ensure they are secure.
  • Verify that the vehicle's fog light switch is in the 'on' position.
  • Inspect the vehicle's fuse box for any blown fuses related to the fog lights.
• Flickering or Radio Interference:
  • While ICBEAMER bulbs are Canbus ready for 99% of vehicles, some sensitive models may require an additional decoder to prevent flickering or radio interference. Contact ICBEAMER support for assistance if this occurs.
• Dim Light Output:
  • Ensure the fog light lens and the bulb's exterior are clean and free from obstructions.
  • Verify the bulb is correctly seated in the housing.

For persistent issues, please contact ICBEAMER customer support.

Specifications

Warranty Information

For specific warranty details regarding your ICBEAMER H3 LED Fog Lights, please refer to the product packaging or contact ICBEAMER customer support directly. Typically, ICBEAMER products are designed for long-lasting performance and are backed by customer satisfaction guarantees.

Customer Support

ICBEAMER is dedicated to providing comprehensive customer support. If you have any questions, require assistance with installation, or need to troubleshoot an issue, please do not hesitate to contact us.

Your satisfaction is our top priority. We are available to help with any inquiries you may have.

For direct assistance, please visit the official ICBEAMER store on Amazon or use the contact information provided on your product packaging.
