TURKU TU90WD-OD 9KW Sauna Stove with CON5 Digital Controller User Manual

1. Important Safety Information

Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in fire, electric shock, burns, or other injuries.

• This sauna stove is designed for residential (personal use) only. Using this product in a commercial application or for anything other than a residential sauna installation will void the warranty.
• The purchaser accepts full responsibility for the proper use, operation, and installation of this product.
• WARNING: REDUCE THE RISK OF FIRE, ELECTROCUTION, AND BURNS.
• Do not operate the sauna stove unless the rock guard is properly in place.
• Do not operate the sauna stove without sauna rocks.
• Ensure proper clearance: Do not install the stove closer than the specified distances to vertical or horizontal surfaces. Refer to the wiring diagram and installation instructions for exact clearances.
• The temperature is controlled by a built-in thermostat sensor. If the air temperature inside the stove rises to an abnormally high level, the High-Temperature Cut-Off Protection will automatically cut off the power supply.
• If the high-temperature cut-off activates, allow the stove to cool down. Before pressing the reset button, investigate the possible cause of the issue (e.g., blocked ventilation, insufficient water, sensor malfunction).

2. Product Overview

The TURKU TU90WD-OD is a 9KW electric sauna stove designed for residential wet or dry saunas, controlled by an external CON5 digital controller. It features a robust construction and efficient heating elements for a comfortable sauna experience.

2.1 Key Features

• Firmer body structure for enhanced durability.
• Aluminum thermostat sensor casing for accurate temperature readings.
• Suitable for both wet and dry sauna use. Water can be sprinkled over hot rocks.
• Equipped with long-life, heavy-duty heating elements.
• Vented body design promotes fast warm-up times.
• Includes an external CON5 digital controller for convenient and easy operation.

2.2 External CON5 Digital Controller Features

• Designed to be mounted on a wall outside the sauna at a convenient face level.
• Electronic thermostat maintains sauna temperature with high accuracy.
• Features a clear digital display for time and temperature.
• Electronic timer operates silently, without a ticking sound.
• Integrated High-Temperature Cut-Off Protection for safety.

Figure 1: Front view of the TURKU TU90WD-OD 9KW Sauna Stove.

Figure 2: The TURKU CON5 External Digital Controller.

3. Setup and Installation

Installation of the TURKU TU90WD-OD sauna stove requires electrical expertise. It is highly recommended that installation be performed by a qualified electrician to ensure compliance with local electrical codes and safety standards.

3.1 Electrical Requirements

• Power: 9KW
• Voltage: 240V
• Current: 37.5 Amp
• Phase: Single Phase
• Wire Size: 8 AWG (copper wire only, suitable for at least 105°C/221°F)
• Circuit Breaker: 40 Amp

3.2 Stove Mounting

The sauna stove is designed for wall mounting. Use the integrated mounting brackets on the back of the unit to secure it firmly to the sauna wall. Ensure the wall structure can support the weight of the stove and rocks.

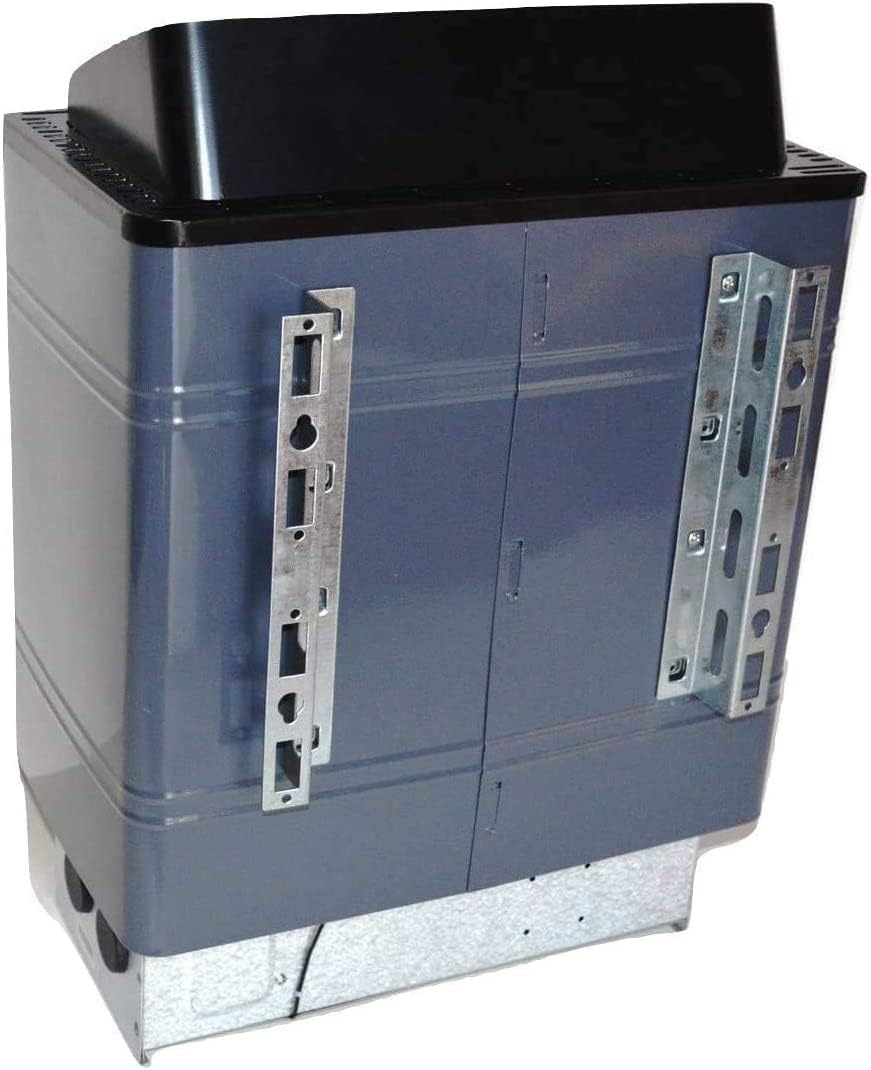

Figure 3: Back view of the TURKU sauna stove with mounting brackets.

3.3 Sauna Rock Placement

Sauna stones are not included with the stove. It is crucial to use appropriate sauna stones that fit between the heating elements without causing damage. Place the stones carefully to allow for proper air circulation and heat distribution.

Figure 4: Top view of the sauna stove, showing the heating elements where rocks are placed.

3.4 Controller Installation

The CON5 digital controller should be installed on a wall outside the sauna room, at a height that is convenient for operation. Ensure that the wiring connections are made according to the provided electrical diagrams and local codes.

Note: If your stove is equipped with an external digital control, the built-in mechanical knob controls are not supplied, and the mounting hole on the stove body is covered with a cap. Do not attempt to remove this cap or install internal controls.

Figure 5: Stove base with a cover cap, indicating the use of an external digital controller.

4. Operating Instructions

The CON5 digital controller provides precise control over your sauna's heating cycle.

4.1 Basic Operation

1. Power On: Press the 'ON/OFF' button on the CON5 controller to activate the stove.
2. Set Temperature: Use the 'Set Temperature' up/down arrows to select your desired sauna temperature, ranging from 104°F (40°C) to 194°F (90°C). The digital display will show the current room temperature and the set temperature.
3. Set Time: Use the 'Set Time' up/down arrows to set the desired operating duration, up to 60 minutes.
4. Heating Delay: The controller supports a heating delay function, allowing you to program the stove to start heating after up to 11 hours. Consult the controller's specific manual for detailed programming steps.
5. Mode Selection: The 'Mode A/B' button may offer different operational modes. Refer to the CON5 controller's manual for specific mode functionalities.
6. Wet or Dry Sauna: For a wet sauna experience, carefully sprinkle water over the hot sauna rocks. Do not pour large amounts of water at once.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your sauna stove.

• Sauna Rocks: Periodically inspect sauna rocks for signs of crumbling or degradation. Replace any broken or worn-out rocks to maintain efficient heating and prevent damage to heating elements or the rock support plate.
• Cleaning: Ensure the stove's exterior and the area around it are kept clean and free from debris. Do not use abrasive cleaners.
• Ventilation: Ensure that the sauna room's ventilation is not obstructed, as this can affect stove performance and safety.

6. Troubleshooting

This section addresses common issues you might encounter with your sauna stove.

6.1 High-Temperature Cut-Off Activation

• Symptom: Stove stops heating unexpectedly, and power is cut off.
• Possible Cause: The internal temperature exceeded safe limits, triggering the high-temperature cut-off. This can be due to insufficient air circulation, improper rock placement, or a faulty sensor.
• Solution: Allow the stove to cool down completely. Investigate the cause: check for blocked vents, ensure rocks are properly placed, and verify the sensor is clear. Once the cause is addressed and the stove is cool, press the reset button (usually a small red button located on the stove or controller, refer to specific diagrams).

6.2 Inaccurate Temperature Readings or Premature Shut-off

• Symptom: Sauna room does not reach desired temperature, or the stove shuts off too early.
• Possible Cause: The temperature sensor's location might be too close to the heating elements or in an area with poor air circulation, causing it to read a higher temperature than the actual room temperature.
• Solution: Ensure the sensor is installed in a location that accurately reflects the overall sauna room temperature, away from direct heat or drafts. In some cases, improving air circulation within the sauna room (e.g., with a small fan) can help equalize temperatures around the sensor.

6.3 Stove Not Heating

• Symptom: Stove is powered on, but heating elements do not activate.
• Possible Cause: Circuit breaker tripped, wiring issue, or a faulty heating element.
• Solution: Check your main electrical panel for a tripped circuit breaker. If the breaker is fine, inspect all wiring connections (this should be done by a qualified electrician). If the issue persists, contact customer support or a qualified technician.

7. Specifications

8. Warranty and Support

The warranty for this TURKU sauna stove is valid only for residential (personal use) installations. Any use in a commercial application will void the product warranty.

For technical support, warranty claims, or replacement parts, please contact your original retailer or the manufacturer. The supplier 'Home Spa Outlet' has been noted for providing customer support for TURKU products.
