1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hayward 2.7 THP Variable Speed HCP 3000 Commercial Pump. Please read this manual thoroughly before installation and operation to ensure proper use and to prevent potential hazards. The HCP 3000 Series pumps are designed for commercial pool applications, offering high performance and energy efficiency.
2. Safety Information
IMPORTANT SAFETY INSTRUCTIONS: Read and follow all instructions in this manual and on the equipment. Failure to follow instructions can cause severe injury and/or property damage.
- RISK OF ELECTRIC SHOCK: Connect only to a grounded receptacle protected by a ground-fault circuit interrupter (GFCI). Consult a qualified electrician if you cannot verify that the receptacle is protected by a GFCI.
- HAZARDOUS SUCTION: Suction outlets and/or suction outlet covers which are damaged, broken, cracked, missing, or not securely attached must be replaced immediately.
- PRESSURE HAZARD: Do not operate the pump if any part of the system is not properly assembled, damaged, or missing.
- Always disconnect power to the pump before servicing.
- Installation and servicing must be performed by qualified personnel only.
- Ensure proper ventilation around the pump to prevent overheating.
3. Product Overview

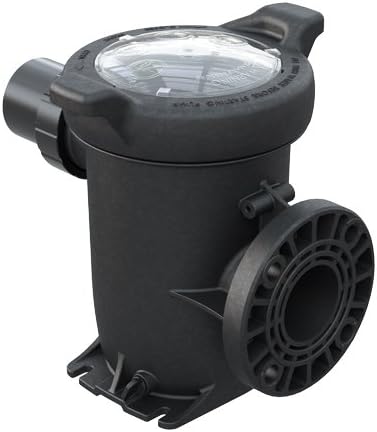

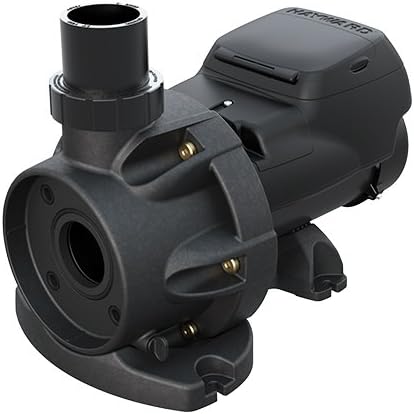

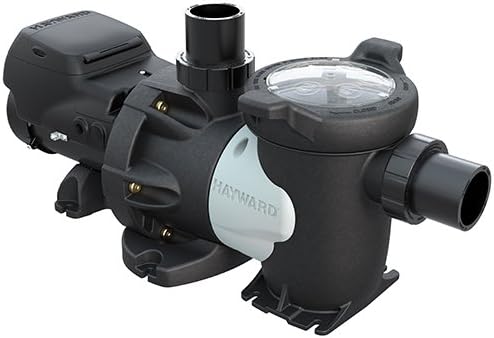

The Hayward HCP 3000 Commercial Pump is engineered for superior performance and durability in demanding commercial pool environments. Its variable speed capability allows for significant energy savings and precise flow control.
Key Features:
- Best-in-class performance: HCP 3000 Series pumps are the first 3" pumps to achieve hydraulic performance of more than 250 gallons per minute at 60' head (7 HP model).
- Longer life and lower maintenance: TEFC motors and a chemical-resistant Viton seal on all models provide less wear-and-tear which dramatically reduces down-time.
- Simple, versatile installation: Our unique detachable modular strainer housing delivers unmatched versatility, allowing for simple installation in virtually any pool application.
- Energy saving variable speed model: All-in-One controller operates in stand-alone mode, with Hayward automation (including Omni Logic) or with a competitive control system via relay control.
Product Components:
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your pump. It is highly recommended that installation be performed by a qualified pool professional in accordance with all local and national electrical and plumbing codes.
4.1 Site Selection:
- Install the pump as close to the pool as possible to minimize friction loss from long suction lines.
- Ensure the location is well-ventilated and protected from excessive moisture and direct sunlight.
- Provide adequate space around the pump for routine maintenance and servicing.
- Mount the pump on a firm, level base to prevent vibration and noise.
4.2 Plumbing:
- Use appropriate pipe sizes to match the pump's inlet and outlet ports to ensure optimal flow.
- Minimize the number of elbows and fittings to reduce hydraulic resistance.
- Ensure all connections are watertight using appropriate sealants and fittings.
4.3 Electrical Connection:
- All electrical wiring must comply with local and national electrical codes.
- The pump must be permanently connected to a circuit protected by a Ground-Fault Circuit Interrupter (GFCI).
- Verify the pump's voltage and current requirements match the power supply.
- Ensure proper grounding of the pump motor.
5. Operating Instructions
Before starting the pump, ensure the pool system is filled with water and all valves are in the correct position.
5.1 Priming the Pump:
- Ensure the pump's strainer basket is clean and full of water.
- Open all suction and return valves in the pool system.
- Turn on the power to the pump. The pump should begin to draw water and prime itself.
- If the pump does not prime within a few minutes, turn it off, recheck water levels, and inspect for air leaks in the suction line.
5.2 Variable Speed Operation:
The HCP 3000 features a variable speed motor, allowing you to adjust the pump's RPM for different operations (e.g., filtration, backwashing, spa jets). Refer to the integrated controller's specific instructions for programming and adjusting speeds. This can be done in stand-alone mode, or integrated with Hayward automation systems like Omni Logic, or other competitive control systems via relay control.
- Low Speed: Ideal for daily filtration, offering maximum energy efficiency and quiet operation.
- Medium Speed: Suitable for vacuuming or operating some water features.
- High Speed: Used for backwashing, running spa jets, or other high-flow demands.
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your pump. Always disconnect power before performing any maintenance.
6.1 Cleaning the Strainer Basket:
- Turn off the pump and close any necessary valves to prevent water flow.
- Unscrew the clear lid of the strainer housing.
- Remove the basket and empty any debris.
- Rinse the basket thoroughly with water.
- Inspect the O-ring on the lid for cracks or wear; replace if necessary.
- Replace the basket, ensure the O-ring is properly seated, and securely fasten the lid.
- Re-prime the pump if necessary after restoring power.
6.2 Winterization:
In areas subject to freezing temperatures, the pump must be properly winterized to prevent damage.
- Drain all water from the pump by removing the drain plugs.
- Store the pump in a dry, protected area, or cover it securely if it remains outdoors.
- Do not use antifreeze in the pump or pool system unless specifically designed for pool use.
7. Troubleshooting
This section provides solutions to common issues. For problems not listed or if issues persist, contact a qualified service technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power; tripped breaker/GFCI; faulty motor. | Check power supply; reset breaker/GFCI; consult technician. |
| Pump not priming / Low flow | Air leak in suction line; clogged strainer basket; low water level; closed valve. | Check for leaks; clean basket; ensure adequate water level; open valves. |
| Excessive noise / Vibration | Air in system; cavitation; worn bearings; loose mounting. | Bleed air from system; ensure proper water flow; consult technician for bearings; tighten mounting bolts. |
| Water leaking from pump | Loose fittings; worn shaft seal; damaged O-rings. | Tighten connections; replace shaft seal or O-rings (professional service recommended). |
8. Specifications
Detailed technical specifications for the Hayward HCP 3000 Commercial Pump (Model: HCP3020VSP).
- Brand: Hayward
- Model Number: HCP3020VSP
- Part Number: HCP3020VSP
- Product Dimensions: 82.55 x 33.02 x 35.56 cm
- Item Weight: 26.8 kg (59 Pounds)
- Colour: Black
- Style: Above Ground
- Material: Stainless Steel
- Power Source: Corded Electric
- Flow Rate (Max): 250 Gallons Per Minute (for 7 HP model)
- Included Components: Pump and instructions
- UPC: 610377292641
- ASIN: B06ZY5P62G
- Date First Available: Oct. 13 2019
9. Warranty and Support
Hayward products are manufactured to the highest standards of quality and workmanship. For specific warranty details, please refer to the warranty card included with your product or visit the official Hayward website. Keep your proof of purchase for warranty claims.
Customer Support:
For technical assistance, troubleshooting, or to locate an authorized service center, please contact Hayward customer support. Contact information can typically be found on the Hayward official website or on the product packaging.
- Hayward Official Website: www.hayward-pool.ca (or relevant regional site)
- Manufacturer: Hayward, Berkeley Heights, NJ 07922, US
