Buildalot Carbon Brushes Instruction Manual

1. Introduction

This manual provides instructions for the proper installation and maintenance of Buildalot Carbon Brushes, designed as replacement parts for the METABO HS8040S Hedge Trimmer. Carbon brushes are critical components in electric motors, facilitating the transfer of electrical current to the rotating armature. Regular inspection and timely replacement ensure optimal performance and longevity of your tool.

2. Safety Information

Always prioritize safety when working with power tools and electrical components. Failure to follow these safety guidelines may result in injury or damage to the tool.

• Disconnect Power: Before attempting any maintenance or replacement, always unplug the hedge trimmer from the power source to prevent accidental startup and electrical shock.
• Wear Protective Gear: Use appropriate personal protective equipment (PPE) such as safety glasses and gloves.
• Work in a Well-Lit Area: Ensure adequate lighting to clearly see components and avoid errors.
• Use Correct Tools: Employ the right tools for the job to prevent damage to fasteners or components.
• Keep Children Away: Ensure children and bystanders are kept at a safe distance from the work area.
• Consult Tool Manual: Refer to your METABO HS8040S Hedge Trimmer's original instruction manual for specific disassembly and reassembly procedures.

3. Installation of Carbon Brushes

This section outlines the general procedure for replacing carbon brushes. Specific steps may vary slightly depending on the exact model of your METABO HS8040S Hedge Trimmer. Always refer to your tool's service manual for detailed instructions.

Tools Required:

• Screwdriver set (Phillips and/or flathead, Torx if applicable)
• Pliers (optional)
• Clean cloth

Procedure:

1. Disconnect Power: Ensure the hedge trimmer is unplugged from the electrical outlet.
2. Locate Brush Caps: Identify the carbon brush access caps on the motor housing. These are typically small, often slotted or hexagonal caps on the sides of the motor.
3. Remove Old Brushes:
   • Carefully unscrew the brush caps using an appropriate screwdriver or wrench.
   • Once the cap is removed, the spring-loaded carbon brush will be accessible. Gently pull out the old carbon brush and its attached wire.
   • Note the orientation of the old brush for correct installation of the new one.
4. Inspect Commutator: Before installing new brushes, inspect the commutator (the copper segments on the motor's armature). It should be clean and free of excessive scoring or carbon buildup. If necessary, gently clean with a non-abrasive cloth.
5. Install New Brushes:


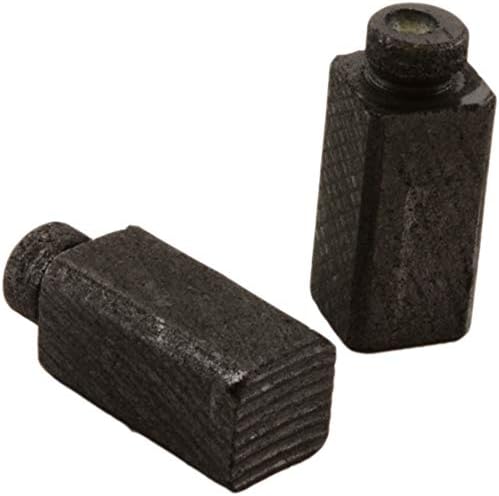

   Figure 1: Buildalot Carbon Brushes (6x8x11.5mm)
   This image shows two new carbon brushes, ready for installation. Each brush consists of a carbon block with a wire lead and a terminal.

   • Insert the new Buildalot carbon brush into the brush holder, ensuring the wire lead is correctly positioned and the brush slides smoothly.
   • Ensure the brush makes proper contact with the commutator.
   • Replace the brush cap and tighten it securely, but do not overtighten.
6. Repeat for Second Brush: If your tool uses two brushes, repeat the process for the second carbon brush.
7. Reassemble Tool: Reassemble any parts of the hedge trimmer housing that were removed to access the brushes.

4. Post-Installation Check

After installing new carbon brushes, perform the following checks before resuming full operation:

• Initial Run-in: Plug in the hedge trimmer and run it at a low speed (if adjustable) or briefly at normal speed for a few minutes without load. This allows the new brushes to seat properly against the commutator.
• Observe for Sparking: During the initial run, observe the motor for excessive sparking. A small amount of sparking is normal with new brushes, but heavy or continuous sparking may indicate an issue with installation or the commutator.
• Listen for Unusual Noises: Listen for any grinding, squealing, or other unusual noises from the motor.
• Check for Overheating: Feel the motor housing for excessive heat after a short run.

If any issues are observed, disconnect power immediately and re-check the installation or consult a qualified technician.

5. Maintenance

Carbon brushes are wear items and require periodic inspection and replacement. The lifespan of carbon brushes depends on usage intensity and environmental conditions.

• Regular Inspection: Periodically inspect the carbon brushes (e.g., every 50-100 hours of operation or annually, depending on use).
• Wear Limit: Replace carbon brushes when they are worn down to approximately one-quarter of their original length, or if they show signs of chipping, cracking, or uneven wear.
• Commutator Condition: Always check the commutator for cleanliness and wear when replacing brushes. A dirty or damaged commutator can significantly reduce brush life.

6. Troubleshooting

If your METABO HS8040S Hedge Trimmer exhibits problems after carbon brush replacement, consider the following:

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified service technician.

7. Specifications

• Product Type: Carbon Brushes
• Brand: Buildalot
• Compatibility: METABO HS8040S Hedge Trimmer
• Dimensions: 6 x 8 x 11.5 mm (approximately 0.24 x 0.31 x 0.45 inches)
• Weight: Approximately 20 grams (for the set)
• Material: Carbon, Copper

8. Warranty and Support

For warranty information or technical support regarding your Buildalot Carbon Brushes, please refer to the retailer where the product was purchased or contact Buildalot customer service directly. Keep your proof of purchase for any warranty claims.

For issues related to the METABO HS8040S Hedge Trimmer itself, please consult the original METABO product manual or contact METABO customer support.
