Outsunny 10' x 10' Steel Outdoor Patio Gazebo

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Outsunny 10' x 10' Steel Outdoor Patio Gazebo. Designed to provide a comfortable and shaded outdoor space, this gazebo features a durable steel frame, a two-tier vented canopy for improved airflow, and polyester privacy curtains. Please read this manual thoroughly before beginning assembly or use to ensure proper setup and safe operation.

Safety Information

WARNING: Not to be left up during adverse weather conditions. Assembly required. Always follow manufacturer's instructions for proper installation and use. Keep away from heat sources and open flames. Do not use in enclosed spaces. Keep away from children and pets. Always use caution when handling sharp or heavy objects during assembly and disassembly.

• Ensure all components are present and undamaged before assembly.
• Assemble on a flat, stable surface.
• Do not overtighten fasteners during initial assembly; tighten fully only when instructed.
• Secure the gazebo to the ground using the provided stakes or other appropriate anchoring methods, especially in windy conditions.
• Regularly inspect the gazebo for any signs of wear or damage. Replace damaged parts immediately.

Package Contents

Please verify that all parts listed below are included in your package before beginning assembly. If any parts are missing or damaged, contact customer support.

• Powder-coated steel frame components (legs, beams, roof supports)
• Two-tier polyester canopy fabric
• Polyester privacy curtains (4 panels)
• Ground stakes and guy ropes
• Assembly hardware (screws, bolts, washers, nuts)
• Assembly tools (e.g., Allen wrench)
• Instruction manual

Setup and Assembly

Assembly of this gazebo typically requires two adults. Follow the steps carefully to ensure correct and safe construction.

Step 1: Unpack and Identify Parts

Carefully unpack all components and lay them out on a clean, flat surface. Refer to the parts list to identify each piece. Ensure all hardware is accounted for.

Image: The Outsunny 10' x 10' Steel Outdoor Patio Gazebo with its two-tier roof and privacy curtains, ready for assembly.

Step 2: Assemble the Base Frame

Connect the four main leg posts to the horizontal base beams using the provided hardware. Do not fully tighten screws until the entire base frame is assembled and squared.

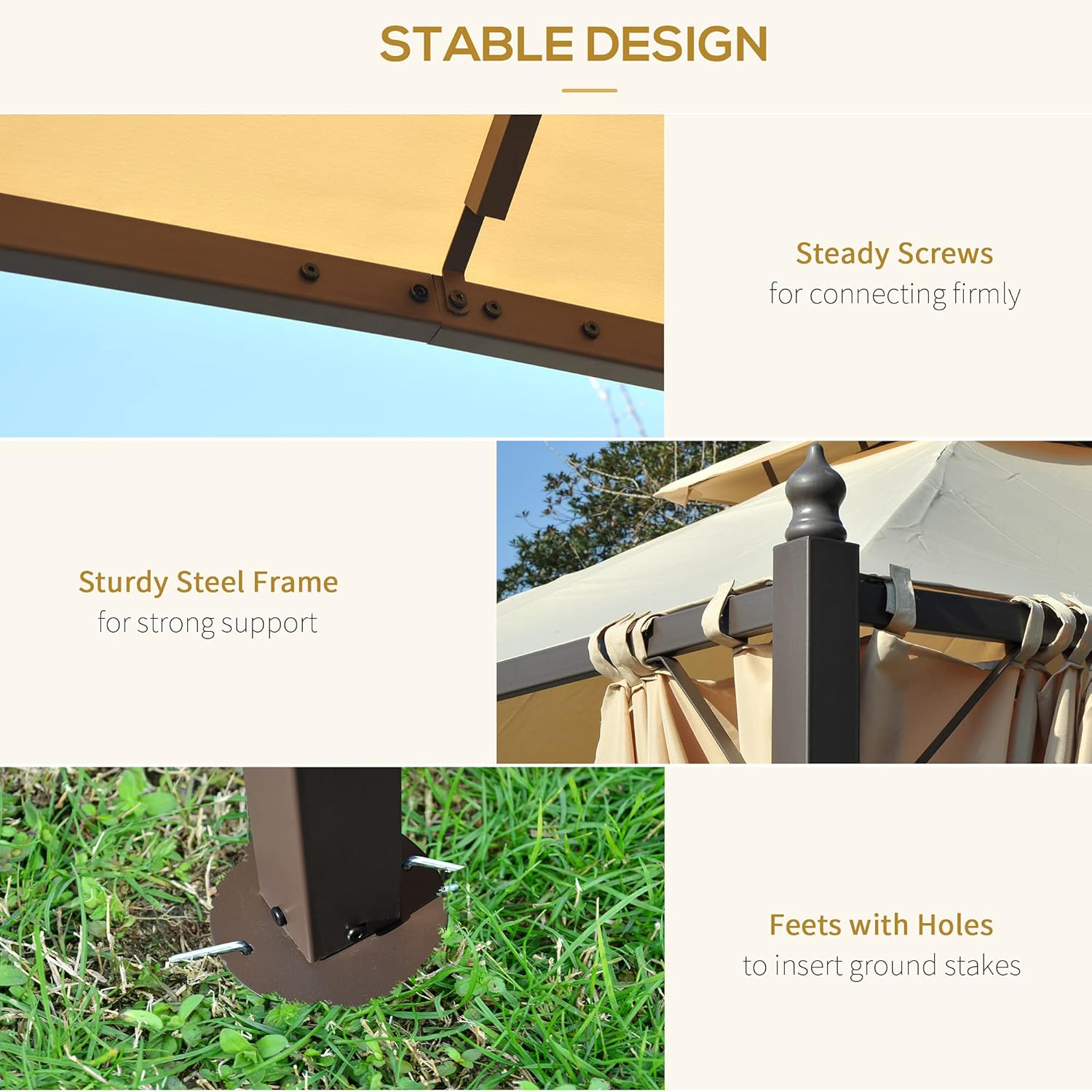

Image: Detail of the sturdy steel frame and the leg base with holes for inserting ground stakes, ensuring stable design.

Step 3: Attach Roof Supports

Attach the upper roof support beams to the top of the leg posts. These beams will form the structure for the main canopy. Ensure all connections are secure.

Image: An interior view showing the robust steel framework of the gazebo's roof, providing strong support for the canopy.

Step 4: Install the Main Canopy

Carefully spread the main canopy fabric over the assembled roof frame. Secure the canopy to the frame using the integrated ties or fasteners. Ensure the canopy is taut and evenly distributed.

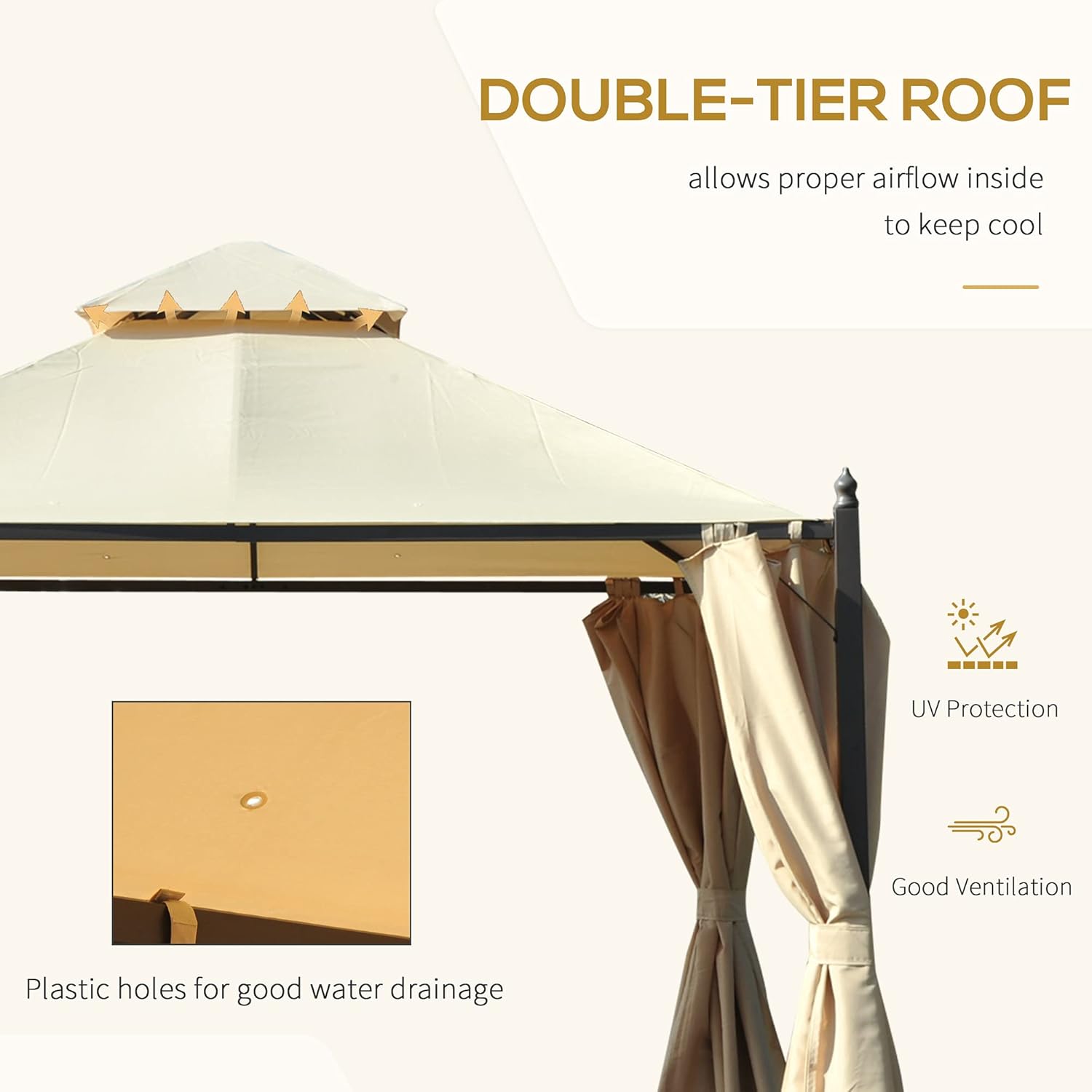

Image: A close-up of the double-tier roof, designed to allow proper airflow inside and provide UV protection.

Step 5: Attach the Upper Tier Canopy

Position the smaller upper tier canopy onto the top of the main canopy, aligning it with the central support structure. Secure it firmly. This two-tier design aids in ventilation and stability.

Image: A detailed view of the gazebo's top tier canopy and the decorative finial, highlighting the aesthetic and functional design.

Step 6: Install Privacy Curtains

Hang the polyester privacy curtains from the designated hooks or rings on the gazebo frame. The curtains feature double-sided zippers for easy access and Velcro straps for securing them when open.

Image: The gazebo with its practical privacy curtains fully closed, offering windproof and privacy protection.

Image: A close-up showing how the curtains attach to the frame with hooks and loops, and the Velcro straps for tying them back.

Step 7: Anchor the Gazebo

Once fully assembled, use the provided ground stakes and guy ropes to anchor the gazebo securely to the ground. This is crucial for stability, especially in windy conditions.

Image: The Outsunny gazebo fully assembled and set up in a garden, providing a shaded area for outdoor furniture.

Operating Instructions

Your Outsunny gazebo is designed for ease of use and enjoyment.

• Canopy: The two-tier canopy provides shade and allows for air circulation, helping to keep the interior cool.
• Privacy Curtains: The four polyester privacy curtains can be zipped closed for full enclosure, privacy, and protection from sun or light wind. They can also be tied back using the integrated Velcro straps to open up the space.
• Ventilation: The vented roof design helps to manage airflow and prevent the accumulation of heat under the canopy.

Maintenance

Proper maintenance will extend the life of your gazebo.

• Cleaning: Clean the canopy and curtains with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Allow to air dry completely before storing.
• Frame Care: The powder-coated steel frame is designed to resist rust. Wipe down with a damp cloth as needed.
• Weather Conditions: This gazebo is not designed to withstand severe weather conditions such as heavy rain, strong winds, or snow. It is recommended to disassemble and store the gazebo during adverse weather to prevent damage.
• Inspection: Periodically check all connections and fasteners to ensure they remain tight and secure. Inspect the fabric for any tears or damage.

Troubleshooting

If you encounter issues with your gazebo, consider the following common solutions:

• Instability: Ensure all frame connections are fully tightened. Verify that the gazebo is properly anchored to the ground using all provided stakes and guy ropes.
• Water Pooling on Canopy: Ensure the canopy is installed tautly and evenly across the frame. The two-tier design and grommets are intended to help with drainage. If water still pools, check for proper frame alignment.
• Curtains Not Closing Properly: Check for any obstructions or misalignments in the curtain tracks or zippers. Ensure the gazebo frame is square.
• Missing Parts: If parts were missing upon initial inspection, contact Outsunny customer support with your product model number and a description of the missing parts.

Specifications

Image: A diagram illustrating the key dimensions of the gazebo, including edge-to-edge measurements and height from top to ground.

Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact Outsunny customer service directly. Refer to your purchase documentation for specific contact details or visit the official Outsunny website. Please have your model number (84C-033) and purchase date available when contacting support.

Manufacturer: Aosom LLC
