1. Introduction
This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your Rommelsbacher EKM200 Coffee Grinder. Please read this manual thoroughly before first use and keep it for future reference.
The Rommelsbacher EKM200 is a high-quality coffee grinder featuring a stylish high-gloss plastic housing with stainless steel decorative applications. It is designed to gently process coffee beans using a robust burr grinder, allowing for individual adjustment of the grinding degree from coarse to very fine. It also features a bean container with aroma preservation cover and a removable powder collector for ease of use and cleaning.

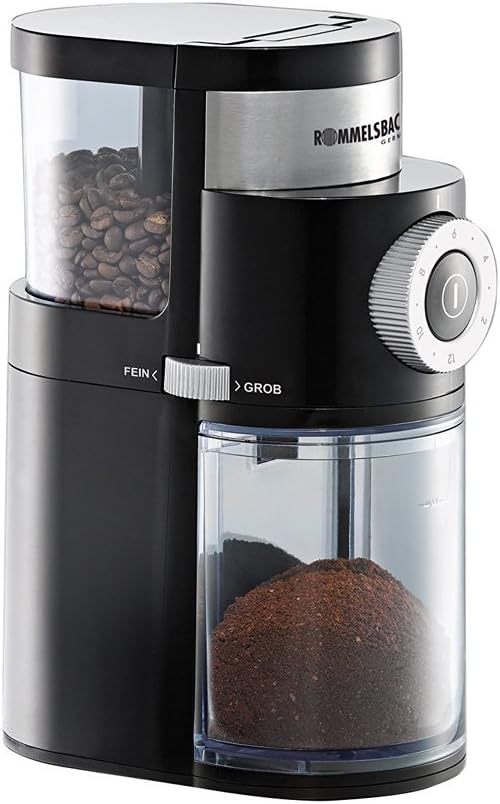

Figure 1: Rommelsbacher EKM200 Coffee Grinder, showcasing its sleek design and separate bean and ground coffee containers.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions carefully before operating the appliance.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Avoid contact with moving parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- This appliance is for household use only.
- Ensure the bean container and powder collector are properly seated before operation.
3. Components
Familiarize yourself with the main components of your EKM200 Coffee Grinder:
- Bean Container: Located at the top, holds whole coffee beans. Features an aroma preservation cover.
- Grinding Degree Selector: A slider or knob to adjust the fineness of the grind (Fein to Grob).
- Serving Quantity Rotary Knob: Used to select the desired amount of ground coffee (2 to 12 cups).
- On/Off Push Switch: Activates and deactivates the grinding process.
- Powder Collector: A removable container at the bottom that collects the ground coffee.
- Grinding Disc: The internal mechanism responsible for grinding the beans. It is detachable for cleaning.
- Cleaning Brush: Included for easy maintenance of the grinding area.
Figure 2: The transparent bean container, designed to hold coffee beans and preserve their aroma.

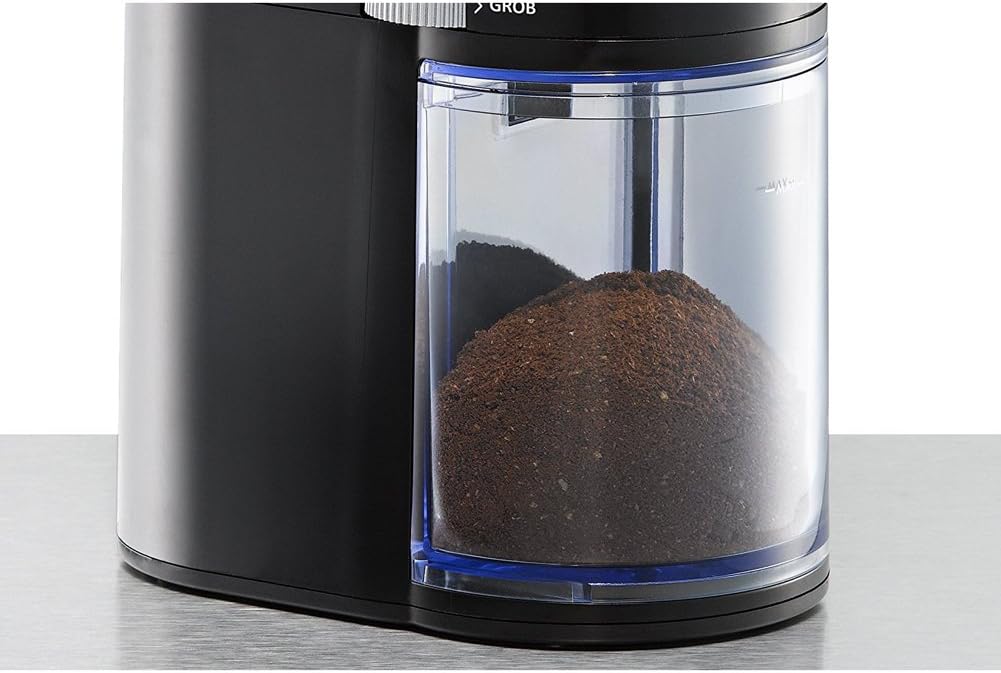

Figure 3: The removable powder collector, where ground coffee is collected.
4. Setup
- Unpacking: Carefully remove the coffee grinder and all accessories from the packaging. Retain packaging for future storage or transport.
- Initial Cleaning: Before first use, wipe the exterior of the appliance with a damp cloth. Wash the removable powder collector and the detachable grinding disc with warm soapy water, rinse thoroughly, and dry completely.
- Placement: Place the grinder on a stable, flat, and dry surface. Ensure there is adequate ventilation around the appliance.
- Assemble Components: Ensure the detachable grinding disc is correctly seated. Place the empty powder collector firmly into its designated slot.
- Fill Bean Container: Open the aroma preservation cover of the bean container and fill it with whole coffee beans. Do not overfill. Close the cover securely.
- Power Connection: Plug the power cord into a suitable 220V electrical outlet.
Figure 4: Top view of the grinder with the lid open, illustrating the bean container access.
5. Operating Instructions
- Adjust Grinding Degree: Use the grinding degree selector (slider or knob) to choose your desired fineness. Move towards "FEIN" for a finer grind (e.g., espresso) or towards "GROB" for a coarser grind (e.g., French press).
- Select Serving Quantity: Turn the rotary knob to select the number of cups you wish to grind, ranging from 2 to 12 cups.
- Start Grinding: Press the On/Off push switch to begin the grinding process. The grinder will operate until the selected quantity of coffee has been ground.
- Stop Grinding: The grinder will automatically stop once the set quantity is reached. You can also press the On/Off switch again to manually stop the grinding at any time.
- Remove Ground Coffee: Once grinding is complete, carefully remove the powder collector from the appliance.
- Dispense Coffee: Pour the freshly ground coffee from the collector into your coffee maker or storage container.
Figure 5: The front panel with the rotary knob for selecting the number of servings.

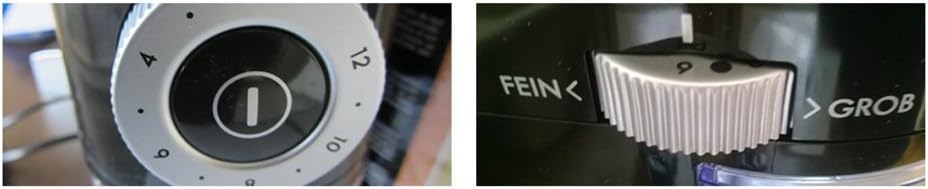

Figure 6: Detailed view of the grinding degree adjustment slider (Fein/Grob) and the serving quantity knob.
6. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your coffee grinder. Always unplug the appliance before cleaning.
- Unplug: Ensure the grinder is unplugged from the power outlet.
- Empty Containers: Remove and empty the bean container and powder collector.
- Clean Powder Collector: Wash the removable powder collector with warm, soapy water. Rinse thoroughly and dry completely before reattaching.
- Clean Grinding Disc: The grinding disc is detachable for easy cleaning. Carefully remove it according to the instructions (often involves turning a knob or lever). Use the provided cleaning brush to remove any residual coffee grounds from the grinding chamber and the grinding disc itself.
- Wipe Exterior: Wipe the exterior of the grinder with a soft, damp cloth. Do not use abrasive cleaners or immerse the main unit in water.
- Reassemble: Once all parts are dry, reassemble the grinding disc and powder collector.
Figure 7: Using the provided cleaning brush to clear coffee grounds from the grinding area.
7. Troubleshooting
Before contacting customer support, please refer to the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Grinder does not start. | Not plugged in; power outage; bean container or powder collector not properly seated. | Check power connection; ensure containers are securely in place. |
| Coffee is not grinding or grinding poorly. | No beans in container; grinding mechanism clogged; grinding disc not properly installed. | Fill bean container; clean grinding mechanism thoroughly; ensure grinding disc is correctly seated. |
| Grinder is unusually loud. | Foreign object in grinding chamber; grinding mechanism clogged. | Unplug and inspect grinding chamber for foreign objects; clean thoroughly. |
| Ground coffee is uneven. | Grinding disc worn or dirty; incorrect grind setting for bean type. | Clean grinding disc; experiment with different grind settings. |
8. Specifications
- Model: EKM200
- Brand: Rommelsbacher
- Color: Black, Silver
- Voltage: 220 Volts
- Power Consumption: 110 Watts
- Capacity: 250 Grams (bean container)
- Product Dimensions (L x W x H): 7.09" x 4.13" x 10.43" (18 x 10.5 x 26.5 cm)
- Grinder Type: Burr Grinder
- Serving Selection: 2 - 12 cups
- Manufacturer: ROMMELSBACHER
- ASIN: B06XX83CV9
- UPC: 712760419274, 880794673181
9. Warranty and Support
For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your proof of purchase for any warranty claims.
For further assistance, please visit the official Rommelsbacher website or contact their customer service department.
