Marsboy Portable Bluetooth Speaker User Manual

Introduction

Thank you for purchasing the Marsboy Portable Bluetooth Speaker. This manual provides essential information for setting up, operating, and maintaining your speaker to ensure optimal performance and longevity. Please read this manual thoroughly before using the product.

Product Features

• Compact and Portable Design: Small form factor for easy transport.
• Enhanced Audio: Features a 4W speaker for clear sound and heavy bass.
• Bluetooth 4.0 Connectivity: Ensures rapid pairing and a stable wireless range of up to 15 meters.
• Long Playtime: Up to 12 hours of continuous audio playback on a single charge.
• Durable Construction: Sleek aluminum shell with a translucent base and anti-slip rubber feet.
• Wide Compatibility: Connects seamlessly with smartphones, tablets, PCs, and other Bluetooth-enabled devices.
• Auxiliary Input: For wired connection to non-Bluetooth devices.

Image: Exploded view illustrating the internal components, highlighting the 4W super bass speaker for impressive sound quality.

Image: The Marsboy speaker demonstrating its compact size and Bluetooth 4.0 capability, offering a 15-meter wireless connection range for steady music playback.

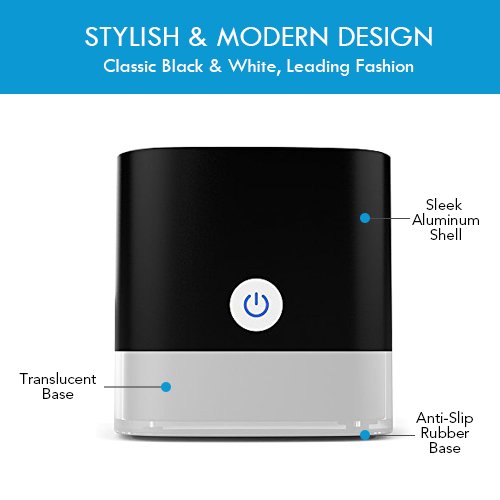

Image: Close-up of the speaker's stylish design, pointing out the sleek aluminum shell, translucent base, and anti-slip rubber base for stability.

Package Contents

• Marsboy Portable Bluetooth Speaker
• Micro USB Charging Cable
• User Manual (this document)

Setup

1. Charging the Speaker

1. Connect the Micro USB charging cable to the charging port on the speaker.
2. Connect the other end of the USB cable to a USB power adapter (not included) or a computer's USB port.
3. The charging indicator light will illuminate, typically red, during charging.
4. Once fully charged (approximately 4 hours for the first charge), the indicator light will change or turn off.
5. Disconnect the charging cable.

2. Powering On/Off

• To Power On: Press and hold the power button (usually marked with a power symbol) for a few seconds until you hear an audible prompt or see an indicator light.
• To Power Off: Press and hold the power button again for a few seconds until you hear an audible prompt or the indicator light turns off.

3. Bluetooth Pairing

1. Ensure the speaker is powered on and in pairing mode. The Bluetooth indicator light will typically flash rapidly.
2. On your device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
3. Select "Marsboy Speaker" (or similar name) from the list of found devices.
4. Once paired, you will hear a confirmation sound, and the Bluetooth indicator light on the speaker will typically stop flashing and remain solid.
5. The speaker is now ready to play audio wirelessly.

Image: The speaker demonstrating its extensive compatibility with various Bluetooth-enabled devices, including smartphones, tablets, and computers.

Operating the Speaker

1. Playing Audio via Bluetooth

• After successful Bluetooth pairing, open your preferred music application on your connected device.
• Start playing audio. The sound will be routed through the Marsboy speaker.
• Adjust the volume directly from your connected device. The speaker does not feature integrated volume control buttons.

2. Using the Auxiliary Input

• Connect a 3.5mm audio cable (not included) from your audio source's headphone jack to the AUX-in port on the speaker.
• The speaker will automatically switch to AUX mode or you may need to select it manually if a mode button is present (refer to specific model details if applicable).
• Play audio from your connected device. Volume control will be managed by the source device.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the speaker's exterior. Do not use abrasive cleaners or solvents.
• Storage: Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, fully charge the speaker before first use and recharge it at least once every three months if not used regularly. Avoid fully depleting the battery frequently.
• Water Resistance: The product is listed as "Waterproof". This typically refers to splash resistance and protection against light rain. Avoid submerging the speaker in water or exposing it to heavy water jets.

Troubleshooting

• Speaker does not power on:
  • Ensure the battery is charged. Connect the speaker to a power source using the USB cable.
  • Press and hold the power button for a longer duration (3-5 seconds).
• Cannot pair with Bluetooth device:
  • Ensure the speaker is in pairing mode (flashing Bluetooth indicator).
  • Make sure Bluetooth is enabled on your device and it is within 15 meters of the speaker.
  • Turn off and on both the speaker and your device's Bluetooth.
  • Forget the speaker from your device's Bluetooth list and try pairing again.
  • Ensure no other devices are currently connected to the speaker.
• No sound or low volume:
  • Check the volume level on your connected device.
  • Ensure the speaker is properly paired via Bluetooth or connected via AUX cable.
  • If using AUX, ensure the cable is fully inserted and not damaged.
  • Try playing audio from a different source or application.
• Sound distortion:
  • Reduce the volume on your connected device.
  • Move the speaker closer to your Bluetooth device to avoid interference.
  • Ensure the audio file or streaming quality is good.

Specifications

Warranty and Support

Marsboy products are designed for reliability and performance. For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official Marsboy website.

If you encounter any issues not covered in the troubleshooting section, please contact our customer support team.

• Customer Support: [Insert Marsboy Support Contact Information Here, e.g., email, phone number, website link]
