Introduction
This manual provides comprehensive information for the Speedmaster 1-214-001 Ford 9" 3.25" HD Standard Nose Aluminum Case Drop Out. This component is designed for high-performance automotive applications, specifically for Ford 9" differentials. It features a robust aluminum construction with advanced design elements to enhance durability and reduce deflection.
Figure 1: Front view of the Speedmaster 1-214-001 Ford 9" Aluminum Differential Case.
Key features of this Speedmaster differential case include:
- Constructed from 356 T6 aluminum for strength and durability.
- Features one-piece billet main bearing caps with a through-bolt design.
- Engineered to provide up to 50% less deflection compared to other units.
- Designed to fit all 9" Ford differentials.
- Compatible with standard and aftermarket 5 or 10 bolt pinion supports.
Safety Information
WARNING: This product is intended for racing applications only and is not for street use. Installation and maintenance should only be performed by qualified personnel using appropriate safety equipment and procedures. Failure to follow proper safety guidelines can result in serious injury or damage to the vehicle.
Always wear appropriate personal protective equipment (PPE) including safety glasses and gloves when handling or installing automotive components. Ensure the vehicle is properly secured and supported before beginning any work.
Installation Guide
The Speedmaster 1-214-001 differential case is a critical component of the vehicle's drivetrain. Proper installation is essential for performance and safety. While specific steps may vary based on the vehicle and existing setup, the general procedure involves:
- Preparation: Ensure the vehicle is safely lifted and supported. Drain differential fluid and remove the existing differential assembly.
- Component Inspection: Inspect all mating surfaces and components for cleanliness, damage, or wear. Ensure the new Speedmaster case is free from any debris.
- Bearing Installation: Install new carrier bearings onto the differential carrier.
- Ring Gear Installation: Mount the ring gear onto the differential carrier, ensuring proper torque specifications are met.
- Assembly into Case: Carefully place the assembled differential carrier and ring gear into the Speedmaster differential case.
- Main Cap Installation: Install the billet aluminum main caps and secure them with the provided through-bolts. Torque to manufacturer specifications.
- Pinion Support: Install the pinion support (not included with this case) and ensure proper engagement and torque.
- Backlash and Preload Adjustment: Adjust differential backlash and bearing preload according to Ford 9" differential specifications. This step is critical for proper operation and longevity.
- Final Assembly: Reinstall the differential assembly into the vehicle's axle housing. Refill with appropriate differential fluid.
Figure 2: Speedmaster 1-214-001 differential case shown with the included hardware for installation.
It is highly recommended to consult a professional automotive technician or a detailed service manual for your specific vehicle model for precise installation instructions and torque specifications.
Function and Operation
The Speedmaster 1-214-001 is a differential case, also known as a "third member case only," designed for Ford 9" rear axles. Its primary function is to house and support the differential carrier, ring gear, and pinion assembly. This assembly is responsible for:
- Transmitting Power: It transfers rotational power from the driveshaft to the axle shafts, which in turn drive the wheels.
- Torque Multiplication: Through the gear ratio of the ring and pinion, it multiplies engine torque to provide necessary power to the wheels.
- Allowing Wheel Speed Difference: The differential mechanism (housed within the carrier) allows the left and right wheels to rotate at different speeds, which is crucial for smooth turning.
The robust aluminum construction and through-bolt main caps of the Speedmaster case are engineered to minimize deflection under high loads, ensuring consistent gear mesh and improved durability, particularly in demanding racing environments.

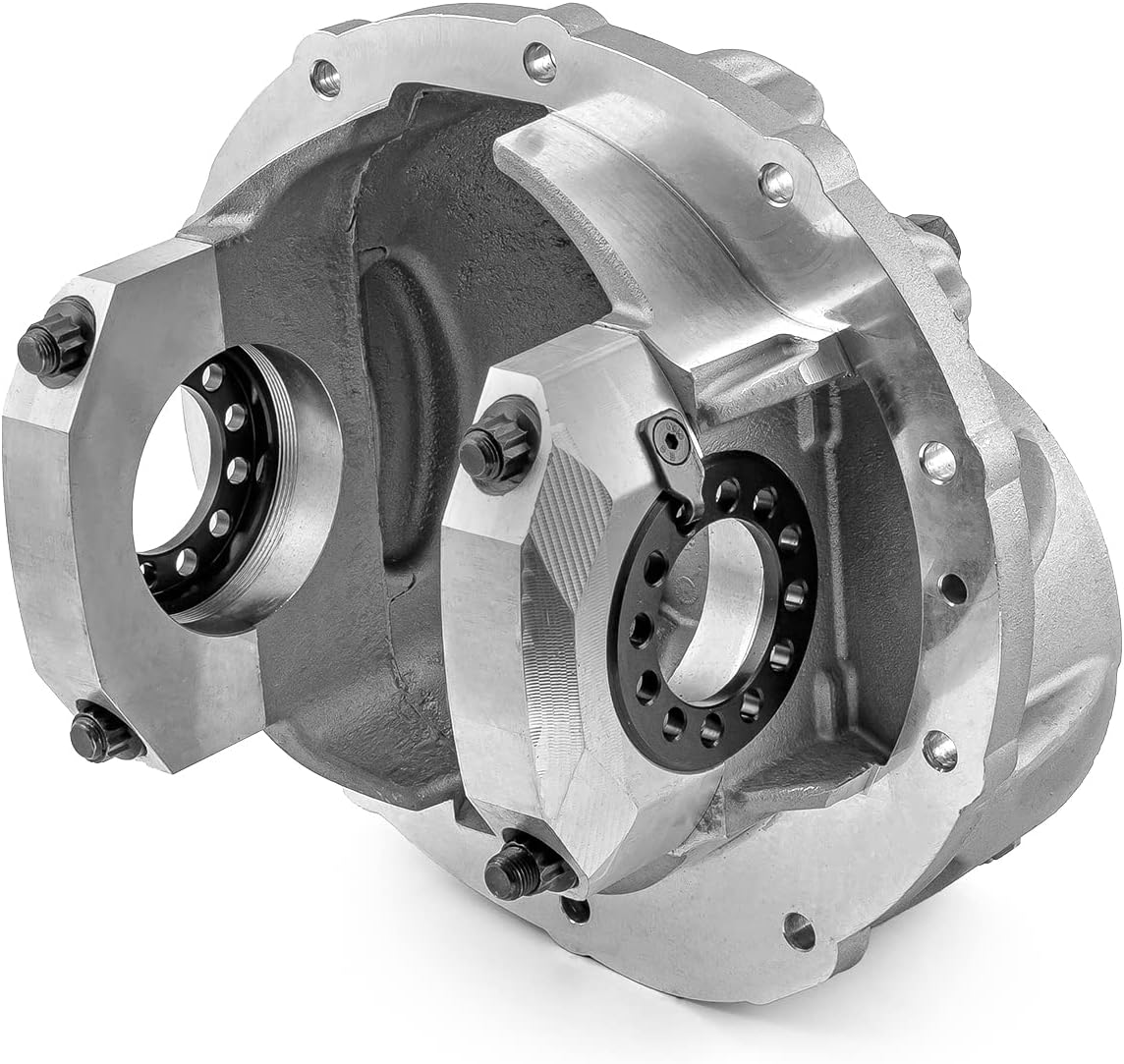

Figure 3: Interior view of the differential case, highlighting the robust main bearing cap mounts.
Maintenance
Proper maintenance of your differential assembly, including the Speedmaster case, is crucial for its longevity and performance. While the case itself requires minimal maintenance, the components it houses do.
- Fluid Checks: Regularly check the differential fluid level and condition. Refer to your vehicle's service manual for recommended fluid types and change intervals.
- Fluid Changes: Change differential fluid at recommended intervals, especially after initial break-in or severe use (e.g., racing).
- Leak Inspection: Periodically inspect the differential case and seals for any signs of fluid leaks. Address leaks promptly to prevent damage.
- Noise and Vibration: Pay attention to any unusual noises or vibrations coming from the differential area. These could indicate issues with bearings, gears, or other internal components.
- Fastener Torque: Periodically check the torque of all fasteners, especially those securing the main caps and the differential to the axle housing, to ensure they remain at specified values.
Troubleshooting
While the Speedmaster differential case is a durable component, issues with the overall differential assembly can arise. Here are some common symptoms and potential causes:
| Symptom | Possible Cause | Action |
|---|---|---|
| Whining or howling noise (especially on deceleration) | Improper gear mesh, worn gears, worn pinion bearing. | Inspect gear pattern, check backlash, replace worn components. |
| Clunking or banging noise (especially when shifting or accelerating) | Excessive backlash, worn U-joints, loose mounting bolts, worn differential components. | Check all fasteners, inspect U-joints, check backlash, inspect differential internals. |
| Vibration | Unbalanced driveshaft, worn U-joints, worn bearings, bent axle shaft. | Inspect driveshaft, U-joints, and bearings. Check for bent axle shafts. |
| Fluid leaks | Damaged seals (pinion seal, axle seals), loose cover bolts, cracked case (rare). | Identify source of leak, replace seals, tighten bolts, inspect case for damage. |
If you experience any of these symptoms, it is recommended to have the differential assembly inspected by a qualified technician.
Specifications
| Attribute | Detail |
|---|---|
| Brand | Speedmaster |
| Part Number | 1-214-001 |
| Part Type | Third Member Case Only |
| Case Style | Ford 9" |
| Case Material | 356 T6 Aluminum |
| Main Caps Included | Yes |
| Main Cap Material | 7075-T6 Billet Aluminum |
| Main Cap Retention Style | Thru Bolt |
| Carrier Bearing Diameter | 3.250 in. |
| Pinion Support Included | No |
| Pinion Support Bolt Quantity | 10 |
| Standard Pinion Location | Yes |
| Hardware Included | Yes |
| Ring Gear Load Bolt | No |
| Item Weight | 19.37 pounds |
| Product Dimensions | 12.4 x 12 x 9.2 inches |
Warranty Information
The Speedmaster 1-214-001 Ford 9" 3.25" HD Standard Nose Aluminum Case Drop Out is covered by a 12-Month Limited Worldwide Warranty. This warranty covers defects in materials and workmanship under normal use and service. For specific terms, conditions, and claim procedures, please refer to the official Speedmaster warranty documentation or contact Speedmaster customer support.
Please note that this product is intended for racing applications, and warranty coverage may be subject to conditions related to its intended use.
Customer Support
For technical assistance, installation questions, or warranty claims regarding your Speedmaster product, please contact Speedmaster customer support. You can find contact information on the official Speedmaster website or through your authorized dealer.
When contacting support, please have your product model number (1-214-001) and purchase details readily available.
