1. Important Safety Information
Lithium Polymer (LiPo) batteries are powerful and require careful handling. Failure to follow these safety guidelines can result in fire, personal injury, and property damage. Users must read this safety manual before using the battery.
- Charging: Always use a LiPo-compatible charger. Never charge unattended. Charge in a fire-safe area, away from flammable materials. Do not overcharge or over-discharge. The recommended charge rate is 1C.
- Storage: Store LiPo batteries at a storage voltage (typically 3.8V-3.85V per cell) in a cool, dry place. Do not store in direct sunlight or extreme temperatures.
- Handling: Do not puncture, short-circuit, or disassemble the battery. Avoid physical impact. If the battery swells, leaks, or shows any signs of damage, discontinue use immediately and dispose of it properly.
- Disposal: Dispose of damaged or unusable LiPo batteries according to local regulations. Never dispose of them in regular household waste.
- Children: Keep batteries out of reach of children.
2. Product Overview
The HRB 7.4V 5000mAh 50C 2S Lipo Battery is designed to provide reliable power for various remote-controlled vehicles, including RC cars, planes, trucks, and boats. It features a high discharge rate for optimal performance.
Image 2.1: Front view of the HRB 7.4V 5000mAh 50C 2S Lipo Battery, showing its capacity, voltage, and discharge rate.
3. Package Contents
Verify that all items are present in the package:
- 1x HRB 7.4V 5000mAh 50C 2S Lipo Battery
- 1x User Manual (this document)
- 1x Carton Box

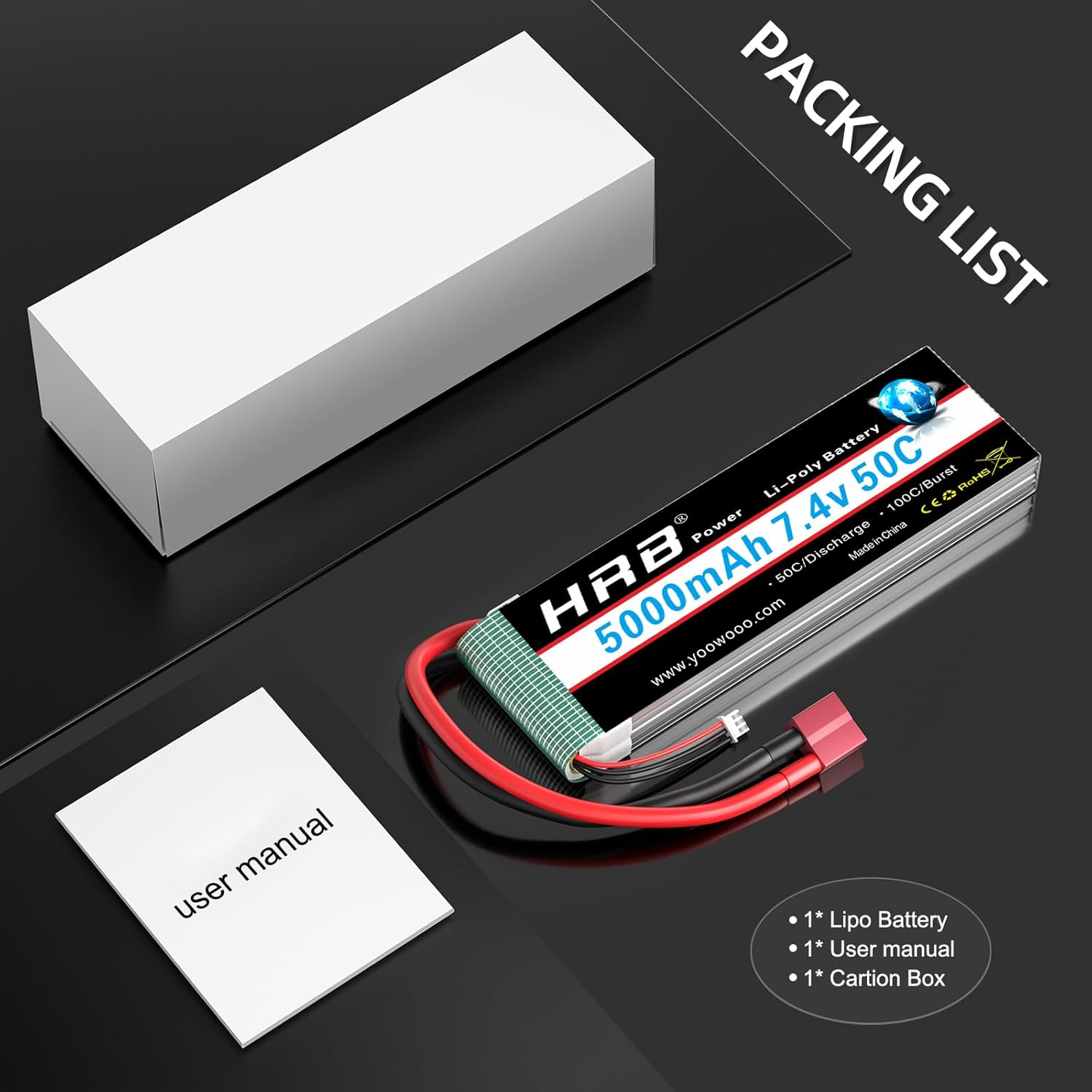

Image 3.1: Contents of the HRB Lipo Battery package, including the battery and user manual.
4. Product Specifications
| Specification | Value |
|---|---|
| Battery Type | Lithium Polymer (LiPo) |
| Voltage | 7.4V (2S) |
| Capacity | 5000mAh |
| Continuous Discharge Rate | 50C |
| Max Burst Rate | 100C |
| Charge Rate | 1C (Recommended) |
| Wire Gauge | 10AWG Silicone Wire |
| Plug Type | Deans Plug (T-Plug) |
| Dimensions (L*W*H) | 155 x 48 x 16mm (6.10 x 1.89 x 0.63 inches) |
| Weight | 260g (9.17oz) |
Image 4.1: Detailed dimensions and connector types (T-Plug, 3-pin balance port, 10AWG silicone wire) of the HRB Lipo Battery.
Image 4.2: Graph illustrating the discharge rate curve of the HRB Lipo Battery, demonstrating its performance characteristics.
5. Setup and Connection
Before connecting the battery to your RC vehicle, ensure the vehicle's power is turned off.
- Turn off the power of your RC car, plane, truck, or boat.
- Carefully place the HRB Lipo battery into the designated battery compartment of your RC vehicle.
- Secure the battery to prevent movement during operation.
- Connect the battery's main power plug (Deans/T-Plug) to the corresponding connector on your RC vehicle. Ensure the connection is firm and correct.
- If your vehicle or charger supports it, connect the balance lead to the appropriate port for monitoring cell voltage.
Image 5.1: Visual guide demonstrating the steps for connecting the HRB Lipo Battery to an RC vehicle, including turning off power, placing the battery, securing it, and connecting plugs.
6. Operating Guidelines
The HRB 7.4V 5000mAh 50C 2S Lipo Battery is compatible with a wide range of RC models. For optimal performance and safety, ensure that the voltage, dimensions, and plug type of this battery match the requirements of your specific RC device.
- Always check the battery voltage before use. Do not operate if the voltage is below the safe discharge limit (typically 3.0V per cell).
- Monitor battery temperature during operation. If the battery becomes excessively hot, discontinue use immediately.
- Avoid deep discharge. Over-discharging can permanently damage the battery.

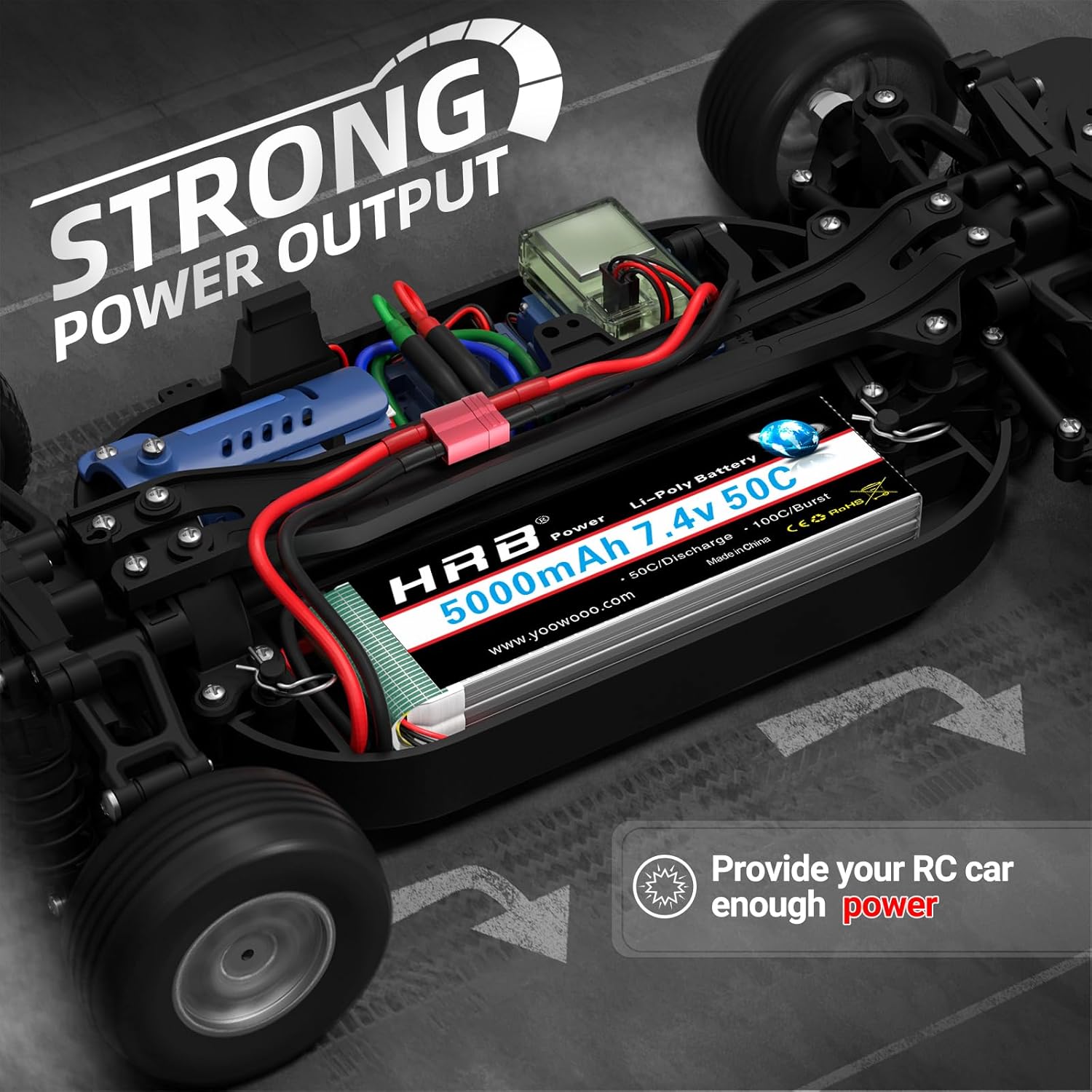

Image 6.1: The HRB Lipo Battery installed in an RC car chassis, illustrating its fit and connection for providing strong power output.
Image 6.2: Collage showing the HRB Lipo Battery's compatibility with various RC vehicles, including airplanes, quadcopters, helicopters, cars, trucks, and boats.
Product in Action
Video 6.1: This video demonstrates the manufacturing process of HRB Lipo batteries and showcases their application in various RC models, including helicopters, boats, and cars, highlighting their performance capabilities.
7. Charging Instructions
Proper charging is crucial for the longevity and safety of your LiPo battery.
- Use only a charger specifically designed for Lithium Polymer batteries.
- Always charge in a fire-safe location, such as on concrete or ceramic tiles, away from flammable materials.
- Never leave a charging LiPo battery unattended.
- Ensure the charger settings match the battery's specifications (7.4V, 2S, 5000mAh).
- Always balance charge your LiPo battery. This ensures each cell reaches the same voltage, preventing imbalance and extending battery life.
- Do not exceed the recommended charge rate of 1C (5 Amps for a 5000mAh battery).
- Disconnect the battery from the charger once charging is complete.
8. Maintenance and Storage
Following these maintenance and storage tips will help prolong the life of your HRB Lipo battery:
- Storage Voltage: For long-term storage, charge or discharge the battery to its storage voltage (3.8V-3.85V per cell).
- Temperature: Store batteries in a cool, dry environment, ideally between 5°C and 20°C (41°F and 68°F). Avoid direct sunlight and extreme temperatures.
- Physical Inspection: Regularly inspect the battery for any signs of damage, swelling, or leaks. Discontinue use if any issues are observed.
- Connectors: Keep connectors clean and free from corrosion.
9. Troubleshooting
If you encounter issues with your HRB Lipo battery, consider the following:
- Battery Not Charging: Ensure the charger is properly connected and set for LiPo batteries. Check for damaged wires or connectors. Verify the battery is not over-discharged (below 3.0V per cell), as some chargers may refuse to charge severely discharged batteries.
- Reduced Performance/Run Time: This can indicate an aging battery, improper charging, or an issue with the RC vehicle's power system. Ensure the battery is fully charged and balanced.
- Battery Swelling: Immediately discontinue use and safely dispose of any swollen battery. Swelling indicates internal damage and a significant safety risk.
- Overheating: If the battery overheats during charging or discharge, stop immediately. This could be due to a faulty charger, excessive discharge rate, or internal battery damage.
10. Warranty and Support
For warranty information, technical support, or any questions regarding your HRB 7.4V 5000mAh 50C 2S Lipo Battery, please contact HRB customer service through the retailer where the product was purchased or visit the official HRB website for contact details.
