Joie Stages ISOFIX Car Seat Instruction Manual

1. Introduction

The Joie Stages ISOFIX Car Seat is designed to provide safety and comfort for your child from birth up to approximately 7 years of age. This car seat adapts to your child's growth, functioning as a rearward-facing infant seat, a forward-facing seat, and a Group 2 booster. Please read this manual thoroughly before installation and use to ensure correct usage and maximum safety.

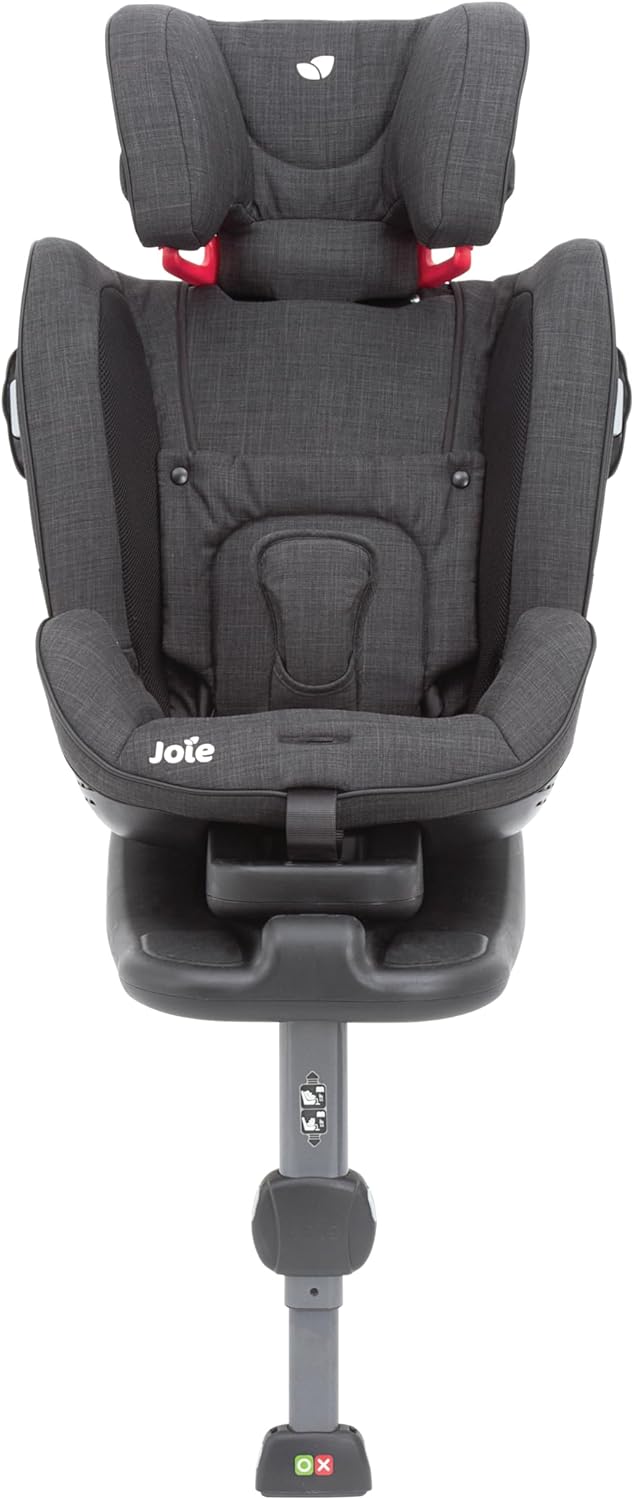

Image 1.1: Front view of the Joie Stages ISOFIX Car Seat.

2. Safety Information

Your child's safety is paramount. Always adhere to the following guidelines:

• This car seat is certified to ECE R44/04 safety standards.
• Always ensure the car seat is correctly installed and secured in the vehicle before placing your child in it.
• Never leave your child unattended in the car seat.
• Ensure the 5-point harness is properly adjusted and snug against your child's body, with no slack.
• The Tri-Protect headrest with Intelli-Fit foam provides enhanced side impact protection. Ensure it is adjusted to the correct height for your child.
• Do not use the car seat if it has been involved in an accident, even if there is no visible damage.
• Refer to your vehicle's owner's manual for information on child restraint installation points.

3. Product Features

The Joie Stages ISOFIX Car Seat offers several features designed for safety and convenience:

• ECE R44/04 Certified: Meets European safety standards, including an integrated ISOFIX base.
• Multi-Stage Use: Suitable rearward-facing up to 18kg (approx. birth to 4 years) and forward-facing from 9-25kg (approx. 1 to 7 years).
• Tri-Protect Headrest: Features 3 layers of security, including patented Intelli-Fit foam and Guard Surround Safety side impact panels for superior head and neck protection.
• Washable Seat Pad: Quick-release, washable seat pad for easy cleaning.
• 7-Position Recline: One-hand, 7-position recline adjustment on the base, usable without reinstalling the seat.
• 5-Point Harness: Secure harness system for child restraint.

4. Setup and Installation

Proper installation is crucial for your child's safety. Follow these steps carefully.

4.1 Rearward-Facing Installation (Birth to 18kg)

1. Ensure the vehicle seat is suitable for ISOFIX installation.
2. Extend the ISOFIX connectors from the car seat base by pressing the release buttons.
3. Align the ISOFIX connectors with the ISOFIX anchorage points in your vehicle and push firmly until they click into place. Green indicators will confirm correct attachment.
4. Push the car seat firmly against the vehicle seat back to remove any slack.
5. Adjust the load leg to the vehicle floor, ensuring it is firmly planted and the indicator shows green.
6. Verify the seat is securely installed by pulling on it. There should be minimal movement.

Image 4.1: Side view illustrating the ISOFIX base and load leg.

4.2 Forward-Facing Installation (9-25kg)

For forward-facing use, the car seat can be installed using either the ISOFIX connectors and top tether (if applicable to your vehicle and seat model) or the vehicle's 3-point seat belt.

4.2.1 ISOFIX Installation (Forward-Facing)

1. Follow steps 1-5 from the rearward-facing installation.
2. Route the vehicle's top tether strap (if available and required by your vehicle) through the designated path on the car seat and attach it to the vehicle's top tether anchorage point. Tighten until secure.

4.2.2 Vehicle Seat Belt Installation (Forward-Facing)

1. Place the car seat on the vehicle seat, ensuring it is stable.
2. Route the vehicle's 3-point seat belt through the designated belt guides on the car seat. Refer to the labels on the car seat for the correct belt path.
3. Buckle the vehicle seat belt and pull it tight to remove all slack. Ensure the car seat is firmly secured and does not move excessively.

5. Operating Instructions

5.1 Securing Your Child with the 5-Point Harness

1. Place your child in the car seat.
2. Bring the two buckle tongues together and insert them into the buckle until they click.
3. Pull the harness adjustment strap to tighten the harness until it is snug against your child's body. Ensure you can only fit one finger between the harness and your child's collarbone.
4. To loosen the harness, press the harness release button (usually located near the crotch buckle) and pull the shoulder straps outwards.

Image 5.1: Detail of the 5-point harness buckle.

5.2 Adjusting the Headrest and Harness Height

The headrest and harness height adjust simultaneously. Ensure the shoulder straps are at or just below your child's shoulders when rearward-facing, and at or just above when forward-facing.

1. Locate the headrest adjustment lever at the top of the headrest.
2. Squeeze the lever and slide the headrest up or down to the desired position.
3. Release the lever to lock the headrest in place.

Image 5.2: Headrest adjusted to a higher position.

5.3 Adjusting the Recline Position

The car seat features a 7-position recline that can be adjusted with one hand without reinstalling the seat.

1. Locate the recline adjustment handle at the front of the car seat base.
2. Pull the handle and simultaneously push or pull the car seat to the desired recline position.
3. Release the handle to lock the recline in place.

Image 5.3: Recline adjustment mechanism.

6. Maintenance

Regular maintenance ensures the longevity and hygiene of your car seat.

• Cleaning the Seat Pad: The seat pad is quick-release and washable. Refer to the care label on the fabric for specific washing instructions (typically machine wash cold on a delicate cycle). Do not use bleach. Air dry only.
• Cleaning the Harness: Wipe the harness straps with a damp cloth and mild soap. Do not machine wash or submerge the harness straps, as this can weaken the material.
• Cleaning Plastic and Metal Parts: Wipe plastic and metal parts with a damp cloth and mild soap. Do not use abrasive cleaners or solvents.
• Storage: Store the car seat in a cool, dry place away from direct sunlight when not in use.

7. Troubleshooting

If you encounter issues with your car seat, refer to the following common solutions:

• Car Seat Feels Loose After Installation: Recheck all installation steps. Ensure ISOFIX connectors are fully engaged (green indicators visible) and the load leg is firmly planted. If using a seat belt, ensure it is pulled taut and routed correctly through all guides.
• Harness is Difficult to Tighten/Loosen: Check for any twists in the harness straps. Ensure the harness release button is fully pressed when loosening. The harness should move freely.
• Child's Head Slumps Forward: Ensure the recline position is appropriate for your child's age and the installation mode (rearward-facing often requires a more reclined position). Adjust the headrest to provide proper support.
• Buckle Not Engaging: Ensure both buckle tongues are fully inserted into the buckle until a distinct click is heard. Check for any debris obstructing the buckle mechanism.

8. Specifications

Image 8.1: Product dimensions overview.

9. Warranty and Support

The Joie Stages ISOFIX Car Seat comes with a 1 Year Local (Singapore) Warranty. For warranty claims or technical support, please retain your proof of purchase and contact the authorized Joie distributor or retailer in your region. For general inquiries, you may visit the official Joie website or contact their customer service department.
