Timelink 88192A

Timelink Smartlight Rubber Alarm Clock

Model: 88192A | Brand: Timelink

Introduction

This manual provides instructions for the setup, operation, and maintenance of your Timelink Smartlight Rubber Alarm Clock. This digital alarm clock features a large display, an automatic night light, and a durable rubber case, designed for ease of use and reliability.

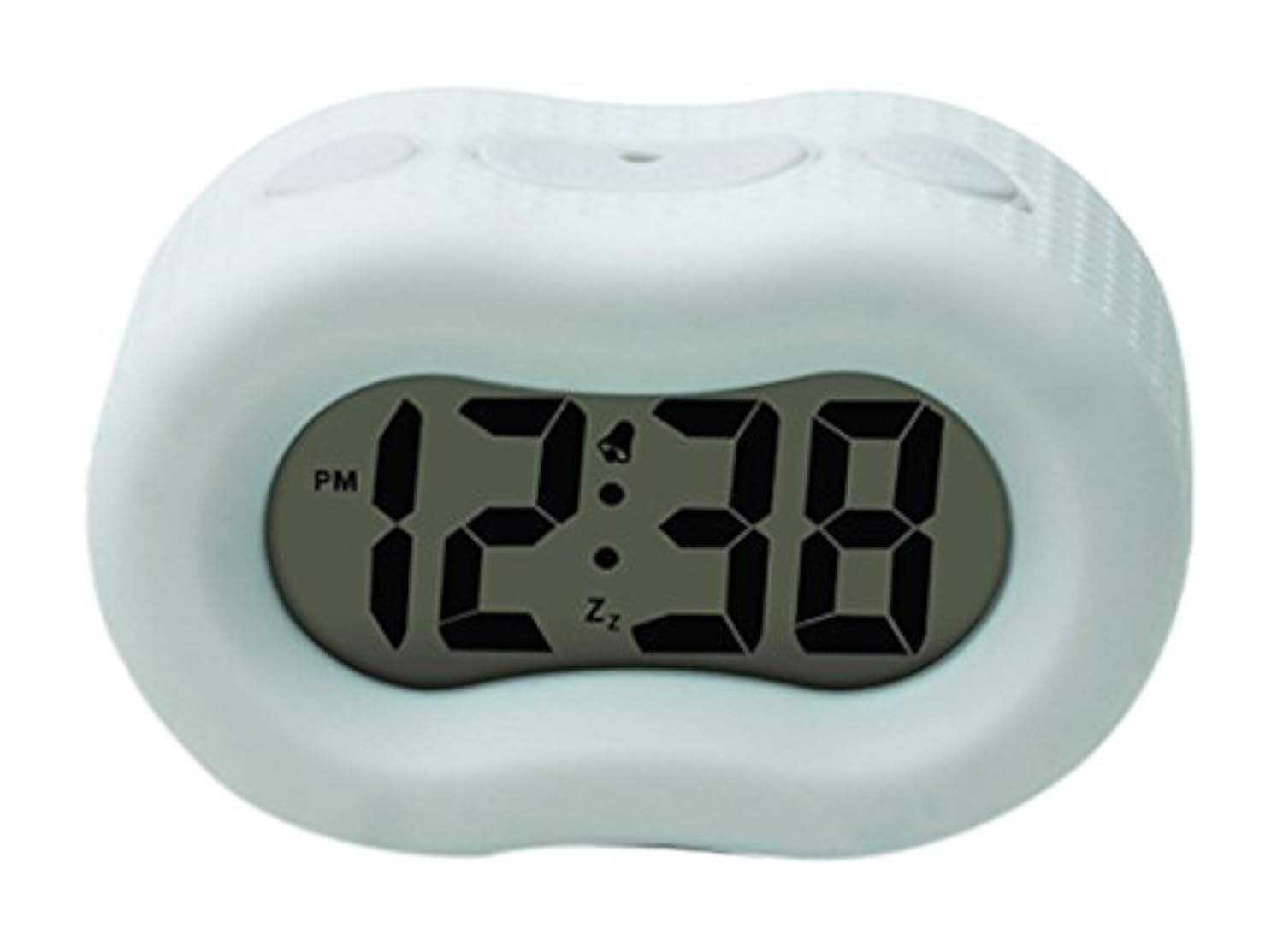

Timelink Smartlight Rubber Alarm Clock, front view showing digital time display

Front view of the Timelink Smartlight Rubber Alarm Clock, displaying the current time.

Product Features

  • Easy-to-Read Display: Large LCD screen with bold digits for clear visibility.
  • Automatic Smart Night Light: Built-in light sensor adjusts display brightness, illuminating in dark rooms and dimming in daylight.
  • Soft Rubber Case: Durable silicone rubber housing provides protection against accidental drops.
  • Simple Controls & Large Snooze Button: Intuitive settings for time and alarm adjustments, with an oversized snooze button.
  • Portable & Versatile Design: Compact, battery-operated for travel or everyday use.
Timelink Smartlight Rubber Alarm Clock with green illuminated display in a dark setting

The alarm clock's display with its automatic green night light activated in a low-light environment.

Setup

  1. Battery Installation: Open the battery compartment on the back of the clock. Insert 2 AA batteries, ensuring correct polarity (+/-). Close the compartment securely.
  2. Initial Time Setting: Locate the switches on the back of the clock. Slide the central switch to 'TIME SET'. Use the 'HOUR' and 'MIN' buttons on the top of the clock to adjust the time. Ensure AM/PM is correctly set.
  3. Night Light Activation: On the back of the clock, slide the 'OFF ON LIGHT' switch to 'ON' to enable the automatic smart night light feature. The display will illuminate softly in dark conditions.
  4. Alarm Activation: To enable the alarm, slide the 'OFF ON ALARM' switch on the back to 'ON'.
Back view of the Timelink Smartlight Rubber Alarm Clock showing battery compartment and setting switches

Rear view of the alarm clock, highlighting the battery compartment and control switches for alarm, time/alarm set, and light.

Operating Instructions

Setting the Time

  1. Slide the 'LOCK TIME ALARM SET' switch on the back to the 'TIME SET' position.
  2. Press the 'HOUR' button on the top to adjust the hour.
  3. Press the 'MIN' button on the top to adjust the minute.
  4. Once the correct time is set, slide the 'LOCK TIME ALARM SET' switch back to 'LOCK'.

Setting the Alarm

  1. Slide the 'LOCK TIME ALARM SET' switch on the back to the 'ALARM SET' position.
  2. Press the 'HOUR' button on the top to adjust the alarm hour.
  3. Press the 'MIN' button on the top to adjust the alarm minute.
  4. Once the desired alarm time is set, slide the 'LOCK TIME ALARM SET' switch back to 'LOCK'.
  5. Ensure the 'OFF ON ALARM' switch on the back is set to 'ON' for the alarm to activate.

Using the Snooze Function

  • When the alarm sounds, press the large 'SNOOZE/LIGHT' button on the top of the clock.
  • The alarm will pause for approximately 5 minutes before sounding again.

Activating Backlight On Demand

  • To temporarily illuminate the display, press the 'SNOOZE/LIGHT' button on the top of the clock. The backlight will activate for a few seconds.

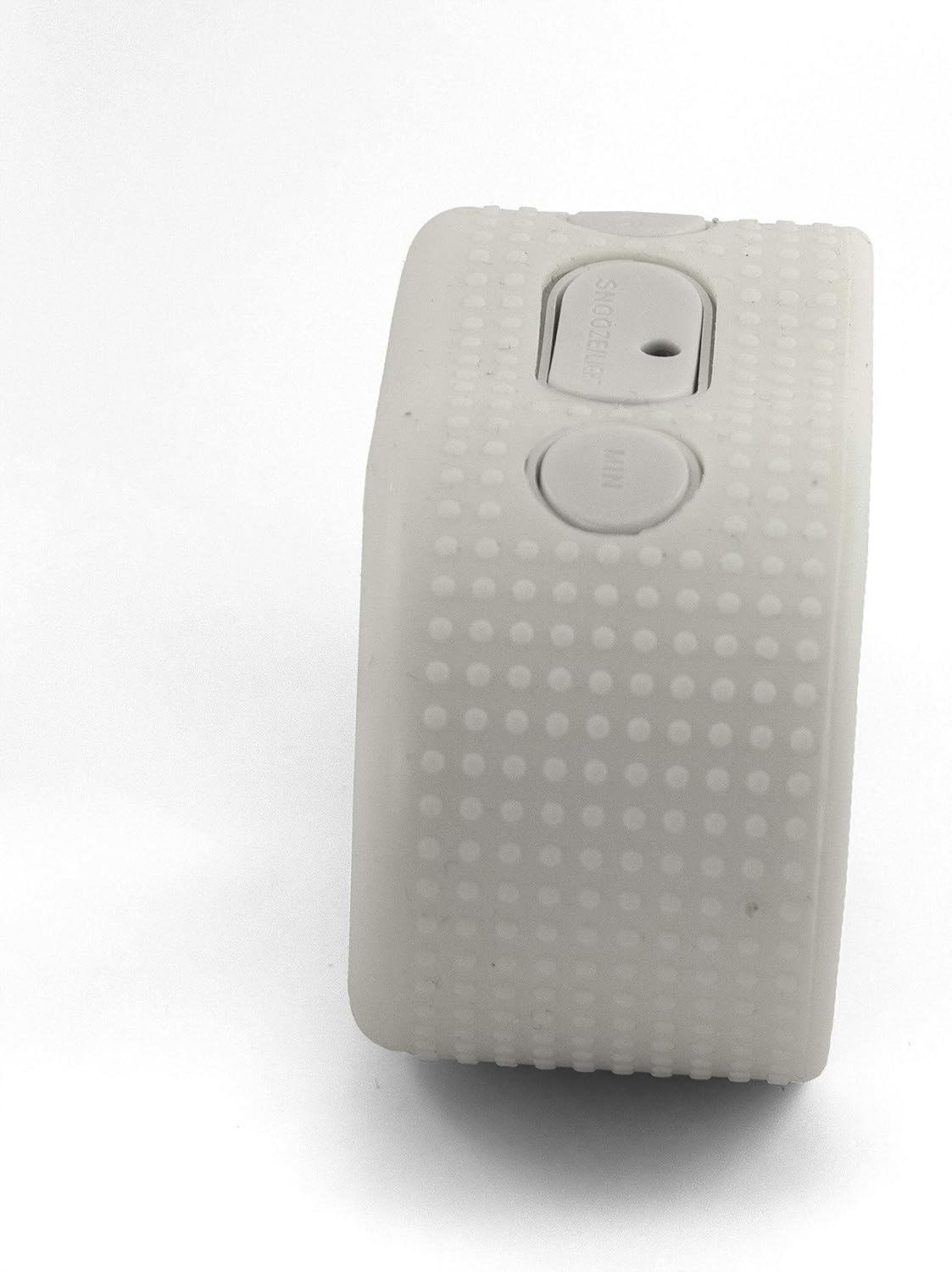

Top view of the Timelink Smartlight Rubber Alarm Clock showing Hour, Snooze/Light, and Min buttons

Top view of the alarm clock, showing the 'HOUR', 'SNOOZE/LIGHT', and 'MIN' buttons for setting and temporary backlight activation.

Official Timelink video demonstrating the features and operation of the Rubber Smartlight Digital Alarm Clock.

Maintenance

  • Cleaning: Wipe the clock with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these may damage the rubber case or display.
  • Battery Replacement: When the display dims or the alarm function becomes unreliable, replace the 2 AA batteries. Always replace both batteries at the same time with new ones. Dispose of old batteries responsibly.
  • Storage: If storing the clock for an extended period, remove the batteries to prevent leakage.

Troubleshooting

Problem Solution
Display is blank or dim. Check battery installation. Replace with fresh AA batteries. Ensure the 'OFF ON LIGHT' switch is set to 'ON' for automatic night light.
Alarm does not sound. Verify that the 'OFF ON ALARM' switch on the back is set to 'ON'. Confirm the alarm time is correctly set. Check battery level.
Time or alarm cannot be set. Ensure the 'LOCK TIME ALARM SET' switch on the back is in the correct 'TIME SET' or 'ALARM SET' position.
Night light is not working. Ensure the 'OFF ON LIGHT' switch is set to 'ON'. The smart light sensor activates in dark conditions; test in a dimly lit room.

Specifications

  • Brand: Timelink
  • Model Number: 88192A
  • Display Type: Digital LCD
  • Power Source: Battery Powered (2 x AA batteries, not included)
  • Material: Plastic, Rubber (Soft Silicone Case)
  • Product Dimensions: Approximately 4.25"W x 2.6"H (10.8 cm W x 6.6 cm H)
  • Item Weight: 5.3 ounces (0.15 kg)
  • Special Feature: Automatic Smart Night Light, Snooze Function
Diagram showing the dimensions of the Timelink Smartlight Rubber Alarm Clock

Dimensional overview of the alarm clock, indicating its width and height.

Warranty and Support

For warranty information or customer support, please refer to the packaging or contact Timelink customer service directly. Keep your purchase receipt for any warranty claims.

For further assistance, visit the official Timelink website or contact their support team through the contact details provided with your product.
