Introduction
Thank you for choosing the Outsunny 10' x 13' Patio Gazebo. This manual provides essential information for the safe assembly, operation, maintenance, and care of your new outdoor shelter. Please read these instructions thoroughly before assembly and retain them for future reference.

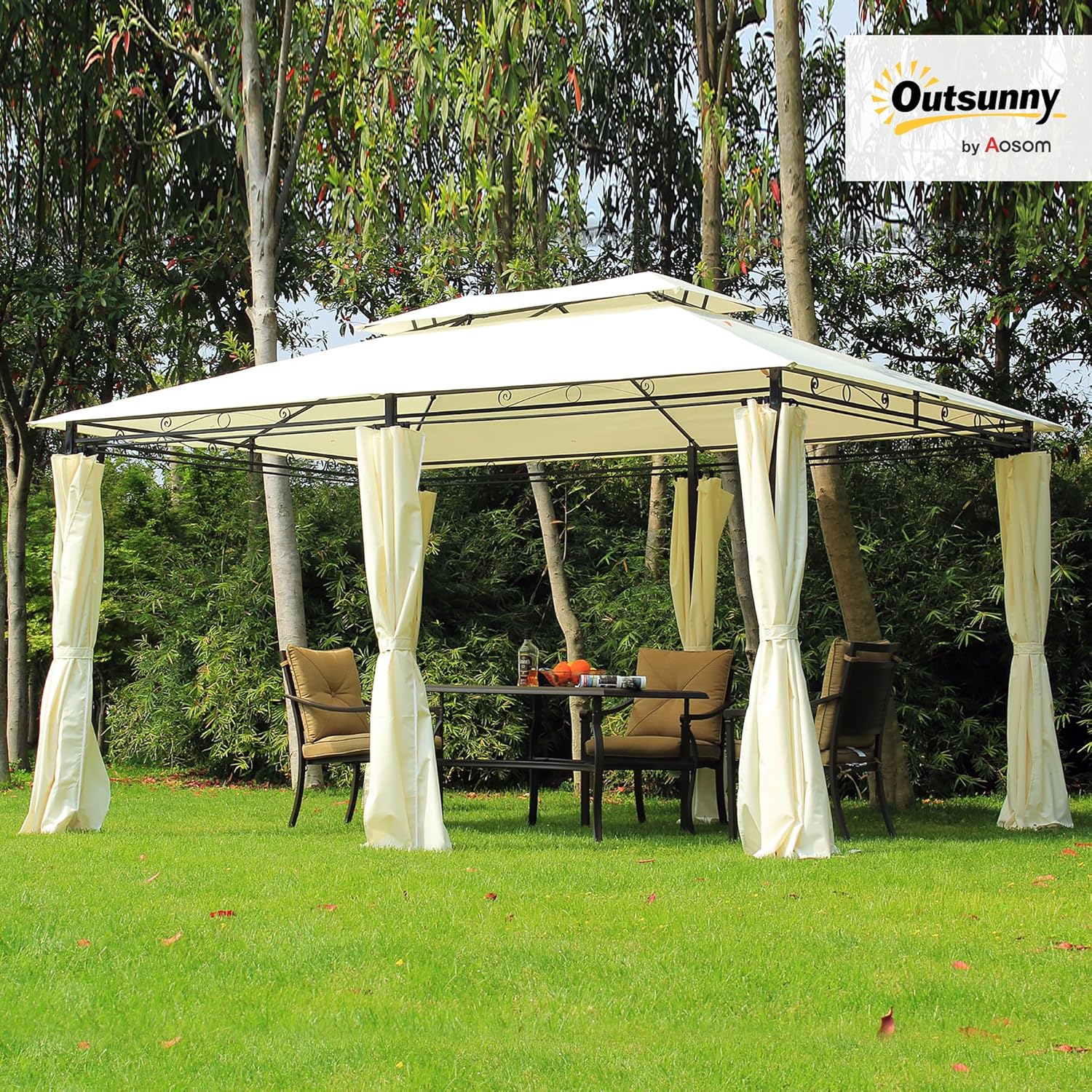

The Outsunny 10' x 13' Patio Gazebo provides a shaded outdoor space.
This video provides a brief overview of the Outsunny Patio Gazebo and its features.
Safety Information
To ensure safe use and prevent damage, please observe the following:
- Weather Conditions: Do not use this gazebo in rain, snow, or severe weather conditions. The canopy top should be removed for safety during strong winds or heavy precipitation.
- Anchoring: Always secure the gazebo firmly to the ground using the provided ground stakes and any additional anchoring methods suitable for your specific installation surface.
- Assembly: Assembly typically requires two to three adults. Ensure all parts are correctly aligned and fastened before use.
- Fire Safety: Keep all flame and heat sources away from the gazebo fabric. The fabric is not fireproof.
- Regular Inspection: Periodically check all connections and fasteners to ensure they remain secure.
Package Contents
Before beginning assembly, verify that all components are present and undamaged. Refer to the parts list provided in your packaging. The package includes the gazebo frame, canopy fabric, curtains, and ground stakes.
Ensure all components are present before starting assembly.
Assembly Instructions
Assembly is required for this gazebo. It is recommended to have at least two to three people for efficient and safe assembly. Follow the detailed step-by-step instructions and diagrams included in your product packaging. Below are general guidelines:
- Frame Assembly: Begin by assembling the main steel frame components. Connect the upright poles, cant frames, and top rails as per the diagrams.
- Canopy Installation: Carefully place the two-tier canopy fabric over the assembled frame. Ensure the canopy is properly aligned and secured to the frame.
- Curtain Attachment: Attach the water and wind-resistant zippered curtains to the gazebo frame.
- Anchoring: Secure the gazebo to the ground using the provided ground stakes for stability.
Detail of the gazebo's internal frame structure.
Key features like the polyester cover, double-tier roof, drainage holes, and ground stakes.
Operating Instructions
The Outsunny Patio Gazebo is designed for outdoor use, providing shade and privacy.
- Curtain Usage: The gazebo features zippered curtains on all sides. These can be closed for privacy and protection from light wind or sun, or tied back to create an open, airy space.
- Ventilation: The two-tier vented canopy design allows for improved airflow, helping to reduce heat buildup and wind stress.
- Water Drainage: The canopy top includes eight leak holes to facilitate water drainage during light rain, preventing water accumulation.
Gazebo with curtains closed for privacy and protection.
Curtains can be tied back for an open feel.
Details of the curtain's double-sided zipper, tie straps, and hook & loop fasteners.
Maintenance
Proper maintenance will extend the life of your gazebo.
- Cleaning: Clean the polyester canopy and curtains with mild soap and water. Do not use harsh chemicals or abrasive cleaners. The curtains are removable and washable.
- Frame Care: The steel frame is powder-coated for durability. Clean with a damp cloth and mild detergent. Inspect for any rust spots and treat as necessary to prevent further corrosion.
- Storage: During off-season or periods of non-use, especially in harsh weather, it is recommended to disassemble the gazebo and store the canopy and curtains in a dry, protected area.
Troubleshooting
Here are solutions to common issues you might encounter:
- Instability in Wind: Ensure the gazebo is properly anchored with all ground stakes. Consider adding sandbags or other weights to the base of the poles for increased stability in windy conditions.
- Water Accumulation on Canopy: While the canopy has drainage holes, heavy rain can still cause pooling. Ensure the canopy is tautly installed. In very heavy rain, it is advisable to remove the canopy.
- Difficulty with Assembly: Review the assembly diagrams carefully. Ensure all parts are oriented correctly. Sometimes, having an extra person can significantly ease the assembly process.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 01-0154 |
| Overall Dimensions (L x W x H) | 3L x 4W x 2.8H Meters (9.75'L x 13'W x 9.2'H) |
| Eave Height | 1.9 Meters (6.2') |
| Material | Alloy Steel frame, Polyester fabric |
| Color | Cream White canopy and curtains, Black frame |
| Item Weight | 32.43 kg (70.4 lbs) |
| Water Resistance Level | Water Resistant |
| UV Protection | Yes |
| Assembly Required | Yes |

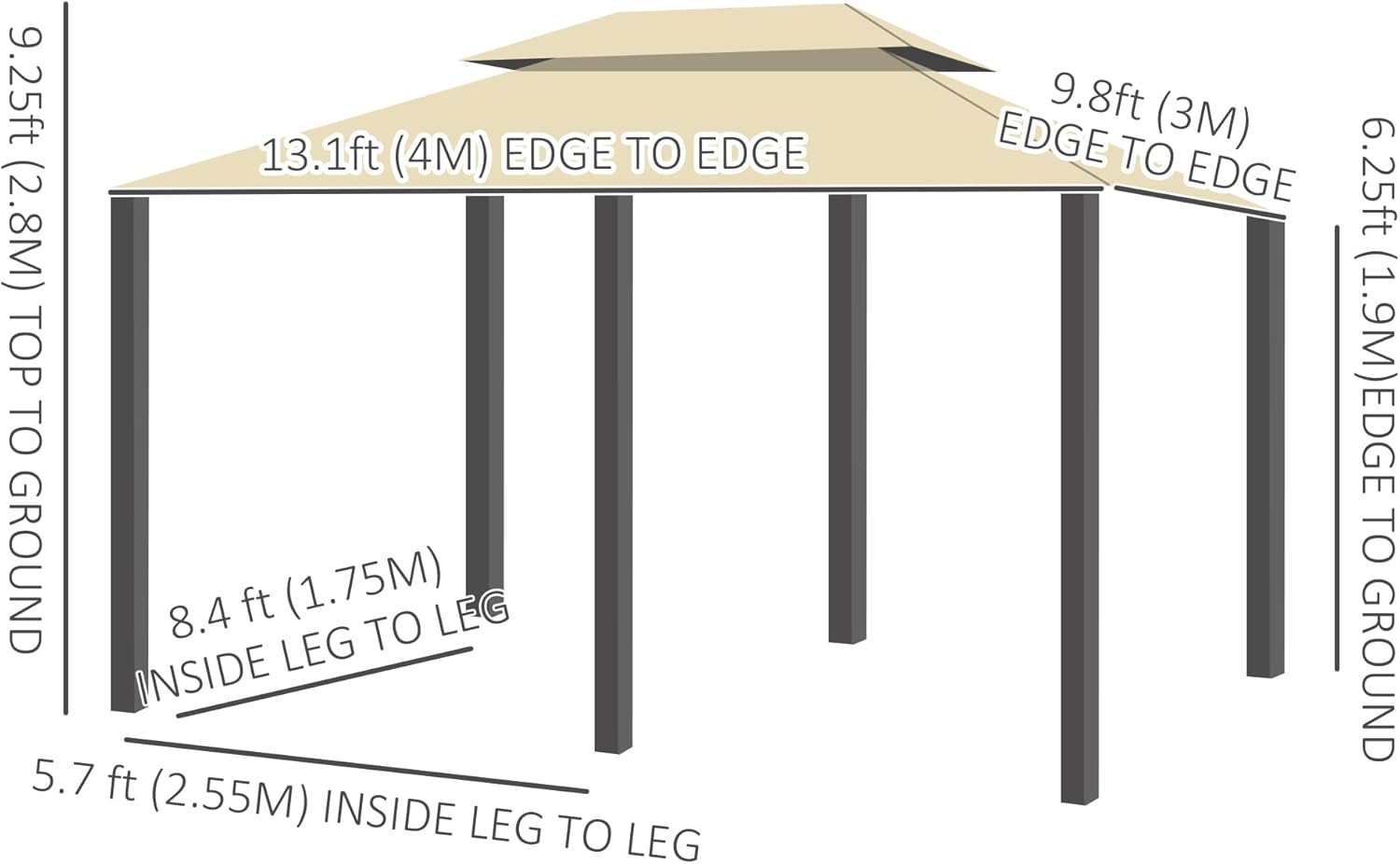

Detailed dimensions of the gazebo.
Warranty and Support
This Outsunny gazebo comes with a 90-Day Warranty Against Manufacturer Defects.
For warranty claims, replacement parts, or technical support, please contact Aosom Canada, the manufacturer, directly:
- Manufacturer: Aosom Canada
- Place of Business: Markham, Ontario, CA
- Telephone: 1-416-792-6088
