Introduction
The GARDIGO Water Jet Animal Repellent is designed to deter unwanted animals from your garden, flower beds, or ponds using a motion-activated water jet. This device helps protect your outdoor spaces from various animals such as birds, herons, cats, dogs, raccoons, rabbits, and deer. This manual provides detailed instructions for the proper setup, operation, maintenance, and troubleshooting of your repellent.
Product Overview
The GARDIGO Water Jet Animal Repellent consists of a sprinkler head, a motion sensor unit, and a ground spike for stable placement. It operates on batteries and connects to a standard garden hose.
Figure 1: Main unit of the GARDIGO Water Jet Animal Repellent in action, showing the water jet deterring an animal.
Figure 2: Examples of animals that can be deterred by the water jet repellent.
Setup
- Insert Batteries: Open the battery compartment on the motion sensor unit and insert the two included AA batteries. Ensure correct polarity.
- Assemble Unit: Securely attach the sprinkler head to the top of the motion sensor unit.
- Ground Placement: Insert the metal ground spike firmly into the soil in the desired area. Ensure the unit is stable and upright.
- Hose Connection: Connect a standard garden hose to the inlet on the ground spike. The unit is designed for use with garden hose quick-connectors (sold separately). Ensure a tight connection to prevent leaks.
- Water Supply: Turn on the water supply to the hose.
Figure 3: Step-by-step guide for inserting the unit into the soil and connecting the garden hose.
Figure 4: The drip shield prevents water from triggering the motion sensor prematurely.
Operating Instructions
The GARDIGO Water Jet Animal Repellent uses a passive infrared (PIR) motion detector to sense animal movement and activate a water jet.
How it Works:
- The motion sensor detects an animal within its detection zone.
- The water jet is activated, releasing a burst of water.
- The sudden spray of water scares the animal, causing it to leave the area.
Figure 5: Operational flow of the water jet animal repellent.
Adjusting Settings:
- Detection Area: The PIR motion detector covers an area of approximately 100° x 60°. Position the unit to cover the desired protection zone.
- Water Jet Range: The water jet has a range of up to 10 meters, depending on the setting and water pressure. A regulator on the unit allows you to adjust the spray distance. Turn the regulator to increase or decrease the range as needed.
Figure 6: The repellent can be used in various outdoor environments.
Maintenance
- Battery Replacement: When the unit's performance decreases or it stops activating, replace the two AA batteries.
- Winter Storage: During periods of freezing temperatures, it is recommended to disconnect the unit from the water supply, drain any residual water, and store it indoors to prevent damage from ice.
- Hose Connection Check: Regularly inspect the hose connection for leaks. Ensure the connection is tight and compatible with your hose size.
- Sensor Cleaning: Keep the motion sensor lens clean and free from dirt or debris to ensure optimal detection.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not activating | Dead batteries; Sensor obstructed; Low water pressure. | Replace batteries; Clean sensor lens; Check water supply and pressure. |
| Water leaking from connection | Loose hose connection; Incompatible hose size; Damaged seal. | Ensure hose is tightly connected; Use compatible quick-connectors; Check and replace seals if necessary. |
| False activations | Wind blowing objects in front of sensor; Sensor facing direct sunlight. | Reposition the unit away from moving objects (e.g., large plants) or direct sunlight. |
| Water jet range is too short/long | Incorrect regulator setting; Insufficient water pressure. | Adjust the range regulator on the unit; Ensure adequate water pressure from the hose. |
Specifications
- Brand: Gardigo
- Model Number: 1552959
- Dimensions: 14 x 10.3 x 66 cm (5.5 x 4.05 x 26 inches)
- Weight: Approximately 9.07 g (0.32 oz)
- Power Source: 2 x AA batteries (included)
- Motion Detection Angle: Approximately 100° x 60°
- Water Jet Range: Up to 10 meters (32.8 feet)
- Material: Plastic

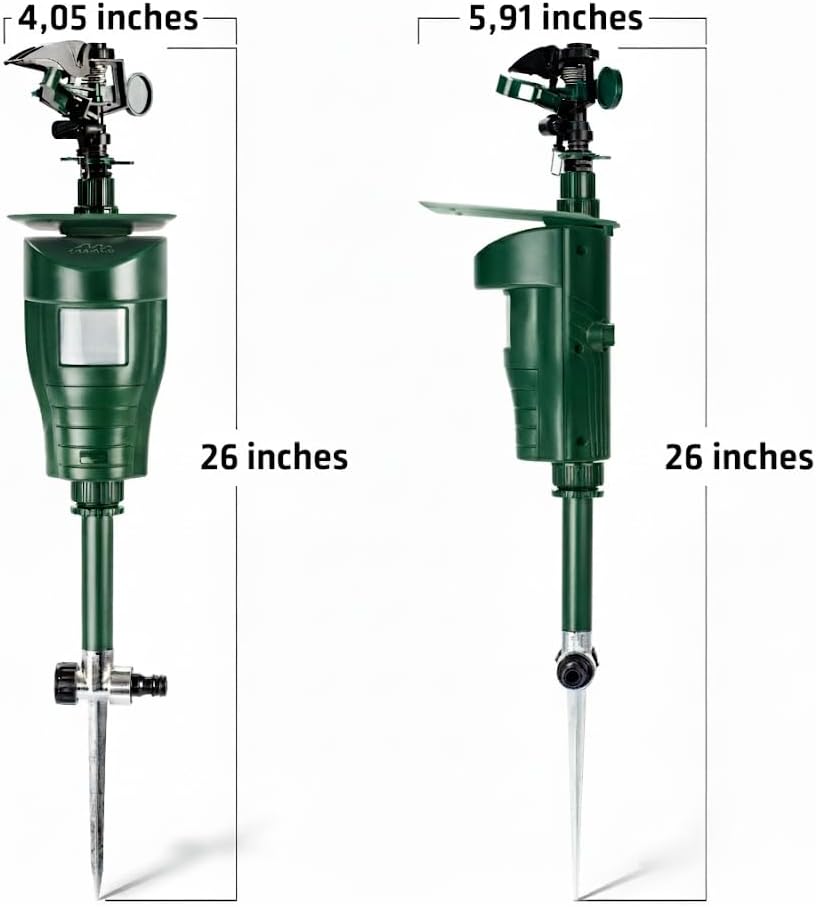

Figure 7: Product dimensions for planning placement.
Warranty and Support
Gardigo is committed to product quality and customer satisfaction. For any guarantee or warranty claims, or if you require support, please contact our customer service. Our headquarters with sales and support are located in Germany, ensuring reliable assistance for our products.
