Fitness Reality 810XLT
Fitness Reality 810XLT Super Max Power Cage and 1000 Weight Bench
User Instruction Manual
Introduction
This manual provides comprehensive instructions for the safe and effective use of your Fitness Reality 810XLT Super Max Power Cage and 1000 Super Max Weight Bench. Please read all instructions carefully before assembly and use to ensure proper operation and to prevent injury.
Image: The Fitness Reality 810XLT Super Max Power Cage shown with the 1000 Super Max Weight Bench, ready for use.
Safety Information
- Always consult with a physician before starting any exercise program.
- Ensure all bolts and nuts are securely tightened before each use.
- Do not exceed the maximum weight capacity of 800 lbs for both the power cage and the weight bench.
- Use safety bars and spotters when lifting heavy weights.
- Keep children and pets away from the equipment during use.
- Inspect the equipment for wear and tear before each workout. Discontinue use if any damage is found.
Setup and Assembly
Assembly is required for this product. While assembly can be performed by one person, two people may make certain steps easier. A ratcheting socket wrench is recommended over the included spanners for tightening hardware.
Power Cage Assembly Notes:
- Do not fully tighten any bolts until all components are loosely assembled. This allows the cage to settle into a square and level position.
- When tightening, start from the bottom and work your way up, tightening both fasteners per joint evenly in stages.
- The power cage features a 2" x 2" tubular steel frame construction for durability.
Image: The Fitness Reality 810XLT Power Cage, highlighting the robust frame and safety bar positions.
Safety Bar Installation:
The power cage includes two 23-inch long chrome dual-mounted safety bars and two 3.25-inch long chrome lock-on safety bars. These are compatible with 7-foot Olympic bars and are adjustable to 19 height levels.
Image: Detail of the chrome lock-on safety bar being inserted into one of the 19 adjustable height levels on the power cage upright.
Weight Bench Assembly Notes:
- The weight bench is designed for easy assembly.
- Ensure all parts are correctly aligned before tightening.
- The bench features a unique triangular support structure for stability.
Operating Instructions
Power Cage Usage:
The 810XLT Power Cage provides a large walk-in space for various exercises. It features multi-position overhead chin-up/pull-up grip bars. The cage has an 800 lb weight capacity.
- Squats: Position the barbell on the safety bars or J-hooks (optional, sold separately) at the desired height. Step under the bar, unrack, perform squats, and re-rack.
- Bench Press: Use the 1000 Weight Bench inside the cage. Adjust the safety bars to catch the barbell if you fail a lift.
- Pull-ups/Chin-ups: Utilize the multi-grip pull-up bar at the top of the cage for various grip positions.
Image: A man performing squats inside the power cage, demonstrating proper form and equipment use.
Image: A man performing pull-ups on the multi-grip bar of the power cage.
Image: A man performing a bench press using the weight bench positioned within the power cage for safety.
Weight Bench Usage:
The 1000 Super Max Weight Bench offers 12 adjustable backrest positions, ranging from -20 degrees decline to +80 degrees incline. It has an 800 lb super-duty weight capacity and supports users up to 6'4". The 1.75" thick foam backrest and large seat provide comfort.
Image: The Fitness Reality 1000 Weight Bench demonstrating its adjustable backrest, allowing for various incline and decline positions.
Image: A woman performing a dumbbell shoulder press on the adjustable weight bench.

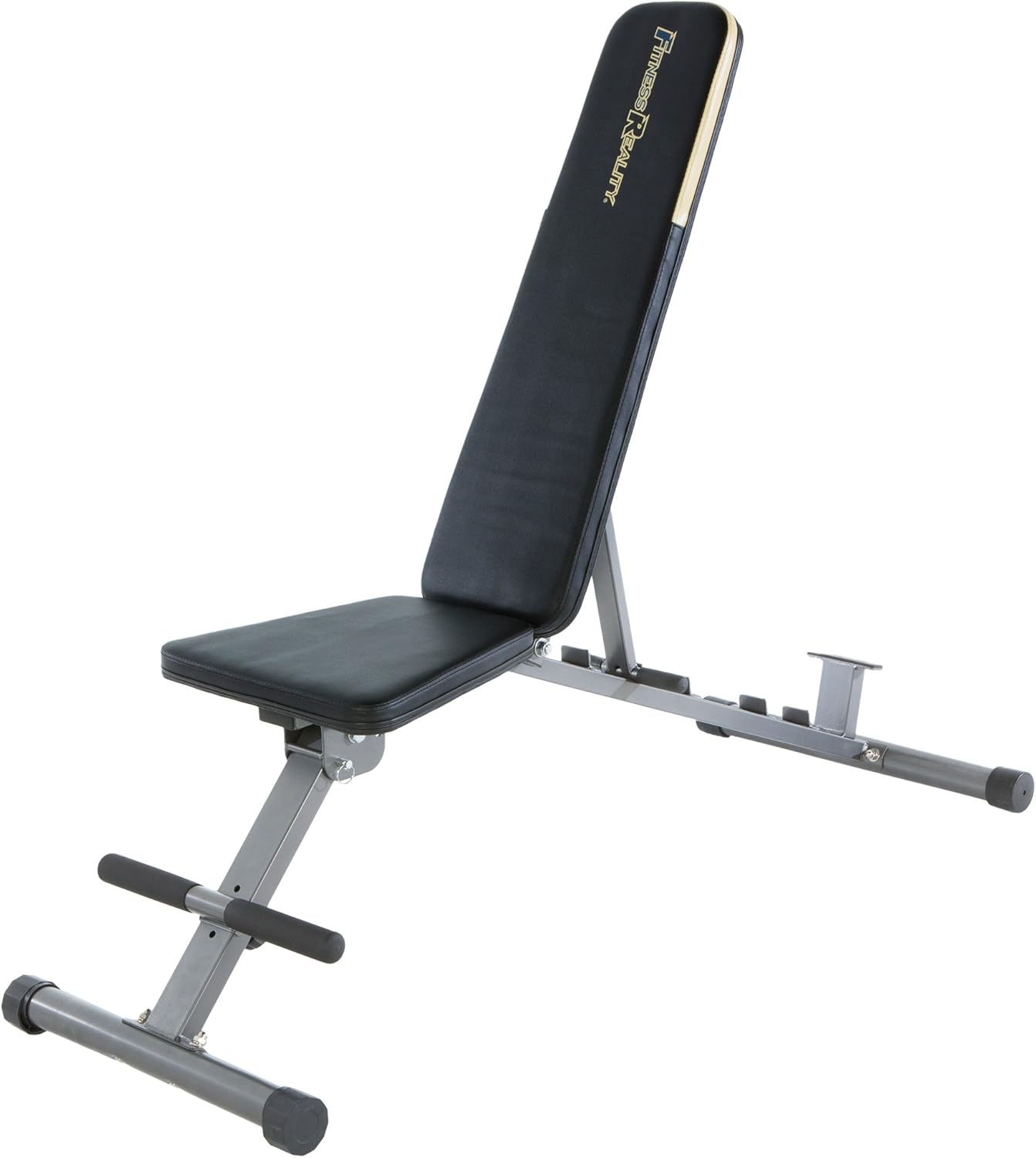

Image: The Fitness Reality 1000 Super Max Weight Bench shown independently, highlighting its design and features.
Product Demonstration Video:
Video: A comprehensive demonstration of the Fitness Reality 810XLT Super Max Power Cage and 1000 Weight Bench, showcasing assembly, features, and various exercises that can be performed with the equipment.
Maintenance
- Regularly inspect all nuts, bolts, and moving parts for tightness and wear. Tighten as necessary.
- Clean the frame and upholstery with a damp cloth and mild detergent. Avoid abrasive cleaners.
- Store the equipment in a dry environment to prevent rust.
- The weight bench can be folded for convenient storage and features transportation wheels for easy relocation.
Image: The Fitness Reality 1000 Weight Bench in its folded position, illustrating its compact storage capability and integrated transport wheels.
Troubleshooting
- Equipment Instability: Ensure all bolts are fully tightened. Verify the equipment is placed on a flat, level surface.
- Difficulty Adjusting Bench: Check that the adjustment pins are fully disengaged before attempting to change positions. Ensure no obstructions are present.
- Missing Parts: If any parts are missing upon delivery, contact customer support immediately.
Specifications
| Brand: | Fitness Reality |
| Model Name: | 810XLT (Power Cage), 1000 Super Max (Weight Bench) |
| Power Cage Dimensions (L x W x H): | 50.5" x 46.5" x 83.5" |
| Weight Bench Dimensions (L x W x H): | 59" x 23.5" x 48.5" (Set up) |
| Power Cage Weight Capacity: | 800 lbs |
| Weight Bench Capacity: | 800 lbs |
| Material: | Alloy Steel |
| Power Cage Item Weight: | 133.5 lbs |
| Weight Bench Backrest Positions: | 12 (from -20° decline to +80° incline) |
| Max User Height (Bench): | Up to 6'4" |
| UPC: | 888115028115 |
| Model Number: | 2811 |
Warranty
The Fitness Reality 810XLT Super Max Power Cage and 1000 Super Max Weight Bench come with a 1-year limited warranty. Please refer to the manufacturer's official website or contact customer support for full warranty details and terms.
Customer Support
For further assistance, parts, or service, please contact Paradigm Health & Wellness Inc., the manufacturer of Fitness Reality products. You can typically find contact information on the official Fitness Reality website or through your retailer.
Manufacturer: Paradigm Health & Wellness Inc. -- DROPSHIP
