Introduction
The Shop Fox D4657 Heavy Duty Lathe Stand is designed to convert benchtop wood lathes into freestanding turning machines. This stand provides a stable and adjustable platform, enhancing the versatility and ergonomics of your woodworking setup. It is constructed for durability and ease of use, accommodating various benchtop lathe models within its specified mounting pattern range.
Safety Information
WARNING: Always read and understand all instructions before assembling or operating this stand. Failure to follow all warnings and instructions may result in serious injury.
- Ensure the stand is assembled on a flat, stable surface.
- Verify all fasteners are securely tightened before placing a lathe on the stand.
- Do not exceed the maximum weight capacity of 220 lbs.
- Always wear appropriate personal protective equipment (PPE) when operating a lathe mounted on this stand.
- Keep children and bystanders away from the work area.
- Regularly inspect the stand for any signs of damage or loose components.
Parts List
Before assembly, ensure all components are present and undamaged. Refer to the diagram for identification.

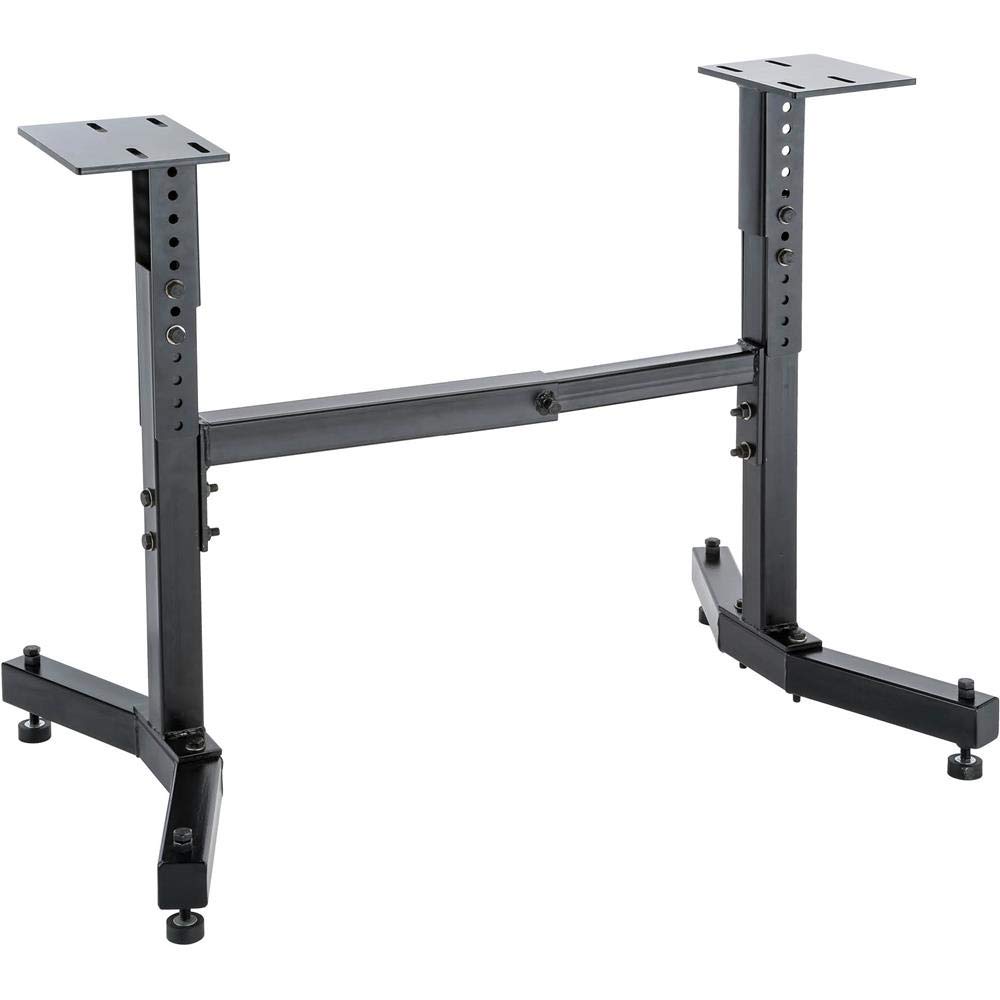

Figure 1: Shop Fox D4657 Heavy Duty Lathe Stand with a benchtop lathe mounted. This image shows the complete assembly of the stand with a lathe, highlighting the adjustable legs, crossbar, and mounting plates.
- Adjustable Leg Assemblies (2)
- Foot Assemblies (2)
- Adjustable Crossbar (1)
- Lathe Mounting Plates (2)
- Hardware Kit (bolts, nuts, washers, leveling feet)
Setup and Assembly
- Attach Foot Assemblies to Legs: Secure each foot assembly to the bottom of an adjustable leg assembly using the provided bolts and nuts. Ensure the leveling feet are oriented downwards.
- Connect Leg Assemblies with Crossbar: Position the two assembled leg units. Attach the adjustable crossbar between the two leg assemblies using the appropriate hardware. Do not fully tighten the crossbar bolts at this stage to allow for width adjustment.
- Install Lathe Mounting Plates: Place the lathe mounting plates onto the top of each adjustable leg assembly. These plates provide the surface for your benchtop lathe. Secure them with the provided hardware.
- Adjust Height: Loosen the adjustment bolts on each leg. Raise or lower the leg sections to the desired working height (range: 24-1/2" to 34"). Ensure both legs are set to the same height for a level surface. Tighten all height adjustment bolts securely.
- Mount Lathe: Carefully place your benchtop lathe onto the mounting plates. Align the lathe's mounting holes with the slots on the stand's mounting plates. Adjust the crossbar width as needed to match your lathe's footprint (mounting pattern range: 18-1/2" x 4" to 38-1/2" x 6-1/2"). Secure the lathe to the stand using appropriate bolts, nuts, and washers (lathe mounting hardware typically supplied with the lathe, not the stand).
- Final Tightening and Leveling: Once the lathe is mounted and positioned, fully tighten all crossbar bolts. Adjust the leveling feet on the foot assemblies to ensure the entire stand and lathe are stable and level on your workshop floor.
Operating Instructions
This stand provides a stable base for your benchtop lathe. Proper operation involves ensuring the lathe is securely mounted and the stand is stable.
- Stability Check: Before each use, gently rock the lathe and stand assembly to confirm it is stable and does not wobble. Adjust leveling feet if necessary.
- Workpiece Clearance: Ensure adequate clearance around the lathe for safe operation and workpiece rotation.
- Ergonomics: Adjust the stand height to a comfortable working position that minimizes strain during operation.
Maintenance
- Regular Inspection: Periodically check all bolts, nuts, and fasteners for tightness. Retighten as needed.
- Cleaning: Wipe down the stand with a damp cloth to remove dust and debris. Avoid harsh chemicals that may damage the finish.
- Rust Prevention: If operating in a humid environment, consider applying a light coat of rust preventative to exposed metal surfaces.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stand is wobbly or unstable. | Uneven floor; loose leveling feet; loose assembly bolts. | Adjust leveling feet until stable. Ensure all assembly bolts are tightened. |
| Lathe does not fit mounting pattern. | Incorrect crossbar width adjustment; lathe mounting holes outside specified range. | Adjust crossbar width to match lathe. Verify lathe mounting pattern is within 18-1/2" x 4" to 38-1/2" x 6-1/2". |
| Difficulty adjusting height. | Adjustment bolts not sufficiently loosened; debris in leg channels. | Ensure adjustment bolts are fully loosened. Clean any debris from the leg channels. |
Specifications
- Model: D4657
- Height Range: 24-1/2" - 34"
- Mounting Pattern Range: 18-1/2" x 4" to 38-1/2" x 6-1/2"
- Weight Capacity: 220 lbs.
- Item Weight: 50 lbs.
- Product Dimensions: 18 x 8 x 25 inches (packaged/collapsed)
- Material: Steel
- Optional Accessory: D4658 Extension
Warranty and Support
For warranty information or technical support, please contact Shop Fox customer service. Retain your purchase receipt for proof of purchase. Specific warranty terms and conditions may apply and are subject to change.
Manufacturer: Woodstock International
