Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Monte Carlo 3SKYR56BKD 56-inch Ceiling Fan. This fan features a premium DC motor for quiet operation, energy efficiency, and integrated LED lighting. It is specially designed for patio and damp locations, offering versatile use. Please read all instructions carefully before beginning installation and retain this manual for future reference.

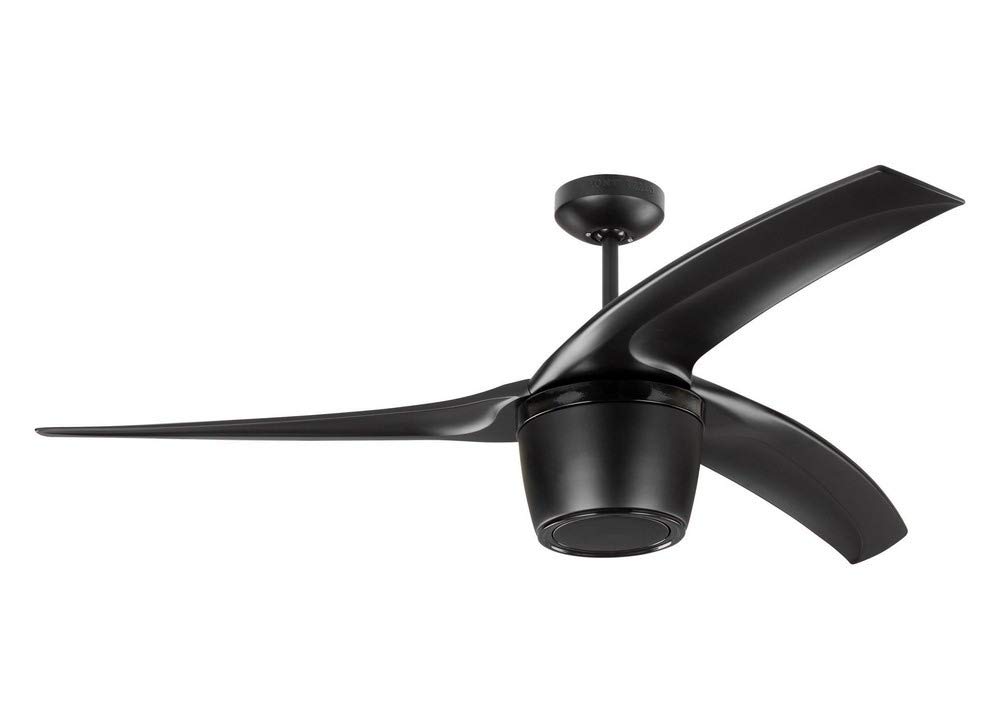

Image: The Monte Carlo 3SKYR56BKD 56-inch Ceiling Fan, featuring three blades and a sleek design, suitable for various indoor and damp outdoor settings.
Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these basic precautions:
- Ensure the power is turned off at the circuit breaker before installation or servicing.
- All wiring must be in accordance with national and local electrical codes. Consult a qualified electrician if you are unsure about wiring.
- The mounting structure must be capable of supporting the fan's weight (approximately 4 pounds).
- Do not operate the fan with damaged blades or housing.
- Keep hands, clothing, and other objects clear of the fan blades when the fan is in operation.
- This fan is designed for indoor use, but is rated for damp locations.
Package Contents
Verify that all components are present before beginning installation. If any parts are missing or damaged, contact customer support.
- Monte Carlo 3SKYR56BKD Ceiling Fan Unit
- Mounting Bracket
- Downrod
- Canopy
- Fan Blades (3)
- Hardware Pack (screws, washers, wire nuts)
- Instruction Manual
- Remote Control (if included)
- Pull Chain (if included)
Setup and Installation
Professional installation is recommended for optimal safety and performance. Refer to the detailed diagrams in the printed manual for specific steps.
- Turn Off Power: Locate the circuit breaker for the fan's intended location and turn off the power.
- Mounting Bracket Installation: Secure the mounting bracket to the ceiling junction box. Ensure the junction box is securely fastened to the building structure and can support the fan's weight.
- Assemble Downrod and Fan Motor: Attach the downrod to the fan motor assembly. Carefully feed the electrical wires through the downrod.
- Hang Fan Assembly: Lift the fan assembly and hang it from the mounting bracket.
- Electrical Connections: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full manual. Ensure all connections are secure.
- Attach Canopy: Slide the canopy up to the ceiling and secure it to cover the wiring connections.
- Install Fan Blades: Attach the three fan blades to the motor housing. Ensure all screws are tightened securely.
- Restore Power: Once installation is complete, restore power at the circuit breaker.
Operating Instructions
Your Monte Carlo 3SKYR56BKD ceiling fan offers multiple speed settings and a reversible motor for year-round comfort.
Fan Speed Control
The fan features 6 speed settings. Control the fan speed using the pull chain or the dedicated mobile application (if applicable).
- Pull Chain Control: Pull the chain repeatedly to cycle through the 6 speed settings and turn the fan off.
- App Control: Download the Monte Carlo control application from your device's app store. Follow the in-app instructions to pair your fan and control its functions, including speed and direction.
Reversible Motor Function
The fan's reversible motor allows for seasonal use:
- Summer Mode (Downward Airflow): The fan blades rotate counter-clockwise, pushing air down to create a cooling breeze.
- Winter Mode (Upward Airflow): The fan blades rotate clockwise, drawing air up to circulate warm air trapped near the ceiling.
To change the direction of the fan blades, locate the reverse switch on the fan motor housing or use the app control. Ensure the fan is completely stopped before changing direction.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your ceiling fan.
- Cleaning: Periodically clean the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Tighten Fasteners: Check all screws and fasteners annually to ensure they are secure. Loose connections can cause noise and wobble.
- Blade Balance: If the fan wobbles, check that all blades are securely attached and that their weights are evenly distributed. A balancing kit (sold separately) may be used if necessary.
- No Lubrication Required: The DC motor is permanently lubricated and does not require additional oiling.
Troubleshooting
Refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Incorrect wiring. | Check circuit breaker; Verify all wire connections are secure; Consult wiring diagram or a qualified electrician. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Ensure blades are balanced (use a balancing kit if needed); Secure mounting bracket to ceiling. |
| Noisy operation | Loose screws; Motor hum; Blades hitting an obstruction. | Check and tighten all screws; Ensure fan is properly installed and balanced; Verify no obstructions are in the fan's path. |
| Remote/App not working | Batteries dead (for remote); Fan not paired; App issues. | Replace remote batteries; Follow pairing instructions in the full manual; Reinstall app or check for updates. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Monte Carlo |
| Model Number | 3SKYR56BKD |
| Product Dimensions | 56"D x 56"W x 17.5"H |
| Item Weight | 4 Pounds |
| Number of Blades | 3 |
| Blade Material | Plastic |
| Number of Speeds | 6 |
| Controller Type | Pull Chain Control |
| Control Method | App |
| Power Source | AC/DC |
| Voltage | 120 Volts |
| Wattage | 12 watts |
| LED Performance | 15 watts, 2700K, 90CRI, Rated Life: 36,000 hours to 70% |
| Special Features | Quiet, Rated for Outdoor |
| Indoor Outdoor Usage | Indoor (Note: Product features also mention "Rated for Outdoor" for damp locations. Please refer to product packaging for specific outdoor rating.) |
| Specification Met | Energy Star |
| UPC | 014817573299 |
Warranty Information
The product's warranty description is listed as "Na." Please refer to the product packaging or contact Monte Carlo customer support for detailed warranty terms and conditions.
Customer Support
For technical assistance, missing parts, or warranty inquiries, please contact Monte Carlo customer support.
- Website: Visit the Monte Carlo Store on Amazon
- General Inquiries: Refer to the contact information provided on the official Monte Carlo website or product packaging.
