Titan Ramps Single-Fold Wheelchair Ramp (Model MR-P, 5 ft)

Introduction

This manual provides instructions for the safe and proper use, setup, and maintenance of your Titan Ramps Single-Fold Wheelchair Ramp, Model MR-P. Please read this manual thoroughly before operation to ensure safety and optimal performance.

Safety Information

• Always ensure the ramp is securely positioned and stable before use.
• Do not exceed the maximum weight capacity of 600 lbs.
• Use caution when ascending or descending the ramp, especially with occupied mobility devices.
• Ensure the ramp's surface is clean and free of debris, ice, or water to prevent slipping.
• Inspect the ramp for any damage or wear before each use. Do not use if damaged.
• When loading an occupied device, the maximum recommended loading height is 10 inches. For unoccupied devices, the maximum recommended loading height is 15 inches.

Package Contents

• 1 x Titan Ramps Single-Fold Wheelchair Ramp (Model MR-P, 5 ft)
• Security Pins (for mounting)
• Hook and Loop Closures (for transportation)

Note: Contents may vary slightly. Inspect package upon arrival.

Setup Instructions

1. Unfolding the Ramp: Place the folded ramp on a flat, stable surface. Release the hook and loop closures. Carefully unfold the ramp sections until fully extended.
2. Positioning the Ramp: Place the top lip of the ramp securely onto the edge of the elevated surface (e.g., step, vehicle tailgate). Ensure the lip is fully supported and flush with the surface.
3. Securing the Ramp: Use the provided security pins to anchor the ramp to the elevated surface if possible, or ensure the ramp's top lip is firmly seated and cannot slip. For vehicle applications, a safety strap (not included) may be used to secure the ramp to a hitch or other anchor point.
4. Stability Check: Before use, gently apply pressure to the ramp to confirm it is stable and does not shift or slide.

Image: The Titan Ramps Single-Fold Wheelchair Ramp in its fully unfolded state, showcasing its aluminum construction and textured surface.

Image: A close-up view of the ramp's tapered angled lip, designed to allow exterior doors to open without obstruction.

Image: Detail of the steel security pins for mounting and hook and loop closures for securing the ramp during transportation.

Operating Instructions

1. Ascending the Ramp: Approach the ramp slowly and squarely. Maintain a steady, controlled pace. If using a powered mobility device, follow its manufacturer's instructions for ramp use.
2. Descending the Ramp: Descend slowly and carefully, maintaining control. If using a powered mobility device, use the lowest speed setting and follow its manufacturer's instructions.
3. Weight Distribution: Ensure weight is evenly distributed on the ramp. Avoid sudden movements or sharp turns while on the ramp.

Image: The 5 ft ramp positioned for use over a step indoors, demonstrating its application for home accessibility.

Maintenance

• Cleaning: Clean the ramp regularly with mild soap and water. Rinse thoroughly and allow to dry completely before storage or next use.
• Inspection: Periodically check all fasteners, hinges, and the ramp surface for signs of wear, damage, or loose components. Tighten any loose fasteners.
• Storage: When not in use, fold the ramp and secure it with the hook and loop closures. Store in a dry, protected area to prevent corrosion and damage.

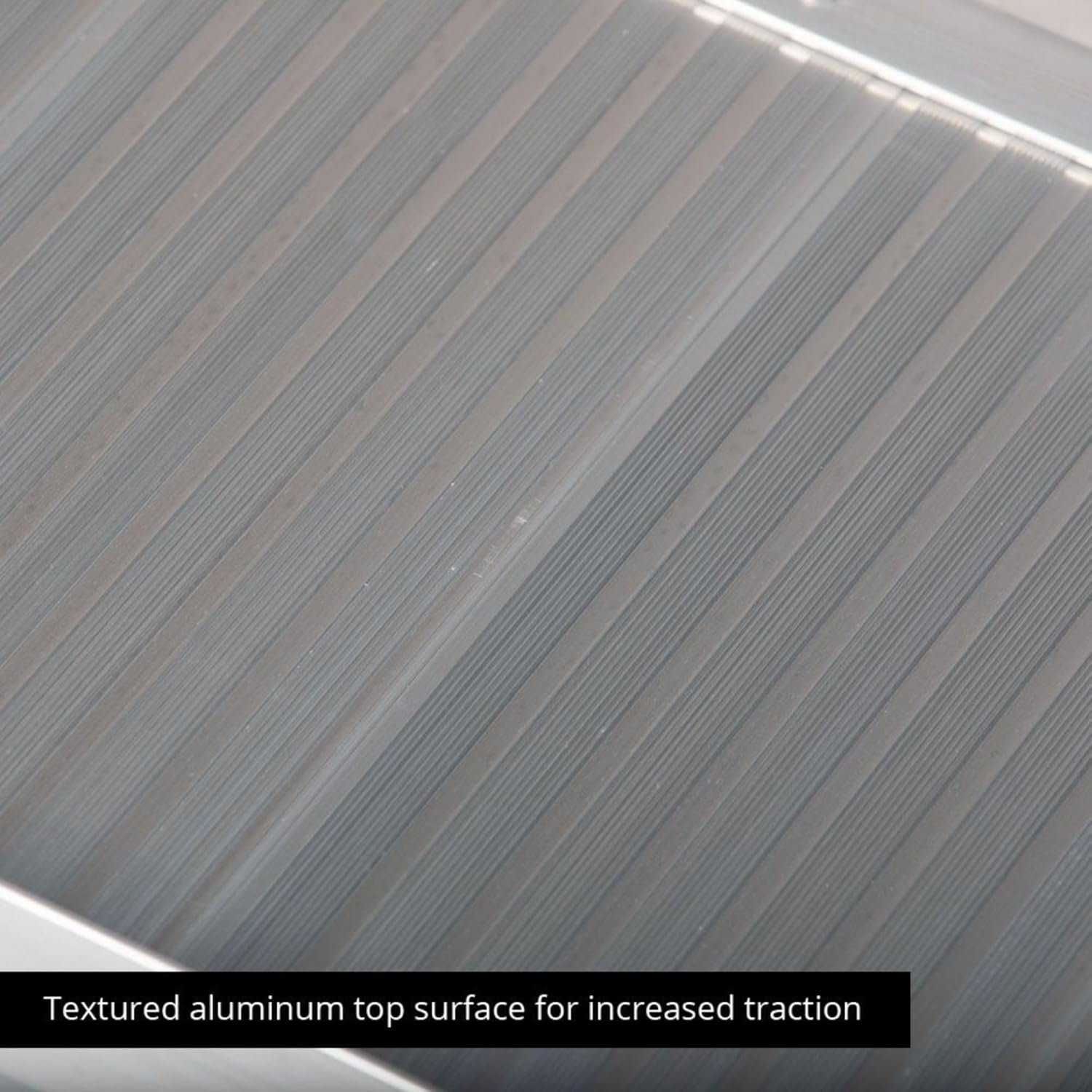

Image: A detailed view of the textured aluminum top surface, designed to provide increased traction and safety.

Troubleshooting

Ramp is unstable or slides:

• Ensure the top lip is fully seated and supported on the elevated surface.
• Verify the ground surface beneath the ramp is firm and level.
• Utilize security pins or a safety strap to anchor the ramp if available and appropriate for your application.

Difficulty with traction:

• Check the ramp surface for dirt, debris, ice, or moisture. Clean as necessary.
• Ensure mobility device tires are clean and properly inflated.

Ramp appears to bend under load:

• Confirm the load does not exceed the 600 lb weight capacity.
• Ensure the ramp is properly supported along its entire length and at both ends.
• If bending persists within weight limits, discontinue use and contact customer support.

Specifications

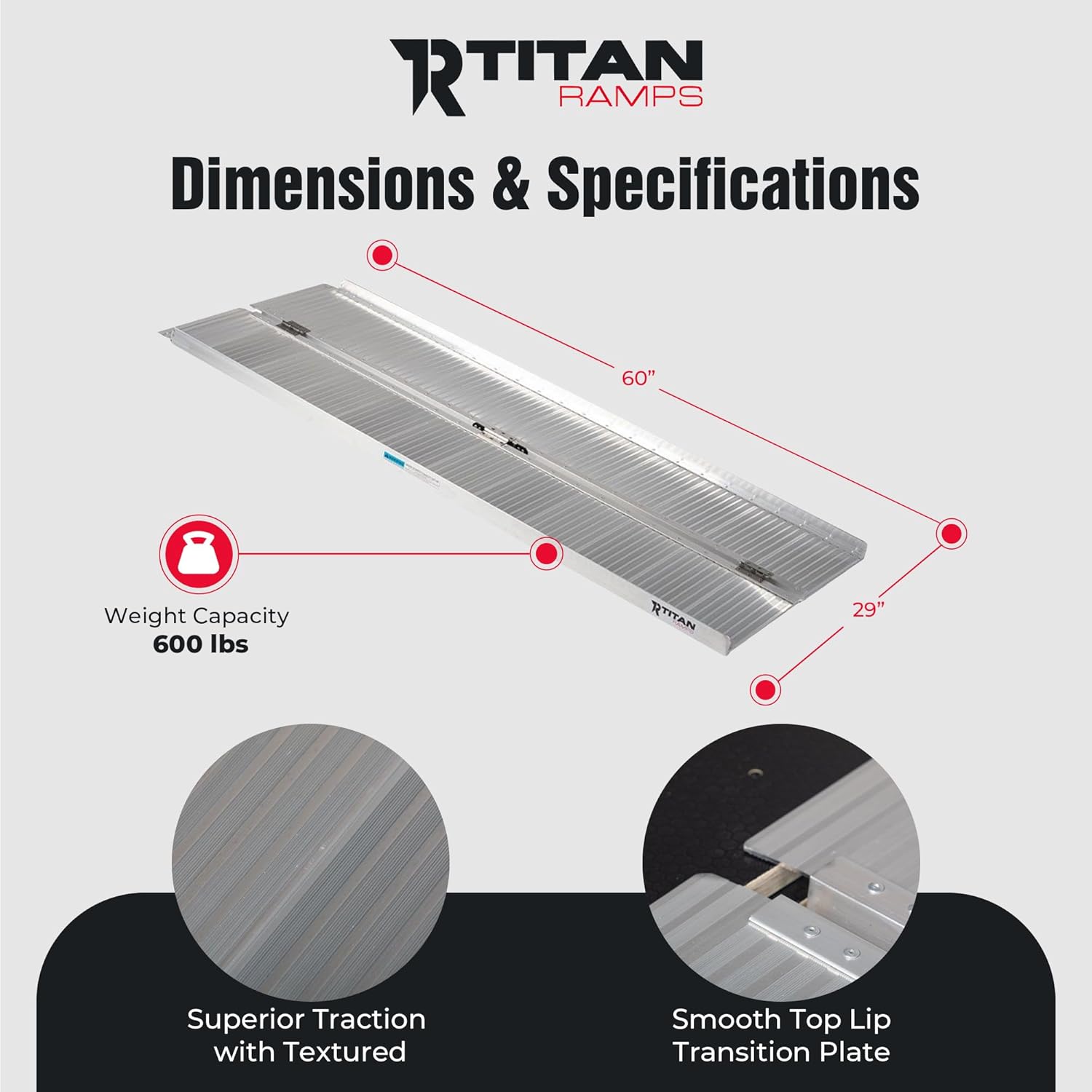

Image: A visual representation of the ramp's dimensions (60 inches long, 29 inches wide) and its 600 lb weight capacity.

Warranty and Support

For warranty information and customer support, please visit the official Titan Ramps website or contact their customer service department. Keep your purchase receipt for warranty claims.

Online Support: Titan Ramps Store on Amazon

Disposal

When the product reaches the end of its useful life, dispose of it responsibly according to local regulations. The aluminum construction is recyclable.
