Brookfield AMETEK RV-1 Replacement Viscometer Spindle User Manual

1. Product Overview

The Brookfield AMETEK RV-1 is a precision-engineered replacement viscometer spindle designed for use with compatible Brookfield viscometer models. This spindle is an essential component for accurate measurement of fluid viscosity within a specified range.

It is specifically designed to measure viscosity in the range of 100 cP (centipoise) to 160,000 cP, making it suitable for a wide variety of applications requiring precise rheological analysis.

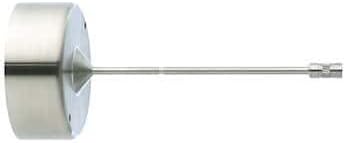

This image displays the Brookfield AMETEK RV-1 Replacement Viscometer Spindle. It features a cylindrical head attached to a long, slender shaft, designed for precise viscosity measurements.

2. Setup and Installation

The RV-1 spindle is designed for straightforward installation onto compatible Brookfield viscometers. Proper installation is critical for accurate measurements.

1. Preparation: Ensure your viscometer is powered off and stable on a level surface before attempting to attach or detach any spindle.
2. Attachment: Carefully align the top of the RV-1 spindle shaft with the viscometer's coupling mechanism. Gently push the spindle upwards and twist clockwise until it is securely seated. You should feel a slight click or resistance indicating it is locked into place. Avoid forcing the spindle, as this may damage the viscometer or the spindle itself.
3. Verification: Once attached, gently pull down on the spindle to ensure it is firmly connected and does not wobble.
4. Calibration: Refer to your specific viscometer's user manual for detailed instructions on spindle attachment verification and any necessary calibration procedures before taking measurements.

3. Operating Guidelines

Once installed, the RV-1 spindle functions as an integral part of the viscometer system to measure fluid viscosity. The viscometer rotates the spindle within the sample fluid, and the resistance to rotation is measured to determine viscosity.

• Sample Immersion: Ensure the RV-1 spindle is fully immersed in the sample fluid. The fluid level should reach the immersion mark on the spindle shaft, if present, or as specified by your viscometer's manual for accurate readings.
• Temperature Control: Maintain a consistent and controlled temperature for the sample fluid. Viscosity is highly temperature-dependent, and fluctuations can lead to inaccurate results.
• Spindle Selection: Always ensure that the correct spindle (RV-1) is selected in your viscometer's settings or software to match the physical spindle being used.
• Measurement Procedure: Follow the specific operating instructions provided in your viscometer's user manual for initiating and completing viscosity measurements.

4. Maintenance

Proper maintenance of the RV-1 spindle is essential to ensure its longevity and continued accuracy.

• Cleaning: After each use, thoroughly clean the RV-1 spindle to prevent contamination from previous samples. Use a solvent appropriate for the sample fluid being measured. Rinse with distilled water and dry completely with a soft, lint-free cloth. Avoid abrasive materials that could scratch the spindle surface.
• Storage: Store the spindle in its original protective case or a clean, dry, and secure environment when not in use. This prevents physical damage, dust accumulation, and contamination.
• Inspection: Regularly inspect the spindle for any signs of wear, corrosion, bending, or other damage. Even minor damage can significantly affect measurement accuracy. A damaged spindle should be replaced immediately.
• Handling: Always handle the spindle with care. Avoid dropping it or applying excessive force, especially to the shaft, as bending can compromise its precision.

5. Troubleshooting

If you encounter issues with your RV-1 spindle or viscosity measurements, consider the following common troubleshooting steps:

• Inaccurate Readings:
  • Ensure the spindle is clean and free of any residue from previous samples.
  • Verify that the spindle is correctly and securely attached to the viscometer.
  • Check that the sample temperature is stable and uniform throughout the measurement.
  • Confirm that the correct spindle (RV-1) is selected in your viscometer's settings.
  • Ensure the spindle is immersed to the correct depth in the sample.
• Spindle Not Rotating Smoothly:
  • Inspect the spindle shaft for any bends or physical damage.
  • Ensure there are no obstructions in the sample fluid or around the spindle.
  • Verify that the viscometer's coupling mechanism is clean and undamaged.
• Spindle Damage: If the spindle appears bent, corroded, or otherwise physically damaged, it must be replaced. Continued use of a damaged spindle will result in inaccurate measurements and may harm your viscometer.

For further troubleshooting related to the viscometer instrument itself, please consult your viscometer's main user manual or contact Brookfield AMETEK technical support.

6. Specifications

7. Warranty and Support

For information regarding the warranty of your Brookfield AMETEK RV-1 Replacement Viscometer Spindle, please refer to the documentation provided with your purchase or contact Brookfield AMETEK customer service directly. It is recommended to retain your purchase receipt as proof of purchase for any warranty claims.

For technical support, product inquiries, or assistance with specific applications, please reach out to Brookfield AMETEK customer support or your authorized distributor. Contact information can typically be found on the official Brookfield AMETEK website.
