Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Sundown Audio SA-Classic 10" D4 Subwoofer. Please read this manual thoroughly before attempting installation or use to ensure optimal performance and product longevity.
The SA-Classic 10" D4 subwoofer is designed for high power handling and excursion, making it suitable for various car audio systems. It features Dual 4-Ohm voice coils and is built for reliable performance in standard enclosure types.
Safety Information
- Always disconnect the vehicle's battery before performing any electrical work.
- Ensure proper wiring and impedance matching to prevent damage to the subwoofer or amplifier.
- Use appropriate personal protective equipment (PPE) during installation.
- Avoid exposing the subwoofer to excessive moisture or extreme temperatures.
- Securely mount the subwoofer to prevent movement during vehicle operation.
- Consult a professional installer if you are unsure about any part of the installation process.
Package Contents
- 1 x Sundown Audio SA-Classic 10" D4 Subwoofer
Specifications
| Feature | Specification |
|---|---|
| Model Name | SA-10 CLASSIC |
| Subwoofer Diameter | 10 Inches |
| Power Handling (RMS) | 1000 Watts |
| Power Handling (Peak) | 2000 Watts |
| Voice Coils | Dual 4-Ohm |
| DC Resistance (Re) | 7.08 Ω |
| Voice Coil Size | 2.5 inches (Custom high-temperature) |
| Linear Excursion (Xmax) | 19mm (one-way) |
| Frame Material | Cast Aluminum |
| Spider | Double-layered Nomex |
| Terminals | Spring-loaded |
| Mounting Depth | 6 inches |
| Cut-Out Diameter | 9.25 inches |
| Displacement | 0.1 cu ft |
| Item Weight | 27.4 pounds |
Installation
Proper installation is crucial for the performance and longevity of your subwoofer. Follow these guidelines for a successful setup.
Enclosure Recommendations
The SA-Classic 10" D4 is optimized for various enclosure types:
- Recommended Sealed Enclosure: 0.5 cubic feet
- Recommended Ported Enclosure: 1.0 cubic feet, tuned to 35Hz with a 15 square inch port area.
Ensure the enclosure is robust and sealed properly to prevent air leaks, which can degrade sound quality.
Physical Installation
The subwoofer requires a cut-out diameter of 9.25 inches and has a mounting depth of 6 inches. Ensure sufficient clearance behind the mounting surface for the magnet structure.
Figure 1: Front view of the Sundown Audio SA-Classic 10" D4 Subwoofer. This image displays the black cone, surround, and the Sundown Audio logo on the dust cap.

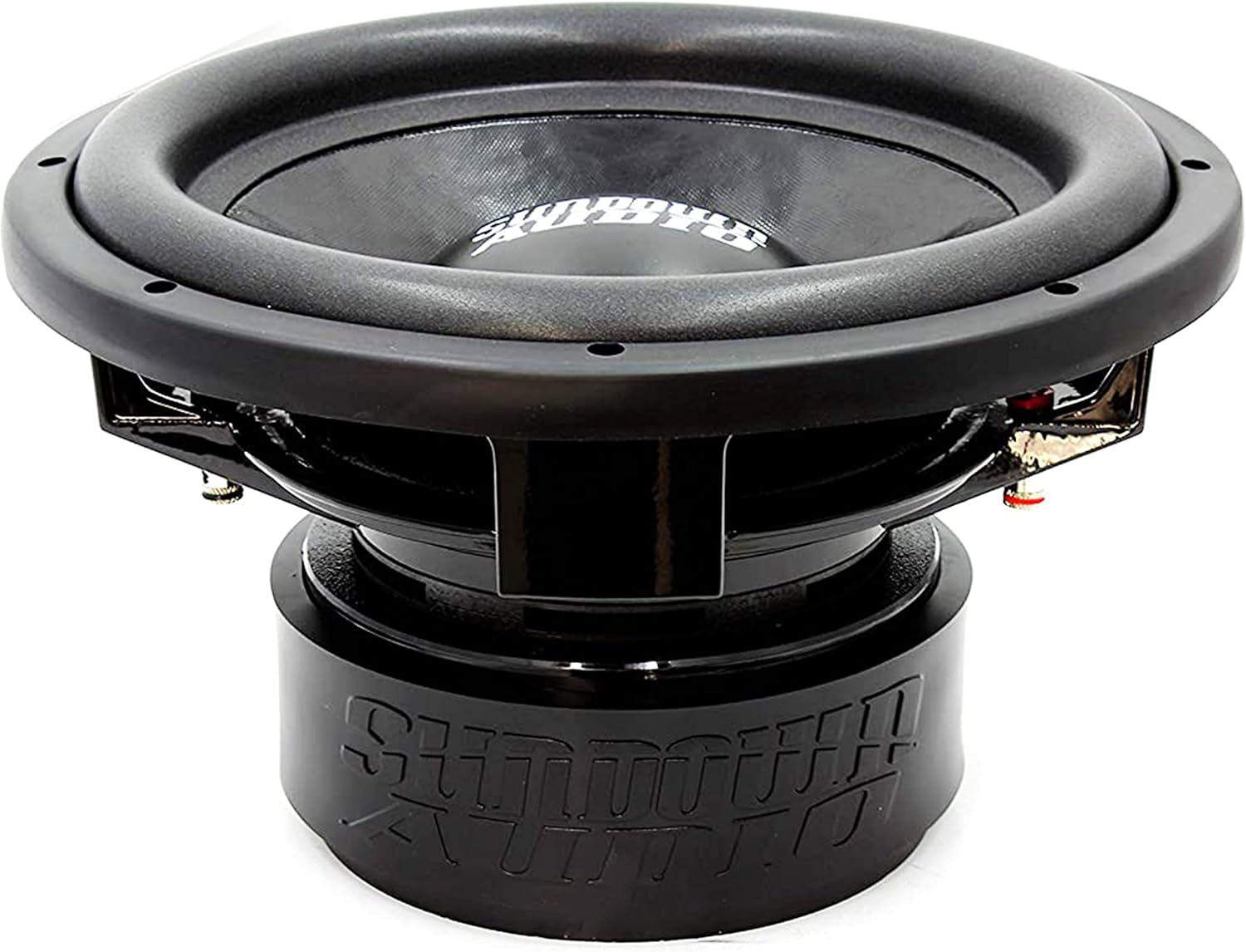

Figure 2: Side view of the Sundown Audio SA-Classic 10" D4 Subwoofer. This image highlights the robust cast aluminum frame and the depth of the subwoofer.
Figure 3: Bottom view of the Sundown Audio SA-Classic 10" D4 Subwoofer, showcasing the magnet structure and the ventilation for the voice coil.
Wiring and Connectivity
The subwoofer features spring-loaded terminals for secure wire connections. The Dual 4-Ohm voice coils offer flexible wiring configurations (series or parallel) to achieve desired impedance for your amplifier.
Figure 4: Close-up view of the spring-loaded terminals on the Sundown Audio SA-Classic 10" D4 Subwoofer, designed for secure speaker wire connections.
For optimal performance and to prevent damage, ensure your amplifier is stable at the final impedance load. Refer to your amplifier's manual for compatible impedance loads.
Operating Instructions
Break-in Period
It is recommended to allow a break-in period for your new subwoofer. During the first 20-30 hours of use, operate the subwoofer at moderate volume levels. This allows the suspension components (surround and spider) to loosen up and reach their optimal compliance, leading to improved long-term performance and sound quality.
Tuning and Settings
Proper tuning of your amplifier and head unit settings is essential. Set the low-pass filter (LPF) on your amplifier or head unit to prevent high frequencies from reaching the subwoofer. A common starting point for LPF is around 80Hz, but this can be adjusted based on your system and listening preferences. Avoid excessive gain settings, which can lead to clipping and damage to the subwoofer.
Maintenance
- Cleaning: Use a soft, dry cloth to clean the subwoofer cone and surround. Avoid using harsh chemicals or excessive moisture.
- Inspection: Periodically inspect the subwoofer for any signs of damage to the cone, surround, or terminals. Ensure all connections remain secure.
- Environmental Factors: Protect the subwoofer from direct sunlight, extreme temperatures, and moisture to prevent material degradation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No Sound | Loose wiring, amplifier off, incorrect settings, damaged subwoofer/amplifier. | Check all connections, ensure amplifier is powered on and configured correctly. Test with another known-good component if possible. |
| Distorted Sound | Over-driving the subwoofer, incorrect gain settings, clipping amplifier, poor enclosure. | Reduce volume/gain, check for amplifier clipping (distortion indicator), verify enclosure integrity. |
| Weak Bass | Incorrect wiring, phase issues, insufficient power, improper enclosure volume/tuning. | Verify wiring for correct impedance, check phase settings, ensure adequate power from amplifier, confirm enclosure specifications. |
Product Overview Video
Video 1: An unboxing and overview of a similar Black Diamond Audio subwoofer, demonstrating physical features and discussing specifications. This video provides visual context for the build quality and design elements common in high-performance subwoofers.
Warranty and Support
This Sundown Audio SA-Classic 10" D4 Subwoofer comes with a Limited Warranty. For specific terms and conditions, please refer to the warranty card included with your product or visit the official Sundown Audio website.
For technical support, service, or warranty claims, please contact Sundown Audio customer service through their official channels.
