Introduction
This manual provides essential instructions for the safe and efficient use of your LP LP-E10 AC Battery Charger. Designed for compatibility with various Canon EOS Rebel DSLR cameras, this charger ensures your camera batteries are always ready for use. Please read this manual thoroughly before operating the device.
Product Overview
The LP LP-E10 Battery Charger is a compact and durable device designed for charging Canon LP-E10 batteries. It features a built-in foldable AC plug for convenience and an LED indicator to show charging status.

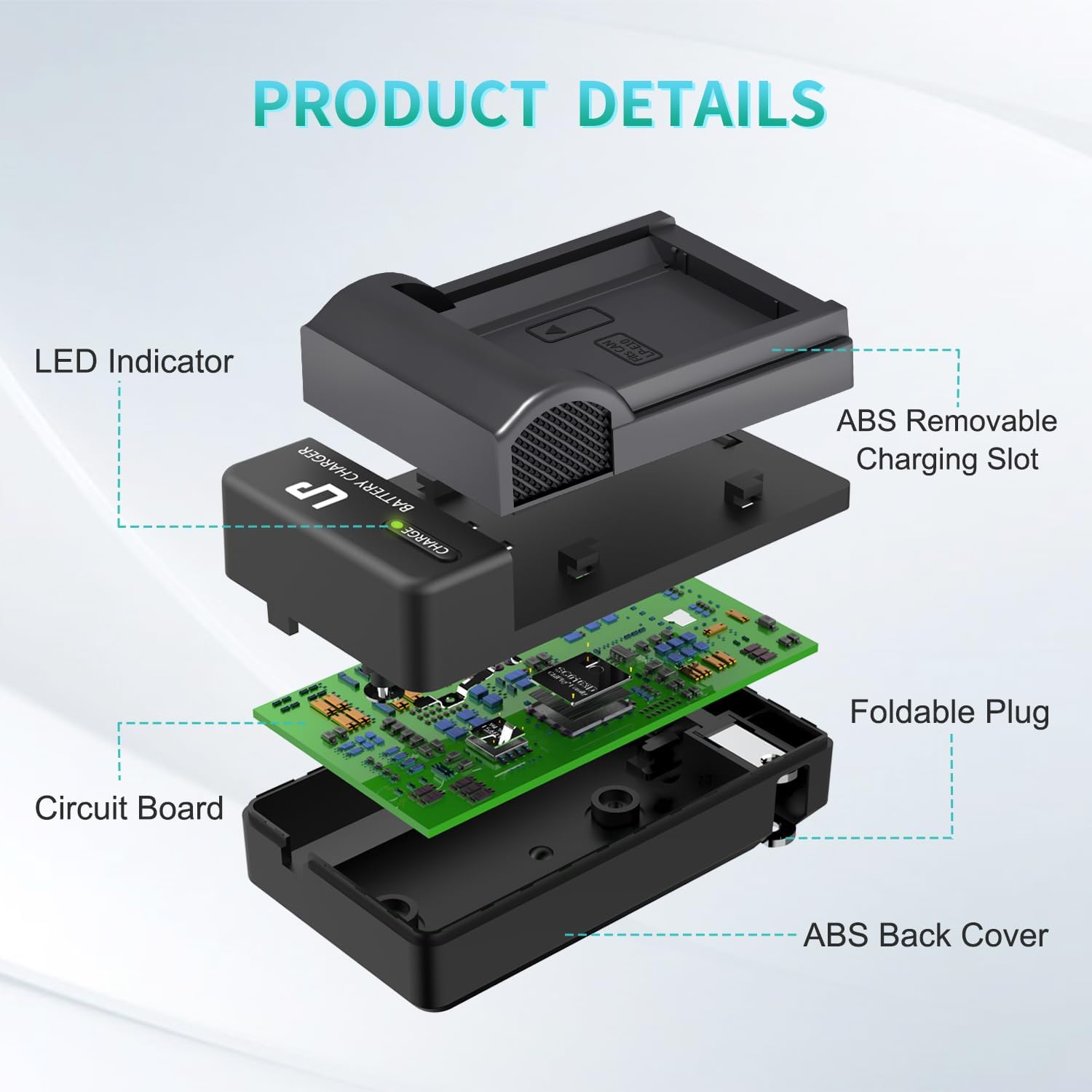

Image: Product Details. An exploded view showing the internal components of the LP-E10 battery charger, including the LED indicator, ABS removable charging slot, circuit board, foldable plug, and ABS back cover.
Key Features:
- Standard Compatibility: 100% compatible with Canon LP-E10 battery (LC-E10 Charger). Works with Canon EOS Rebel T3, T5, T6, T7, T100, Kiss X50, X70, X80, X90, 1100D, 1200D, 1300D, 1500D, 2000D, 3000D, 4000D DSLR Cameras. NOTICE: This charger is NOT compatible with Canon T3i, T5i, T6i, T6s, T7i.
- 100% Safety: Features overcharge protection, short circuit protection, high temperature protection, and surge protection with CE, RoHS Certifications.
- Worldwide Use: Input AC100-240V, output DC8.4V 600mA. Suitable for use in any country.
- Great for Travel: Made of ABS material, lightweight and durable. Built-in AC plug for portability.
Setup and Charging Instructions
- Unfold the Plug: Locate the foldable AC plug on the back of the charger and flip it out.
- Connect to Power: Plug the charger directly into a standard AC wall outlet (100-240V).
- Insert Battery: Align your Canon LP-E10 battery with the charging slot on the charger and gently slide it in until it clicks into place. Ensure the battery polarity is correct.
- Monitor Charging Status: The LED indicator on the charger will illuminate red to indicate that the battery is charging.
- Charging Complete: Once the battery is fully charged, the LED indicator will turn green.
- Remove Battery: Carefully remove the fully charged battery from the slot.
- Store Charger: Fold the AC plug back into the charger for compact storage.
Image: Installation Steps. A visual guide demonstrating how to insert the battery into the charger and plug the charger into a wall outlet.
Image: LED Display. Close-up of the charger's LED indicator, showing a red light for "Charging" and a green light for "Fully Charged."
Maintenance and Safety
- Keep the charger in a dry location. Avoid exposure to moisture or extreme temperatures.
- Do not disassemble the unit. Refer service to qualified service agent if repair is needed.
- To reduce the risk of fire or electric shock, ensure the charger is used with compatible batteries only.
- Always unplug the charger from the wall outlet when not in use.
- Store the charger and batteries in a cool, dry place away from direct sunlight.
Troubleshooting
If you encounter issues with your LP LP-E10 Battery Charger, consider the following:
- Charger not working: Ensure the charger is properly plugged into a live wall outlet. Check if the foldable plug is fully extended.
- Battery not charging: Verify that the battery is correctly inserted into the charging slot with the correct polarity. Ensure the battery is compatible with the LP-E10 charger.
- LED not indicating: If the LED does not light up when the battery is inserted and the charger is plugged in, try a different outlet or contact customer support.
- Overheating: The charger has built-in high temperature protection. If the charger feels excessively hot, unplug it immediately and allow it to cool down. Do not use if overheating persists.
Specifications
| Feature | Detail |
|---|---|
| Model | LP-E10 / LC-E10 |
| Input | AC100-240V ~ 50/60Hz, Max 150mA |
| Output | DC8.4V / (4.2V) --- 600mA |
| Product Dimensions | 3.5 x 1.9 x 1.5 inches |
| Item Weight | 2.11 ounces |
| Material | ABS |
| Certifications | CE, RoHS |
Image: Specifications. A visual representation of the LP-E10 battery charger with its model, input, output, and weight specifications clearly displayed.
Warranty and Support
Your LP LP-E10 Battery Charger comes with a 30-day refund policy and a 1-year replacement warranty. If you experience any issues or have questions, please contact customer support through the "Ask a question" link on our storefront or by clicking "contact seller" in your order options.
