Casio HR-200RCE-W-EC Printing Desktop Calculator User Manual

Introduction

The Casio HR-200RCE-W-EC is a versatile and portable printing desktop calculator designed for efficient numerical operations. It features a large 12-digit LC display and offers functions such as tax calculations, cost-sell-margin analysis, and currency conversions. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your calculator to ensure optimal performance.

Setup

Unpacking

Carefully remove all components from the packaging. The box should contain:

• Casio HR-200RCE-W-EC Printing Desktop Calculator
• 4 x AA Batteries
• Small paper roll for initial use

Note: The power adapter (AD-A60024) is not included and must be purchased separately if mains power is desired.

Power Source Installation

Your calculator can be powered by batteries or an optional AC adapter.

1. Battery Installation: Open the battery compartment cover on the underside of the calculator. Insert the four (4) AA batteries, ensuring correct polarity (+/-). Close the cover securely.
2. AC Adapter (Optional): If using the AD-A60024 AC adapter, plug it into the DC IN jack on the side of the calculator and then into a standard electrical outlet.

Paper Roll Installation

The calculator uses 58mm wide paper rolls for printing. Follow these steps to install a new roll:

1. Open the paper roll cover at the top rear of the calculator.
2. Place the new paper roll into the compartment, ensuring the paper feeds from the bottom of the roll.
3. Feed the leading edge of the paper into the printer slot until it emerges from the top.
4. Close the paper roll cover.

Image: The Casio HR-200RCE-W-EC calculator showing the paper roll installed and a printed receipt.

Operating Instructions

This section covers the basic and advanced functions of your Casio HR-200RCE-W-EC calculator.

Basic Calculations

Perform standard arithmetic operations using the numeric keypad and function keys:

• Addition (+): Enter first number, press +, enter second number, press =.
• Subtraction (-): Enter first number, press -, enter second number, press =.
• Multiplication (x): Enter first number, press x, enter second number, press =.
• Division (•): Enter first number, press •, enter second number, press =.
• Clear (C): Clears the last entered number.
• All Clear (AC): Clears all entries and resets the calculator.

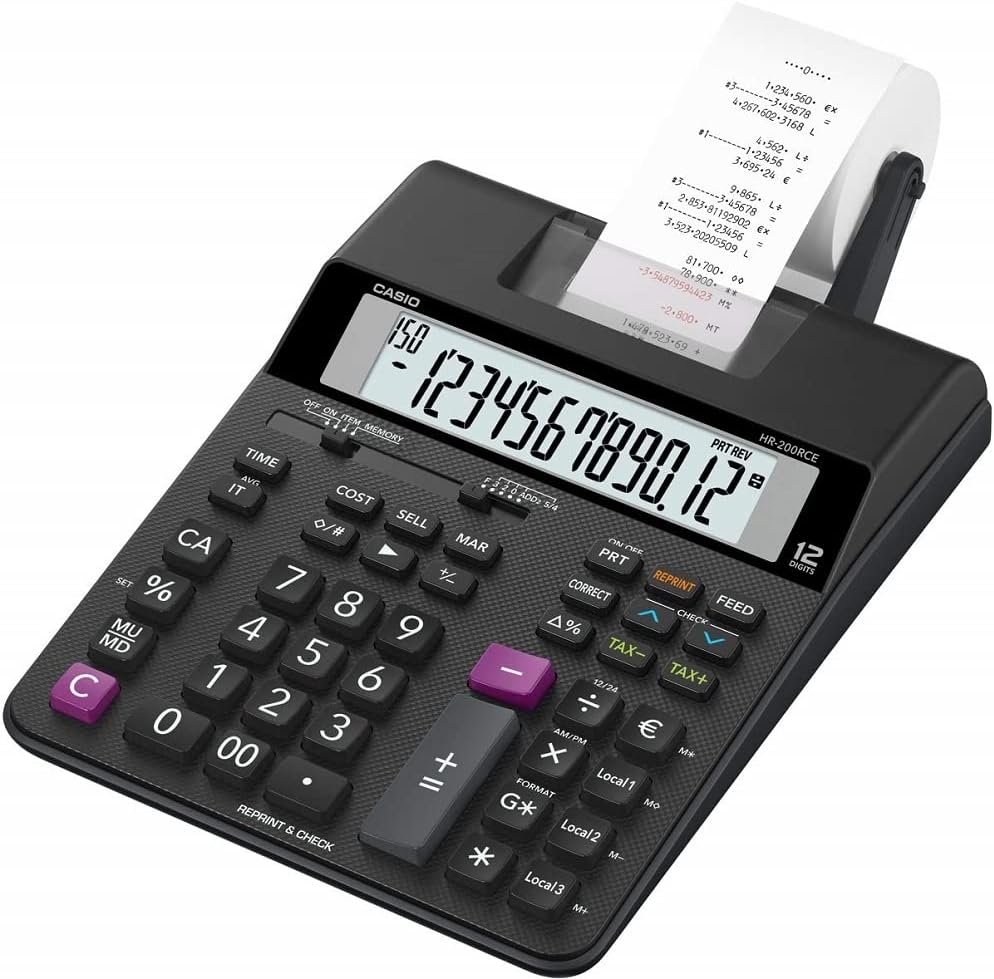

Image: Angled view of the Casio HR-200RCE-W-EC calculator, highlighting the full keyboard layout.

Special Functions

The HR-200RCE-W-EC includes several advanced functions for business and financial calculations:

• Tax Calculations (TAX+, TAX-): Use these keys to add or subtract a pre-set tax rate. Refer to the full manual for setting the tax rate.
• Cost, Sell, Margin (COST, SELL, MAR): These keys allow for quick calculation of cost, selling price, or profit margin when two of the three values are known.
• Currency Conversions (Local 1, Local 2, Local 3): Configure up to three local currency exchange rates for quick conversions.
• 2-Color Print (IR-40T): The calculator supports two-color printing (black and red) for clear differentiation of positive and negative values on the paper roll.
• Check & Correct (CHECK, CORRECT): This feature allows you to review and correct previous entries on the printout.

Image: Close-up view of the 'CHECK' and 'CORRECT' buttons on the Casio HR-200RCE-W-EC calculator.

Maintenance

Proper maintenance ensures the longevity and reliable operation of your calculator.

Cleaning

• Wipe the calculator's exterior with a soft, dry cloth.
• For stubborn dirt, slightly dampen the cloth with water and a mild detergent, then wipe dry immediately.
• Do not use abrasive cleaners, solvents, or spray directly onto the calculator.

Ink Roller Replacement (IR-40T)

When printouts become faint or incomplete, it's time to replace the ink roller.

1. Ensure the calculator is turned off.
2. Open the printer cover.
3. Carefully remove the old ink roller.
4. Insert a new Casio IR-40T ink roller, ensuring it clicks into place.
5. Close the printer cover.

Paper Roll Replacement

Replace the paper roll when it runs out, following the instructions in the "Paper Roll Installation" section under Setup.

Troubleshooting

If you encounter issues with your calculator, refer to the table below for common problems and their solutions.

Specifications

Warranty and Support

Manufacturer's Warranty

The Casio HR-200RCE-W-EC Printing Desktop Calculator comes with a 2-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Customer Support

For further assistance, technical support, or warranty inquiries, please visit the official Casio website or contact their customer service department. Refer to your product packaging or the Casio website for the most current contact information in your region.
