Introduction
Thank you for choosing the Casaria Chromed Metal Telescopic Storage Drawer. This product is designed to optimize storage space within your cabinets, providing easy access to items. Its robust construction and smooth telescopic mechanism make it a versatile solution for various rooms, including kitchens, bathrooms, bedrooms, and workshops. Please read this manual carefully before installation and use to ensure proper function and longevity of your product.
Safety Instructions
- Always ensure the drawer is securely mounted to prevent tipping or detachment.
- Do not exceed the maximum load capacity of 25 kg to avoid damage to the drawer or cabinet.
- Keep fingers clear of moving parts during operation to prevent pinching.
- Distribute weight evenly within the drawer to maintain stability.
- Use appropriate tools for installation and wear protective gear if necessary.
- Keep small parts and packaging materials away from children.
Package Contents
Verify that all components are present before beginning assembly.
- 1x Chromed Metal Telescopic Storage Drawer (Basket)
- 2x Galvanized Telescopic Rails (Slides)
- 6x Mounting Screws
Image: The complete set of components, including the wire basket, two telescopic runners, and six screws for installation.
Setup and Installation
Follow these steps for proper installation of your telescopic storage drawer. This drawer is designed for floor mounting within a cabinet.
- Prepare the Cabinet: Ensure the cabinet interior is clean and free of obstructions. Measure the internal width and depth of your cabinet to confirm compatibility with the 60 cm drawer (actual width 56 cm, depth 44 cm).
- Attach Rails to Drawer: Identify the left and right telescopic rails. Align each rail with the designated mounting points on the sides of the drawer basket. Secure the rails to the drawer using the provided screws. Ensure they are firmly attached and move smoothly.

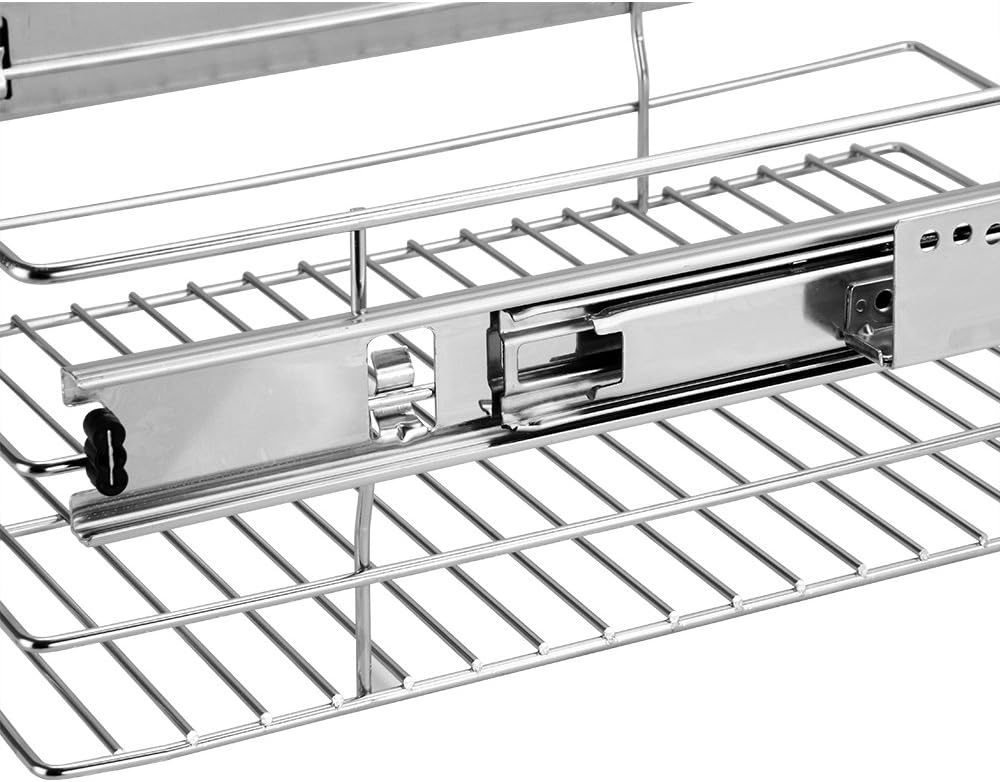

Image: Detail of the telescopic slide mechanism, showing how it connects to the drawer basket.
- Separate Rail Components: The telescopic rails consist of two main parts: an inner slide that attaches to the drawer and an outer slide that attaches to the cabinet. Gently extend the rail and locate the release lever or button (usually a small plastic tab) to separate the inner slide from the outer slide.

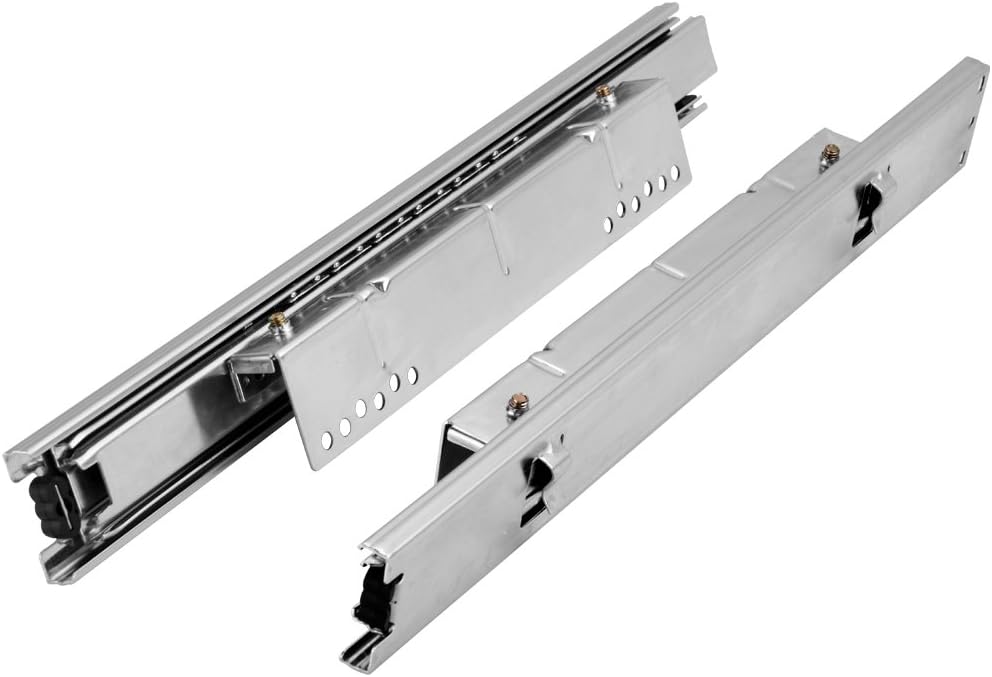

Image: The two parts of the telescopic slides, separated for cabinet mounting.
- Mount Outer Rails to Cabinet: Position the outer slides inside the cabinet, ensuring they are level and parallel to each other. The front edge of the slides should be flush with the front edge of the cabinet opening. Mark the screw holes. Drill pilot holes if necessary, then secure the outer slides to the cabinet floor using the remaining screws.
- Insert Drawer into Rails: Carefully align the inner slides (attached to the drawer basket) with the outer slides mounted in the cabinet. Push the drawer gently until it clicks into place. Test the drawer's movement to ensure it slides smoothly and fully extends.
Image: Example of two installed telescopic drawers in a kitchen cabinet, demonstrating their use for organizing various kitchen items.
Operating Instructions
The Casaria telescopic storage drawer is designed for simple and efficient use.
- Opening the Drawer: Gently pull the drawer forward from the cabinet. The telescopic rails will extend, allowing full access to the contents.
- Closing the Drawer: Push the drawer back into the cabinet until it is fully recessed. Ensure no items are obstructing its path.
- Loading Capacity: The drawer can hold up to 25 kg. Distribute items evenly to prevent strain on the rails and ensure smooth operation. Avoid placing excessively heavy items on one side.
- Versatile Storage: Use the drawer to organize various items such as dishes, pots, spices, food containers, cleaning supplies, or tools.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your storage drawer.
- Cleaning: Wipe the chromed metal surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Dry thoroughly to prevent water spots.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the chrome finish.
- Lubrication: If the telescopic rails become stiff over time, apply a small amount of silicone-based lubricant to the moving parts. Avoid oil-based lubricants which can attract dust.
- Check Fasteners: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawer does not slide smoothly. |
|
|
| Drawer is difficult to pull out or push in. |
|
|
| Drawer feels wobbly or unstable. |
|
|
Specifications
| Brand | Casaria |
| Model Number | 104014 |
| Material | Chromed Metal |
| Color | Silver |
| Product Dimensions (W x D x H) | 56 cm x 44 cm x 14 cm (for 60 cm cabinet width) |
| Maximum Load Capacity | 25 kg |
| Weight | 3.2 kg |
| Installation Type | Floor Mounting |
| Included Components | 1x Drawer Basket, 2x Telescopic Rails, 6x Mounting Screws |
Image: Dimensional diagram of the drawer, indicating its width, depth, and height.
Warranty and Support
Casaria products are manufactured to high-quality standards. For any questions, issues, or support needs regarding your telescopic storage drawer, please contact your retailer or the manufacturer directly. Please retain your proof of purchase for warranty claims.
Return Policy: This product typically comes with a 30-day return policy from the date of purchase. Please refer to your purchase agreement or retailer's terms for specific details.
