Inspired LED Cut and Connect Kit Instruction Manual

Introduction

This instruction manual provides comprehensive guidance for the installation, operation, and maintenance of your Inspired LED Cut and Connect Kit. This kit is designed to provide flexible and customizable LED lighting solutions for various indoor applications, including under-cabinet lighting, shelving, and display cases. Please read this manual thoroughly before beginning installation to ensure proper setup and safe operation.

Safety Information

• Always disconnect the power supply from the electrical outlet before performing any installation, maintenance, or troubleshooting.
• This product is designed for indoor use only. Do not expose to water or high humidity.
• Ensure all connections are secure and properly insulated to prevent electrical hazards.
• Do not attempt to modify the components of this kit in any way not described in this manual. Unauthorized modifications may void the warranty and pose safety risks.
• WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Package Contents

Please verify that all components listed below are present in your kit:

Figure 1: Complete Kit Contents Overview

This image displays the full contents of the Inspired LED Cut and Connect Kit. Visible are the large reel of flexible LED strip tape, three power supplies, three on/off switches, multiple Tiger Paw LED connector pairs, several interconnect cables, and a bag containing clips and screws. These components are essential for assembling your custom LED lighting system.

• 1 x 39.5 Foot Reel (approx. 12M) of Normal Bright Pure White LED Flexible Strip Tape with 3M adhesive backing
• 3 x 1 Amp Power Supplies
• 3 x On/Off Switches
• 5 x Tiger Paw LED Connector Pairs
• 5 x 3 Foot Interconnect Cables
• 10 x Clips and Screws

Setup and Installation

The Inspired LED Cut and Connect Kit is designed for easy customization and installation. Follow these steps to set up your LED lighting system:

1. 1. Plan Your Layout:

   Determine the desired length and placement of your LED strips. The flexible strip can be cut at designated points (marked with a copper pad) to fit your specific application. Measure carefully before cutting.

2. 2. Cut the LED Strip:

   Using scissors, carefully cut the LED strip at the marked copper pads. Ensure a clean, straight cut for optimal connection. Do not cut through the LEDs or other components.

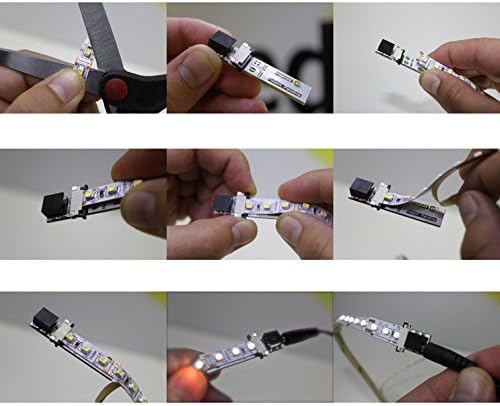

   Figure 2: LED Strip Cutting and Connector Application

   This sequence of images illustrates the process of customizing your LED strip. It shows the precise cutting of the LED strip at designated points, followed by the opening of the Tiger Paw LED connector. The cut end of the LED strip is then carefully inserted into the connector, ensuring proper alignment with the contact points. Finally, the connector is securely closed, and an interconnect cable is attached, demonstrating the solderless connection method.

3. 3. Attach Tiger Paw LED Connectors:

   The solderless Tiger Paw LED Connectors allow for easy attachment to the cut ends of the LED strip. Open the connector, insert the cut end of the LED strip with the copper pads facing down, and firmly close the connector until it clicks into place. Ensure the strip is fully seated for a reliable connection.

4. 4. Connect Interconnect Cables:

   Attach the 3-foot interconnect cables to the Tiger Paw connectors. These cables allow you to extend the reach of your LED strips or connect multiple segments.

5. 5. Mount the LED Strips:

   Peel off the backing from the 3M adhesive tape on the back of the LED strip and firmly press the strip onto a clean, dry surface. For added security, use the provided clips and screws at regular intervals, especially on longer runs or uneven surfaces.

6. 6. Connect Power Supply and Switch:

   Connect the power supply to one end of your LED strip system (either directly or via an interconnect cable). Then, connect an On/Off switch between the power supply and the LED strip for convenient control. Plug the power supply into a standard electrical outlet.

Operating Instructions

Operating your Inspired LED lighting system is straightforward:

• Power On/Off: Use the integrated On/Off switch to turn the LED lights on or off.
• Dimmable Functionality: This LED kit is dimmable. To utilize dimming capabilities, you will need to purchase a compatible dimmer, such as the Inspired LED 4-position dimmer (ASIN: B00405DEEU). Follow the dimmer's instructions for installation and operation.
• Plug and Play: The system is designed for plug-and-play operation once all connections are securely made.

Maintenance

The Inspired LED Cut and Connect Kit requires minimal maintenance:

• Cleaning: Gently wipe the LED strips with a soft, dry cloth to remove dust. Do not use abrasive cleaners or excessive moisture.
• Longevity: The LEDs are designed for long-lasting performance, with an estimated lifespan of 10 years under normal operating conditions.
• Connection Check: Periodically inspect all connections (Tiger Paw connectors, cables, power supply) to ensure they remain secure.

Troubleshooting

If you encounter issues with your Inspired LED kit, refer to the following common troubleshooting steps:

If these steps do not resolve the issue, please contact Inspired LED customer support for further assistance.

Specifications

Warranty and Support

For any questions, technical assistance, or warranty inquiries regarding your Inspired LED Cut and Connect Kit, please contact Inspired LED customer support directly.

You can find more information and contact details by visiting the official Inspired LED store on Amazon: Inspired LED Amazon Store.
