Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Golmar FA-372 Power Supply. Please read these instructions carefully before beginning installation or use to ensure safe and efficient performance of the device.
Safety Information
- Electrical Hazard: Installation and maintenance should only be performed by qualified personnel. Disconnect power before servicing.
- Voltage: Ensure the input voltage matches the specifications of the FA-372 power supply.
- Environment: Do not expose the device to moisture, extreme temperatures, or corrosive environments. Install in a well-ventilated area.
- Mounting: Securely mount the power supply according to local electrical codes and manufacturer guidelines.
Product Overview
The Golmar FA-372 is a dedicated power supply unit designed for use with Golmar intercom and door entry systems. It provides the necessary voltage and current to operate various components of the system, ensuring reliable communication and access control.

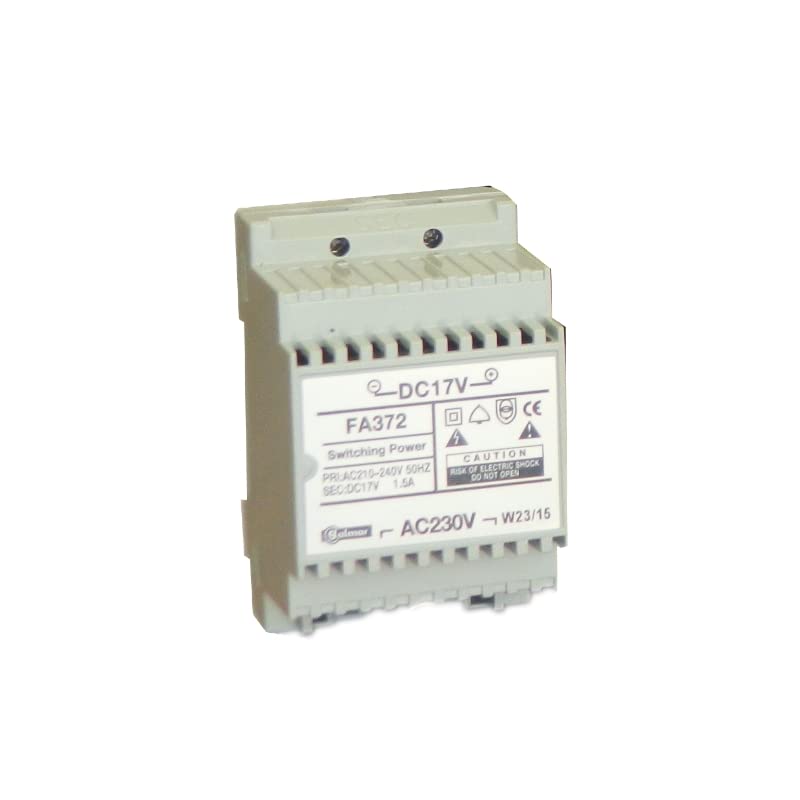

Figure 1: Front view of the Golmar FA-372 Power Supply. This image shows the compact design and typical terminal block layout for connections.
Setup and Installation
- Power Disconnection: Before starting any installation, ensure that the main power supply to the installation area is disconnected at the circuit breaker.
- Mounting: Choose a suitable location for the FA-372 power supply, typically near the main distribution board or the central unit of the intercom system. Mount the unit securely to a wall or DIN rail using appropriate fasteners.
- Wiring Input: Connect the AC mains power supply (e.g., 230V AC) to the designated input terminals on the FA-372. Refer to the wiring diagram provided with your specific intercom system for correct terminal identification. Ensure proper grounding.
- Wiring Output: Connect the output terminals of the FA-372 to the intercom system's central unit or other components requiring power. Pay close attention to polarity (+/-) and voltage requirements as specified by your intercom system's manual.
- Verification: Double-check all wiring connections for correctness and security. Ensure no bare wires are exposed.
- Power On: Once all connections are verified, restore power at the circuit breaker. The power supply should now be active.
Operating Instructions
The Golmar FA-372 is designed for continuous operation once correctly installed. It functions as a dedicated power source for your intercom system. There are no user-adjustable controls on the unit itself.
- Power Indicator: Most installations will have an indicator light (LED) on the power supply or the connected intercom system's central unit to confirm power is being supplied.
- Normal Operation: The power supply will continuously provide the necessary voltage and current to the connected intercom components.
- System Integration: The FA-372 works in conjunction with other Golmar intercom components. Refer to the specific manuals for those components for overall system operation.
Maintenance
The Golmar FA-372 Power Supply requires minimal maintenance. Regular checks can help ensure its longevity and reliable performance.
- Cleaning: Periodically clean the exterior of the unit with a dry, soft cloth. Do not use liquid cleaners or solvents. Ensure power is disconnected before cleaning.
- Ventilation: Ensure that the ventilation openings (if any) are not obstructed to prevent overheating.
- Connections: Annually, or if issues arise, inspect all wiring connections for tightness and signs of corrosion. Disconnect power before inspecting connections.
- Environmental Check: Verify that the operating environment remains within the recommended temperature and humidity ranges.
Troubleshooting
If you experience issues with your intercom system that you suspect are related to the power supply, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to intercom system. |
|
|
| Intercom system functions intermittently. |
|
|
If the problem persists after attempting these solutions, contact a qualified technician or Golmar technical support.
Specifications
| Feature | Detail |
|---|---|
| Manufacturer | Golmar |
| Model Number | FA-372 |
| Product Identifier | FA-372 |
| Number of Products | 1 |
| ASIN | B01MUA690V |
| First Available Date | 12 January 2017 |
| Input Voltage | (Typically 230V AC, consult product label for exact value) |
| Output Voltage | (Specific to Golmar intercom systems, consult product label/system manual) |
| Output Current | (Specific to Golmar intercom systems, consult product label/system manual) |
Note: For precise electrical specifications (input/output voltage, current), always refer to the label on the FA-372 unit itself or the comprehensive technical documentation provided by Golmar for your specific intercom system.
Warranty Information
Golmar products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to the FA-372 Power Supply, please refer to the warranty card included with your purchase or visit the official Golmar website. Keep your proof of purchase for warranty claims.
Technical Support
Should you require technical assistance, have questions regarding installation, or need to report a fault, please contact Golmar technical support. Contact details can typically be found on the official Golmar website or in the documentation accompanying your intercom system.
Website: www.golmar.es (This is a general example, please verify the official support website)
When contacting support, please have your product model (FA-372) and serial number (if applicable) ready.
