GOWE 3RZ-FE Cylinder Head Instruction Manual

1. Product Overview

This manual provides essential information for the proper installation, operation, and maintenance of the GOWE 3RZ-FE Cylinder Head. This component is designed for Toyota 3RZ engines found in models such as the Coaster, Prado, Tacoma, and Pick-up. Adherence to these instructions is crucial for optimal performance and longevity of the engine component.

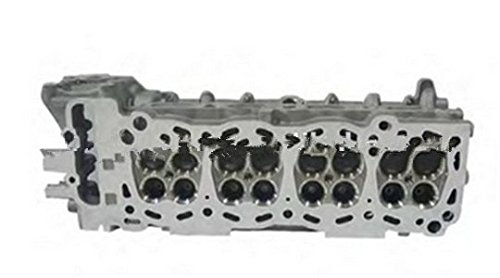

Figure 1: GOWE 3RZ-FE Cylinder Head. This image displays the complete cylinder head assembly, highlighting its robust construction and precision-machined surfaces, ready for installation into a Toyota 3RZ engine.

2. Safety Information

Always prioritize safety when working with engine components. Failure to follow safety precautions can result in serious injury or damage to the vehicle.

• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and protective clothing.
• Ensure the vehicle is properly supported on jack stands and the battery is disconnected before beginning any work.
• Allow the engine to cool completely before handling components to prevent burns.
• Refer to the vehicle's service manual for specific torque specifications and procedures.
• Keep the work area clean and well-lit.
• Dispose of fluids and old parts responsibly according to local regulations.

3. Product Specifications

4. Installation Instructions

Installation of a cylinder head requires specialized knowledge and tools. If you are not experienced with engine repair, it is highly recommended to seek professional assistance. This section provides a general overview; always consult your vehicle's specific service manual for detailed procedures and torque specifications.

4.1. Preparation

1. Ensure the engine is cool and the battery is disconnected.
2. Drain the engine coolant and oil.
3. Remove all components obstructing access to the cylinder head (e.g., intake manifold, exhaust manifold, timing components, valve cover, spark plugs, fuel injectors).
4. Clean the engine block surface thoroughly, ensuring it is free of old gasket material, oil, and debris. Inspect for any damage or warping.

4.2. Cylinder Head Installation

1. Carefully place the new cylinder head gasket onto the engine block, ensuring correct orientation.
2. Gently lower the GOWE 3RZ-FE Cylinder Head onto the engine block, aligning it with the dowel pins and gasket.
3. Install the cylinder head bolts. Do not fully tighten them yet.
4. Follow the vehicle manufacturer's specified torque sequence and stages for tightening the cylinder head bolts. This typically involves multiple passes at increasing torque values and often an angle-tightening step. Incorrect tightening can lead to head gasket failure or cylinder head warping.
5. Install all removed components (timing chain/belt, manifolds, valve cover, etc.) in reverse order of removal, adhering to proper torque specifications.
6. Refill the engine with appropriate coolant and engine oil.
7. Reconnect the battery.

4.3. Post-Installation Checks

• Inspect for any leaks (coolant, oil, vacuum).
• Start the engine and allow it to reach operating temperature. Monitor for unusual noises, smoke, or warning lights.
• Bleed the cooling system to remove any trapped air.
• Perform a test drive and re-check for leaks and proper engine operation.

5. Operation and Function

The cylinder head is a critical component of an internal combustion engine, forming the top closure of the engine cylinders. Its primary functions include:

• Combustion Chamber: It forms the upper part of the combustion chamber where the air-fuel mixture is ignited.
• Valve Train: It houses the intake and exhaust valves, valve springs, and often the camshafts, which control the flow of gases into and out of the cylinders.
• Cooling Passages: Integrated passages allow coolant to circulate, dissipating heat generated during combustion and maintaining optimal engine temperature.
• Oil Passages: Channels for engine oil ensure lubrication of the valve train components.
• Spark Plug/Injector Mounts: Provides mounting points for spark plugs (for gasoline engines) and fuel injectors.

Proper operation of the GOWE 3RZ-FE Cylinder Head ensures efficient engine performance, correct compression, and effective management of exhaust gases.

6. Maintenance

While the cylinder head itself requires minimal direct maintenance, its longevity and performance are heavily dependent on the overall health and maintenance of the engine.

• Regular Oil Changes: Use the manufacturer-recommended engine oil and adhere to service intervals to ensure proper lubrication of valve train components and prevent sludge buildup.
• Coolant System Maintenance: Regularly check coolant levels and condition. Flush and replace coolant according to the vehicle manufacturer's schedule to prevent corrosion and overheating, which can damage the cylinder head.
• Timing System Inspection: Ensure the timing chain or belt is in good condition and properly tensioned to prevent valve-to-piston contact.
• Spark Plug/Injector Service: Replace spark plugs and inspect fuel injectors as part of routine maintenance to ensure efficient combustion and prevent carbon buildup.
• Monitor Engine Temperature: Avoid engine overheating, as this is a primary cause of cylinder head and head gasket failure. Address any cooling system issues promptly.

7. Troubleshooting Common Issues

If you experience issues after cylinder head installation or during engine operation, consider the following common problems and their potential causes. Always consult a qualified mechanic for diagnosis and repair.

• Engine Overheating:
  • Possible Causes: Low coolant, air in cooling system, faulty thermostat, clogged radiator, water pump failure, or a compromised head gasket.
• Coolant Loss / White Smoke from Exhaust:
  • Possible Causes: Leaking head gasket, cracked cylinder head, or improper installation.
• Oil in Coolant / Milky Oil:
  • Possible Causes: Leaking head gasket or cracked cylinder head.
• Loss of Engine Power / Misfires:
  • Possible Causes: Low compression due to valve issues, worn valve seats, or a damaged head gasket.
• Unusual Engine Noises (e.g., Tapping, Clicking):
  • Possible Causes: Valve train issues (e.g., worn lifters, camshaft, rocker arms), improper valve lash adjustment, or lack of oil pressure to the cylinder head.

8. Warranty and Support

For warranty information, technical support, or inquiries regarding the GOWE 3RZ-FE Cylinder Head, please contact the manufacturer, Gowegroup, or your authorized dealer. Keep your purchase receipt and product details readily available when contacting support.

Note: Specific warranty terms and conditions may vary.
