GORILLA SPORTS Squat Rack with Weight Plate Storage - User Manual

1. Introduction

Thank you for choosing the GORILLA SPORTS Squat Rack. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before use and keep it for future reference. This squat rack is designed for various strength training exercises, including squats, bench presses, and overhead presses, providing a stable and secure platform for your workouts.

2. Safety Information

WARNING: Improper use of this equipment can result in serious injury. Always consult with a healthcare professional before starting any new exercise program.

• Ensure all bolts and nuts are securely tightened before each use.
• Place the squat rack on a flat, stable surface.
• Do not exceed the maximum weight capacities specified in this manual.
• Always use safety spotter arms when performing heavy lifts, especially squats and bench presses.
• Keep children and pets away from the equipment during use.
• Inspect the equipment regularly for wear and tear, especially on structural components and welds. Discontinue use if any damage is found.
• Wear appropriate athletic footwear and clothing during exercise.
• If you experience pain or dizziness, stop exercising immediately.

3. Package Contents

The package includes the following components:

• 1 x GORILLA SPORTS Squat Rack (main frame components)
• Assembly hardware (bolts, nuts, washers)
• Instruction manual

Note: Delivery may occur in multiple packages on different days. Please ensure all packages have arrived before beginning assembly.

4. Assembly Instructions

Assembly of the GORILLA SPORTS Squat Rack typically takes 1.5 to 2 hours. It is recommended to have two people for assembly to ensure safety and ease.

Required Tools (Not Included):

• Wrenches (appropriate sizes for included hardware)
• Allen keys (if applicable, check hardware)

Assembly Steps:

1. Unpack all components and verify against the package contents list. Lay out all parts on a clean, flat surface.
2. Identify the main uprights and base frames.
3. Attach the base frames to the uprights using the provided bolts, washers, and nuts. Do not fully tighten yet.
4. Connect the two upright sections with the crossbar, ensuring the GORILLA SPORTS logo faces forward. Secure with hardware.
5. Install the barbell storage hooks (J-hooks) and safety spotter arms into the desired height positions. The rack offers 9 adjustable positions for the barbell.
6. Attach the 4 weight plate holders to the designated points on the frame. These are designed for 50/51 mm diameter weight plates.
7. Once all components are in place, systematically tighten all bolts and nuts securely. Ensure the rack is stable and level.
8. Perform a stability check by gently shaking the assembled rack to ensure there is no wobbling.

Figure 1: Overview of the GORILLA SPORTS Squat Rack with key components labeled, including the solid steel tube frame, 9 barbell storage options, weight plate holders, and stable base.

5. Operating Instructions

The GORILLA SPORTS Squat Rack is a versatile piece of equipment for various strength training exercises. Always ensure proper form and technique to prevent injury.

Adjusting Barbell Height:

• The rack features 9 adjustable positions for the barbell hooks.
• To adjust, remove the barbell from the hooks.
• Lift the J-hooks or safety spotter arms and reposition them into the desired holes on the uprights. Ensure both sides are at the same height and fully seated.
• The distance between each shelf position is 10 cm.

Using Safety Spotter Arms:

• The safety spotter arms are crucial for exercises like squats and bench presses, providing a fail-safe if you cannot complete a lift.
• Position the safety arms slightly below your lowest point of movement for the exercise. This allows for a full range of motion while providing protection.
• The safety shelves have a length of 40 cm and a maximum load capacity of 180 kg.

Weight Plate Storage:

• Utilize the 4 weight plate holders to store your 50/51 mm diameter weight plates. This helps keep your workout area tidy and safe.
• The maximum load capacity for the weight plate holders is 130 kg.

Recommended Exercises:

• Squats: Position the barbell at shoulder height. Step under the bar, unrack, and perform squats with proper form.
• Bench Press: Use with a weight bench. Position the barbell at an appropriate height for unracking and reracking.
• Overhead Press: Adjust barbell height for comfortable unracking.
• Rack Pulls: Set the safety arms to a desired height to perform partial deadlifts.

Figure 2: A user demonstrating a barbell squat with the GORILLA SPORTS Squat Rack, highlighting its use for strength training.

Figure 3: Another view of a user performing a barbell squat, illustrating the rack's stable design during exercise.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your squat rack.

• Cleaning: Wipe down the frame with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Inspection: Periodically check all bolts, nuts, and connections for tightness. Tighten any loose hardware.
• Structural Check: Inspect the steel frame for any signs of cracks, bends, or damage. Pay close attention to welds. If any damage is found, discontinue use immediately and contact customer support.
• Storage: Store the squat rack in a dry environment to prevent rust.

7. Troubleshooting

If you encounter any issues with your GORILLA SPORTS Squat Rack, refer to the following common troubleshooting tips:

• Rack is wobbly: Ensure all assembly bolts and nuts are fully tightened. Check that the rack is placed on a completely flat and level surface.
• Barbell hooks or safety arms are difficult to adjust: Ensure no weight is on the rack when attempting to adjust. Check for any obstructions in the adjustment holes.
• Missing parts during assembly: Refer to the package contents list. If parts are genuinely missing, contact GORILLA SPORTS customer support.

For issues not covered here, please contact GORILLA SPORTS customer support.

8. Specifications

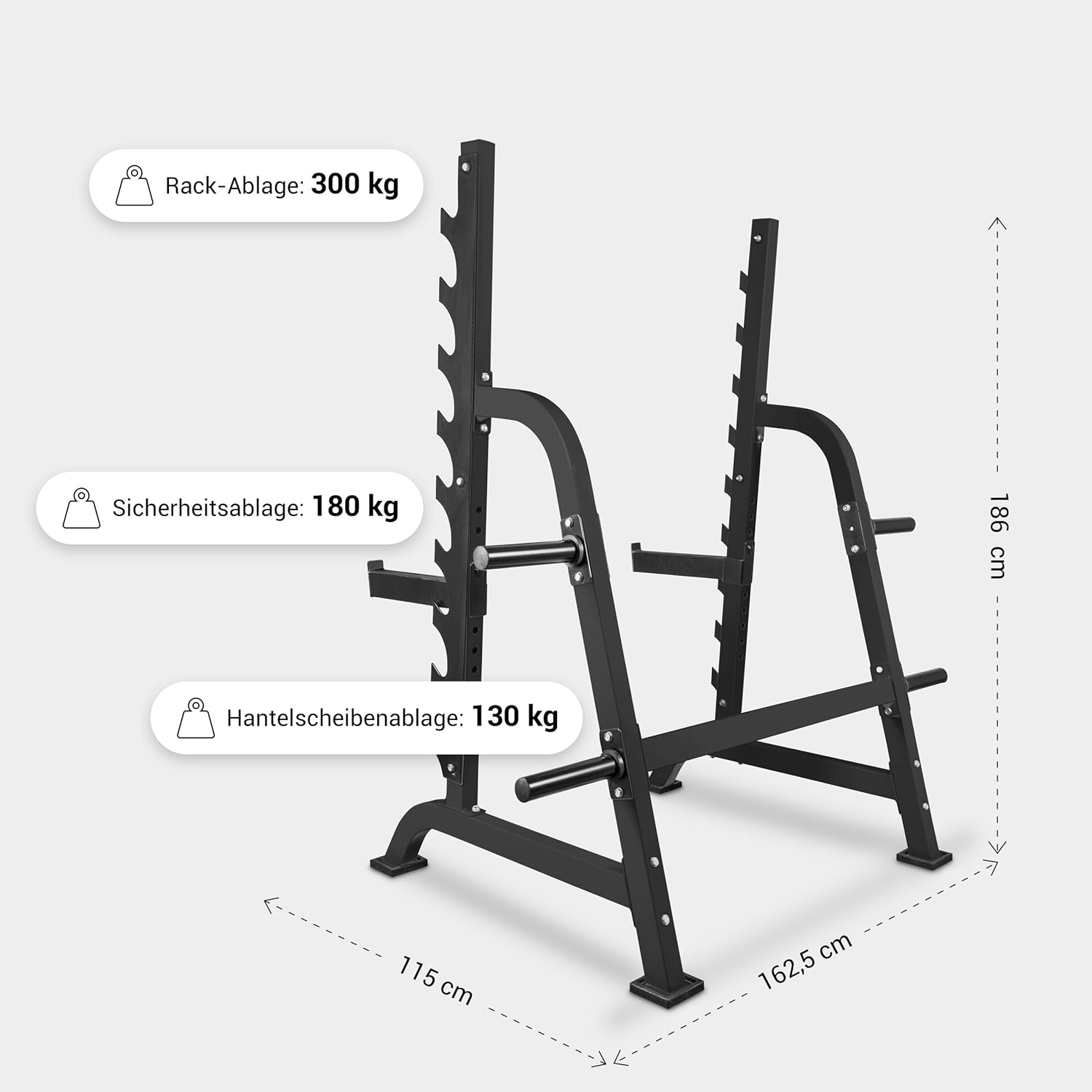

Figure 4: Detailed diagram illustrating the dimensions (162.5 x 115 x 186 cm) and maximum load capacities for the rack (300 kg), safety shelf (180 kg), and weight plate storage (130 kg).

9. Warranty and Support

GORILLA SPORTS is committed to providing high-quality products. While specific warranty details are not included in this manual, please retain your proof of purchase for any warranty claims. For product support, missing parts, or any other inquiries, please contact GORILLA SPORTS customer service through your retailer or the official GORILLA SPORTS website.

Note: A 30-day return policy may apply, as per retailer terms.
