Tuff Stuff 7666A Alternator Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Tuff Stuff 7666A Alternator. Please read this manual thoroughly before beginning any installation or operation to ensure safe and efficient use of the product.

The Tuff Stuff 7666A Alternator is a high-quality component designed for automotive applications, featuring billet aluminum fan and pulley with a chrome finish. It is built to meet or exceed OEM specifications and is suitable for 12-volt, negative ground systems.

2. Safety Information

Always observe the following safety precautions:

• Disconnect the vehicle's battery before performing any work on the electrical system.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the vehicle is stable and secured before working underneath it.
• Avoid contact with hot engine components.
• Consult a qualified automotive technician if you are unsure about any installation steps.
• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning).

3. Product Overview

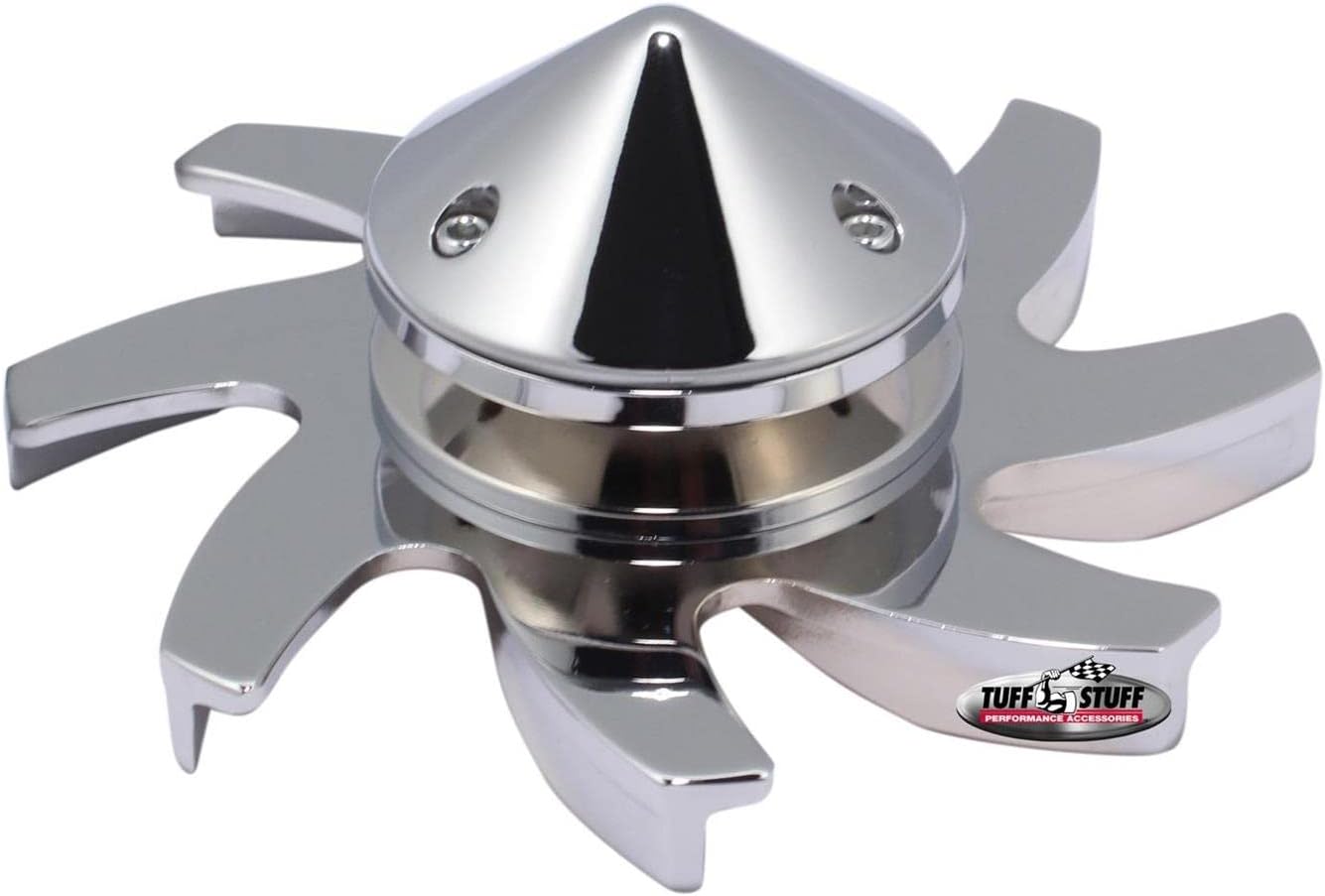

Figure 3.1: Tuff Stuff 7666A Alternator. This image displays the chrome-finished alternator with its distinctive billet aluminum fan and pulley, highlighting its sleek design and robust construction.

The Tuff Stuff 7666A Alternator is designed for optimal performance and durability. Key features include:

• Billet aluminum construction for enhanced strength and heat dissipation.
• Chrome finish for corrosion resistance and aesthetic appeal.
• Designed for 12-volt, negative ground electrical systems.
• Features a low idle cut-in internal regulator for efficient charging at low RPMs (for 1-wire option, if applicable).

4. Setup and Installation

Proper installation is crucial for the performance and longevity of your alternator. It is recommended that installation be performed by a qualified technician.

4.1 Pre-Installation Checks

• Verify that the new alternator matches the specifications of the original unit (mounting points, pulley type, voltage).
• Inspect all wiring for signs of wear, corrosion, or damage. Repair or replace as necessary.
• Ensure the battery is fully charged and in good condition.

4.2 Installation Steps

1. Disconnect the negative battery cable, then the positive battery cable.
2. Carefully remove the serpentine belt or V-belt from the old alternator pulley.
3. Disconnect all electrical connections from the old alternator (main power wire, exciter wire, ground wire if separate). Note their positions.
4. Unbolt and remove the old alternator from its mounting brackets.
5. Position the new Tuff Stuff 7666A Alternator into the mounting brackets. Secure it with the appropriate bolts, ensuring it is firmly seated. Do not overtighten.
6. Reconnect all electrical connections to the new alternator. Ensure connections are clean and tight.
7. Reinstall the serpentine belt or V-belt, ensuring proper tension according to vehicle manufacturer specifications.
8. Reconnect the positive battery cable, then the negative battery cable.

5. Operating Instructions

After installation, perform the following checks:

• Start the vehicle's engine.
• Observe the dashboard warning lights. The battery/charging system light should turn off shortly after the engine starts.
• Using a voltmeter, check the voltage across the battery terminals with the engine running. It should typically read between 13.8V and 14.8V, indicating proper charging.
• Listen for any unusual noises from the alternator or belt system.

The Tuff Stuff 7666A Alternator is designed for continuous operation within your vehicle's electrical system. No specific user interaction is required during normal operation beyond ensuring the vehicle's electrical system is functioning correctly.

6. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your alternator:

• Periodic Inspection: Visually inspect the alternator and its connections every 6-12 months. Check for loose wires, corrosion, or signs of wear on the belt and pulley.
• Belt Tension: Ensure the drive belt has proper tension. An overly loose belt can slip, reducing charging efficiency, while an overly tight belt can put undue stress on the alternator bearings.
• Cleanliness: Keep the alternator free from excessive dirt, oil, and debris. A clean surface aids in heat dissipation.
• Battery Health: A healthy battery is essential for the alternator's proper function. Ensure your battery is regularly tested and maintained.

7. Troubleshooting

If you experience issues with your charging system, consider the following common problems and solutions:

If troubleshooting steps do not resolve the issue, consult a professional automotive technician.

8. Specifications

9. Warranty and Support

All Tuff Stuff alternators are made from 100% new components and carry a one-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims or technical support, please contact Tuff Stuff customer service. Keep your proof of purchase for warranty validation.

Note: Warranty may be voided by improper installation, misuse, or unauthorized modifications.
