1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your SEI Furniture Redden Faux Stone Convertible Electric Media Storage Corner Fireplace. Please read all instructions carefully before assembly and use to ensure safe and proper functioning of the product. Keep this manual for future reference.

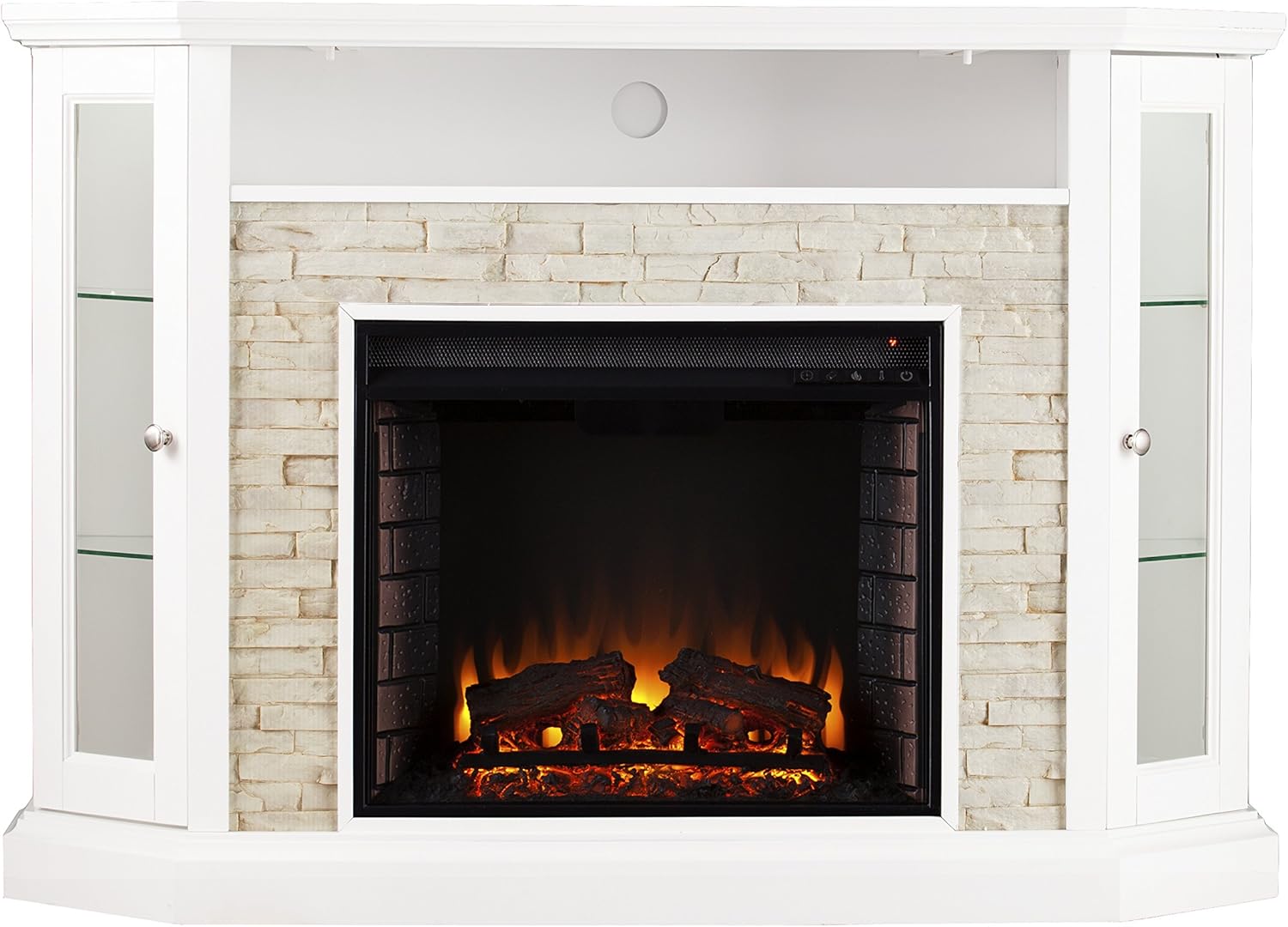

Figure 1: The SEI Furniture Redden Faux Stone Convertible Electric Media Storage Corner Fireplace in Fresh White.
2. Safety Information
WARNING: Items with anti-tipping hardware restraints must be secured to the wall. Please contact the manufacturer immediately if anti-tip hardware is not included. Always follow local electrical codes and safety regulations when installing and operating the electric fireplace. Do not overload electrical outlets. Keep flammable materials at least 3 feet (0.9 meters) away from the front of the fireplace. Do not block air vents. Ensure the unit is placed on a stable, level surface.
3. Package Contents
Verify that all components are present before beginning assembly. This product ships in multiple cartons.
- Fireplace Mantel components (various wood panels)
- Electric Firebox insert
- Assembly Hardware (screws, dowels, cam locks, etc.)
- Remote Control
- Glass shelves (for side cabinets)
- Anti-tipping hardware
- Assembly Guide
Figure 2: The product ships in multiple cartons, which may arrive at different times.
4. Setup & Assembly
Assembly requires two people. Follow the detailed steps in the included Assembly Guide. The process typically involves attaching panels using provided hardware, installing the electric firebox, and securing the unit. The unit is convertible for flat wall or corner placement.
4.1 Assembly Video Guide
For a visual guide on assembly, please watch the official instructional video below. This video demonstrates the step-by-step process for constructing the fireplace unit.
Video 1: Official assembly guide for the SEI Furniture Redden Corner Convertible Media Electric Fireplace. This video provides a comprehensive visual walkthrough of the assembly process, including identifying parts and securing connections.
4.2 Key Assembly Steps
- Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out and compare with the parts list in the Assembly Guide.
- Assemble Base Structure: Connect the bottom panel to the side panels using cam locks and dowels.
- Install Firebox: Slide the electric firebox into the designated opening. Secure it with screws as indicated in the manual.
- Attach Top Panel: Secure the top mantel piece to the assembled structure.
- Install Side Cabinet Shelves: Insert the glass shelves into the pre-drilled holes in the side cabinets.
- Connect Lighting: Ensure all internal wiring for the touch-activated lights in the side cabinets is properly connected.
- Attach Doors: Install the glass doors to the side cabinets using the provided hinges.
- Secure Unit: Use the anti-tipping hardware to secure the unit to a wall, especially if placing a TV on top.
Figure 3: The fireplace unit configured for flat wall placement, showcasing its media storage capabilities.
Figure 4: The fireplace unit configured for corner placement, demonstrating its versatile design.
5. Operating Instructions
5.1 Electric Firebox Operation
The electric firebox can be operated using the control panel on the unit or the included remote control. The remote control allows for convenient adjustment of flame settings, heat output, and timer functions.
- Power On/Off: Press the power button on the control panel or remote.
- Flame Brightness: Adjust the flame brightness to your preference (5 levels available).
- Heat Settings: Set the desired temperature (62-82 degrees Fahrenheit at 4-degree intervals). The heater provides supplemental heat for up to 400 square feet.
- Timer Function: Utilize the timer to automatically shut off the fireplace after a set duration.
- Flame Only Mode: The flame effect can be operated independently of the heat function, allowing for year-round ambiance.
5.2 Side Cabinet Lighting
The side cabinets feature LED-lit curios with touch-activated lighting. Simply touch the metal hinge on the cabinet door to turn the lights on or off. This feature highlights decorative items placed on the glass shelves.
Video 2: Demonstration of the touch-activated side door and light feature. This video illustrates how to operate the integrated lighting in the side display cabinets.
Figure 5: Detail of the touch-activated LED light within the side cabinet, illuminating the glass shelves.
6. Features
- Convertible Design: Easily converts from a flat wall unit to a corner unit, adapting to various room layouts.
- Supplemental Heating: Provides heat for areas up to 400 square feet, with adjustable temperature settings.
- Realistic Flame Effect: Features lifelike flames and burning logs with embers, enhanced by energy-efficient LED bulbs.
- Media Storage: Includes an open media shelf for entertainment equipment and electronics.
- Illuminated Curios: Two side cabinets with glass doors, four tapered glass shelves, and touch-activated LED lighting.
- Remote Control: Full-function remote control for convenient operation of the firebox.
- TV Accommodation: Designed to accommodate flat-screen TVs up to 50 inches wide overall.
- Durable Construction: Made from MDF, poplar, glass, polyresin, and metal.
Figure 6: Close-up view of the faux stone detailing, adding a decorative element to the fireplace.
7. Maintenance
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners. For glass, use a glass cleaner.
- Dusting: Regularly dust the unit to prevent buildup, especially around air vents.
- Electrical Safety: Periodically inspect the power cord for damage. Ensure the unit is unplugged before cleaning or performing any maintenance.
- Bulb Replacement: The LED bulbs are designed for long life and typically do not require replacement. If issues arise, consult the manufacturer.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power/Unit not turning on | Power cord unplugged, circuit breaker tripped, faulty outlet. | Check power connection, reset circuit breaker, try a different outlet. |
| No heat output | Heat function not activated, thermostat set too low, air vents blocked. | Activate heat function, increase thermostat setting, clear any obstructions from vents. |
| Flames not visible | Flame effect not activated, brightness set too low. | Activate flame effect, increase flame brightness setting. |
| Side cabinet lights not working | Loose wiring, faulty touch sensor. | Check wiring connections. If problem persists, contact customer support. |
| Remote control not working | Dead batteries, obstruction between remote and unit. | Replace remote batteries. Ensure clear line of sight to the firebox sensor. |
9. Specifications
- Brand: SEI Furniture
- Model Name: Redden Faux Stone Corner Convertible Electric Fireplace with Media Storage
- Model Number: AMZ3939EF
- Color: Fresh White
- Material: MDF, Poplar, Glass, Polyresin, Metal, Resin
- Product Dimensions (Flat): 52.25" W x 16" D x 36.5" H
- Product Dimensions (Corner): 52.25" W x 25.25" D x 36.5" H
- Item Weight: 102 lbs
- Power Source: Electric
- Power Consumption: 1500 Watts
- Heating Coverage: Up to 400 square feet
- Temperature Settings: 62-82 degrees Fahrenheit (4-degree intervals)
- TV Accommodation: Up to 50" W overall
- Weight Capacity (Mantel): 85 lbs
- Weight Capacity (Corner Converter): 20 lbs
- Weight Capacity (Media Shelf): 30 lbs
- Weight Capacity (Each Cabinet Shelf): 15 lbs
- UPC: 037732781174, 037732293936
Figure 7: Detailed dimensions of the fireplace unit for both flat wall and corner configurations.
10. Warranty & Support
This product comes with a Limited Warranty. For specific details regarding warranty coverage, please refer to the documentation included with your purchase or contact SEI Furniture customer support. For technical assistance, missing parts, or any other inquiries, please contact the manufacturer directly.
Manufacturer: Southern Enterprises
Contact Information: Please refer to the contact details provided in your product packaging or visit the official SEI Furniture website for support options.
