HOWELL VP800 Electric Food Steamer Instruction Manual

1. Introduction

Thank you for choosing the HOWELL VP800 Electric Food Steamer. This appliance is designed to provide a healthy and convenient way to cook a variety of foods using steam. With its 8.4-liter capacity, three cooking tiers, and integrated aroma infuser, you can prepare delicious and nutritious meals. Please read this manual thoroughly before first use to ensure safe operation and optimal performance.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions carefully before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse the cord, plugs, or the base unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the water reservoir is filled to the appropriate level before operating.
• Always ensure the lid is properly secured during operation to prevent steam escape and ensure efficient cooking.

3. Product Components

Familiarize yourself with the parts of your HOWELL VP800 Steamer:

1. Lid: Transparent lid to retain steam and monitor cooking.
2. Steam Trays (3): Stackable trays for cooking different foods simultaneously.
3. Rice Bowl (optional): A small bowl for cooking rice or other grains within a steam tray.
4. Drip Tray: Collects condensation and food juices.
5. Water Reservoir: Base unit where water is heated to produce steam.
6. Water Level Indicator: Shows the current water level in the reservoir.
7. Aroma Infuser: A small compartment for herbs or spices to flavor food.
8. Timer Dial: To set the desired steaming time (up to 60 minutes).
9. Power Cord: For connecting to an electrical outlet.

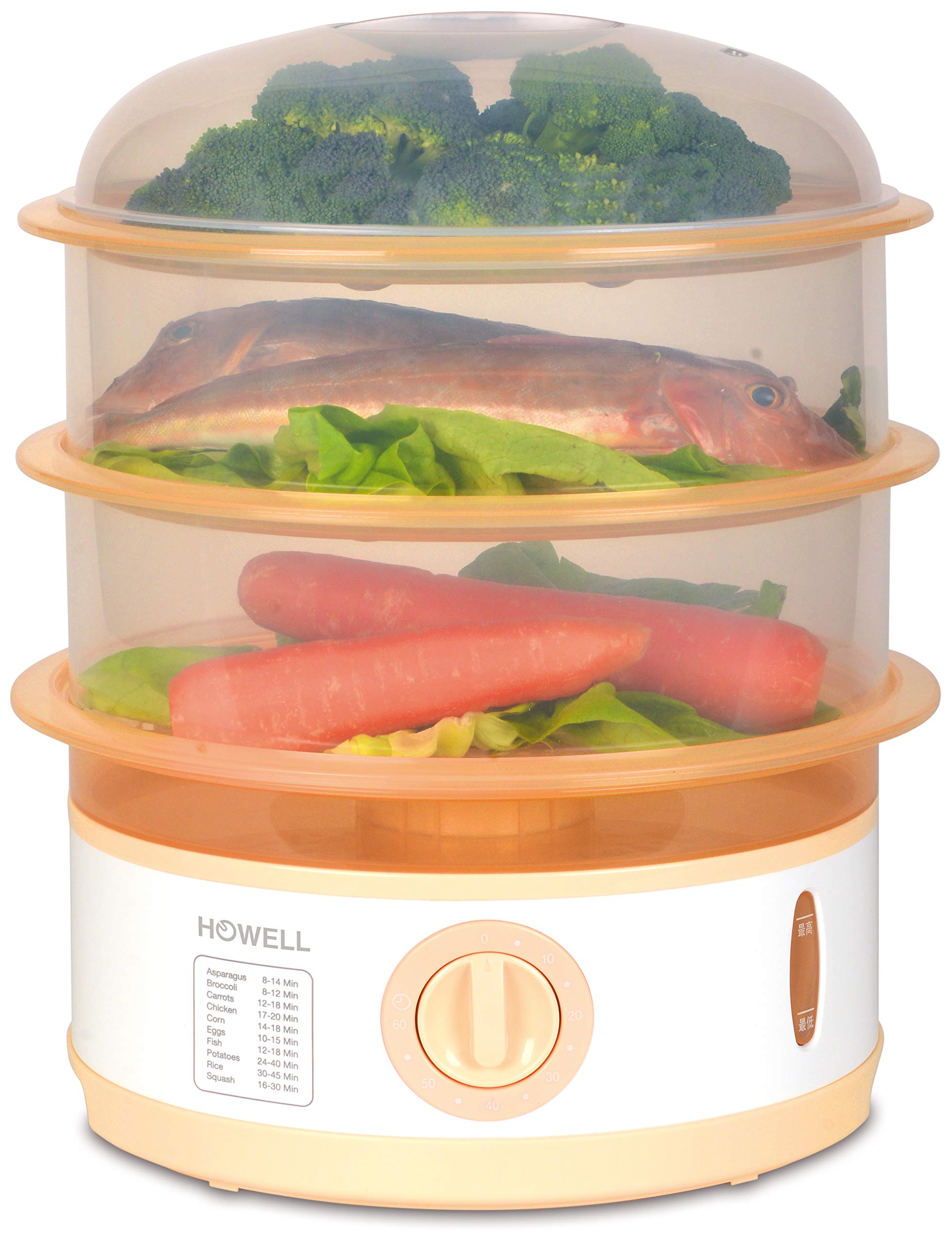

Figure 1: The Howell VP800 Electric Food Steamer showing its main components, including the base, three stackable steam trays, and the lid.

4. Setup and First Use

Before using your steamer for the first time, follow these steps:

1. Unpack: Carefully remove all packaging materials and dispose of them responsibly.
2. Clean: Wash the lid, steam trays, and drip tray in warm, soapy water. Rinse thoroughly and dry. Wipe the base unit with a damp cloth. Do not immerse the base unit in water.
3. Assemble: Place the drip tray onto the base unit. Stack the desired number of steam trays on top of the drip tray. Place the lid on the uppermost tray.
4. Initial Run (Optional but Recommended): Fill the water reservoir to the MAX level. Run the steamer for 20-30 minutes without food to remove any manufacturing residues. Discard the water and clean the trays again.

5. Operating Instructions

Follow these steps to operate your HOWELL VP800 Steamer:

1. Fill Water Reservoir: Ensure the steamer is unplugged. Fill the water reservoir with clean cold water up to the MAX fill line. Do not overfill. You can add water during operation using the external water inlet if available, or by carefully removing trays and adding water directly.
2. Add Aroma (Optional): If desired, place herbs, spices, or citrus peels into the aroma infuser located in the drip tray or base.
3. Place Food: Arrange food in the steam trays. Do not overcrowd the trays to allow steam to circulate freely. For best results, place foods requiring longer cooking times in the lower trays.
4. Assemble Steamer: Place the drip tray onto the base unit, then stack the filled steam trays, and finally place the lid securely on top.
5. Plug In: Connect the power cord to a suitable electrical outlet (230V).
6. Set Timer: Turn the timer dial clockwise to your desired cooking time (up to 60 minutes). The steamer will begin to heat and produce steam. The indicator light (if present) will illuminate.
7. Monitor Water Level: Periodically check the water level indicator during long cooking periods. If the water level is too low, carefully add more water.
8. Cooking Complete: Once the set time has elapsed, the steamer will automatically switch off, and a bell may sound.
9. Serve: Carefully remove the lid (steam will be hot!) and then the steam trays using oven mitts. Serve food immediately.
10. Unplug: Always unplug the steamer from the power outlet after use.

General Steaming Guidelines:

• Vegetables: 10-20 minutes (depending on type and size).
• Fish/Seafood: 8-15 minutes.
• Poultry: 20-30 minutes (ensure internal temperature reaches safe levels).
• Eggs: 10-15 minutes for hard-boiled.

Note: Cooking times are approximate and may vary based on food quantity, density, and personal preference. Always ensure food is thoroughly cooked before consumption.

6. Cleaning and Maintenance

Regular cleaning ensures the longevity and hygiene of your steamer.

1. Unplug and Cool: Always unplug the appliance and allow it to cool completely before cleaning.
2. Wash Removable Parts: The lid, steam trays, and drip tray can be washed in warm, soapy water or placed in the top rack of a dishwasher. Rinse thoroughly and dry.
3. Clean Base Unit: Wipe the exterior of the base unit with a damp cloth. Do not use abrasive cleaners or scourers. Never immerse the base unit in water.
4. Descaling: Over time, mineral deposits (limescale) may build up in the water reservoir. To descale, fill the reservoir with a mixture of 1 part white vinegar and 2 parts water. Run the steamer for 20-30 minutes. Unplug, let cool, then empty and rinse the reservoir thoroughly several times with fresh water. Repeat if necessary. Descale every 1-2 months depending on water hardness.
5. Storage: Ensure all parts are clean and dry before storing. Store the steamer in a cool, dry place. The trays can be nested for compact storage.

7. Troubleshooting

If you encounter issues with your steamer, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact HOWELL customer support.

8. Specifications

• Model: HOWVP800
• Brand: HOWELL
• Capacity: 8.4 Liters
• Cooking Tiers: 3
• Power: 700 Watts max
• Voltage: 230V
• Timer: 60 minutes
• Material: Plastic
• Color: White
• Item Weight: Approximately 2 Kilograms

9. Warranty and Support

HOWELL products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the official HOWELL website. For technical support, spare parts, or service inquiries, please contact HOWELL customer service through their official channels.

Keep your purchase receipt as proof of purchase for any warranty claims.
