1. Introduction
This manual provides essential information for the safe and effective use of your Noma/Inliten Holiday Wonderland #565223 100-Count Multi Color Incandescent Christmas Light Set. Please read these instructions carefully before installation and retain for future reference. This product is designed for both indoor and outdoor decorative lighting.
2. Safety Information
WARNING: To reduce the risk of fire and electric shock:
- Do not install on trees with needles, leaves, or branch coverings of metal or materials that look like metal.
- Do not mount or support strings in a manner that can cut or damage wire insulation.
- Inspect the light set carefully before each use. Discard any sets with cut, damaged, or frayed wire insulation, cracked lamp holders, or exposed copper wire.
- Always unplug the light set from the power source before installing, removing, or replacing bulbs or fuses.
- Do not overload electrical outlets. Connect a maximum of five (5) of these 100-count light sets end-to-end.
- Ensure all connections are secure and protected from moisture when used outdoors.
- Keep away from children and pets.
3. Package Contents
- 2 x Holiday Wonderland #565223 100-Count Multi Color Incandescent Light Sets
- Spare Incandescent Bulbs
- Spare Fuses
Image 1: Packaging for the Holiday Wonderland 100-Count Multi Color Light Set.

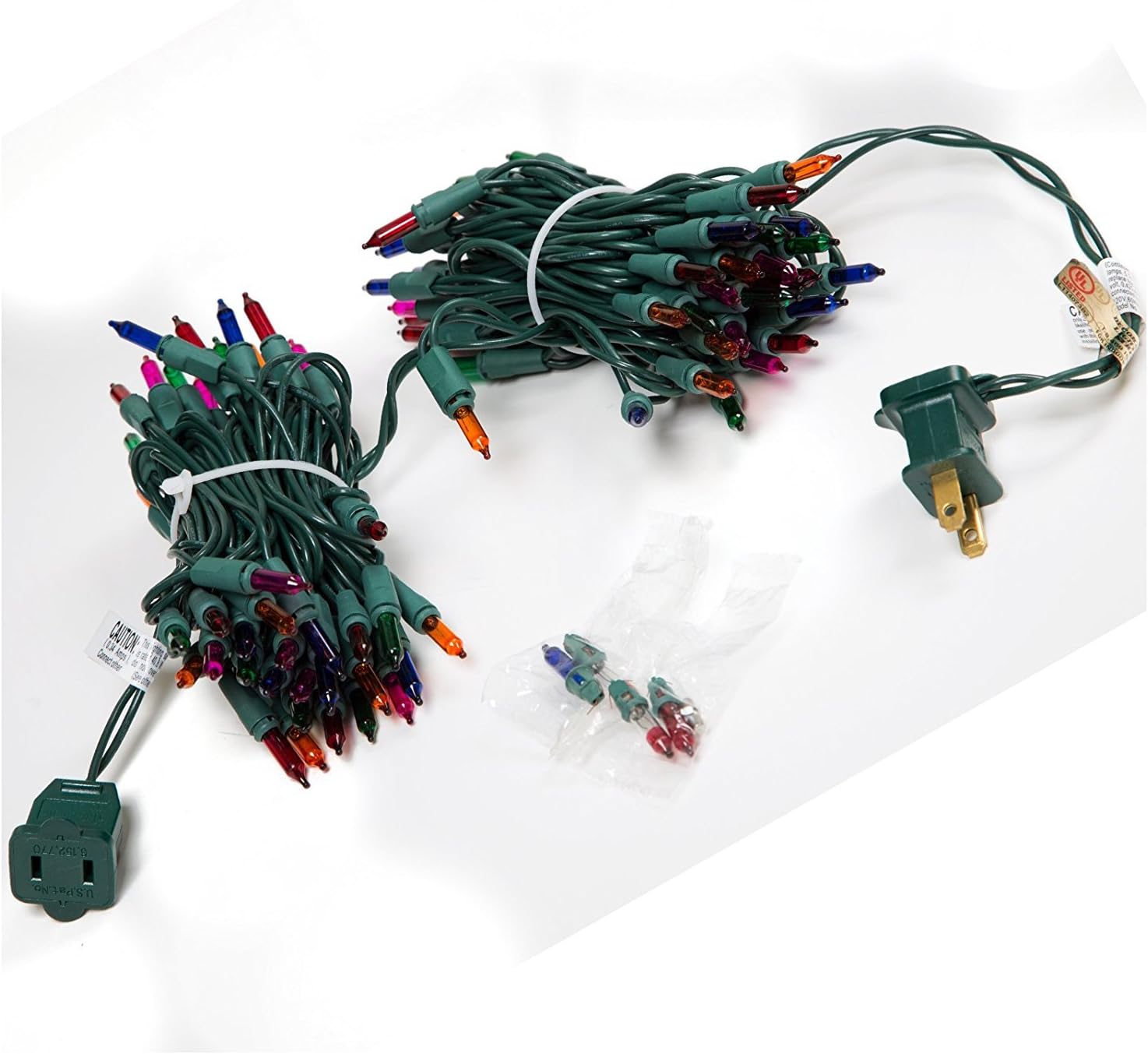

Image 2: Contents of the light set, including spare bulbs and fuses.
4. Setup Instructions
- Unpack and Inspect: Carefully remove the light sets from their packaging. Uncoil each string and inspect for any damage to the bulbs, wires, or plugs. Do not use if any damage is found.
- Placement: Determine your desired placement for the lights. These sets are suitable for both indoor and outdoor use. For outdoor use, ensure the outlet is a Ground Fault Circuit Interrupter (GFCI) protected receptacle.
- Connecting Multiple Sets: Each 100-count light set can be connected end-to-end with up to four (4) additional identical light sets, for a total of five (5) sets. To connect, simply plug the end connector of one set into the receptacle at the end of another set. Do not exceed the maximum recommended number of sets.
- Secure Placement: Once connected, carefully arrange the lights. Use appropriate clips or ties to secure the lights in place, avoiding sharp edges or excessive tension on the wires.
- Power On: Plug the main power cord into a suitable electrical outlet. The lights should illuminate.
Image 3: Close-up view of the multi-color incandescent mini lights.
Image 4: The light set coiled, showing the individual bulbs.
5. Operating Instructions
The Noma/Inliten Holiday Wonderland light sets are designed for simple operation. Once properly installed and plugged into a power source, the lights will illuminate. To turn off the lights, simply unplug the power cord from the electrical outlet.
Video 1: This video demonstrates the appearance and features of incandescent mini light sets, including various wire colors and end-to-end connectivity, similar to the Holiday Wonderland product.
6. Maintenance
Bulb Replacement
If a bulb burns out, the remaining bulbs on the string should remain lit. However, it is recommended to replace burned-out bulbs promptly to maintain the aesthetic and prolong the life of the remaining bulbs.
- Unplug the light set from the power source.
- Gently pull the burned-out bulb straight out from its socket.
- Insert a new spare bulb (provided) into the empty socket, ensuring it is fully seated.
- Plug the light set back in to test.
Fuse Replacement
If the entire light set does not illuminate, the fuse may have blown. The fuse is located in the plug.
- Unplug the light set from the power source.
- Slide open the fuse access cover on the plug (refer to the diagram on the plug for specific instructions).
- Carefully remove the old fuse.
- Insert a new spare fuse (provided) of the correct rating into the fuse holder.
- Close the fuse access cover securely.
- Plug the light set back in to test.
Storage
When not in use, carefully coil the light set and store it in a cool, dry place, away from direct sunlight and extreme temperatures. Keep the original packaging for convenient storage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Entire light set does not light up. | Blown fuse in the plug. | Replace the fuse as described in the Maintenance section. |
| A section of the lights is out. | One or more bulbs are loose or burned out. | Check each bulb in the affected section. Replace any loose or burned-out bulbs. |
| Lights flicker or are dim. | Loose connection or too many sets connected. | Ensure all connections are secure. Do not exceed the maximum of 5 sets connected end-to-end. |
8. Specifications
- Model: #565223
- Brand: Noma/Inliten
- Color: Multi Color
- Number of Lights: 100 per set
- Light Source Type: Incandescent
- Power Source: Corded Electric
- Indoor/Outdoor Usage: Indoor, Outdoor
- Connectability: Up to 5 sets end-to-end
- Item Weight (per 2-pack): Approximately 1.55 pounds
- UPC: 790683110539
9. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact the manufacturer, Noma/Inliten, directly. Keep your proof of purchase for any warranty claims.
