RAREELECTRICAL Starter Motor Instruction Manual
Model: 0-986-017-611
Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your new RAREELECTRICAL Starter Motor. This starter motor is designed for specific European model Hyundai Galloper and Terracan vehicles, as well as other compatible applications. Please read this manual thoroughly before proceeding with any installation or operation to ensure proper function and safety.

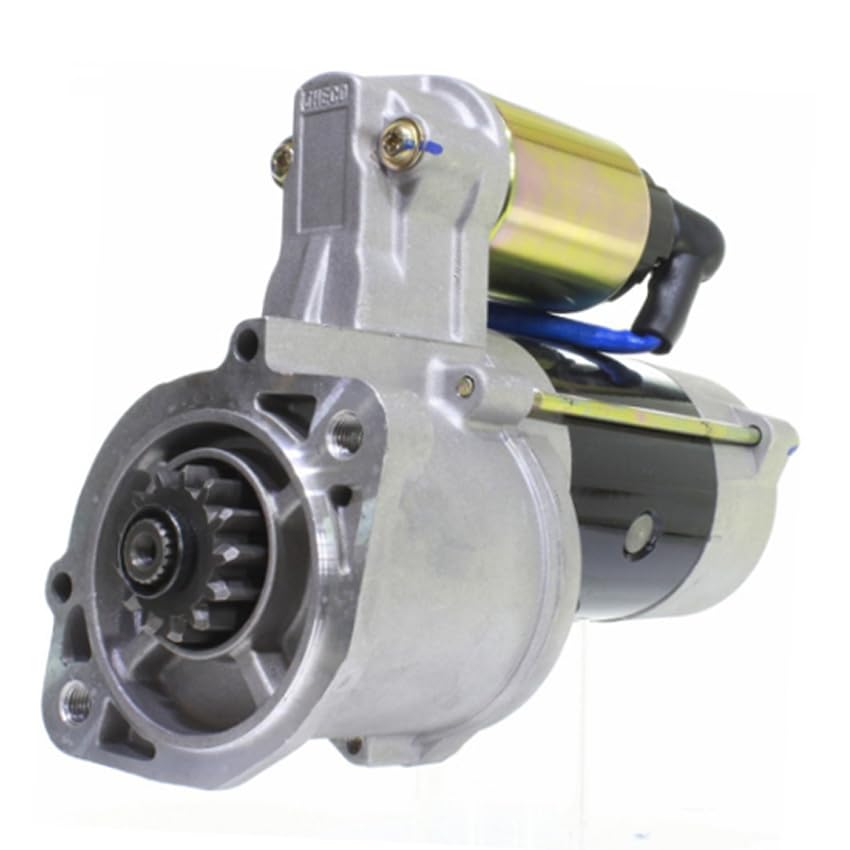

Image: The RAREELECTRICAL Starter Motor, showcasing its robust design and components.
Installation (Setup)
Installation of a starter motor requires mechanical knowledge and appropriate tools. It is highly recommended that installation be performed by a qualified automotive technician. Incorrect installation can lead to damage to the vehicle or personal injury.
Safety Precautions:
- Always disconnect the vehicle's battery (negative terminal first) before beginning any work on the electrical system.
- Ensure the vehicle is securely supported on jack stands or a lift.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Allow the engine to cool down completely before working on it.
General Installation Steps:
- Preparation: Locate the existing starter motor. Note the routing of all wires and cables connected to it.
- Disconnect Wiring: Carefully disconnect the battery cable and solenoid wire from the old starter motor.
- Remove Old Starter: Unbolt the old starter motor from the engine block or transmission housing. This may require specific wrenches or sockets.
- Inspect Mounting Surface: Clean the mounting surface on the engine block to ensure a flush fit for the new starter.
- Install New Starter: Position the new RAREELECTRICAL starter motor and secure it with the appropriate bolts. Ensure it is properly aligned with the flywheel.
- Connect Wiring: Reconnect the solenoid wire and the battery cable to the new starter motor. Ensure all connections are clean and tight.
- Reconnect Battery: Reconnect the vehicle's battery (positive terminal first, then negative).
- Test Functionality: Attempt to start the vehicle to confirm proper operation of the new starter motor. Listen for unusual noises.
Refer to your vehicle's specific service manual for detailed, model-specific installation instructions and torque specifications.
Operation
The starter motor is an integral part of your vehicle's starting system. When the ignition key is turned to the "START" position, electrical current flows from the battery to the starter motor. The starter motor then engages with the engine's flywheel, rotating the crankshaft to initiate the combustion process. Once the engine starts, the starter motor disengages automatically.
Normal Operation:
- A distinct whirring or cranking sound should be heard when the ignition is engaged.
- The engine should crank smoothly and start within a few seconds.
- The starter motor should disengage immediately once the engine fires.
Avoid prolonged cranking (more than 10-15 seconds at a time) to prevent overheating the starter motor. If the engine does not start, wait at least 30 seconds before attempting to crank again.
Maintenance
Starter motors are generally low-maintenance components. However, periodic inspection of related components can help ensure longevity and reliable operation.
Recommended Checks:
- Battery Condition: Ensure your vehicle's battery is fully charged and in good condition. A weak battery is a common cause of perceived starter issues.
- Cable Connections: Periodically inspect the battery cables and starter motor connections for corrosion, looseness, or damage. Clean and tighten as necessary.
- Ground Connections: Verify that all engine and chassis ground connections are clean and secure.
- Solenoid Wire: Check the small wire connecting to the starter solenoid for any signs of wear or damage.
No internal maintenance is typically required for sealed starter motor units. If internal issues are suspected, replacement is usually the recommended course of action.
Troubleshooting
If your vehicle experiences starting problems, consider the following common issues and their potential solutions before assuming the starter motor is faulty.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine does not crank or cranks slowly. | Weak or dead battery, corroded battery terminals, loose battery cables, faulty ignition switch, faulty starter solenoid, internal starter motor failure. | Test battery voltage and charge/replace if necessary. Clean and tighten battery terminals. Check ignition switch. Test starter solenoid. If all else fails, inspect or replace starter motor. |
| Clicking sound when attempting to start. | Low battery voltage, loose or corroded battery connections, faulty starter solenoid. | Charge/replace battery. Clean and tighten connections. Test or replace solenoid. |
| Grinding noise during cranking. | Starter motor pinion gear not engaging properly with flywheel, worn flywheel teeth, misaligned starter. | Inspect starter motor mounting and flywheel teeth. Realign or replace starter/flywheel as needed. |
| Starter motor spins but engine does not crank. | Faulty starter drive (bendix) or internal clutch mechanism. | Replace starter motor. |
If troubleshooting steps do not resolve the issue, professional diagnosis is recommended.
Specifications
Key technical specifications for the RAREELECTRICAL Starter Motor (Model: 0-986-017-611):
- Brand: RAREELECTRICAL
- Part Number: 0-986-017-611 (Compatible with various OEM part numbers)
- Unit Type: Mitsubishi
- Voltage: 12V
- Power: 2.2KW / 2.95HP
- Rotation: Clockwise (CW)
- Tooth Count (Splines): 13
- Starter Type: OSGR
- Product Dimensions: Approximately 14 x 10 x 6 inches
- Item Weight: Approximately 14 Pounds
- Country of Origin: China
Compatible Applications (European Models):
- Hyundai Galloper II (2476CC, DSL. 1998-2003)
- Hyundai Galloper II (2476CCM D4BH, 2.5 TD Intercooler 1998-2002)
- Hyundai Galloper II (2972CCM G6AT, 3.0I V6 1997-2001)
- Hyundai Terracan (2476CC, DSL. 2001-2006)
- Hyundai Terracan (2476CCM D4BH, 2.5 TD 2001-2003)
- Hyundai Truck Porter (2476CCM D4BH, 2.5 TD 1994-2002)
- Hyundai LCV Van H-1 (2476CCM 4D56 TC, 2.5 TD 1997-2015)
- Kia Pregio (2476CCM D4BH, 2.5 TCI 1995-2015)
- Mitsubishi Galloper (2476CC, DSL. 1998-2003)
- And many more compatible models. Please verify your OEM part number for exact fitment.
Warranty and Support
RAREELECTRICAL stands behind the quality of its products. For specific warranty details, please refer to the product listing at the time of purchase or contact RAREELECTRICAL customer support directly.
Generally, products are subject to a return policy. For this specific product, a 30-day return policy is typically offered from the date of purchase, allowing for refund or replacement under specified conditions.
Customer Support:
For technical assistance, fitment verification, or inquiries regarding your RAREELECTRICAL Starter Motor, please contact the seller or RAREELECTRICAL customer service. Providing your product model number (0-986-017-611) and vehicle details will help expedite support.
