Introduction
This document outlines the proper procedure for replacing the drive belt on compatible Bissell vacuum cleaner models. Regular belt replacement ensures optimal performance of your vacuum's brush roll, which is crucial for effective cleaning.
The Bissell Vacuum Cleaner Belt is compatible with Bissell Styles 7, 9, 10, 12, and 16. It also fits Shark XKB210 and Royal Style 10 vacuum cleaners.
Setup and Installation
Before beginning any maintenance, ensure the vacuum cleaner is unplugged from the electrical outlet to prevent accidental startup and potential injury.
Required Tools:
- Screwdriver (Phillips or flathead, depending on your vacuum model)
- New Bissell Vacuum Cleaner Belt (Styles 7, 9, 10, 12, 16)
Installation Steps:
- Prepare the Vacuum: Lay the vacuum cleaner on its side or back on a clean, flat surface, ensuring the brush roll area is accessible.
- Remove the Bottom Plate: Locate the screws holding the bottom plate (also known as the brush roll cover) in place. Use the appropriate screwdriver to remove these screws. Carefully lift off the bottom plate.
- Remove the Brush Roll: Gently lift the brush roll out of its housing. The old belt will likely be wrapped around it or broken.
- Remove the Old Belt: If the old belt is still intact, carefully remove it from the motor shaft and the brush roll. Dispose of the old belt.
- Install the New Belt:
- Loop one end of the new belt around the motor shaft.
- Stretch the other end of the belt around the brush roll, ensuring it sits securely in the belt groove on the brush roll.
- Reinstall the Brush Roll: Place the brush roll back into its housing, ensuring the belt remains properly seated on both the motor shaft and the brush roll. Rotate the brush roll manually a few times to ensure the belt is correctly aligned and moves freely.
- Reattach the Bottom Plate: Position the bottom plate back onto the vacuum cleaner and secure it with the screws removed earlier. Ensure all screws are tightened firmly but do not overtighten.
- Test the Vacuum: Plug the vacuum cleaner back into the electrical outlet and turn it on briefly to confirm the brush roll spins correctly.

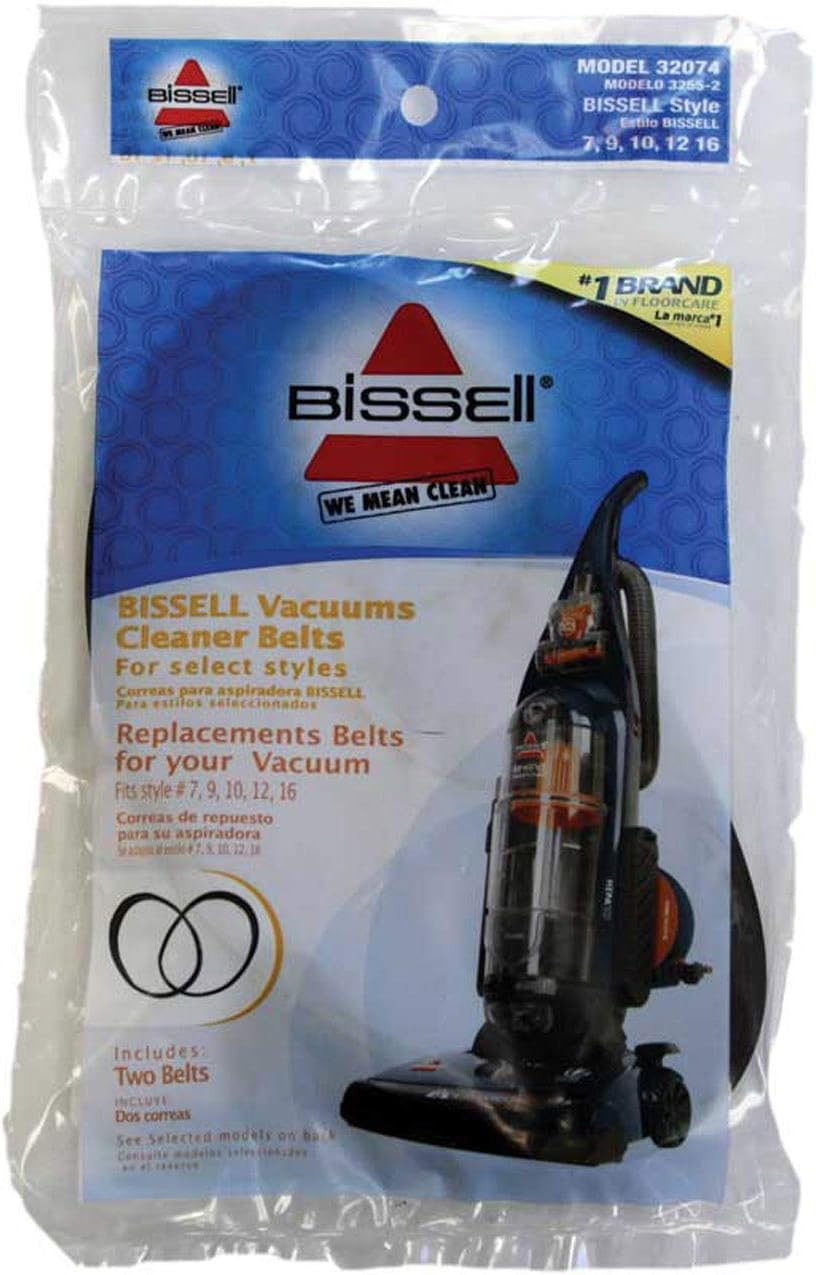

Image: Packaging for Bissell Vacuum Cleaner Belts, indicating compatibility with Styles 7, 9, 10, 12, 16. The package contains two replacement belts.
Operating Considerations
After replacing the belt, operate your vacuum cleaner as usual. The new belt should restore the brush roll's spinning action, improving carpet cleaning performance. If the brush roll does not spin or makes unusual noises, immediately turn off and unplug the vacuum and re-check the belt installation.
Maintenance
To maximize the lifespan of your vacuum cleaner belt and maintain optimal cleaning performance:
- Regular Inspection: Periodically inspect the belt for signs of wear, cracking, stretching, or damage. A worn belt can reduce cleaning effectiveness.
- Clear Brush Roll: Ensure the brush roll is free of tangled hair, threads, and debris. Excessive build-up can put strain on the belt, causing it to stretch or break prematurely.
- Avoid Obstructions: Do not run the vacuum over large objects that could jam the brush roll, as this can cause the belt to snap.
- Timely Replacement: Replace the belt as soon as signs of wear or damage are observed, or if the brush roll stops spinning effectively. Belts are consumable parts and require periodic replacement.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Brush roll not spinning. | Belt is broken or stretched. | Replace the belt following the installation steps. |
| Brush roll spinning slowly or intermittently. | Belt is worn or slipping; brush roll is jammed. | Inspect and replace the belt if worn. Clear any obstructions from the brush roll. |
| Burning smell during operation. | Belt is slipping or brush roll is jammed. | Immediately turn off and unplug the vacuum. Inspect the belt for damage and the brush roll for obstructions. Replace belt if damaged. |
Specifications
- Product Dimensions: 8 x 4 x 0.25 inches (20.32 x 10.16 x 0.64 cm)
- Item Weight: 0.48 ounces (13.61 g)
- Manufacturer: Bissell
- Compatible Belt Styles: Bissell Styles 7, 9, 10, 12, 16
- Compatible Devices: Vacuum Cleaner (also fits Shark XKB210 and Royal Style 10)
- Model Numbers: 32074, 3255-2
Warranty and Support
Specific warranty information for replacement parts like vacuum belts is typically provided with the original vacuum cleaner purchase or on the official Bissell website. For detailed warranty terms or technical support, please refer to your vacuum cleaner's original manual or visit the official Bissell support page.
Bissell Official Website: www.bissell.com
