1. Introduction
Thank you for choosing the Winflo 30-inch Convertible Stainless Steel Wall Mount Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read this manual thoroughly before installation and use, and retain it for future reference.
1.1 Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is for residential use only. Ensure proper grounding and ventilation. Do not operate the hood with damaged cords or plugs. Disconnect power before servicing.
- Ensure the installation area has adequate structural support for the weight of the range hood.
- Maintain minimum clearance between the cooktop and the bottom of the range hood as specified by local building codes and the cooktop manufacturer.
- Do not flambé under the range hood.
- Clean grease filters regularly to prevent grease accumulation, which can be a fire hazard.
2. Product Overview
The Winflo W103B30 is a 30-inch wall-mounted range hood designed to efficiently remove smoke, steam, and cooking odors from your kitchen. It features a sleek stainless steel design, touch sensor controls, and powerful ventilation capabilities.
Figure 2.1: Front view of the Winflo 30-inch Stainless Steel Wall Mount Range Hood. The hood features a brushed stainless steel finish with a central touch control panel and LED display.
2.1 Key Features
- Powerful Suction: Premium motor provides up to 475 CFM (Cubic Feet Per Minute) airflow.
- 3-Speed Fan: Adjustable fan levels for various cooking needs.
- Touch Sensor Control: Easy-to-operate control panel with time display.
- LED Lighting: Two bright, energy-saving soft white LED lights illuminate the cooking area.
- Aluminum Mesh Filters: Easy to remove and dishwasher safe for convenient cleaning.
- Quiet Operation: Noise level less than 65dB at high speed.
- Convertible Design: Can be installed as ducted (vented outside) or non-ducted (recirculating with optional charcoal filters, WRHF004S2, sold separately).
- Adjustable Chimney: Telescoping chimney fits 7.5 Ft. - 8.5 Ft. ceilings. Chimney extension (WRHCE03) available for higher ceilings.
Figure 2.2: Angled view showcasing the sleek stainless steel body and the integrated touch control panel of the range hood.
3. Setup and Installation
Proper installation is crucial for the performance and safety of your range hood. It is recommended that installation be performed by a qualified installer.
3.1 Pre-Installation Checklist
- Verify all components are present: Hood body, chimney sections, mounting bracket, flexible duct work, damper, plug, and hardware.
- Ensure the wall structure can support the hood's weight (approximately 24 lbs).
- Confirm electrical supply (110 Volts) is available at the installation location.
- Determine the ventilation type: Ducted (vented outside) or Non-ducted (recirculating). For non-ducted, ensure you have the optional charcoal filters (WRHF004S2).
Figure 3.1: Dimensional drawing showing the range hood's measurements, including its width (29.5"), depth (18.9"), and adjustable height (29.1" - 40.6"). This diagram is essential for planning the installation space.
3.2 Mounting and Ducting
- Mark the mounting points on the wall according to the provided template and the desired height above the cooktop.
- Install the mounting bracket securely into wall studs or with appropriate anchors.
- Mount the hood body onto the bracket.
- Connect the flexible duct work to the top vent of the hood and route it to the exterior vent (for ducted installation) or prepare for recirculation (for non-ducted).
- Install the telescoping chimney sections, ensuring they are properly aligned and secured.
- Connect the power plug to a grounded electrical outlet.
4. Operating Instructions
The Winflo range hood features an intuitive touch sensor control panel for easy operation.
4.1 Control Panel Functions
- Power Button (U): Press to turn the hood on or off.
- Fan Speed Buttons (+/-): Adjust the fan speed from 1 (low) to 3 (high).
- Light Button (O): Press to turn the LED lights on or off.
- Delay Shut-off Button (Zz): Activates a timer for the fan to continue running for a set period before automatically shutting off. Consult the full manual for specific delay settings.
- Time Display: Shows the current time or timer countdown.
For optimal performance, it is recommended to turn on the range hood a few minutes before cooking and let it run for a few minutes after cooking to clear residual odors.
5. Maintenance
Regular maintenance ensures the longevity and efficiency of your Winflo range hood.
5.1 Cleaning the Exterior
Clean the stainless steel surfaces regularly with a soft cloth and a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain to prevent scratching. Avoid using abrasive pads or harsh chemicals.
5.2 Cleaning and Replacing Filters
The aluminum mesh filters should be cleaned regularly, ideally every 3-6 weeks depending on cooking frequency. Accumulated grease can reduce airflow and pose a fire risk.

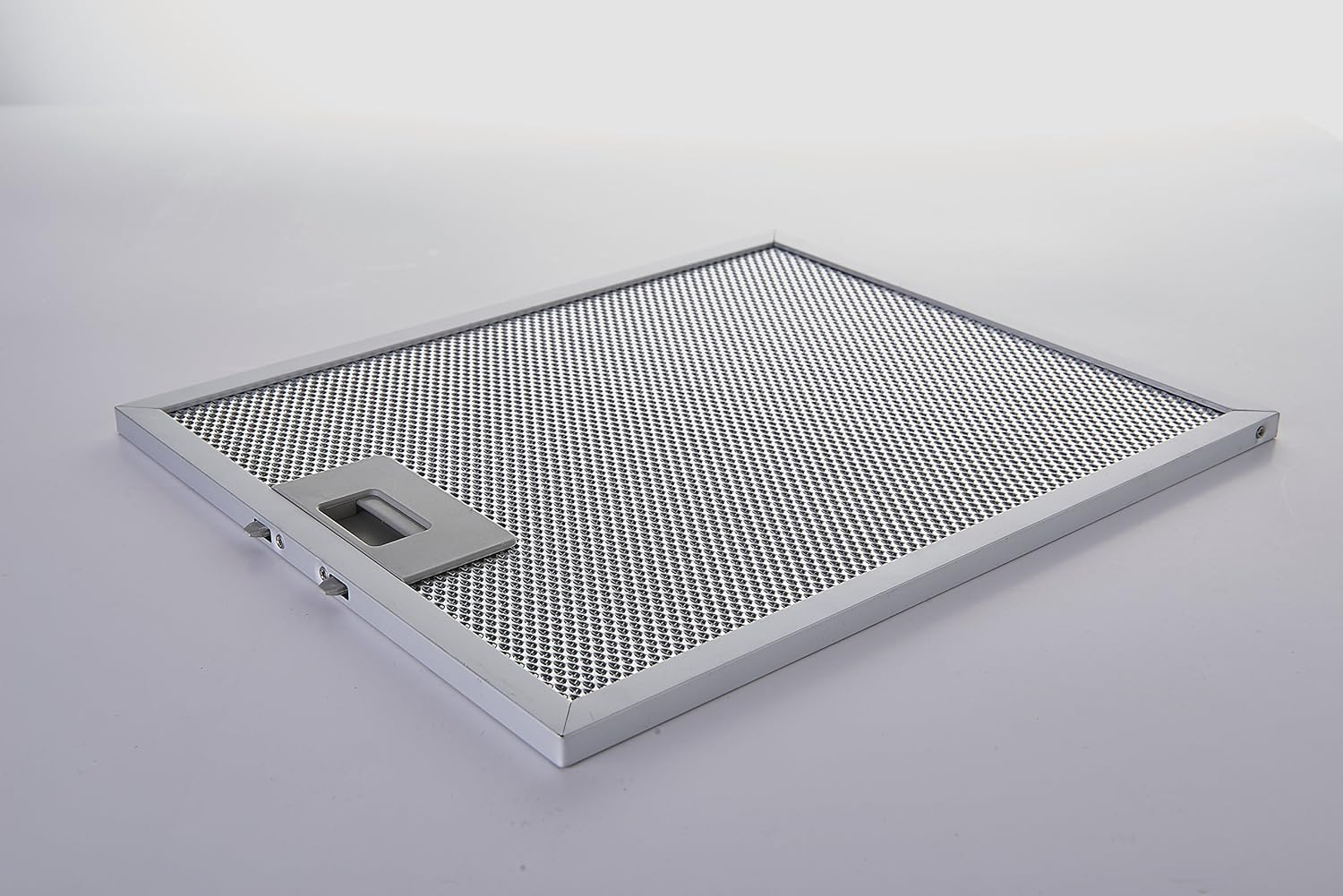

Figure 5.1: Close-up of the removable aluminum mesh filter. These filters are designed to trap grease and are dishwasher safe for easy cleaning.
- Ensure the range hood is turned off and unplugged.
- Locate the filter release latches (usually spring-loaded) and push them to release the filters.
- Carefully remove the filters.
- Clean the filters in a dishwasher or by hand using hot water and a degreasing detergent. Allow them to dry completely.
- Reinsert the dry filters, ensuring they click securely into place.
If using the hood in non-ducted mode, replace the charcoal filters (WRHF004S2, sold separately) every 3-6 months, or more frequently with heavy use, as they cannot be cleaned.
6. Troubleshooting
Before contacting customer support, please refer to the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate | No power supply Motor malfunction | Check if the power cord is plugged in and the circuit breaker is on. Contact customer support. |
| Lights do not work | LED light failure Loose connection | Check light connections. If LEDs are integrated, contact customer support for replacement. Ensure connections are secure. |
| Poor suction | Clogged filters Improper ducting Motor issue | Clean or replace aluminum mesh filters. Replace charcoal filters if applicable. Check ductwork for obstructions or kinks. Ensure damper opens freely. Contact customer support. |
| Excessive noise | Loose parts Improper installation Motor issue | Check for loose screws or components. Ensure the hood is securely mounted and ducting is properly installed. Contact customer support. |
7. Specifications
Technical specifications for the Winflo W103B30 Range Hood.
| Specification | Value |
|---|---|
| Model Number | W103B30 |
| Air Flow Capacity | 475 CFM |
| Material | Stainless Steel |
| Noise Level | Less than 65dB (5 Sones) |
| Mounting Type | Wall Mount |
| Included Components | LED Lights, Installation Hardware, Flexible Duct Work, Damper, Plug |
| Controls Type | Touch Sensor |
| Voltage | 110 Volts |
| Number of Speeds | 3 |
| Item Weight | 24 Pounds |
| Light Source Type | LED |
| Wattage | 208.50 W |
| Filter Type | Mesh (Aluminum) |
| Ventilation Type | Ducted/Vented (Convertible) |
| Product Dimensions (D x W x H) | 18.9" x 29.5" x 40.6" (adjustable height) |
| Color | Stainless Steel |
| UPC | 853509007045 |
8. Warranty and Support
Winflo stands behind the quality of its products.
8.1 Limited Warranty
This Winflo range hood (Model W103B30) comes with a 3-year limited warranty on parts. Labor is not included under this warranty. The warranty covers defects in material and workmanship under normal use and service.
8.2 Customer Support
For technical assistance, warranty claims, or to inquire about replacement parts (such as charcoal filters WRHF004S2 or chimney extension WRHCE03), please contact the manufacturer, Winslyn, or your retailer. Please have your model number (W103B30) and proof of purchase ready when contacting support.
