Mainstays Turbo Convection Oven, 12.5 Quart Instruction Manual

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• A short power-supply cord is provided to reduce the risks resulting from entanglement or tripping over a longer cord.
• Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.

Product Overview

The Mainstays Turbo Convection Oven is a versatile kitchen appliance designed for efficient cooking. It utilizes convection technology to circulate hot air, cooking food up to 30% faster than conventional ovens.

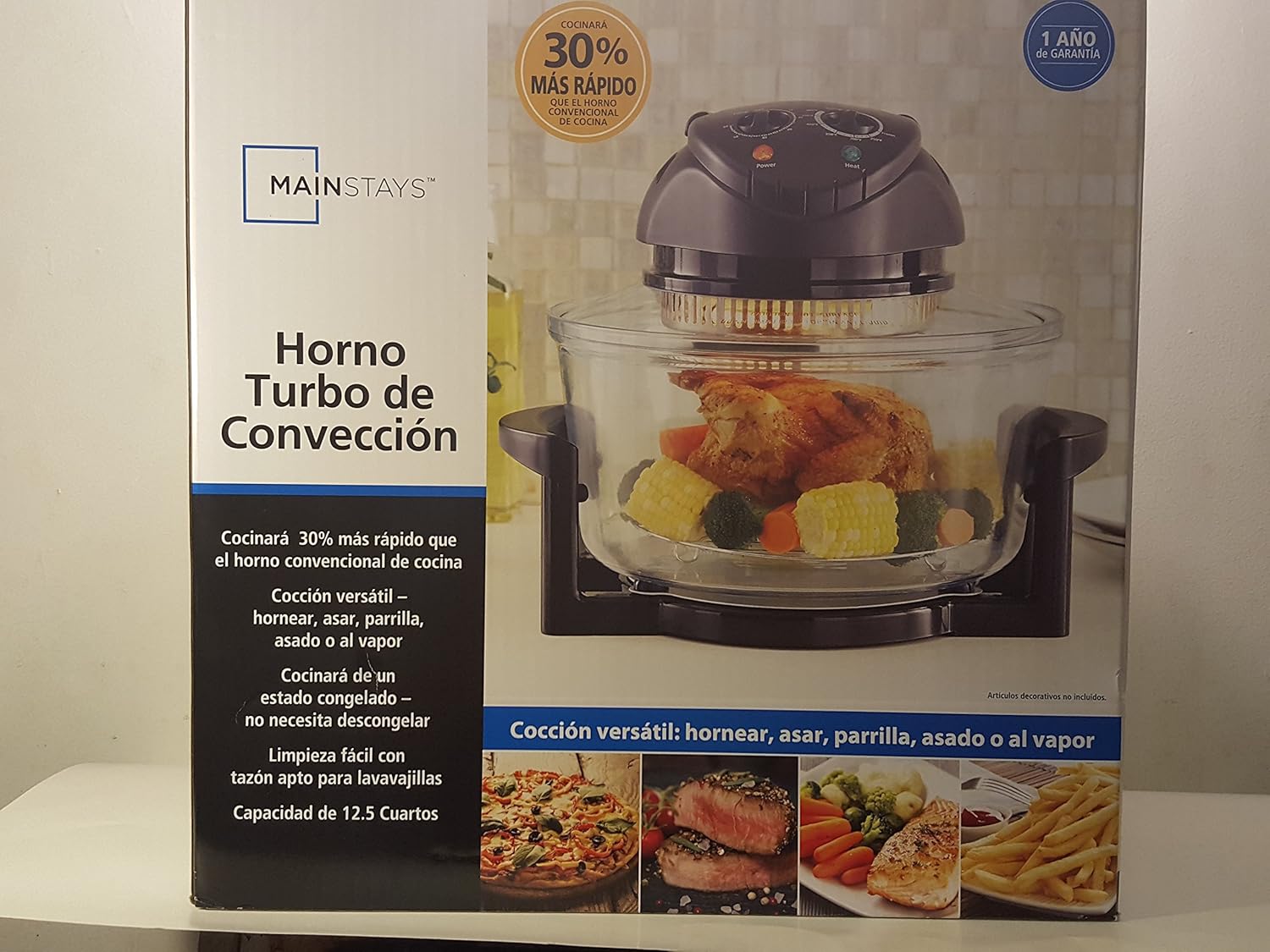

Image 1: The Mainstays Turbo Convection Oven, showcasing its glass bowl, control head, and food cooking inside. This image illustrates the appliance's design and capacity.

Key Features:

• Capacity: 12.5 Quart cooking capacity, suitable for various meal sizes.
• Versatile Cooking: Capable of air frying, baking, broiling, grilling, roasting, and steaming.
• Faster Cooking: Cooks approximately 30% faster than traditional ovens due to convection technology.
• Cooks from Frozen: Eliminates the need for thawing, allowing direct cooking of frozen foods.
• Easy Cleanup: The glass cooking bowl is dishwasher-safe.
• Dual Zone Features: Allows for flexible cooking arrangements.

Components:

1. Control Head (with heating element, fan, and controls)
2. Glass Bowl (12.5 Quart capacity)
3. Base
4. High Rack
5. Low Rack
6. Tongs
7. Extension Ring (for increased capacity)

Image 2: A diagram showing the circulation of hot air within the convection oven, indicated by red arrows. This illustrates how the convection fan distributes heat evenly for faster and more consistent cooking.

Setup and First Use

Unpacking:

• Carefully remove all components from the packaging.
• Remove any protective films or packaging materials.
• Retain packaging for future storage or transport if desired.

Initial Cleaning:

• Before first use, wash the glass bowl, racks, and tongs in warm, soapy water. Rinse thoroughly and dry.
• Wipe the control head and base with a damp cloth. Do not immerse the control head in water.

Placement:

• Place the oven on a stable, heat-resistant surface.
• Ensure adequate clearance (at least 4-6 inches) around the oven for proper ventilation.
• Do not place near flammable materials or under cabinets that could be damaged by heat.
• Ensure the power cord can reach an outlet without being stretched or creating a tripping hazard.

Operating Instructions

Basic Operation:

1. Place the food in the glass bowl, using the appropriate rack (high or low) or the extension ring if needed.
2. Place the control head securely on top of the glass bowl.
3. Plug the power cord into a grounded electrical outlet.
4. Set the desired temperature using the temperature dial.
5. Set the cooking time using the timer dial. The oven will begin cooking once the timer is set.
6. The oven will automatically shut off when the timer reaches zero.
7. To stop cooking manually, turn the timer dial to "OFF" or unplug the unit.

Cooking Functions:

The Mainstays Turbo Convection Oven offers multiple cooking functions:

• Air Fry: Ideal for achieving crispy results with minimal oil. Use the high rack for better air circulation.
• Bake: Suitable for cakes, pastries, and other baked goods.
• Broil: For browning the top of dishes or cooking thinner cuts of meat.
• Grill: Use for grilling meats and vegetables, often on the high rack.
• Roast: Perfect for larger items like whole chickens or roasts. The extension ring can be used for increased height.
• Steam: Add a small amount of water to the bottom of the bowl and cover food to steam.

Cooking Tips:

• Preheating: This oven generally does not require preheating, saving time and energy.
• Frozen Foods: Foods can be cooked directly from a frozen state; adjust cooking times accordingly.
• Even Cooking: For best results, arrange food in a single layer if possible. For larger quantities, stir or flip food halfway through cooking.
• Monitoring: The transparent glass bowl allows you to monitor cooking progress without opening the oven.

Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your convection oven.

Cleaning Procedure:

1. Unplug and Cool: Always unplug the oven from the power outlet and allow it to cool completely before cleaning. Warning: Placing a hot glass bowl into cold water can cause it to crack or break.
2. Glass Bowl: The glass bowl is dishwasher-safe. Alternatively, wash it by hand with warm, soapy water and a non-abrasive sponge.
3. Racks and Tongs: Wash the cooking racks and tongs in warm, soapy water. They are also typically dishwasher-safe.
4. Control Head: Wipe the exterior of the control head with a damp cloth. Do not immerse the control head in water or any other liquid. Ensure no water enters the electrical components.
5. Base: Wipe the base with a damp cloth.
6. Stubborn Stains: For stubborn food residue in the glass bowl, fill it with warm, soapy water and let it soak for a period before cleaning.

Storage:

Store the clean and dry oven in a cool, dry place. Ensure all components are properly assembled or stored together to prevent loss.

Troubleshooting

If you encounter issues with your Mainstays Turbo Convection Oven, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

Specifications

• Model Name: Turbo Convection Oven
• Model Number: 201519
• Brand: Mainstay
• Capacity: 12.5 Quarts
• Material: Glass, Plastic, Stainless Steel (Outer Material: Polypropylene)
• Control Method: Touch
• Dimensions: 16 x 16 x 14.5 inches
• Item Weight: 13.4 pounds
• Special Feature: Dual Zone Features
• Dishwasher Safe: Yes (Glass Bowl)
• UPC: 655772015198
• Date First Available: October 11, 2016

Warranty and Support

This Mainstays Turbo Convection Oven typically comes with a 1-Year Limited Warranty from the date of purchase, covering defects in material and workmanship under normal household use. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Mainstays customer support. Keep your proof of purchase for warranty validation.

Note: Warranty information is based on common product practices and may vary. Always consult the official warranty card or product registration for precise details.
