Rollplay Turnado 1101 Electric Ride-On Vehicle User Manual

1. Introduction

The Rollplay Turnado 1101 is a unique four-wheel motorized ride-on vehicle designed for an exciting driving experience. Featuring a dual-drive system and a 24-volt battery, it offers speeds up to 18 KM/H and versatile maneuverability, including 360-degree spins. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure optimal performance and enjoyment of your Turnado.

Figure 1: Front-side view of the Rollplay Turnado 1101.

2. Safety Information

Read and understand all safety warnings and instructions before operating the Rollplay Turnado 1101. Failure to do so may result in serious injury.

• Recommended Age: This product is recommended for users aged 12 years and up.
• Maximum Weight Capacity: The maximum load capacity for the adjustable seat is 50 kg (110 lbs).
• Protective Gear: Always wear a helmet, elbow pads, and knee pads when operating the vehicle.
• Safety Belt: Always secure the safety belt before operation.
• Supervision: Adult supervision is required at all times.
• Operating Environment: Operate on flat, dry surfaces away from traffic, pools, and steep inclines. Avoid operating in wet conditions.
• Braking System: Familiarize yourself with the braking system before riding at higher speeds.

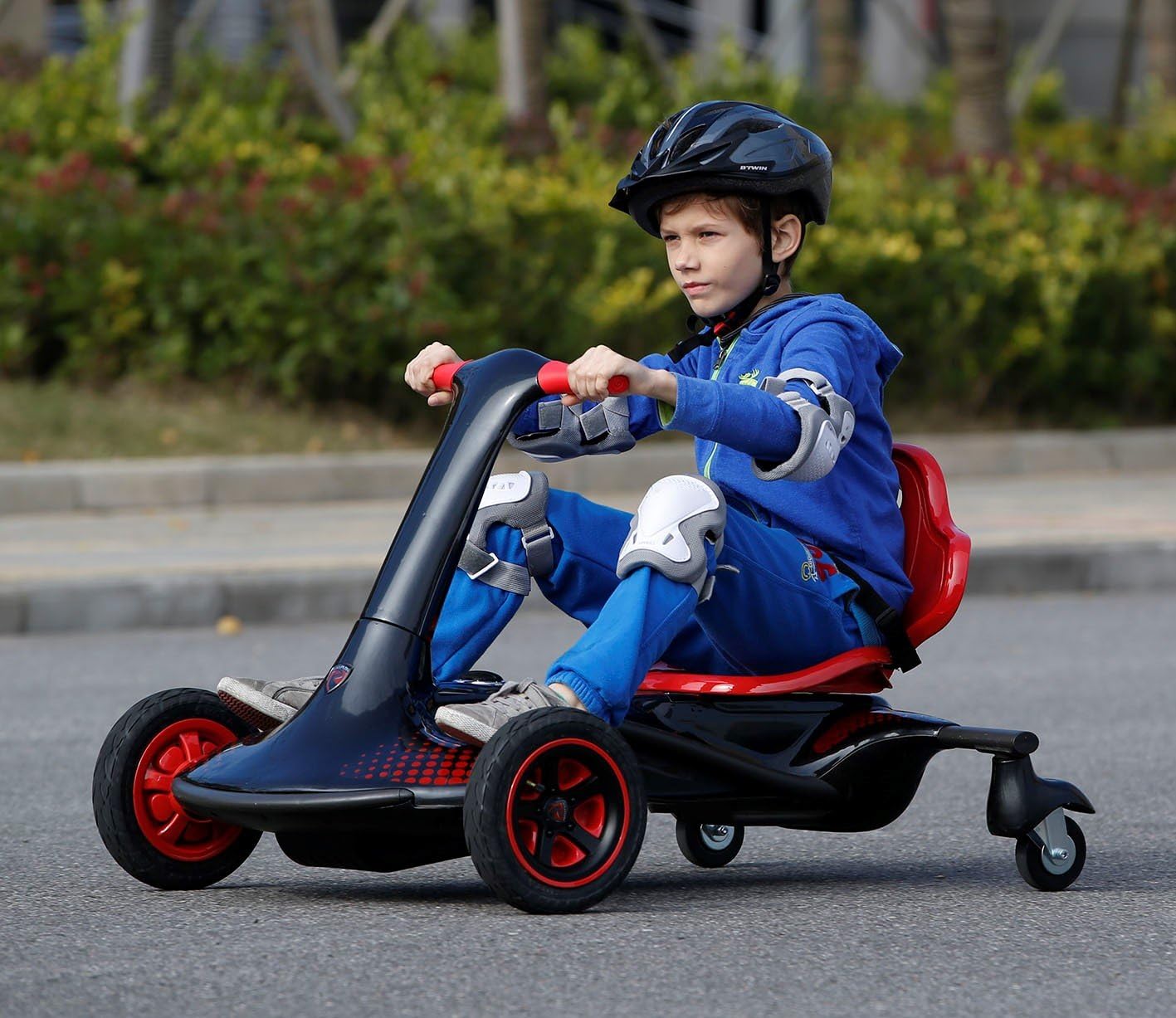

Figure 2: Always wear appropriate safety gear when operating the Turnado.

3. Setup

The Rollplay Turnado 1101 requires minimal assembly. Please follow these steps before first use.

1. Unpacking: Carefully remove all components from the packaging. Ensure all parts listed in the packing list (refer to separate packing list document) are present and undamaged.
2. Battery Charging: The vehicle is powered by a 24-volt battery. Although batteries are included, it is recommended to fully charge the battery before the first use. Refer to the separate battery charging instructions for detailed steps.
3. Seat Adjustment: The seat is adjustable to 3 positions. To adjust, locate the adjustment mechanism beneath the seat and slide it to the desired position. Ensure it clicks securely into place.
4. Tire Check: The Turnado features air-filled pneumatic tires. Before each ride, check the tire pressure to ensure they are adequately inflated for optimal performance and safety.

Figure 3: Side view of the Turnado, highlighting the adjustable seat and pneumatic tires.

4. Operating Instructions

Familiarize yourself with the controls before operating the Turnado.

1. Power On/Off: Locate the power switch, typically a dial or button, on the vehicle's body. Turn it to the 'ON' position to activate the vehicle.
2. Acceleration: The Turnado features a controlled speed system. Use the accelerator pedal or lever to gradually increase speed. The vehicle offers a stepless speed transition up to a maximum of 18 km/h.
3. Braking: To slow down or stop, release the accelerator and apply the brake. The vehicle is equipped with a dedicated braking system for controlled stops.
4. Steering and Turns: The Turnado utilizes versatile torque steering. Use the handlebars to direct the front wheels. The smaller rear wheels can pivot 360 degrees, allowing for tight turns and spins. Practice these maneuvers in an open, safe area.
5. Safety Belt: Always ensure the safety belt is securely fastened before starting operation.

Figure 4: Power dial and important contact information for support.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your Rollplay Turnado 1101.

• Cleaning: Wipe the vehicle with a damp cloth after each use. Avoid using harsh chemicals or abrasive cleaners. Do not spray water directly onto electrical components.
• Battery Care:
  • Always fully charge the 24-volt battery after each use.
  • If storing the vehicle for an extended period, charge the battery at least once a month to maintain its health.
  • Do not overcharge the battery. Disconnect the charger once charging is complete.
  • Store the battery in a cool, dry place.
• Tire Maintenance: Regularly check the air-filled pneumatic tires for proper inflation and signs of wear or damage. Replace worn tires as needed.
• General Inspection: Periodically inspect all nuts, bolts, and fasteners to ensure they are tight. Check the safety belt, steel bumper, and steering mechanism for any signs of damage or malfunction.

6. Troubleshooting

If you encounter issues with your Rollplay Turnado 1101, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact customer support for further assistance.

7. Specifications

8. Warranty and Support

For questions, damaged, or lost parts, please do not return the item to the store. Contact our customer service directly for assistance.

• Email: prinsel@prinsel.com
• Customer Service Phone: 5321 4900 (Toll-free: 01 800 112 1481)
• Website: www.prinsel.com
• Warranty: Replacement parts are provided free of charge within 3 months of purchase for damaged or lost parts.
