Instruction Manual for 1997-1998 Ford F-150 4.2L V6 SPI Under-Hood Relay Fuse Box Panel

1. Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of the Ford F-150 Under-Hood Relay Fuse Box Panel, specifically designed for 1997-1998 models with a 4.2L V6 SPI engine. This component is crucial for managing and protecting the electrical circuits within your vehicle's engine compartment. Please read this manual thoroughly before attempting any installation or maintenance.

2. Safety Information

WARNING: Electrical work can be dangerous and may result in serious injury or damage to your vehicle if not performed correctly. If you are not confident in your ability to perform this installation, seek assistance from a qualified automotive technician.

• Always disconnect the vehicle's battery (negative terminal first) before working on any electrical components to prevent accidental short circuits or electrical shock.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Ensure the vehicle is turned off and the ignition key is removed before beginning work.
• Do not attempt to modify the fuse box or its wiring. Use only fuses of the correct amperage rating.
• Keep the work area clean and free of debris.

3. Setup and Installation

This section outlines the general steps for replacing the under-hood relay fuse box. Specific procedures may vary slightly depending on your vehicle's exact configuration.

1. Preparation: Park the vehicle on a level surface and engage the parking brake. Ensure the engine is off and cool. Disconnect the negative (-) terminal of the vehicle's battery using an appropriate wrench.
2. Locate Existing Fuse Box: The under-hood relay fuse box is typically located in the engine compartment, often near the battery or fender. Refer to your vehicle's service manual for the exact location.
3. Disconnect Wiring: Carefully unclip and disconnect all wiring harnesses connected to the existing fuse box. Note the position of each harness to ensure correct re-connection. Some models may have retaining clips or bolts that need to be removed.
4. Remove Old Fuse Box: Once all connections are detached, unmount the old fuse box from its bracket or mounting points.
5. Install New Fuse Box: Position the new fuse box (Model: None-FUS1659JYN) in the same location and secure it using the original mounting hardware.
6. Reconnect Wiring: Carefully reconnect all wiring harnesses to the new fuse box. Ensure each connection is secure and properly seated. Double-check all connections before proceeding.
7. Reconnect Battery: Reconnect the negative (-) terminal of the vehicle's battery.
8. Test System: Start the vehicle and test all electrical components that are powered through the under-hood fuse box, such as headlights, horn, and engine management systems, to ensure proper function.

Figure 1: Top view of the Ford F-150 under-hood relay fuse box panel, displaying the arrangement of fuses and relays.

Figure 2: Detailed view of the fuse box, showing various colored fuses and grey relays, indicating different amperage ratings and functions.

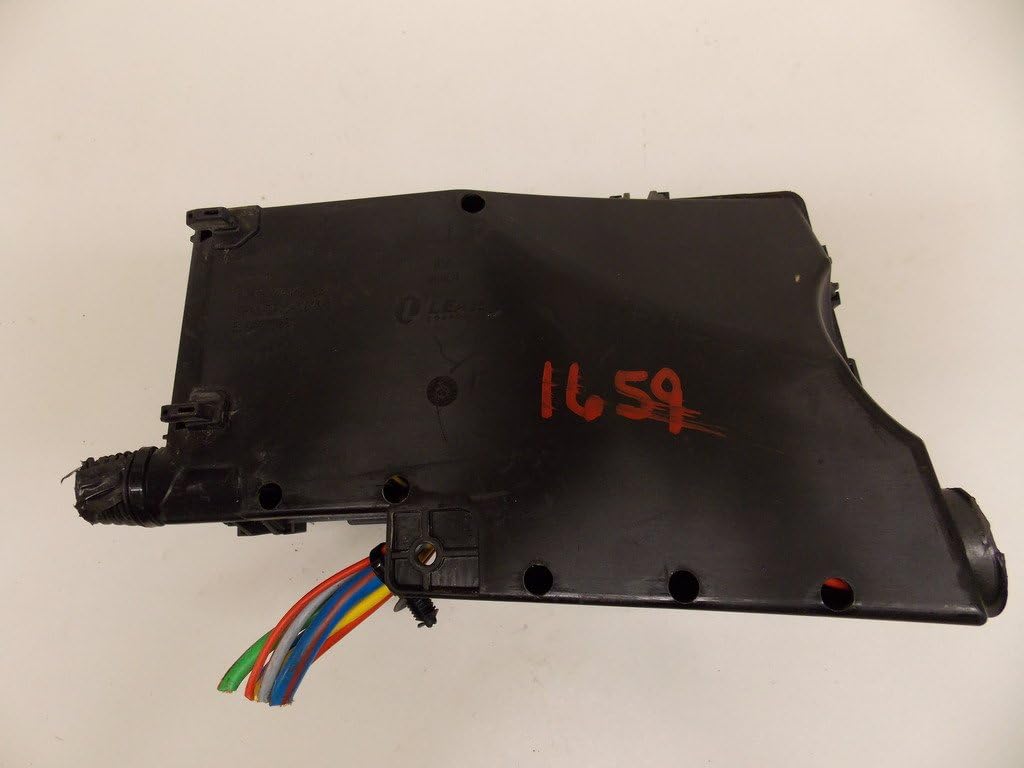

Figure 3: Underside view of the fuse box, revealing the main housing and the multi-colored wiring bundle connected to it.

4. Operating Principles

The under-hood relay fuse box serves as the central distribution point for electrical power to various components in the engine bay and other critical systems. It houses both fuses and relays:

• Fuses: These are safety devices designed to protect electrical circuits from overcurrent. If a circuit draws too much current (e.g., due to a short circuit or component failure), the fuse's internal wire melts, breaking the circuit and preventing damage to wiring or components.
• Relays: These are electrical switches that use a small amount of current to control a larger amount of current. They are commonly used for high-current applications like starter motors, fuel pumps, and cooling fans, allowing the vehicle's computer or a low-current switch to activate these components safely.

Refer to your vehicle's owner's manual or a service manual for a detailed diagram of the specific fuse and relay assignments within this panel for your 1997-1998 Ford F-150 4.2L V6 SPI.

5. Maintenance

Regular maintenance of your fuse box is minimal but important for reliable electrical system operation.

• Visual Inspection: Periodically inspect the fuse box for any signs of corrosion, loose connections, or melted plastic. Ensure the cover is securely in place to protect components from moisture and debris.
• Fuse Replacement: If a fuse blows, always replace it with a new fuse of the exact same amperage rating. Using a fuse with a higher rating can lead to wiring damage or fire. Use a fuse puller tool for safe removal and insertion.
• Cleaning: If necessary, gently clean the exterior of the fuse box with a dry cloth. Avoid using liquids or sprays directly on the electrical components.

6. Troubleshooting

If you experience electrical issues, the fuse box is often a good place to start troubleshooting.

• No Power to a Component: If a specific electrical component (e.g., a headlight, radio, or power window) stops working, check the corresponding fuse in the fuse box. A blown fuse will have a broken wire inside. Replace it if necessary.
• Intermittent Electrical Issues: This could indicate a loose connection within the fuse box or a faulty relay. Gently check if all fuses and relays are seated firmly.
• Repeatedly Blown Fuses: If a fuse blows repeatedly, it indicates an underlying electrical problem, such as a short circuit in the wiring or a faulty component drawing excessive current. Do not simply replace the fuse with a higher-rated one, as this can cause serious damage. Consult a qualified technician to diagnose and repair the root cause.
• Relay Clicking but No Action: This might suggest a faulty relay or a problem with the circuit the relay controls. You can sometimes swap a suspect relay with an identical, known-good relay from a non-critical circuit to test it.

7. Specifications

8. Warranty and Support

For information regarding the warranty period and terms for this Ford F-150 Under-Hood Relay Fuse Box Panel, please refer to the original purchase documentation or contact the seller directly. Specific warranty details are provided by the vendor at the time of purchase.

For technical support or further assistance, it is recommended to consult a certified Ford service center or a qualified automotive electrician.
