1. Product Overview
The Strivide Vinyl Strip Curtain provides an effective barrier for various applications, including temperature control, dust containment, and noise reduction. These durable PVC strips are designed for easy installation and replacement, offering a practical solution for doorways in commercial and industrial settings. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting.
Image 1.1: A roll of clear vinyl strip material, ready for cutting and installation.
Image 1.2: A pack of four individual vinyl strips, each rolled for packaging, with mounting plates.
2. Installation Instructions
Follow these steps for proper installation of your Strivide Vinyl Strip Curtain. Ensure all necessary tools are available before beginning.
- Attach Hanger: The universal mount hanger can be attached flat to a wall or up inside a door jamb. Secure it firmly using appropriate fasteners (not included).
- Cut Strips to Length: Measure the required length from the bottom of the hanger's top plate to the floor. Cut each vinyl strip precisely to this measurement.
- Drill Holes: Drill or punch 3/8-inch holes into the strips, spaced 2 inches on center. Ensure holes are aligned for proper mounting.
- Slide Strips onto Hanger: Slide the prepared strips onto the mounting studs of the hanger. Arrange them according to your desired overlap percentage pattern.
- Secure Strips: Place the strip retainer plate over the installed strips and secure it with the provided nuts, ensuring a tight and stable fit.
Image 2.1: Detailed installation diagram illustrating both jamb mount and wall mount options, along with visual representations of 50%, 67%, and 100% strip overlap patterns.
Overlap Chart for Strip Quantity
Use the following table to determine the number of strips required based on your door width and desired overlap percentage.
| Door Width | Clear Smooth Strip Width | Number of Strips 50% Overlap | Number of Strips 67% Overlap | Number of Strips 100% Overlap |
|---|---|---|---|---|
| 36 in / 3 ft | 6" Wide x .06 Thick | 9 | 11 | 15 |
| 42 in / 3 1/2 ft | 6" Wide x .06 Thick | 12 | 19 | |
| 48 in / 4 ft | 6" Wide x .06 Thick | 15 | 23 | |
| 60 in / 5 ft | 6" Wide x .06 Thick | 15 | 23 | |
| 72 in / 6 ft | 6" Wide x .06 Thick | 18 | 27 | |
| 36 in / 3 ft | 8" Wide x .08 Thick | 7 | 8 | |
| 42 in / 3 1/2 ft | 8" Wide x .08 Thick | 8 | 11 | |
| 48 in / 4 ft | 8" Wide x .08 Thick | 9 | 14 | |
| 60 in / 5 ft | 8" Wide x .08 Thick | 11 | 17 | |
| 72 in / 6 ft | 8" Wide x .08 Thick | 13 | 20 | |
| 84 in / 7 ft | 8" Wide x .08 Thick | 16 | 23 | |
| 96 in / 8 ft | 8" Wide x .08 Thick | 19 | 26 | |
| 108 in / 9 ft | 8" Wide x .08 Thick | 21 | 29 | |
| 120 in / 10 ft | 8" Wide x .08 Thick | 23 | 31 | |
| 96 in / 8 ft | 12" Wide x .120 Thick | 12 | 15 | |
| 108 in / 9 ft | 12" Wide x .120 Thick | 13 | 17 | |
| 120 in / 10 ft | 12" Wide x .120 Thick | 15 | 19 | |
| 132 in / 11 ft | 12" Wide x .120 Thick | 16 | 21 | |
| 144 in / 12 ft | 12" Wide x .120 Thick | 18 | 23 | |
| 156 in / 13 ft | 12" Wide x .120 Thick | 19 | 25 | |
| 168 in / 14 ft | 12" Wide x .120 Thick | 21 | 27 | |
| 180 in / 15 ft | 12" Wide x .120 Thick | 22 | 29 | |
| 192 in / 16 ft | 12" Wide x .120 Thick | 24 | 31 | |
| 204 in / 17 ft | 12" Wide x .120 Thick | 25 | 33 | |
| 216 in / 18 ft | 12" Wide x .120 Thick | 27 | 35 | |
| 228 in / 19 ft | 12" Wide x .120 Thick | 28 | 37 | |
| 240 in / 20 ft | 12" Wide x .120 Thick | 29 | 39 |

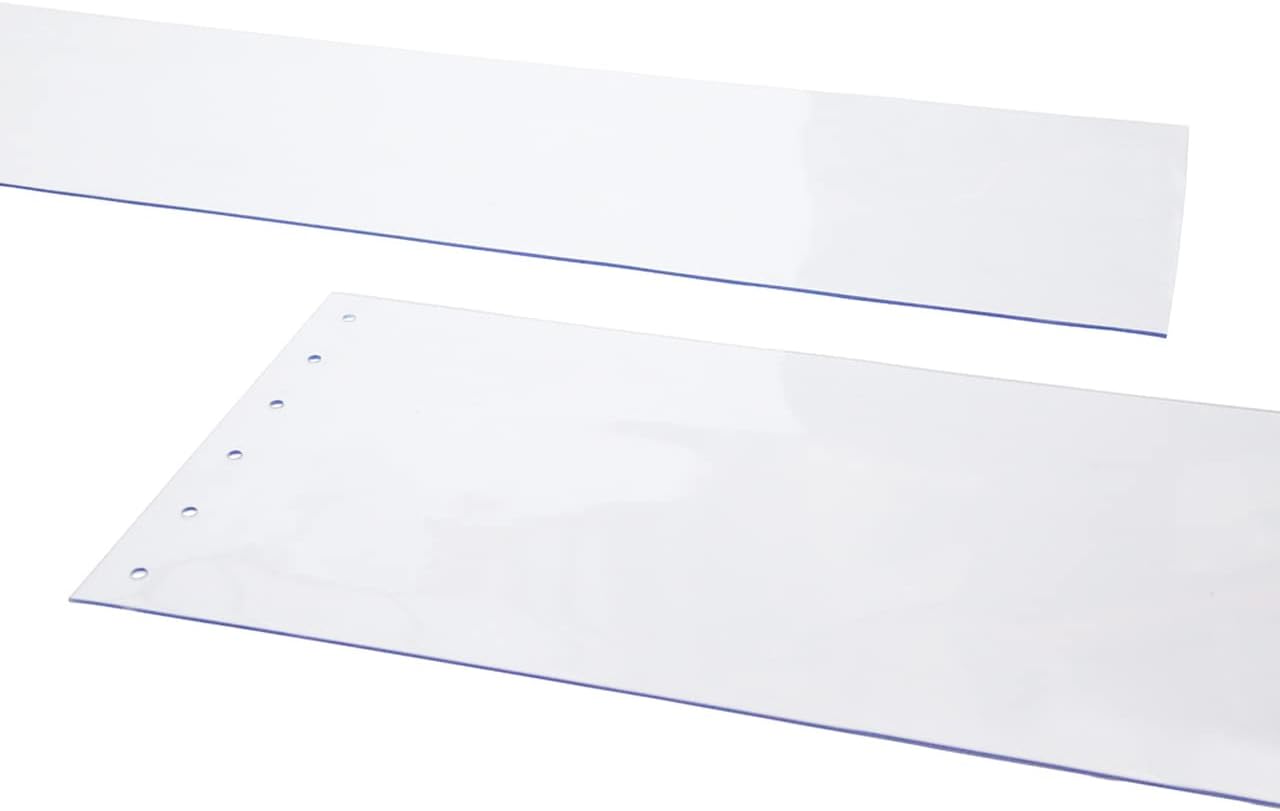

Image 2.2: Clear vinyl strips featuring pre-punched holes for easy mounting onto a hanger system.
3. Operation
Once installed, the Strivide Vinyl Strip Curtain operates passively. Its primary function is to create a flexible barrier that allows easy passage for personnel and equipment while minimizing the transfer of air, dust, and noise between areas. The strips naturally fall back into place after being pushed aside.
- Temperature Control: Helps maintain distinct temperature zones, reducing energy loss in refrigerated areas or heated spaces.
- Dust and Debris Barrier: Reduces the ingress of dust, dirt, and other airborne particles.
- Noise Reduction: Provides a degree of sound dampening between adjacent areas.
- Pest Control: Acts as a deterrent against flying insects and other pests.
4. Maintenance
Regular maintenance ensures the longevity and effectiveness of your vinyl strip curtain.
- Cleaning: Clean the vinyl strips periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals, as these can damage the material. Wipe dry with a soft cloth to prevent water spots.
- Inspection: Regularly inspect strips for signs of wear, tears, or excessive discoloration. Damaged strips should be replaced promptly to maintain the curtain's integrity.
- Hanger System: Check the hanger and mounting hardware for tightness and corrosion. Tighten any loose fasteners.

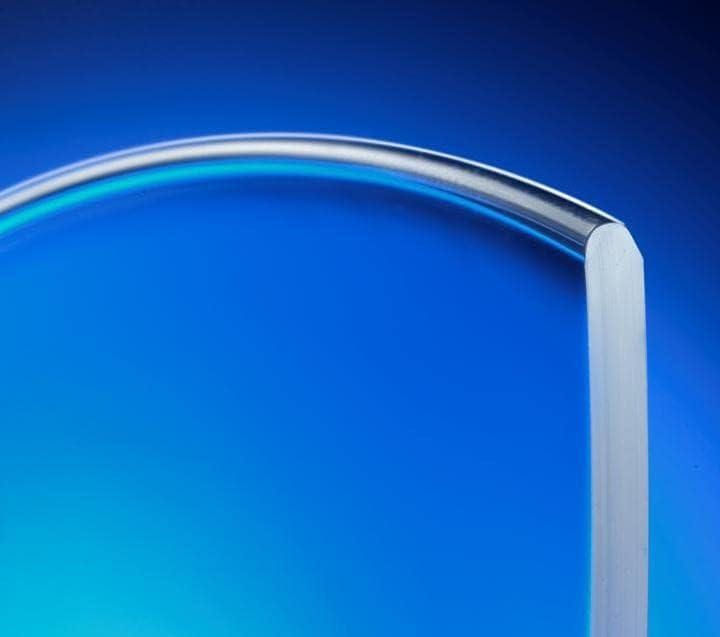

Image 4.1: A close-up view highlighting the smooth, rounded edge of a vinyl strip, indicating its quality and finish.
5. Troubleshooting
Here are some common issues and their potential solutions:
- Strips not hanging straight:
- Ensure the hanger system is level and securely mounted.
- Check if strips are cut to the correct, uniform length.
- Verify that the retainer plate is evenly tightened.
- Reduced effectiveness (e.g., air leakage):
- Inspect for gaps between strips; adjust overlap if necessary.
- Replace any torn or heavily damaged strips.
- Ensure the strips are clean and free from debris that might prevent proper sealing.
- Strips appear cloudy or discolored:
- Clean thoroughly with mild soap and water.
- If discoloration persists, it may be due to prolonged exposure to UV light or certain chemicals. Consider replacing affected strips.
6. Specifications
Key technical details for the Strivide Vinyl Strip Curtain:
| Brand | Strivide |
| Model Number | RPLSTR1236-7FT6IN-PACK4-SM |
| Material | Vinyl (PVC) |
| Strip Dimensions (each) | 4 inches (Width) x 90 inches (Height) x 0.06 inches (Thickness) |
| Unit Count | 4 Strips per pack |
| Item Weight (per pack) | 3.69 pounds |
| Water Resistance Level | Not Water Resistant |
| Compatible Mounting Materials | Glass, Metal, Plastic |
| Certifications | USDA, NSF Approved PVC Rolls |
7. Support and Warranty
Strivide is committed to providing quality products and customer satisfaction. For any questions, technical assistance, or support regarding your vinyl strip curtain, please contact us directly.
- Email Support: Support@industrialstripcurtain.com
- Phone Support: 888-970-5888
- Website: www.industrialstripcurtain.com
Warranty Information: Specific warranty details are not provided in the product information. Please contact Strivide customer support for any warranty-related inquiries.
