ARRMA Servo Saver Spring Nero (ARAC3027) Instruction Manual

1. Product Overview

The ARRMA Servo Saver Spring Nero (ARAC3027) is a high-quality replacement component designed for use in compatible ARRMA remote control vehicles. This spring is a critical part of the servo saver assembly, which protects the steering servo gears from damage during impacts or excessive loads.

Key Features:

• Strong and Durable: Manufactured from spring steel for long-lasting performance.
• Precision Engineered: Ensures consistent operation even in demanding conditions.
• Direct Replacement: Designed to fit directly into your existing servo saver assembly.

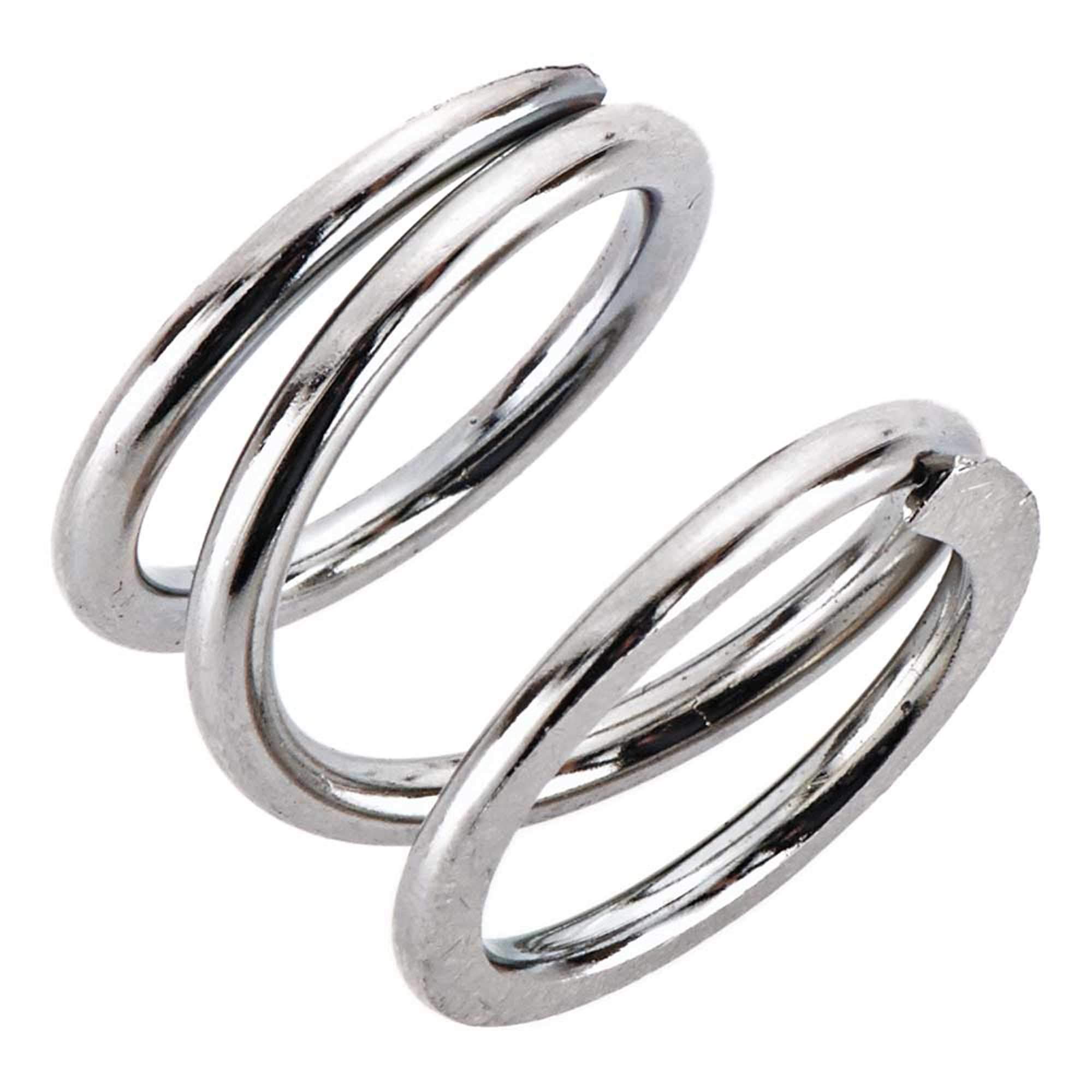

Image 1.1: The ARRMA Servo Saver Spring Nero (ARAC3027). This image shows the metallic, coiled spring component, which is essential for the servo saver mechanism in RC vehicles.

2. Important Safety Information

Please read this entire instruction manual to familiarize yourself with the product's features before operation. Incorrect operation can lead to product damage, personal property damage, and serious injury.

This is a sophisticated hobby product. It requires caution, common sense, and basic mechanical ability for proper handling. Operating this product unsafely can result in injury or damage to the product or other property. This product is not intended for use by children.

Do not use incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation, and maintenance. It is essential to read and follow all instructions and warnings prior to assembly, setup, or use to ensure correct operation and avoid damage or serious injury.

3. Installation Instructions

Installing the ARRMA Servo Saver Spring Nero (ARAC3027) typically involves replacing an existing spring within the servo saver assembly of your RC vehicle. Ensure your vehicle is powered off and the battery is disconnected before beginning any work.

Tools Required:

• Small Phillips head screwdriver
• Needle-nose pliers (optional, for spring manipulation)
• Hex wrenches (if required for vehicle disassembly)

Procedure:

1. Access the Servo Saver: Depending on your specific ARRMA vehicle model, you may need to remove body panels, upper decks, or other components to gain access to the steering servo and its saver assembly. Refer to your vehicle's specific manual for disassembly instructions.
2. Locate the Old Spring: Once the servo saver is accessible, identify the existing servo saver spring. It is usually a coiled metal spring that provides tension to the servo saver mechanism.
3. Remove the Old Spring: Carefully remove the old spring. This may involve unhooking it from its mounting points or disassembling parts of the servo saver. Note the orientation of the old spring for correct installation of the new one.
4. Install the New Spring: Place the new ARRMA Servo Saver Spring Nero (ARAC3027) into position, ensuring it is correctly seated and provides the necessary tension. The spring should fit snugly and allow the servo saver to move freely but with resistance.
5. Reassemble: Reassemble any components that were removed to access the servo saver. Ensure all screws are tightened appropriately, but do not overtighten.
6. Test Functionality: Reconnect the battery and power on your vehicle. Test the steering by gently moving the steering wheel on your transmitter. Observe the servo saver's movement to ensure it operates smoothly and returns to the center position correctly.

4. Function and Operation

The servo saver spring is an integral part of the servo saver mechanism in RC vehicles. Its primary function is to absorb shock and protect the delicate gears within the steering servo from damage caused by impacts to the wheels or steering linkages.

When the wheels encounter an obstacle or experience a sudden force, the servo saver allows the steering linkage to flex slightly, compressing the spring. This compression dissipates the force, preventing it from being directly transmitted to the servo gears. Once the force is removed, the spring returns to its original position, recentering the steering.

A properly functioning servo saver spring ensures that your steering servo has a longer lifespan and maintains consistent steering performance.

5. Maintenance

Regular inspection and maintenance of your servo saver spring are crucial for optimal performance and longevity of your RC vehicle.

• Visual Inspection: Periodically inspect the spring for any signs of damage, such as bending, stretching, or corrosion. A damaged spring will not provide adequate protection to the servo.
• Check for Fatigue: Over time, springs can lose their tension due to material fatigue. If you notice your steering feels unusually loose or the servo saver is not returning to center effectively, the spring may need replacement.
• Cleanliness: Keep the servo saver assembly free from dirt, dust, and debris. Accumulated grime can hinder the smooth operation of the spring and other components. Use a soft brush or compressed air for cleaning.
• Lubrication: While the spring itself typically does not require lubrication, ensure that any moving parts of the servo saver assembly are clean and move freely.
• Replacement: Replace the spring immediately if any damage or significant loss of tension is observed. Using a worn or damaged spring can lead to servo failure.

6. Troubleshooting

If you experience issues with your steering or servo saver, consider the following troubleshooting steps:

• Loose Steering: If the steering feels excessively loose or unresponsive, check if the servo saver spring is properly installed and has sufficient tension. A fatigued or incorrectly installed spring can cause this.
• Servo Damage After Impact: If your servo gears are damaged after an impact, it may indicate that the servo saver spring was too weak, incorrectly installed, or the servo saver itself is faulty and not absorbing impacts effectively.
• Steering Not Centering: If the steering does not return to the center position consistently, inspect the servo saver spring for binding or damage. Also, check for any debris obstructing the servo saver's movement.
• Unusual Noises from Servo Saver: Grinding or clicking noises from the servo saver area might indicate worn or damaged components, including the spring or other parts of the assembly.

In most cases, replacing a worn or damaged servo saver spring with a new ARRMA ARAC3027 spring will resolve issues related to servo saver performance.

7. Specifications

8. Warranty and Support

For warranty information or technical support regarding your ARRMA Servo Saver Spring Nero (ARAC3027), please contact the manufacturer, Horizon Hobby. Keep your proof of purchase for any warranty claims.

Manufacturer Contact: For the most up-to-date contact information and support resources, please visit the official Horizon Hobby website or refer to the documentation provided with your complete ARRMA vehicle kit.
