1. Introduction and Product Overview
This manual provides essential information for the safe and effective use of the Caleffi 847004 Compact 1/2-inch Gas Filter. Please read these instructions carefully before installation and retain them for future reference. This product is designed to filter gas in domestic and industrial gas systems, ensuring the purity of the gas supply to appliances.

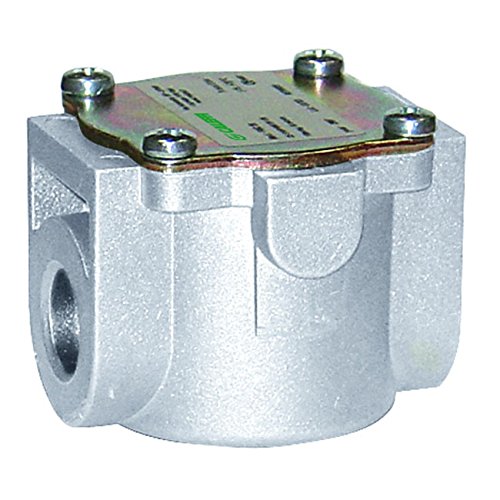

Figure 1: Caleffi 847004 Compact 1/2-inch Gas Filter. This image shows the compact design of the gas filter, highlighting its inlet and outlet connections.
2. Safety Information
WARNING: Installation and maintenance of this gas filter must be performed by qualified and authorized personnel only, in accordance with all local and national regulations and standards for gas installations. Failure to comply with these instructions can result in gas leaks, fire, explosion, property damage, serious injury, or death.
- Always turn off the main gas supply before beginning any work on the gas system.
- Ensure adequate ventilation during installation and maintenance.
- Use appropriate tools and personal protective equipment.
- Check all connections for gas leaks using an approved leak detection solution after installation.
- Do not modify the product in any way.
3. Product Description
The Caleffi 847004 is a compact gas filter designed for reliable performance in various gas systems. Its primary function is to remove impurities from the gas flow, protecting downstream gas appliances from damage and ensuring efficient operation. The filter features a robust construction suitable for demanding environments.
- Type: Compact Gas Filter
- Application: Gas systems
- Filtration Principle: Mechanical filtration of particulate matter
4. Technical Specifications
| Specification | Value |
|---|---|
| Model Number | 847004 |
| Brand | Caleffi |
| Maximum Pressure | 2 bar |
| Filtering Capacity | Ø ≥50 µm |
| Filtration Class | G 2 (according to EN 779) |
| Material | Polypropylene (PP) |
| Color | Silver |
| Dimensions (L x W x H) | 11 x 10.3 x 7.2 cm |
| Weight | 250 grams |
5. Installation
The Caleffi 847004 gas filter is designed for installation on another object within the gas system. Professional installation is mandatory.
Installation Steps:
- Preparation: Ensure the main gas supply is turned off and the system is depressurized. Verify that the installation location is clean, dry, and provides adequate access for future maintenance.
- Orientation: Install the filter in the correct flow direction as indicated by an arrow on the filter body. Incorrect orientation will prevent proper filtration.
- Connection: Connect the filter to the gas line using appropriate fittings and sealing materials (e.g., PTFE tape or suitable sealant) to ensure a gas-tight seal. The filter has 1/2-inch connections.
- Mounting: Secure the filter firmly to a stable surface or pipework to prevent movement or strain on the connections.
- Leak Test: After installation, slowly restore the gas supply. Apply an approved gas leak detection solution to all connections to check for any leaks. Bubbles indicate a leak, which must be immediately rectified.
- System Check: Verify that all gas appliances connected downstream are functioning correctly.
6. Operating Instructions
The Caleffi 847004 gas filter operates passively once installed correctly. It continuously filters impurities from the gas flow as gas passes through it. No user interaction is required for its normal operation.
- Ensure the gas supply is consistently maintained within the specified pressure limits (maximum 2 bar).
- Periodically inspect the filter and surrounding connections for any signs of damage or leaks.
7. Maintenance
Regular maintenance is crucial to ensure the longevity and effective performance of the gas filter. Maintenance should only be performed by qualified personnel.
Recommended Maintenance:
- Annual Inspection: At least once a year, inspect the filter for any external damage, corrosion, or signs of gas leaks.
- Filter Element Replacement: The filter element may require periodic replacement depending on the gas quality and usage. Consult a qualified technician to determine the appropriate replacement schedule. A clogged filter can lead to reduced gas flow and appliance malfunction.
- Cleaning: Do not attempt to clean the filter element unless specifically instructed by the manufacturer. Replacement is generally recommended.
8. Troubleshooting
If you experience issues with your gas system that you suspect are related to the filter, refer to the following common problems and solutions. Always contact a qualified technician for diagnosis and repair.
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced gas flow to appliances | Clogged filter element | Contact a qualified technician to inspect and replace the filter element. |
| Gas smell or audible hiss near filter | Gas leak at connections or damaged filter body | Immediately turn off the main gas supply. Ventilate the area. Do not operate electrical switches. Contact emergency services and a qualified technician. |
| Filter appears damaged | Physical impact or material degradation | Turn off the main gas supply. Contact a qualified technician for inspection and replacement. |
9. Warranty and Support
Specific warranty terms for the Caleffi 847004 Compact 1/2-inch Gas Filter are typically provided at the point of purchase or with the product packaging. Please refer to your purchase documentation for details regarding warranty coverage and duration.
For technical support, spare parts, or warranty claims, please contact your installer, the retailer where the product was purchased, or the official Caleffi customer service department. Ensure you have your product model number (847004) and proof of purchase available when seeking support.
