1. Introduction
This manual provides essential information for the safe and efficient use of your Thermor Majorque Electric Towel Dryer with Blower. Please read these instructions carefully before installation and operation, and retain them for future reference.
The Thermor Majorque is an electric towel dryer featuring a programmable control unit and an integrated blower. It is designed to provide reactive and immediate heat, quickly warming your bathroom and drying towels. The hot air blower function can increase the room temperature by 3°C in 10 minutes thanks to the Boost function. It also includes a dedicated towel drying function for faster results. The unit is compact, measuring only 34cm wide and 70cm high, and allows for reversible towel bar installation.
Figure 1: Full view of the Thermor Majorque Electric Towel Dryer.
2. Safety Instructions
Important: Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before using this appliance.
- Do not install the appliance directly below a socket outlet.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
- Do not use this towel dryer in the immediate surroundings of a bath, a shower, or a swimming pool.
- Ensure the appliance is correctly earthed.
- Do not cover the appliance. Overheating may occur.
- The appliance must be installed in accordance with national wiring regulations.
- Before any cleaning or maintenance, disconnect the appliance from the mains supply.
3. Package Contents
Verify that all components are present and undamaged upon unpacking:
- Thermor Majorque Electric Towel Dryer unit
- Wall mounting bracket kit
- User Manual (this document)
4. Setup and Installation
The Thermor Majorque towel dryer is designed for wall mounting. It is compact, measuring only 34cm wide and 70cm high. The towel bars can be fixed on either the left or right side of the unit.
- Choose Location: Select a suitable wall location in your bathroom, ensuring it is not directly under an electrical outlet and adheres to local electrical safety regulations regarding proximity to water sources (bath, shower).
- Mounting: Use the provided wall mounting bracket kit. Mark the drilling points on the wall according to the template (if provided) or measurements in the installation guide. Drill holes and insert wall plugs.
- Secure Brackets: Attach the mounting brackets securely to the wall using screws.
- Attach Towel Dryer: Carefully hang the towel dryer unit onto the wall brackets. Ensure it is firmly seated and stable.
- Install Towel Bars: Decide whether to install the towel bars on the left or right side. Attach them as per the instructions in the detailed installation guide.
Figure 2: Detail of the reversible towel bar attachment.
Figure 3: Example installation of the towel dryer in a bathroom setting.
Note: Professional installation by a qualified electrician is recommended to ensure compliance with all electrical standards and safety regulations.
5. Operating Instructions
The Thermor Majorque features a programmable control unit for easy operation. Refer to the control panel image below for button identification.

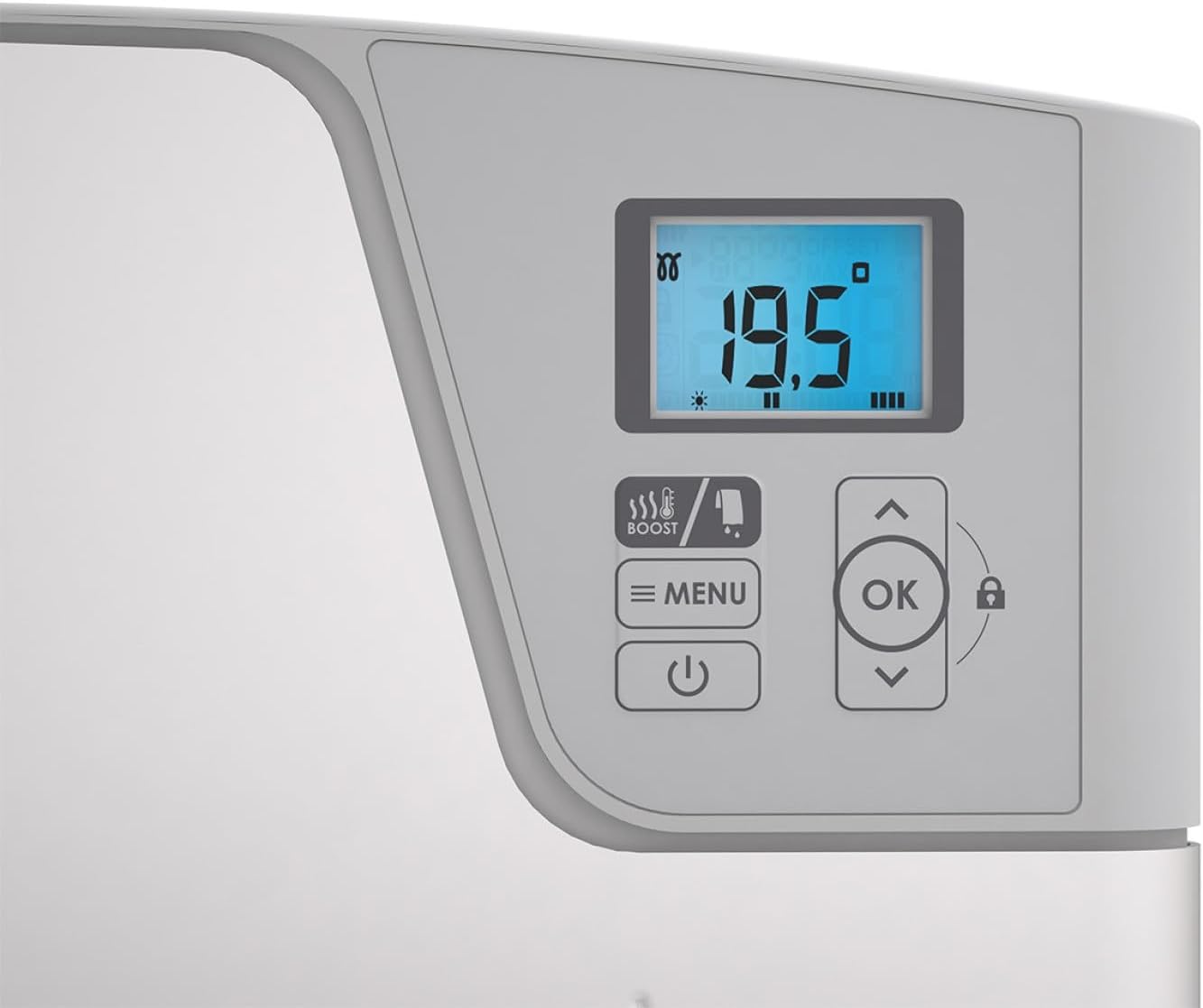

Figure 4: Control panel with display and buttons.
5.1. Power On/Off
- Press the Power button (usually marked with a circle and a vertical line) to turn the appliance on or off.
5.2. Setting Temperature
- Use the Up and Down arrow buttons to adjust the desired temperature.
- Press OK to confirm the setting.
5.3. Boost Function
The Boost function activates the 800W blower to rapidly increase room temperature.
- Press the Boost button (often marked with a fan or wavy lines and 'BOOST') to activate.
- The blower will operate for a set duration (typically 10 minutes) to raise the temperature by approximately 3°C.
- Press the Boost button again to deactivate it manually if desired.
5.4. Towel Drying Function
This function is designed to dry towels more quickly.
- Press the Towel Drying button (often integrated with Boost or a separate icon, refer to your specific model's detailed manual for exact icon).
- The appliance will operate at an optimized setting for towel drying.
5.5. Menu and Programming
The Menu button (usually marked with three horizontal lines) allows access to advanced settings and programming options.
- Press Menu to enter the programming interface.
- Use the Up and Down arrows to navigate through options.
- Press OK to select an option or confirm a setting.
- Options may include:
- Setting daily or weekly programs.
- Adjusting comfort, eco, or anti-freeze modes.
- Clock and date settings.
- Consult the full manufacturer's manual for detailed programming instructions specific to your model.
5.6. Child Lock
The control panel features a child lock function to prevent accidental changes.
- To activate/deactivate the child lock, press and hold the Lock button (usually marked with a padlock icon) for a few seconds until the lock indicator appears/disappears on the display.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your towel dryer.
6.1. Cleaning
- Before cleaning, ensure the appliance is switched off and disconnected from the main power supply.
- Allow the unit to cool down completely.
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Do not spray water directly onto the appliance.
- Ensure the air intake and outlet vents of the blower are free from dust and obstructions. Use a soft brush or vacuum cleaner to gently remove any build-up.
6.2. Storage
If the appliance is not to be used for an extended period, disconnect it from the power supply and store it in a dry, dust-free environment.
7. Troubleshooting
If you encounter issues with your Thermor Majorque towel dryer, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | No power supply; appliance switched off; circuit breaker tripped. | Check power connection; press power button; check household circuit breaker. |
| No heat output. | Temperature setting too low; child lock active; programming issue. | Increase temperature setting; deactivate child lock; check programming schedule. |
| Blower not working. | Boost function not activated; air vents blocked. | Activate Boost function; clear any obstructions from air vents. |
| Display shows an error code. | Internal fault. | Note the error code and consult the full manufacturer's manual or contact customer support. |
If the problem persists after attempting these solutions, contact qualified service personnel or Thermor customer support.
8. Specifications
Technical specifications for the Thermor Majorque Electric Towel Dryer with Blower:
- Model Name: THE-MAJORQUE
- Manufacturer Part Number: 493151
- Heating Power: 600 W
- Blower Power: 800 W
- Total Power: 1400 W (600W + 800W)
- Color: White
- Material: Plastic
- Dimensions (approx.): 34 cm (width) x 70 cm (height)
- Weight: 9.8 Kilograms
- Mounting Type: Wall Mount
- Country of Origin: France
9. Warranty and Support
For warranty information, technical support, or service requests, please refer to the warranty card included with your product or visit the official Thermor website. Keep your proof of purchase for warranty claims.
Manufacturer: THERMOR
Contact: Refer to the official Thermor website or local distributor for contact details.
