Pride Mobility Lift Chair Hand Control

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Pride Mobility Lift Chair Hand Control, model ELEASMB3544. This hand control is designed to replace original units in various single-motor standard lift chairs, featuring a thumb switch and a straight five (5) pin quick disconnect plug. It is compatible with chairs utilizing Dewert, OKIN, Limoss, and FBS electrical systems.

Safety Information

• Disconnect Power: Always unplug the lift chair from the wall outlet before attempting any installation, removal, or maintenance of the hand control.
• Keep Dry: Ensure the hand control and its connectors remain dry. Avoid exposure to liquids to prevent electrical hazards.
• Inspect Regularly: Periodically check the hand control cord for any signs of damage, fraying, or kinks. Replace immediately if damage is observed.
• Proper Connection: Ensure the 5-pin connector is fully and securely inserted to prevent intermittent operation or damage.
• Children and Pets: Keep the hand control out of reach of children and pets to prevent unintended operation or damage.

Setup and Installation

Follow these steps to correctly install your new Pride Mobility Lift Chair Hand Control:

1. Power Disconnection: Unplug the lift chair from the main power outlet.
2. Locate Existing Connector: Trace the cord of your old hand control from the handle down. Approximately 8-10 inches past the cord's crimp part, you will find a straight 5-pin quick disconnect connector. This connector is typically located in the side pocket or at the back of the chair's saddle, connecting to an extension cord that leads to the motor or transformer.
3. Disconnect Old Control: Carefully unplug the old hand control's 5-pin connector from the extension cord.
4. Connect New Control: Take your new Pride Mobility Hand Control and align its 5-pin connector with the corresponding port on the chair's extension cord. Push firmly until it clicks securely into place.
5. Secure Cabling: Ensure the cable is routed safely, avoiding any pinch points or areas where it could be damaged by the chair's moving parts.
6. Restore Power: Plug the lift chair back into the wall outlet.
7. Test Operation: Test all functions of the hand control to ensure proper operation.

Figure 1: The Pride Mobility Lift Chair Hand Control, showing the ergonomic design and thumb switch.

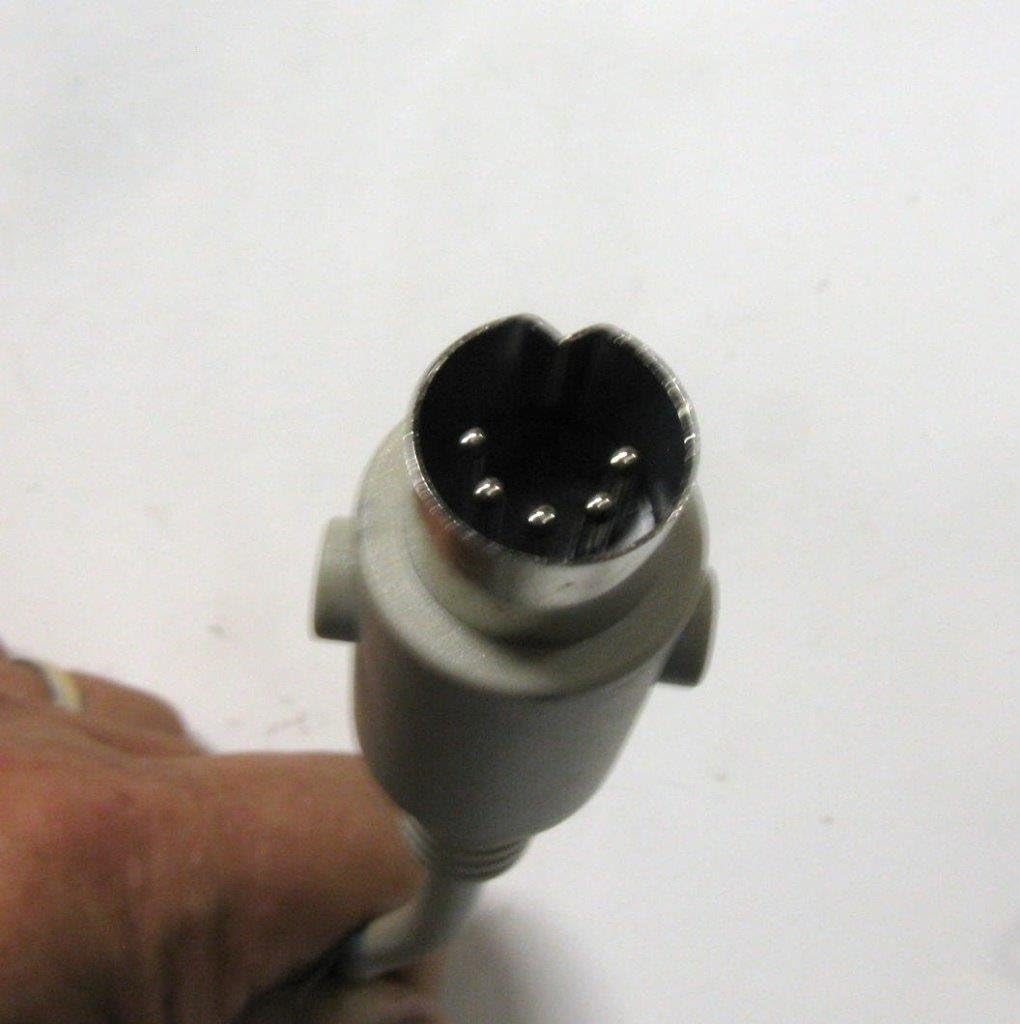

Figure 2: Detailed view of the straight five (5) pin quick disconnect connector, crucial for proper installation.

Operation

The Pride Mobility Lift Chair Hand Control features a simple thumb switch for intuitive operation:

• To Recline/Lower: Gently press and hold the lower portion of the thumb switch. The chair will smoothly recline or lower to your desired position.
• To Lift/Raise: Gently press and hold the upper portion of the thumb switch. The chair will smoothly lift or raise to your desired position, including the stand-assist function.
• Stopping Movement: Release the thumb switch at any point to stop the chair's movement.

Maintenance

Proper maintenance ensures the longevity and reliable performance of your hand control:

• Cleaning: Wipe the hand control with a soft, damp cloth. Do not use abrasive cleaners or immerse the control in water. Ensure it is completely dry before use.
• Cord Inspection: Regularly inspect the entire length of the cord for any cuts, nicks, or damage. Pay close attention to the areas where the cord enters the hand control and the connector.
• Connector Check: Ensure the 5-pin connector remains clean and free of debris. Avoid bending or forcing the pins.
• Storage: When not in use, place the hand control in a position where it will not be crushed or tangled.

Troubleshooting

If you experience issues with your hand control, refer to the following common problems and solutions:

• Chair Not Responding:
  • Ensure the lift chair is securely plugged into a working wall outlet.
  • Check that the 5-pin connector of the hand control is fully and correctly inserted into the chair's extension cord.
  • Inspect the hand control cord for any visible damage.
  • Verify that the chair's main power switch (if applicable) is in the 'ON' position.
• Intermittent Operation:
  • This often indicates a loose connection. Re-seat the 5-pin connector firmly.
  • Inspect the cord for internal breaks by gently flexing it while operating the switch. If movement occurs, the cord may be damaged.
• Chair Moves in Only One Direction:
  • The thumb switch may be faulty. If troubleshooting steps do not resolve the issue, the hand control may need replacement.

If these steps do not resolve the issue, contact customer support for further assistance.

Specifications

Warranty Information

Specific warranty details for replacement parts may vary. Please refer to the documentation provided with your original lift chair or contact Pride Mobility Products Corporation directly for information regarding the warranty coverage for this hand control.

Customer Support

For technical assistance, replacement parts, or further inquiries, please contact Pride Mobility Products Corporation customer service. Have your lift chair's model and serial number, along with the hand control model number (ELEASMB3544), ready when you call.

Contact information can typically be found on the Pride Mobility official website or in your original lift chair manual.
