Product Overview
The Allen & Roth 5-Light Merington Aged Bronze Standard Bathroom Vanity Light is designed to enhance your bathroom's aesthetic with its chic and sophisticated touch. This fixture features an aged bronze finish complemented by five hand-painted glass shades, making it an ideal choice for contemporary or transitional decor. It provides ample illumination for your vanity area.
Figure 1: Front view of the Allen + Roth 5-Light Merington Aged Bronze Vanity Light with its five glass shades.
Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these basic precautions:
- Always disconnect power at the main circuit breaker or fuse box before beginning installation or maintenance.
- Consult a qualified electrician if you are not familiar with electrical installations.
- Use only the specified wattage and bulb type (E26 base, up to 60 watts per bulb).
- Do not install this fixture in wet locations unless specifically rated for such use. This fixture is rated for indoor use in bathrooms.
- Ensure all connections are secure and properly insulated.
- Handle glass shades with care to prevent breakage.
What's in the Box
Carefully unpack all components and check for any damage. Ensure all items listed below are present:
- Vanity Light Fixture (1)
- Glass Shades (5)
- Mounting Hardware Kit (1)
- Instruction Manual (1)
If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer support for assistance.
Setup and Installation
This vanity light is designed for semi-flush mount installation. Professional installation is recommended for safety and optimal performance.
Tools Required (Not Included):
- Screwdriver (Phillips and Flathead)
- Wire Strippers
- Electrical Tape
- Safety Glasses
- Ladder (if necessary)
Installation Steps:
- Turn Off Power: Locate the circuit breaker controlling the light fixture's power supply and turn it OFF. Verify power is off using a voltage tester.
- Prepare Wiring: If replacing an existing fixture, carefully remove it. Strip approximately 1/2 inch of insulation from the ends of the house wires and fixture wires.
- Mounting Bracket Installation: Attach the mounting bracket (included in hardware kit) to the electrical junction box in the wall using the provided screws. Ensure it is securely fastened.
- Wire Connections:
- Connect the green or bare copper ground wire from the fixture to the green or bare copper ground wire from the junction box using a wire nut.
- Connect the white (neutral) wire from the fixture to the white (neutral) wire from the junction box using a wire nut.
- Connect the black (hot) wire from the fixture to the black (hot) wire from the junction box using a wire nut.
- Secure all wire connections with electrical tape.
- Fixture Mounting: Carefully align the fixture with the mounting bracket and secure it in place using the provided screws. Ensure the fixture is flush against the wall.
- Install Glass Shades: Gently screw or attach the five glass shades onto the fixture's bulb sockets. Do not overtighten.
- Install Bulbs: Insert five E26 base LED bulbs (up to 60 watts each, not included) into the sockets.
- Restore Power: Turn the power back ON at the circuit breaker. Test the light fixture.

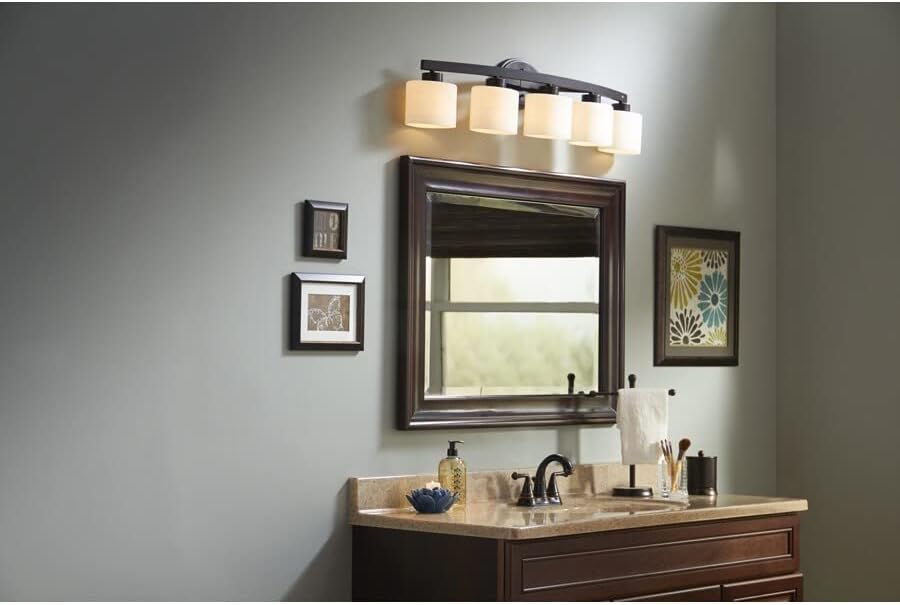

Figure 2: The vanity light installed above a bathroom mirror, demonstrating its typical placement.
Operating Instructions
This vanity light operates via a standard wall switch (not included) and features touch control for dimming if connected to a compatible dimmer switch.
- Turning On/Off: Use your existing wall switch to turn the light fixture on or off.
- Dimming Functionality: If connected to a compatible dimmer switch (sold separately), the light can be dimmed by adjusting the dimmer control. This fixture is designed to be dimmable.
- Bulb Type: This fixture uses E26 base bulbs. For optimal performance and energy efficiency, LED bulbs are recommended.

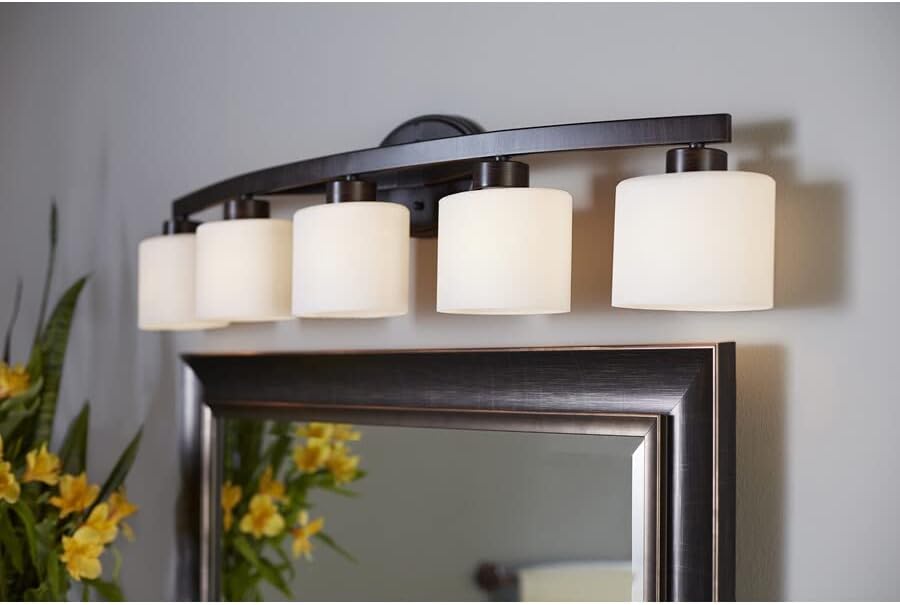

Figure 3: A closer view of the fixture, highlighting the aged bronze finish and the design of the glass shades.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your vanity light.
- Cleaning: To clean the fixture, ensure power is off. Wipe the aged bronze finish with a soft, dry cloth. For the glass shades, use a mild glass cleaner applied to a cloth, then wipe the shades. Do not spray cleaner directly onto the fixture.
- Bulb Replacement: Before replacing bulbs, turn off power at the circuit breaker. Allow bulbs to cool completely. Unscrew old bulbs and screw in new E26 base bulbs (up to 60 watts each).
- Inspection: Periodically check all electrical connections and mounting hardware to ensure they remain secure.
Troubleshooting
If you encounter issues with your vanity light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers or dims unexpectedly. |
|
|
| Glass shade is loose or broken. |
|
|
If the problem persists after trying these solutions, please contact customer support.
Specifications
| Brand | Allen & Roth |
| Model Number | VBS271-5NABZ |
| Color | Bronze |
| Material | Bronze, Glass |
| Style | Contemporary |
| Light Fixture Form | Vanity |
| Room Type | Bathroom |
| Indoor/Outdoor Usage | Indoor |
| Power Source | Corded Electric |
| Installation Type | Semi Flush Mount |
| Special Feature | Dimmable |
| Control Method | Touch (via compatible switch) |
| Light Source Type | LED (recommended) |
| Finish Type | Aged, Hand Painted |
| Shade Material | Glass |
| Number of Light Sources | 5 |
| Voltage | 110 Volts |
| Wattage | 60 watts (per bulb) |
| Bulb Base | E26 |
| Item Weight | 8.3 Pounds |
| Product Dimensions | 37.5 x 9 x 7.5 inches |
| Certifications | ETL, Energy Star, csa_certified, ul_listed |
Warranty and Support
Warranty Information: Specific warranty details for this product are typically provided at the point of purchase or within the product packaging. Please retain your proof of purchase for any warranty claims. For detailed warranty terms, refer to the documentation included with your product or contact Allen & Roth customer service.
Customer Support: If you have any questions regarding the installation, operation, maintenance, or troubleshooting of your Allen & Roth vanity light, please contact the manufacturer's customer support. Contact information can usually be found on the product packaging or the official Allen & Roth website.
