LifeSmart LifePro Electric Stove Space Heater

Introduction

This manual provides essential instructions for the safe operation, installation, maintenance, and troubleshooting of your LifeSmart LifePro Electric Stove Space Heater, Model PCHT1109US. Please read all instructions carefully before use and retain this manual for future reference.

Figure 1: LifeSmart LifePro Electric Stove Space Heater with remote control.

Important Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury, observe the following safety precautions:

• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating unattended.
• Always unplug the heater when not in use.
• Do not operate any heater with a damaged cord or plug, or after the heater malfunctions or has been dropped or damaged in any manner.
• Do not use outdoors.
• Never use an extension cord with this heater. Plug directly into a wall outlet.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• This heater has an automatic overheat safety switch that turns the unit off if the internal temperature becomes too hot.
• The exterior cabinet is designed to be cool to the touch, but caution is still advised, especially around children.
• Ensure the heater is placed on a stable, level surface to prevent accidental tip-over. The unit includes tip-over protection.

Setup Instructions

1. Unpacking: Carefully remove the heater from its packaging. Retain all packaging materials for future storage or transport. Inspect the heater for any signs of damage.
2. Leg Assembly (if required): Some models may require attaching the legs. Align the legs with the designated slots on the base of the heater and secure them using the provided screws. Ensure all screws are tightened securely.
3. Placement: Place the heater on a firm, level surface. Ensure there is adequate clearance (at least 3 feet) from walls, furniture, curtains, and other combustible materials. Do not block the air intake or exhaust vents.
4. Power Connection: Plug the heater directly into a grounded 120V AC, 15 Amp (or higher) electrical outlet. Do not use an extension cord or power strip.

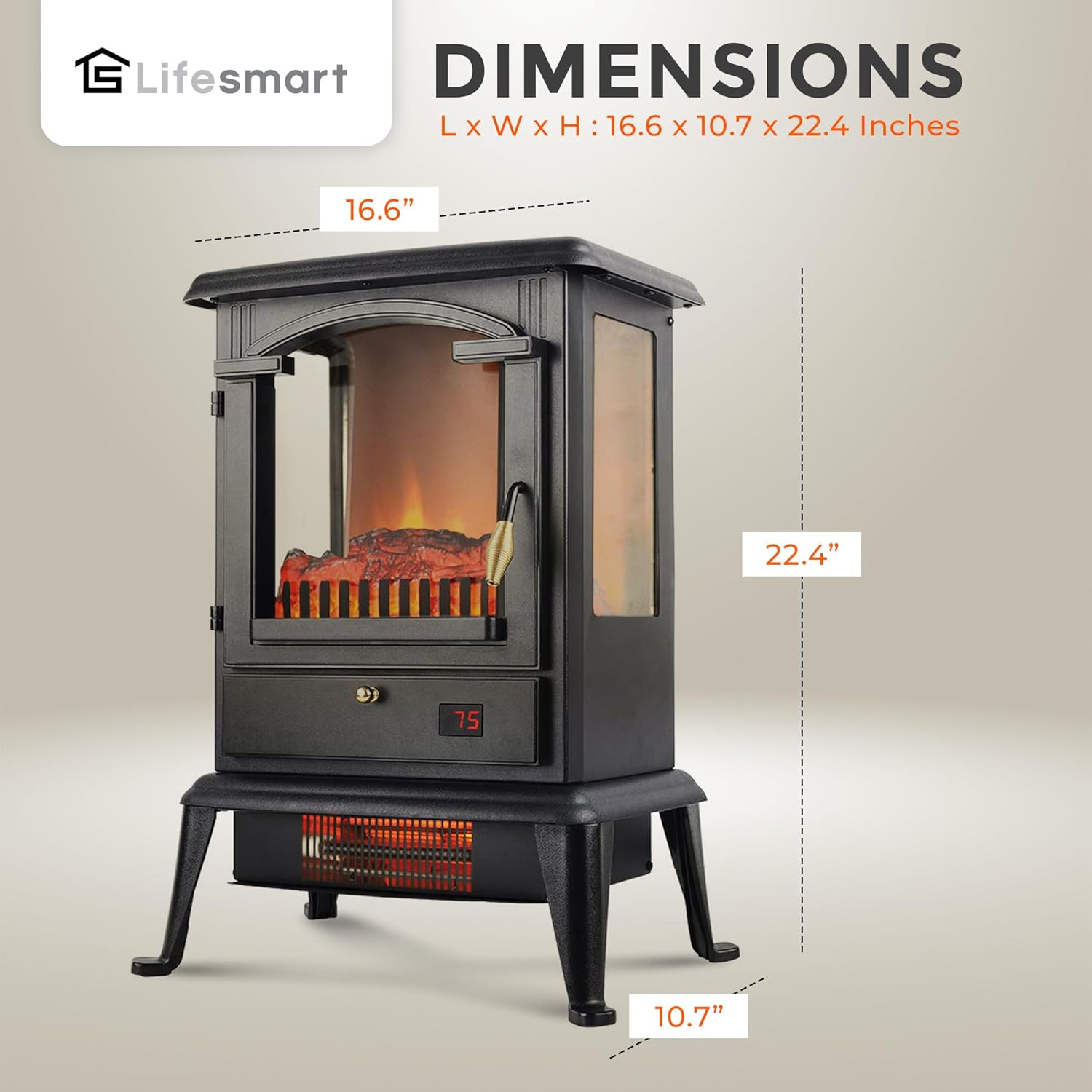

Figure 2: Product dimensions for proper placement.

Operating Instructions

Your LifeSmart LifePro Electric Stove Space Heater can be operated using the control panel on the unit or the included remote control.

Control Panel

Figure 3: Heater control panel.

• Power Button: Press to turn the heater ON or OFF.
• Flame Button: Activates or deactivates the realistic flame effect. The flame effect can be used independently of the heating function.
• Timer Button: Sets the programmable 8-hour timer for automatic shut-off. Press repeatedly to cycle through timer settings.
• Up/Down Buttons: Adjust the desired temperature setting or timer duration.
• Heater Button: Selects between the two heat settings: 1500 watts (high) or 850 watts (energy-saving low).

Remote Control

Figure 4: Heater with remote control.

The remote control duplicates the functions of the control panel, allowing convenient operation from a distance. Ensure 2 AAA batteries are installed correctly in the remote control.

• Power: Turns the unit on or off.
• Up/Down: Adjusts temperature or timer settings.
• Flame: Controls the flame brightness levels.
• Timer: Activates and adjusts the programmable timer.
• Heater: Cycles between high (1500W) and low (850W) heat settings.

Maintenance

Regular maintenance ensures optimal performance and longevity of your heater.

1. Cleaning:
   • Always unplug the heater and allow it to cool completely before cleaning.
   • Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
   • Gently vacuum the air intake and exhaust vents to remove dust and debris.
2. Storage: When not in use, store the heater in a cool, dry place. If possible, use the original packaging to protect it from dust and damage.

Troubleshooting

Refer to the following table for common issues and their solutions.

Figure 5: Safety features including overheat and tip-over protection.

Specifications

Warranty and Support

This product includes a manufacturer's warranty. For specific warranty details, claims, or technical support, please refer to the warranty card included with your product or contact LIFESMART GLOBAL customer service directly. Contact information can typically be found on the manufacturer's website or within the product packaging.
