Dakota Digital VHX-63C-NOV-K-W Analog Dash Gauges Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the Dakota Digital VHX-63C-NOV-K-W Analog Dash Gauges. This instrument system is specifically designed for 1963-65 Chevrolet Nova vehicles, fitting directly into the stock or reproduction instrument bezel (bezel not included). The system integrates modern digital technology with a classic analog display, offering enhanced accuracy and a range of features.

The VHX system features fully lit needles, backlit faces, and highly visible LCD message centers. It utilizes micro-controlled precision stepper motors and solid-state sensors for accurate readings. This system is also compatible with 1962 Nova models when using a 1963-65 bezel.

2. Key Features

2.1 Analog Gauge Displays

• Speedometer: 0-160 MPH
• Tachometer: 0-8000 RPM
• Oil Pressure: 0-80 psi
• Water Temperature: 100-260°F
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9-17 VDC

2.2 Digital Message Centers

• Standard Displays: Odometer (user settable, million-mile), Dual (A/B) Trip Meter (0-9,999.9), Clock (12 hour)
• Performance Meters: 0-60 MPH Timer (0-100 kmh), 1/4 mile time, 1/4 mile end speed (trap speed), High speed recall, High RPM recall

2.3 Built-In Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/On & Engaged when vehicle is equipped)
• Gear Position (GSS-3000 required, sold separately)

3. Setup and Installation

Installation of the Dakota Digital VHX-63C-NOV-K-W system requires careful attention to detail. It is recommended that installation be performed by a qualified automotive technician. Ensure the vehicle's battery is disconnected before beginning any electrical work.

3.1 Package Contents

Verify that all components are present before installation. The package includes the VHX instrument system and necessary sensors:

• VHX-63C-NOV-K-W Instrument System
• Oil Pressure Sensor (1/8" NPT)
• Water Temperature Sensor (1/8" NPT with bushings for 1/4", 3/8", 1/2" NPT, 12mm, and 16mm for GM & LS applications)
• Speedometer Pulse Generator
• Wiring Harness

Note: An OEM or reproduction instrument bezel is required and is not included with this product.

3.2 Physical Installation

1. Remove Existing Instrumentation: Carefully remove the original instrument cluster from your vehicle's dashboard.
2. Prepare Bezel: If using a new bezel, ensure it is clean and free of debris. The VHX system is designed for direct bolt-in installation into a 1963-65 Chevy Nova bezel.
3. Mount VHX System: Position the VHX instrument system into the bezel. Secure it using the provided hardware.
4. Sensor Installation:
   • Oil Pressure Sensor: Install the oil pressure sensor into the engine block or an appropriate oil gallery. Use thread sealant to prevent leaks.
   • Water Temperature Sensor: Install the water temperature sensor into a suitable coolant passage. Use the appropriate bushing for your engine's port size.
   • Speedometer Pulse Generator: Install the speedometer pulse generator according to your vehicle's transmission type. Refer to the detailed wiring diagram for specific connections.

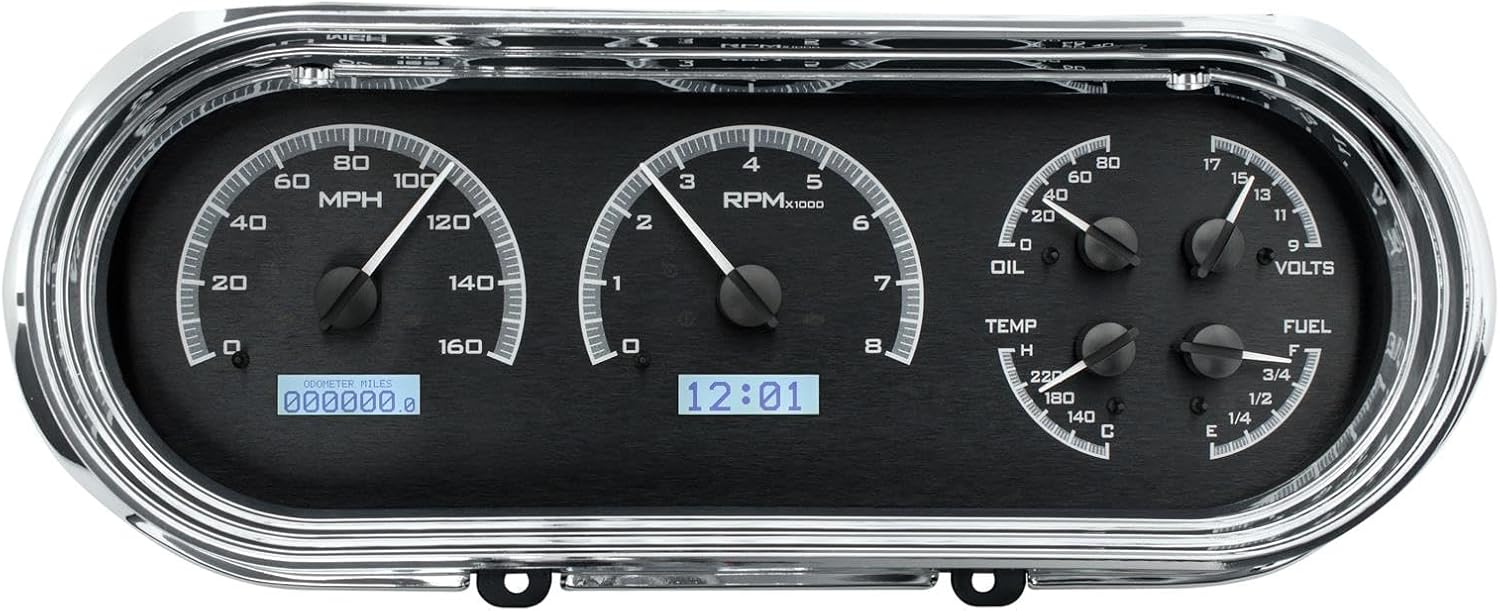

Figure 1: Front view of the Dakota Digital VHX-63C-NOV-K-W instrument system. This image displays the speedometer, tachometer, and auxiliary gauges (oil pressure, water temperature, volts, fuel level) with a black alloy style face and white backlighting. Digital message centers are visible for odometer and clock functions.

Figure 2: Rear view of the Dakota Digital VHX-63C-NOV-K-W instrument system. This image shows the back panel of the gauge cluster, including mounting points and the main electrical connector port.

3.3 Electrical Connections

Connect the wiring harness to the VHX system and then to the vehicle's electrical system. Refer to the detailed wiring diagram provided with your product for specific connections. Key connections typically include:

• Power: Constant 12V, Switched 12V, Ground
• Lighting: Dimmer/Illumination wire
• Signal Inputs: Tachometer signal, Speedometer signal, Fuel level sender, Oil pressure sender, Water temperature sender
• Indicator Inputs: Turn signals, High beam, Check engine, Parking brake

Ensure all connections are secure and properly insulated to prevent short circuits.

4. Operating Instructions

Once installed and powered, the VHX system will perform a self-test and display current readings. The system is designed for intuitive operation.

4.1 Initial Power-Up

Upon first power-up, the system will display a welcome message and then proceed to the default display mode. The odometer can be set once by the user during initial setup. Refer to the separate detailed programming guide for specific instructions on setting the odometer and other parameters.

Figure 3: The Dakota Digital VHX-63C-NOV-K-W instrument system illuminated. This image highlights the white backlighting of the gauges and the clear visibility of the digital message centers, showcasing the system's appearance during operation.

4.2 Reading Analog Gauges

The analog gauges provide real-time readings for critical vehicle parameters:

• Speedometer: Displays vehicle speed in miles per hour (MPH).
• Tachometer: Displays engine revolutions per minute (RPM).
• Oil Pressure: Indicates engine oil pressure in pounds per square inch (psi).
• Water Temperature: Shows engine coolant temperature in degrees Fahrenheit (°F).
• Fuel Level: Displays the approximate fuel level from Empty (E) to Full (F).
• Voltmeter: Shows the vehicle's electrical system voltage in VDC.

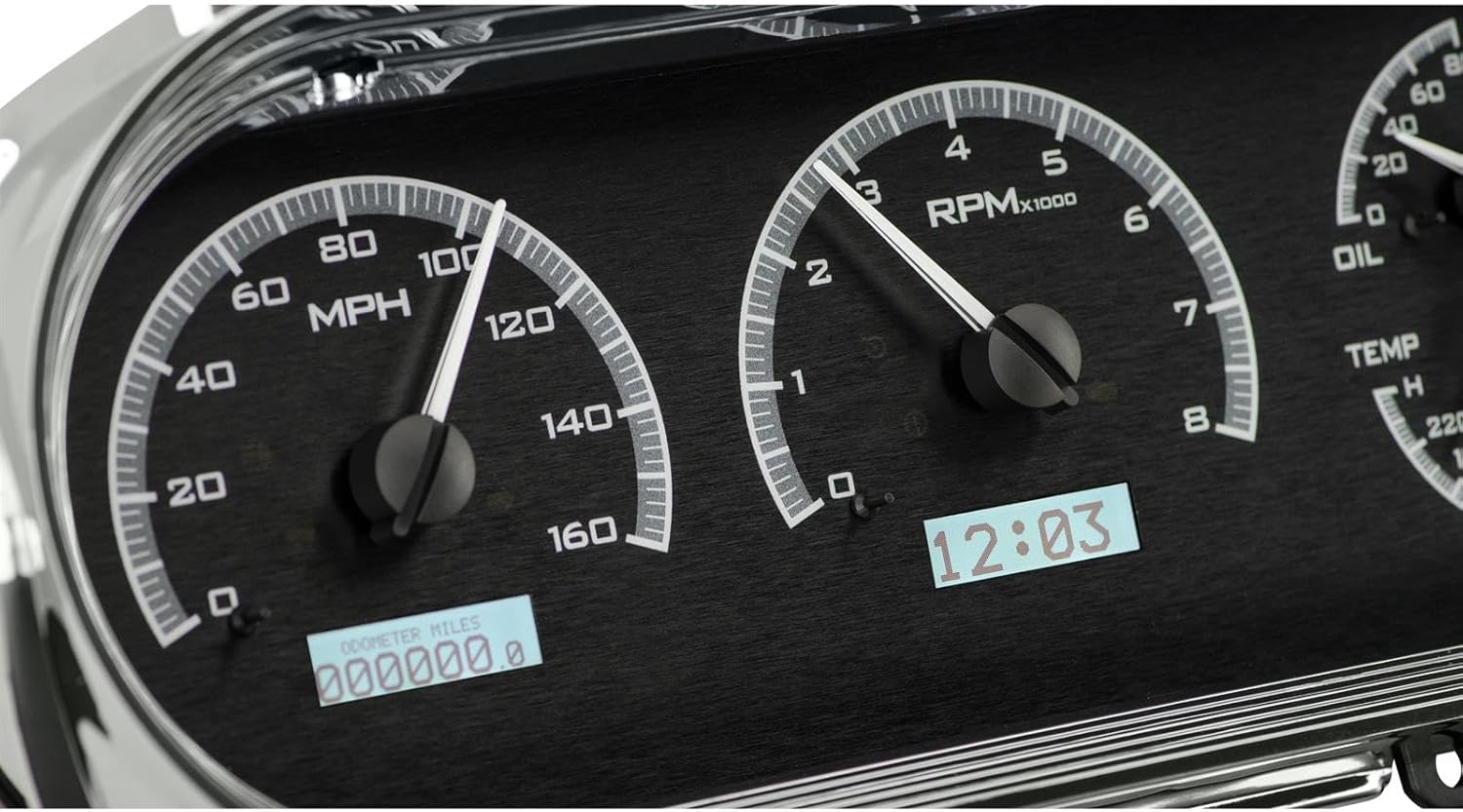

Figure 4: Close-up view of the illuminated speedometer and tachometer sections of the VHX system. This image provides a detailed look at the gauge faces, needles, and the digital odometer and clock displays.

4.3 Digital Message Center Navigation

The digital message centers display various information. Navigation and setting adjustments are typically performed using external buttons (not part of the gauge cluster itself, but connected to the VHX system). Consult the separate programming guide for detailed instructions on accessing and configuring these features, including:

• Cycling through Odometer, Trip Meters, and Clock.
• Accessing and resetting Performance Meters (0-60 MPH timer, 1/4 mile, etc.).
• Adjusting brightness and other display settings.

5. Maintenance

The Dakota Digital VHX system is designed for long-term reliability with minimal maintenance. Regular care will ensure optimal performance and longevity.

• Cleaning: Use a soft, damp cloth to clean the gauge faces and bezel. Avoid abrasive cleaners or solvents, which can damage the display or finish.
• Electrical Connections: Periodically check all electrical connections for tightness and corrosion. Ensure wiring is not pinched or exposed.
• Sensor Integrity: Inspect sensor wiring and mounting for any signs of damage or looseness.

6. Troubleshooting

If you encounter issues with your VHX instrument system, refer to the following common troubleshooting steps:

For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Dakota Digital technical support.

7. Specifications

8. Warranty and Support

8.1 Limited Lifetime Warranty

The Dakota Digital VHX Series instrumentation systems are backed by an unrivaled limited lifetime warranty. This warranty covers defects in materials and workmanship under normal use. For full details regarding warranty coverage and limitations, please refer to the official Dakota Digital warranty statement or contact their customer service.

8.2 Technical Support

For technical assistance, installation questions, or troubleshooting guidance, please contact Dakota Digital customer support. Contact information can typically be found on the manufacturer's official website or in the product packaging.
