Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your TacParts Spa Hot Tub Air Blower Clear Check Valve. This check valve is designed to prevent water from flowing back into the air blower, protecting the equipment and ensuring efficient spa operation. Please read these instructions carefully before installation and use.
Safety Information
- Always disconnect power to the spa and air blower before attempting any installation, maintenance, or repair.
- Installation should be performed by a qualified professional to ensure compliance with local electrical and plumbing codes.
- Wear appropriate personal protective equipment (PPE) during installation and maintenance.
- Ensure all plumbing connections are secure and watertight to prevent leaks.
- This check valve is for use on spa air blowers only. Do not use for other applications.
Product Overview
The TacParts Clear Check Valve features a compact design with a transparent body, allowing for visual inspection of its internal components. It incorporates a 1/4 LB. spring to ensure reliable one-way airflow, preventing water intrusion into your air blower system. Its high-quality construction is designed for durability in spa and hot tub environments.

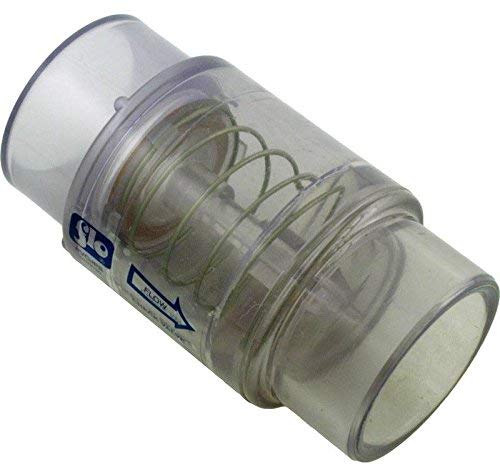

A clear view check valve designed for spa and hot tub air blowers, showing its transparent body and internal spring mechanism.
Setup and Installation
This check valve is designed for flexible plumbing options, accommodating both 1-1/2" PVC straight pipe and 2" couplings. Proper installation is crucial for optimal performance and equipment protection.
Plumbing Compatibility
The check valve can be plumbed in two ways:
- 1-1/2" PVC Straight Pipe: The pipe can be glued directly into the valve's internal diameter.
- 2" Coupling: A 2" coupling can be glued onto the outside of the valve for connection to 2" PVC piping.

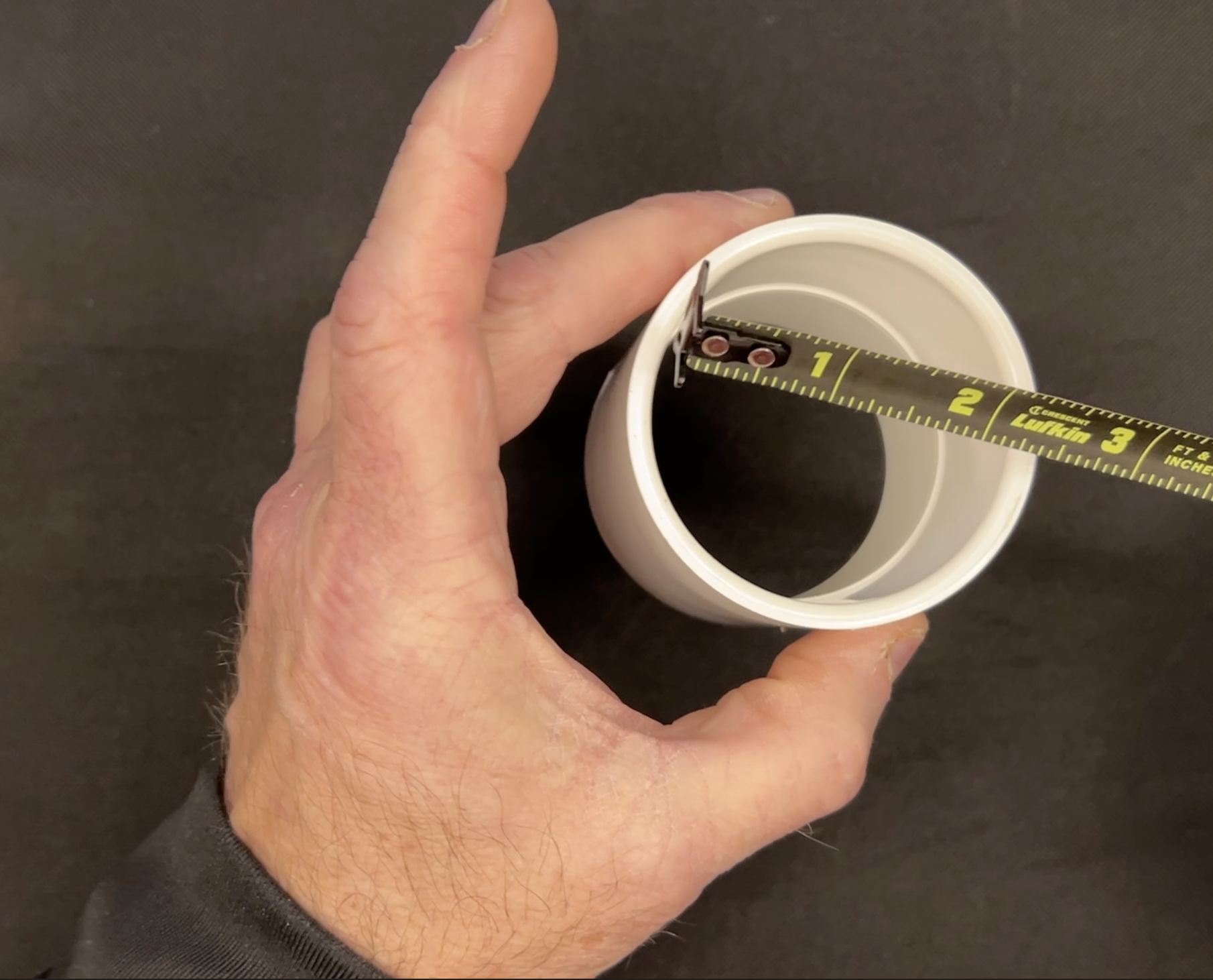

This image shows a standard 2-inch PVC coupler, highlighting its internal diameter. The TacParts Clear Check Valve is designed to integrate with similar PVC plumbing for spa and hot tub air blower systems.
Installation Steps
- Turn off all power to the spa and air blower system at the main breaker.
- Identify the appropriate location for the check valve in the air blower line, typically between the air blower and the spa's air manifold.
- Cut the existing PVC pipe to the required length, ensuring clean, straight cuts.
- Apply PVC primer and cement to the pipe ends and the check valve connections according to the manufacturer's instructions for the primer and cement.
- Securely attach the check valve, ensuring the arrow on the valve body points in the direction of airflow (away from the blower, towards the spa).
- Allow sufficient curing time for the PVC cement before restoring power and testing the system.
A quick look at a 2-inch spa plumbing coupler, illustrating how it connects to PVC piping. This demonstrates the type of connection compatible with the TacParts Clear Check Valve.
Operating Instructions
Once installed, the TacParts Clear Check Valve operates automatically with your spa's air blower. When the air blower is activated, air pressure opens the valve, allowing air to flow into the spa. When the air blower is turned off, the 1/4 LB. spring and water pressure close the valve, preventing water from entering the blower. No manual intervention is required for its operation.
This video demonstrates a 240-volt spa air blower, similar to those compatible with the TacParts Clear Check Valve, showing its installation and quiet operation.
Maintenance
The TacParts Clear Check Valve is designed for low maintenance. Due to its clear view design, you can visually inspect the internal components for any debris or wear without disassembly. The valve features a rubberized mount, eliminating the need for aging foam and reducing maintenance requirements.
- Regular Inspection: Periodically check the clear body of the valve for any signs of debris accumulation, cracks, or unusual wear.
- Leak Check: Inspect all plumbing connections around the valve for any signs of leaks.
- Functionality Check: Observe the valve's operation when the air blower is turned on and off to ensure it opens and closes properly.
Troubleshooting
- Reduced Airflow: If you notice reduced airflow from your spa jets, inspect the check valve for any obstructions or debris that might be preventing it from fully opening.
- Water in Air Blower: If water is found in the air blower, the check valve may be faulty or improperly installed. Check the valve's orientation (arrow pointing away from the blower) and inspect for damage. Replace if necessary.
- Leaks at Connections: Ensure all PVC connections are properly primed and cemented. If leaks persist, re-seal or replace the affected plumbing section.
Specifications
- Product Type: Clear Check Valve for Spa Hot Tub Air Blower
- Spring Rate: 1/4 LB.
- Plumbing Compatibility: Fits 1-1/2" PVC straight pipe (glued inside) or 2" coupling (glued outside)
- Design: Clear View for easy inspection
- Material: High-quality PVC
- Weight: Approximately 4 ounces
Warranty and Support
Warranty information for this product is not explicitly provided in the available data. For specific warranty details or technical support, please contact TacParts directly through their official customer service channels.
