Paramount Bed Floor-standing Electric Care Lift

1. Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of the Paramount Bed Floor-standing Electric Care Lift, Model KQ-781. Please read this manual thoroughly before initial use and retain it for future reference.

The KQ-781 is a battery-powered, cordless patient lift designed to assist in transferring individuals with limited mobility. Its robust construction and adjustable features ensure both user comfort and caregiver convenience.

2. Important Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or death.

• Always ensure the lift is on a stable, level surface before operation.
• Do not exceed the maximum load capacity of 205 kg (451 lbs).
• Ensure all casters are locked when the lift is stationary and a patient is being transferred.
• Regularly inspect the lift, sling, and all components for wear, damage, or loose parts. Do not use if any damage is observed.
• Only use slings approved by Paramount Bed for this lift model.
• Ensure the patient is properly secured in the sling before lifting.
• Never leave a patient unattended in the lift.
• Keep hands and clothing clear of moving parts during operation.
• Refer to a qualified technician for any repairs or servicing beyond routine maintenance.

3. Package Contents

Upon unpacking, verify that all components are present and undamaged:

• Paramount Bed KQ-781 Electric Care Lift main unit
• Patient Sling (specific model may vary)
• Battery Charger
• User Manual (this document)

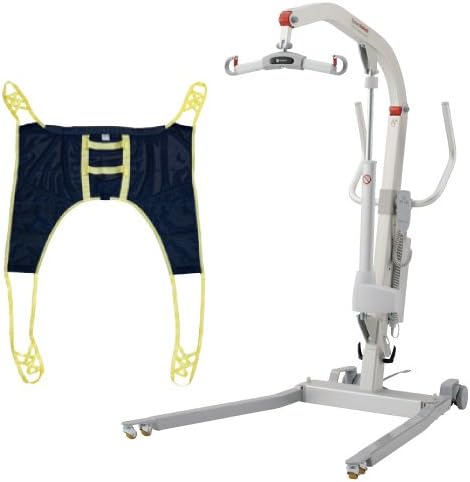

Figure 3.1: The KQ-781 Electric Care Lift shown with a compatible patient sling.

4. Setup and Assembly

The KQ-781 lift requires assembly before first use. It is recommended that two adults perform the assembly process.

1. Unpack Components: Carefully remove all parts from the packaging. Place them on a clean, flat surface.
2. Attach Support Column: Securely attach the main support column to the base unit using the provided fasteners. Ensure all bolts are tightened according to the instructions in the assembly diagram (not included in this general manual, refer to specific assembly guide).
3. Install Boom and Spreader Bar: Connect the boom arm to the support column and then attach the spreader bar. Verify that all connections are firm and secure.
4. Charge Battery: Before initial operation, fully charge the built-in battery using the provided charger. Connect the charger to a standard electrical outlet and then to the lift's charging port. The charging indicator light will confirm charging status.
5. Initial Function Test: After assembly and charging, perform a test run without a patient. Operate the lift's up/down functions and test the caster brakes.

Figure 4.1: The main unit of the KQ-781 Electric Care Lift.

5. Operating Instructions

5.1. Preparing for Transfer

• Ensure the lift's battery is sufficiently charged.
• Position the lift close to the patient.
• Lock the rear casters using the foot-operated stoppers.
• Adjust the handle height for comfortable operation by the caregiver.
• Carefully position the patient sling under the patient according to the sling manufacturer's instructions.
• Attach the sling loops securely to the spreader bar hooks. Double-check all connections.

5.2. Lifting and Lowering

• To Lift: Press and hold the "UP" button on the hand control. The lift will smoothly raise the patient. Monitor the patient's comfort and position during the lift.
• To Lower: Press and hold the "DOWN" button on the hand control. The lift will smoothly lower the patient. Guide the patient into the desired position.
• Release the button to stop movement at any time.

5.3. Maneuvering the Lift

• Unlock the rear casters before moving the lift.
• Use the handles to gently push or pull the lift to the desired location.
• Avoid sudden movements or excessive force.
• Always lock the casters once the lift is in position for transfer.

6. Maintenance

6.1. Cleaning

• Wipe down the lift's frame and components with a damp cloth and mild, non-abrasive cleaner.
• Do not use harsh chemicals or immerse any electrical components in water.
• Clean the casters regularly to remove hair, dust, or debris that may impede movement.

6.2. Battery Care

• Charge the battery fully after each use or when the low battery indicator illuminates.
• Do not allow the battery to fully discharge for extended periods.
• Store the lift in a cool, dry place when not in use, and ensure the battery is charged periodically if stored for long durations.

6.3. Inspections

• Daily: Visually inspect the sling for tears or fraying. Check that all connections are secure.
• Weekly: Check the function of the casters and brakes. Ensure the lift mechanism operates smoothly without unusual noises.
• Monthly: Inspect all bolts and fasteners for tightness. Check the condition of the power cord and charger.

7. Troubleshooting

If the problem persists after attempting these solutions, please contact Paramount Bed customer support.

8. Specifications

9. Warranty and Support

Paramount Bed products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Paramount Bed website.

For technical support, spare parts, or service inquiries, please contact Paramount Bed customer service:

• Website: www.paramount.co.jp/english/ (or relevant regional website)
• Phone: Refer to your regional contact information.
• Email: Refer to your regional contact information.

When contacting support, please have your product model (KQ-781) and manufacturer reference number (24-3583-00) ready.
