1. Introduction
Thank you for choosing the Jacob Delafon New Ola E70007-00 Toilet Seat. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your new toilet seat. Please read these instructions carefully before installation and retain them for future reference.
The Jacob Delafon New Ola E70007-00 toilet seat is designed for comfort and durability, featuring a Thermodur construction and a soft-close mechanism to prevent slamming. Its white finish complements various bathroom decors.

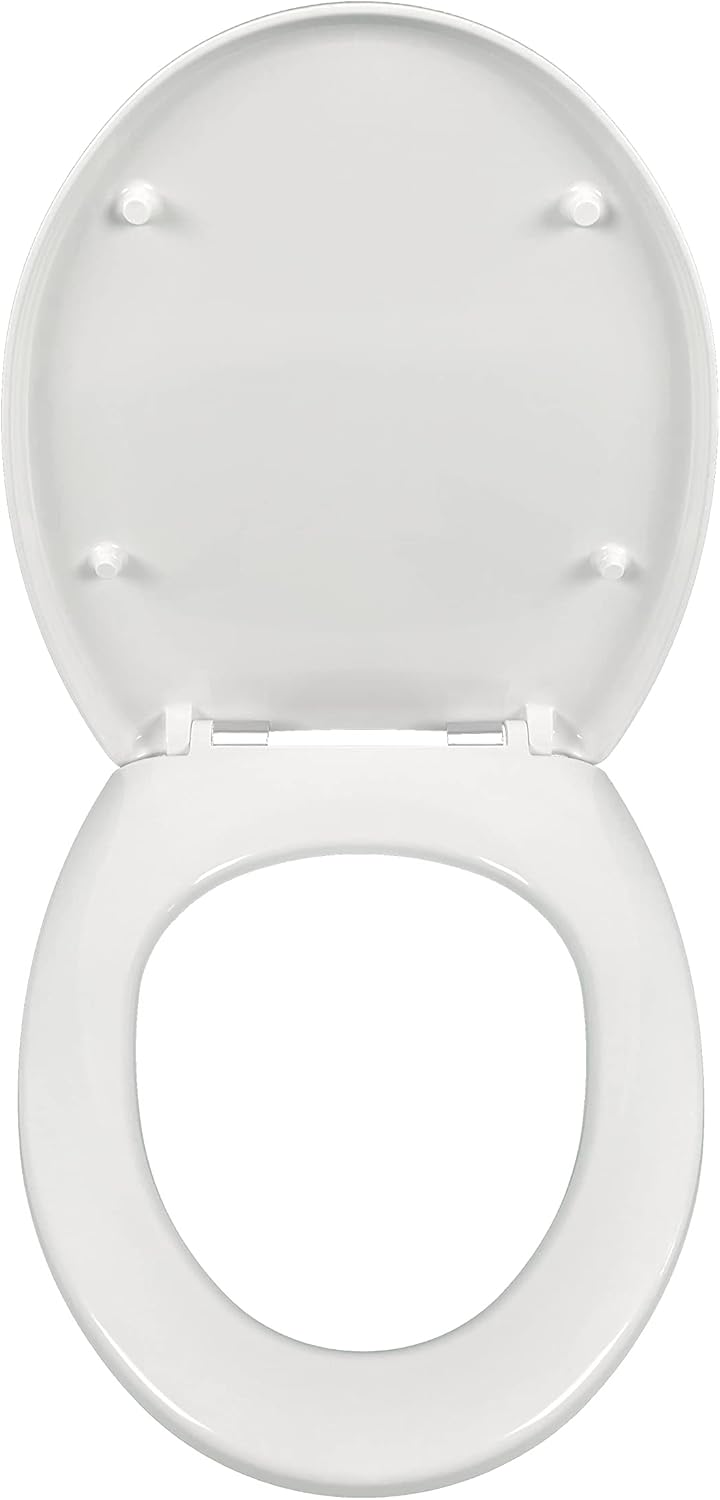

Image 1.1: Top view of the Jacob Delafon New Ola E70007-00 toilet seat in the open position, showcasing its white finish and oval shape.
2. Safety Information
- Always ensure the toilet seat is securely fastened to the toilet bowl to prevent movement and potential injury.
- Do not stand on the toilet seat or lid. It is not designed to support body weight.
- Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the surface finish of the seat and hinges.
- Keep small children away from the toilet seat during installation to prevent access to small parts.
- If any parts are damaged or missing, do not attempt to install the seat. Contact customer support for assistance.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation:
- 1 x Jacob Delafon New Ola E70007-00 Thermodur Toilet Seat (White)
- 2 x Rust-proof metal hinges
- Installation hardware (screws, washers, nuts)
Image 3.1: View of the toilet seat from underneath, showing the hinge attachment points and included installation components.
4. Setup and Installation
This toilet seat is compatible with the Jacob Delafon Ola E4187-00 Toilet. Installation is designed to be quick and easy.
Tools Required:
- Screwdriver (appropriate for hinge screws)
Installation Steps:
- Prepare the Toilet Bowl: Ensure the toilet bowl's mounting holes are clean and free of any debris from a previous seat.
- Position the Hinges: Place the rust-proof metal hinges into the mounting holes on the back of the toilet bowl. Ensure they are aligned correctly.
- Attach the Seat: Align the toilet seat with the hinges. The seat should click or slide onto the hinge posts.
- Secure the Hinges: From underneath the toilet bowl, attach the washers and nuts to the hinge bolts. Tighten them securely with a screwdriver, ensuring the seat is centered and does not wobble. Do not overtighten.
- Test the Soft-Close Function: Gently lower the seat and lid to confirm the soft-close mechanism operates smoothly.

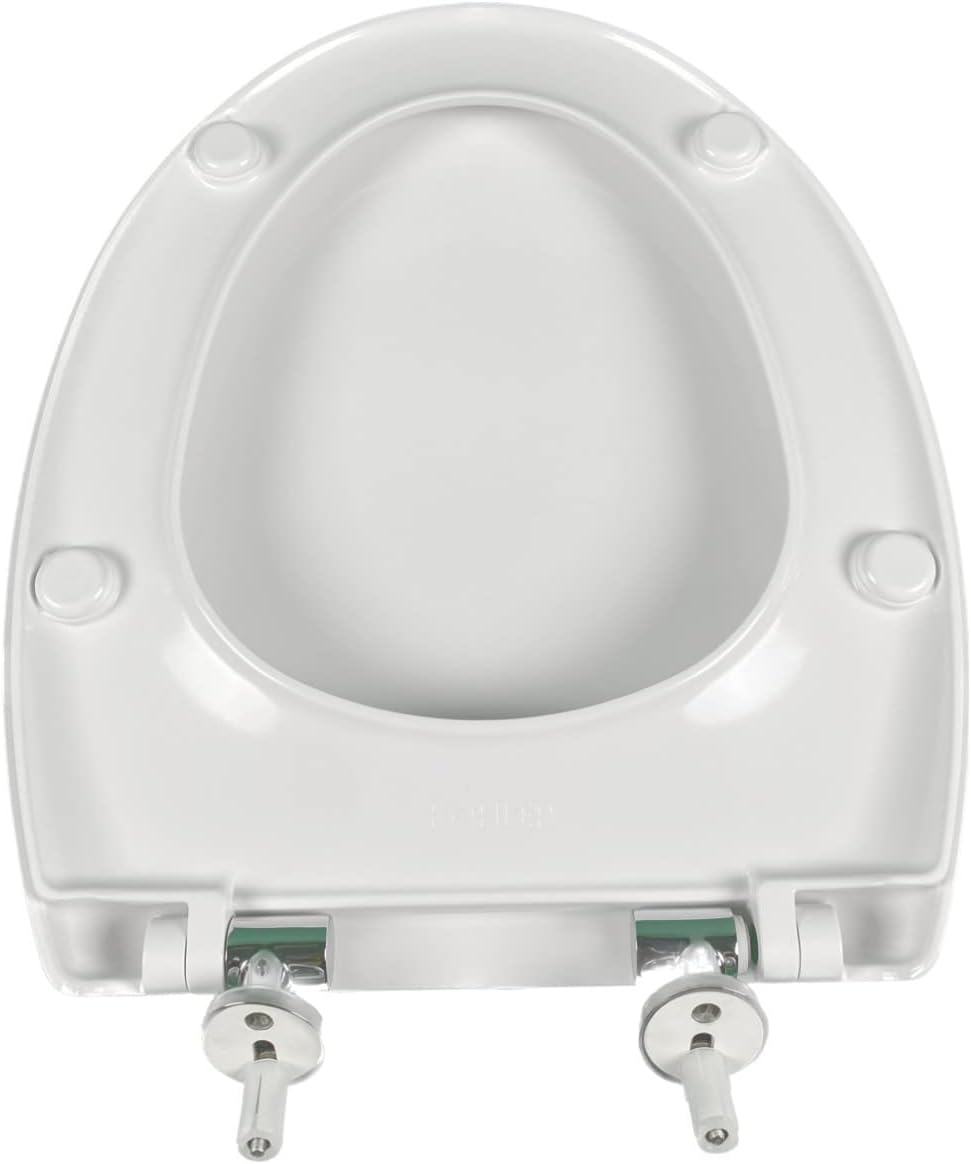

Image 4.1: Underside view of the toilet seat, highlighting the rust-proof metal hinges and their attachment points for installation.
Image 4.2: Diagram illustrating the various components involved in the toilet seat installation, including bolts, washers, and nuts.
5. Operating Instructions
The Jacob Delafon New Ola E70007-00 toilet seat features a progressive soft-close mechanism, designed for quiet and gentle closing.
- Soft-Close Function: To operate, simply push the seat or lid downwards gently. The soft-close mechanism will engage, allowing the seat and lid to lower slowly and silently without requiring manual guidance to the closed position.
- Avoid Forcing: Do not force the seat or lid closed, as this can damage the soft-close mechanism over time. Allow it to close naturally.

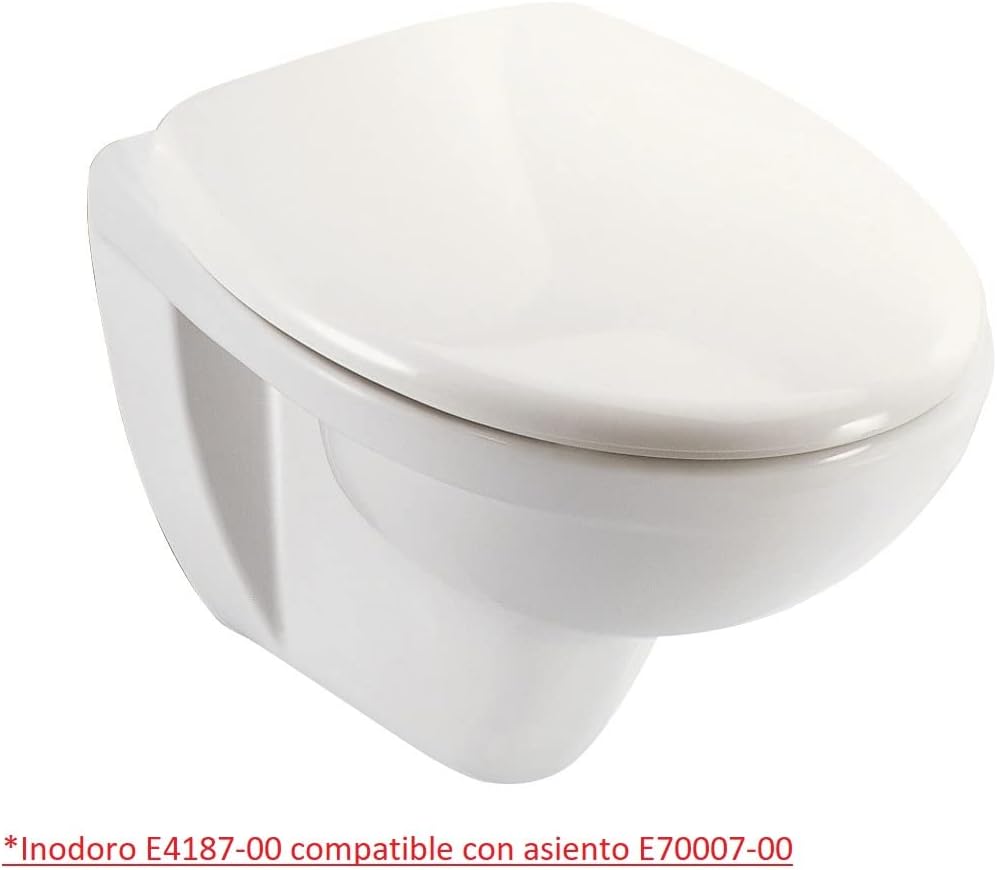

Image 5.1: The Jacob Delafon New Ola E70007-00 toilet seat shown installed on a compatible toilet, demonstrating its integrated appearance.
6. Maintenance and Cleaning
Proper care will ensure the longevity and appearance of your toilet seat.
- Regular Cleaning: Clean the seat regularly with a soft cloth, warm water, and a mild, non-abrasive soap.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, bleach, strong acids, or alkaline detergents, as these can damage the Thermodur material and the metal hinges.
- Drying: Always wipe the seat dry after cleaning to prevent water spots and maintain hygiene.
- Hinge Care: Periodically check the hinge connections for tightness. If they become loose, gently retighten the nuts from underneath the toilet bowl.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Seat wobbles or moves | Hinges are loose. | Tighten the nuts underneath the toilet bowl. |
| Soft-close mechanism not working smoothly | Mechanism is dirty or damaged; seat forced closed repeatedly. | Clean hinges thoroughly. Avoid forcing the seat. If damaged, contact support. |
| Seat does not align correctly | Hinges are not properly positioned. | Loosen hinges, adjust seat alignment, then retighten. |
8. Specifications
- Model: OLA E70007-00
- Brand: Jacob Delafon
- Color: White
- Material: Thermodur seat, Stainless Metals hinges
- Style: Modern
- Shape: Oval
- Product Dimensions: 17.09"L x 14.37"W (43.4 cm L x 36.5 cm W)
- Item Weight: Approximately 6.16 pounds (2.8 Kilograms)
- Compatibility: Designed for Jacob Delafon Ola E4187-00 Toilet
- Features: Soft-close mechanism, rust-proof metal hinges
9. Warranty and Support
Jacob Delafon products are manufactured to high standards and are subject to quality control. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Jacob Delafon website.
If you encounter any issues or require further assistance, please contact your retailer or the Jacob Delafon customer support service. When contacting support, please have your model number (OLA E70007-00) and purchase information readily available.
