Ingersoll Rand 2235QXPA 1/2-inch Air Impact Wrench

1. Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Ingersoll Rand 2235QXPA 1/2-inch Air Impact Wrench. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

The Ingersoll Rand 2235QXPA is engineered for demanding tasks, offering high torque output, exceptional durability, and a lightweight design for professional use in vehicle repair and maintenance.

For more information about Ingersoll Rand products, visit the official Ingersoll Rand Store.

2. Product Overview

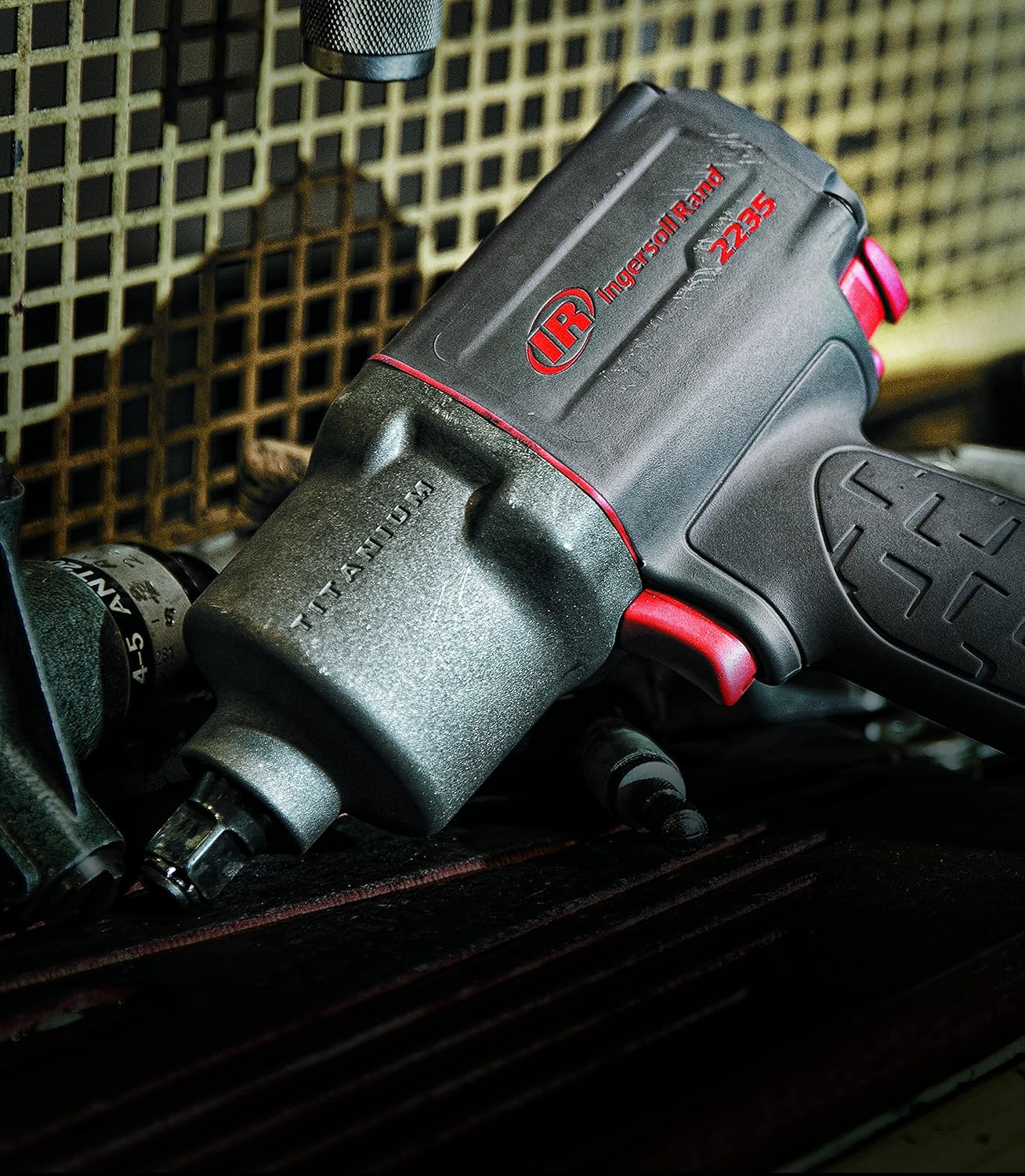

The Ingersoll Rand 2235QXPA is a powerful and durable 1/2-inch air impact wrench designed for professional applications. Key features include:

• Max Power: Delivers up to 1,220 Nm of maximum reverse torque and 1,760 Nm of nut-busting torque for challenging fastening tasks.
• Max Durability: Constructed with a rugged composite housing and steel wear plate to withstand harsh working conditions, drops, and chemical exposure.
• Lightweight Design: Weighs approximately 2.1 kg, providing an excellent power-to-weight ratio and reducing user fatigue during extended operation.
• Ultra-Quiet Operation: Incorporates Ingersoll Rand's Quiet Technology to minimize sound levels without compromising performance, enhancing comfort in the workplace.
• Smooth Operation: Features a powerful twin-hammer mechanism for consistent power and controlled impact.

3. Specifications

4. Setup

Before operating the Ingersoll Rand 2235QXPA, ensure proper setup of your air supply system.

4.1 Air Supply Requirements

• Air Pressure: The tool operates optimally within a specified air pressure range. Refer to the tool's label or technical data for the exact recommended operating pressure (typically 90 psi / 6.2 bar).
• Air Hose: Use an air hose with an adequate internal diameter to ensure sufficient airflow to the tool. An undersized hose can restrict performance.
• Air Compressor: Ensure your air compressor can provide the required CFM (Cubic Feet per Minute) at the recommended pressure for continuous operation.
• Air Filter/Lubricator: Install an air filter to remove moisture and debris from the air supply. A lubricator is recommended to provide continuous lubrication to the tool's internal components.

4.2 Connecting the Tool

1. Ensure the air compressor is turned off and the air line is depressurized.
2. Apply a few drops of pneumatic tool oil into the air inlet of the impact wrench.
3. Attach a quick-connect coupler to the air inlet of the tool.
4. Connect the air hose from your air supply system to the quick-connect coupler on the tool.
5. Turn on the air compressor and adjust the regulator to the recommended operating pressure.

5. Operating Instructions

5.1 Safety Precautions

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and gloves.
• Ensure the workpiece is securely fastened before applying torque.
• Keep hands and loose clothing away from rotating parts.
• Never point the tool at yourself or others.
• Disconnect the air supply before changing accessories or performing maintenance.

5.2 Basic Operation

1. Attach Socket: Select the correct size impact-grade socket and firmly attach it to the 1/2-inch square drive anvil.
2. Direction Control: The 2235QXPA features a forward/reverse selector. Adjust the selector to the desired direction (tighten or loosen).
3. Power/Torque Adjustment: This model typically includes a power regulator or multiple power settings. Adjust the power setting as needed for the application. Start with a lower setting and increase if more torque is required.
4. Apply Tool: Place the socket onto the fastener.
5. Engage Trigger: Press the trigger to operate the tool. The tool will deliver impacts to tighten or loosen the fastener.
6. Release Trigger: Release the trigger to stop the tool.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Ingersoll Rand 2235QXPA impact wrench.

6.1 Daily Maintenance

• Lubrication: Apply 5-10 drops of pneumatic tool oil into the air inlet before and after each use, or if an in-line lubricator is not used.
• Cleanliness: Wipe down the tool with a clean cloth to remove dirt, grease, and debris. Keep the air inlet screen clear.

6.2 Periodic Maintenance

• Air Filter: Regularly check and clean or replace the air filter in your air supply system to prevent contaminants from entering the tool.
• Hose and Fittings: Inspect air hoses and fittings for wear, leaks, or damage. Replace any compromised components.
• Anvil Inspection: Check the square drive anvil for wear or damage. Replace if necessary to ensure proper socket retention.

6.3 Storage

When not in use, store the impact wrench in a clean, dry environment. Disconnect it from the air supply and store it in its original packaging or a protective case.

7. Troubleshooting

This section addresses common issues you might encounter with your Ingersoll Rand 2235QXPA impact wrench.

For issues not listed here or if solutions do not resolve the problem, please contact Ingersoll Rand customer support or an authorized service center.

8. Warranty and Support

8.1 Warranty Information

Ingersoll Rand products are manufactured to high-quality standards and are backed by a limited warranty. Specific warranty terms and conditions may vary by region and product. Please refer to the warranty card included with your product or visit the official Ingersoll Rand website for detailed warranty information.

8.2 Customer Support

For technical assistance, service, or parts inquiries, please contact Ingersoll Rand customer support. Contact details can typically be found on the product packaging, the official website, or through your local distributor.

Manufacturer contact: cxfmtindia@irco.com
