1. Introduction
This manual provides comprehensive instructions for the Generic HA-602 replacement remote control, designed specifically for various Kenmore Air Conditioner models. Please read this manual carefully before use to ensure proper operation and compatibility.
2. Compatibility
The HA-602 remote control is designed to replace original Kenmore air conditioner remote controls with part numbers:
- 309342603
- 309342606
- 309342608
It is compatible with the following Kenmore Air Conditioner models:
- 253.70069000, 253.70186000, 253.71055009, 253.72175, 253.73229301
- 253.70069001, 253.70186001, 253.71055010, 253.72175200, 253.73259
- 253.70069002, 253.70229000, 253.71055011, 253.72229, 253.73259300
- 253.70088000, 253.70229001, 253.71069101, 253.72229200, 253.73259301
- 253.70088001, 253.70259000, 253.71156100, 253.72259200, 253.74106300
- 253.70088002, 253.70299000, 253.72106100, 253.73106200, 253.74106301
- 253.70088003, 253.71055000, 253.74131400, 253.73299, 253.74299
- 253.70106000, 253.71055001, 253.74131401, 253.73299200, 253.74299300
- 253.70106001, 253.71055002, 253.74131402, 253.73055300, 253.74299301
- 253.70125000, 253.71055003, 253.74131403, 253.73055301, 253.75088300
- 253.70125001, 253.71055004, 253.72055200, 253.73125301, 253.75088301
- 253.70125002, 253.71055005, 253.72055201, 253.73156301
- 253.70125003, 253.71055006, 253.72088200, 253.73185300
- 253.70135000, 253.71055007, 253.72115200, 253.73229
- 253.70156000, 253.71055008, 253.72156200, 253.73229300
Important: This is not a universal remote control. Please compare your original remote control with the images provided in this manual to ensure visual similarity and compatibility before use.
3. Setup: Battery Installation
The HA-602 remote control requires batteries for operation. Batteries are not included with the remote control.
- Locate the battery compartment cover on the back of the remote control.
- Slide or unclip the cover to open the compartment.
- Insert two AAA batteries (not included), ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Replace the battery compartment cover, ensuring it clicks securely into place.
Note: Always use new batteries and dispose of old batteries responsibly.
4. Operating Instructions
This section details the functions of each button on the HA-602 remote control.
- Power Button (⏻): Turns the air conditioner ON or OFF.
- Fan Slower (◀): Decreases the fan speed.
- Fan Faster (▶): Increases the fan speed.
- Cool: Activates the cooling mode.
- Fan Only: Operates the air conditioner in fan-only mode, without cooling.
- Auto Fan: Sets the fan speed to adjust automatically based on room temperature.
- Temp/Timer (▲ / ▼): Adjusts the temperature setting or sets the timer function. Use the up/down arrows to change values.
- Energy Saver: Activates the energy-saving mode, which may cycle the compressor and fan to reduce power consumption.
- Sleep: Engages the sleep mode, which typically adjusts temperature and fan speed for comfortable sleep and energy efficiency.
- Timer: Initiates or adjusts the timer function for scheduled ON/OFF operations.
Note: Specific functions may vary slightly depending on your Kenmore Air Conditioner model.
5. Troubleshooting
If your HA-602 remote control is not functioning as expected, consider the following:
- No Response from AC Unit:
- Ensure batteries are correctly installed with proper polarity (+/-).
- Replace old batteries with new ones.
- Check for any obstructions between the remote control and the air conditioner's receiver.
- Ensure you are within the effective range of the air conditioner.
- Incorrect Functionality:
- Verify that your Kenmore Air Conditioner model is listed in the compatibility section (Section 2).

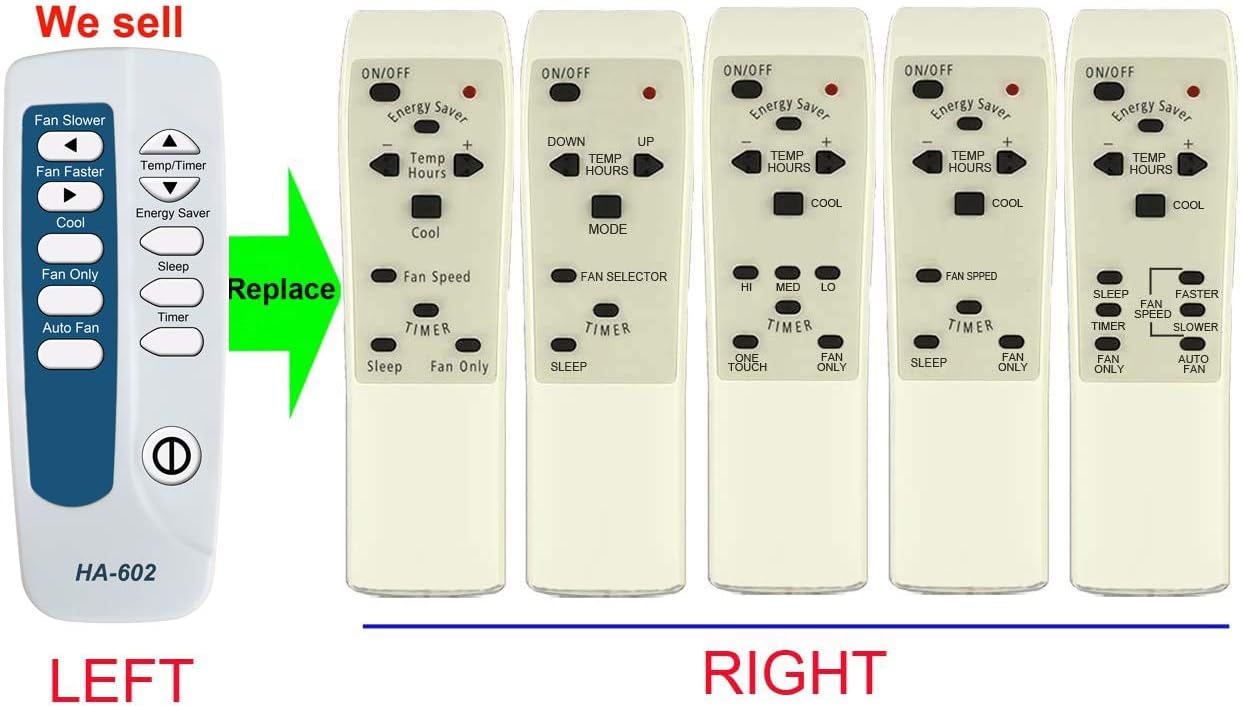

- Confirm that your original remote control closely matches the appearance of the HA-602 remote as shown in Figure 1. This remote is not universal.
6. Specifications
| Feature | Detail |
|---|---|
| Model | HA-602 |
| Brand | Generic |
| Compatible Devices | Kenmore Air Conditioners (specific models listed in Section 2) |
| Max Number of Supported Devices | 1 |
| Special Feature | Ergonomic design |
| Power Source | 2 x AAA Batteries (not included) |
| Package Dimensions | 3.15 x 1.57 x 0.39 inches |
| Item Weight | 5.3 ounces |
| Manufacturer | Home Appliances Inc Of ShenZhen |
7. Important Notes
- Batteries are not included with this remote control.
- This remote control is a replacement for specific Kenmore Air Conditioner models and is not a universal remote.
- Always verify compatibility by comparing your original remote with the images and model numbers provided before use.
- For optimal performance, ensure a clear line of sight between the remote control and the air conditioner.
8. Support
For further assistance or inquiries regarding the HA-602 remote control, please refer to the seller's contact information on your purchase platform. Ensure you have your product details and Kenmore Air Conditioner model number ready.
