Westclox Dual Alarm FM Clock Radio User Manual

Product Overview

The Westclox Dual Alarm FM Clock Radio is designed for modern convenience and ease of use, making it an ideal companion for your bedside. It features a clear 0.6-inch red LED display with adjustable brightness for comfortable viewing in any light conditions. This clock radio offers dual alarm functionality, allowing you to set two distinct wake-up times, and includes a convenient snooze button for extra rest. Enjoy your favorite FM radio stations with digital tuning and memory for up to 20 presets. Additional features include a sleep function for falling asleep to radio sounds and a wake-to-radio option. For reliability, it includes a battery backup system to preserve settings during power outages.

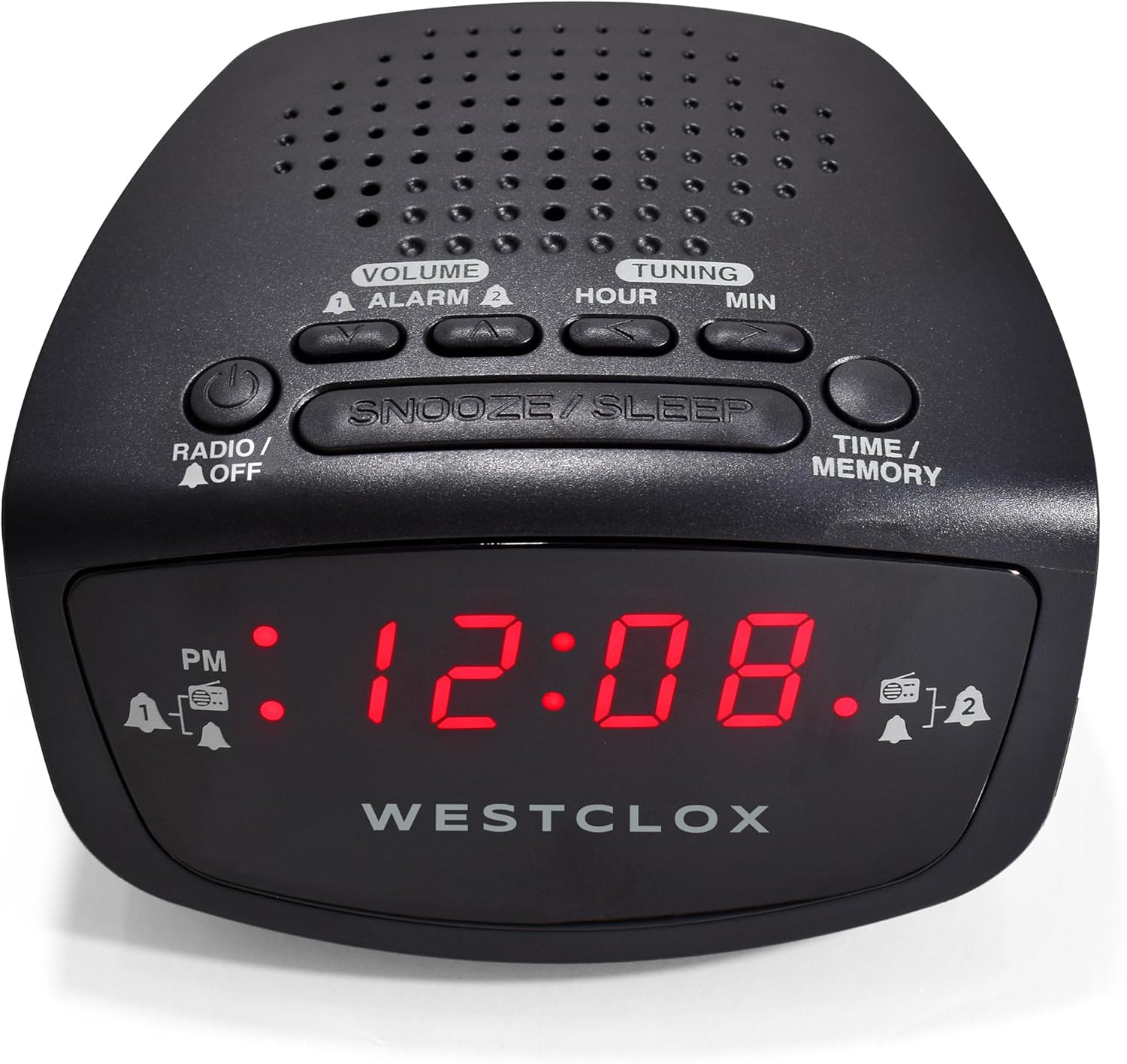

Front view of the Westclox Dual Alarm FM Clock Radio, displaying 12:08 PM in red LED digits. The clock is black with a sleek design.

Key Features

• 0.6-inch Red LED Display: Clear and bright display with adjustable brightness (Hi/Lo) for optimal visibility without disturbing sleep.
• Dual Alarm Function: Set two independent alarms for different wake-up times.
• Snooze Button: Provides extra minutes of sleep before the alarm sounds again.
• FM Digital Radio: Features digital tuning with memory for up to 20 preset stations.
• Sleep Function: Allows you to fall asleep to the radio, which will automatically turn off after a set period.
• Wake-to-Radio Option: Wake up to your preferred FM radio station.
• Battery Backup: Requires 2 AAA batteries (not included) to maintain time and alarm settings during power outages.
• Electric Powered: Includes a USB power cord (adapter not included) for convenient power.

Setup Guide

1. Power Connection

1. Connect the provided USB power cord to the clock radio.
2. Plug the USB power cord into a compatible USB power adapter (not included) and then into a wall outlet.
3. The LED display will light up, indicating the unit is powered on.

2. Battery Backup Installation

The battery backup feature ensures that your time and alarm settings are retained in case of a power interruption. This unit requires 2 AAA batteries (not included).

1. Locate the battery compartment on the bottom of the clock radio.
2. Open the battery compartment cover.
3. Insert 2 new AAA batteries, ensuring correct polarity (+ and -).
4. Close the battery compartment cover securely.

The clock radio features a battery backup system, requiring 2 AAA batteries (not included), to maintain settings during power outages.

3. Setting the Time

1. Press and hold the TIME/MEMORY button until the display flashes.
2. Press the HOUR button to adjust the hour. Pay attention to the PM indicator.
3. Press the MIN button to adjust the minute.
4. Press the TIME/MEMORY button again to confirm and save the time.

Operating Instructions

1. Setting Alarms (Alarm 1 and Alarm 2)

This clock radio allows you to set two independent alarms.

1. Press and hold the ALARM 1 or ALARM 2 button until the alarm time flashes.
2. Press the HOUR button to adjust the alarm hour.
3. Press the MIN button to adjust the alarm minute.
4. Press the ALARM 1 or ALARM 2 button again to confirm the alarm time.
5. To activate the alarm, press the ALARM 1 or ALARM 2 button repeatedly to cycle through alarm modes: OFF, BUZZER, or RADIO. The corresponding alarm indicator (bell icon) will light up on the display.

Top view of the clock radio, highlighting the control buttons for setting time, alarms, and radio functions.

2. Snooze Function

When the alarm sounds, press the large SNOOZE/SLEEP button to temporarily silence the alarm for approximately 9 minutes. The alarm will sound again after the snooze period.

3. Turning Off the Alarm

To turn off the alarm completely, press the corresponding ALARM 1 or ALARM 2 button until the alarm indicator (bell icon) disappears from the display.

4. FM Radio Operation

1. Press the RADIO/OFF button to turn on the FM radio.
2. Press the TUNING HOUR or TUNING MIN buttons to manually tune to your desired FM station.
3. To automatically scan for the next available station, press and hold the TUNING HOUR or TUNING MIN buttons.
4. Adjust the volume using the VOLUME ALARM 1 or VOLUME ALARM 2 buttons.
5. To turn off the radio, press the RADIO/OFF button.

5. Saving Radio Presets

You can save up to 20 FM radio stations as presets.

1. Tune to the desired FM station.
2. Press and hold the TIME/MEMORY button until the preset number flashes.
3. Use the TUNING HOUR or TUNING MIN buttons to select the desired preset number (1-20).
4. Press the TIME/MEMORY button again to save the station to the selected preset.
5. To recall a preset station, briefly press the TIME/MEMORY button repeatedly to cycle through your saved presets.

6. Sleep Function

The sleep function allows you to fall asleep to the radio, which will automatically turn off after a set duration.

1. While the radio is playing, press the SNOOZE/SLEEP button repeatedly to cycle through sleep timer options (e.g., 90, 60, 30, 15 minutes, OFF).
2. The radio will play for the selected duration and then automatically turn off.

7. Display Brightness Adjustment

To adjust the brightness of the LED display, press the BRIGHTNESS button (if available, otherwise it might be integrated with other buttons or automatic). The display has Hi and Lo settings.

Maintenance

Cleaning the Unit

• Before cleaning, ensure the clock radio is unplugged from the power outlet.
• Use a soft, dry cloth to wipe the exterior surfaces.
• Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
• Avoid getting liquids into the unit's openings.

Battery Replacement

• Replace the AAA backup batteries annually or when the display shows signs of dimming during a power outage.
• Follow the battery installation steps outlined in the "Setup Guide" section.
• Dispose of old batteries responsibly according to local regulations.

Troubleshooting

Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Westclox website. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, you may contact Westclox customer service through their official channels.
